John Guest

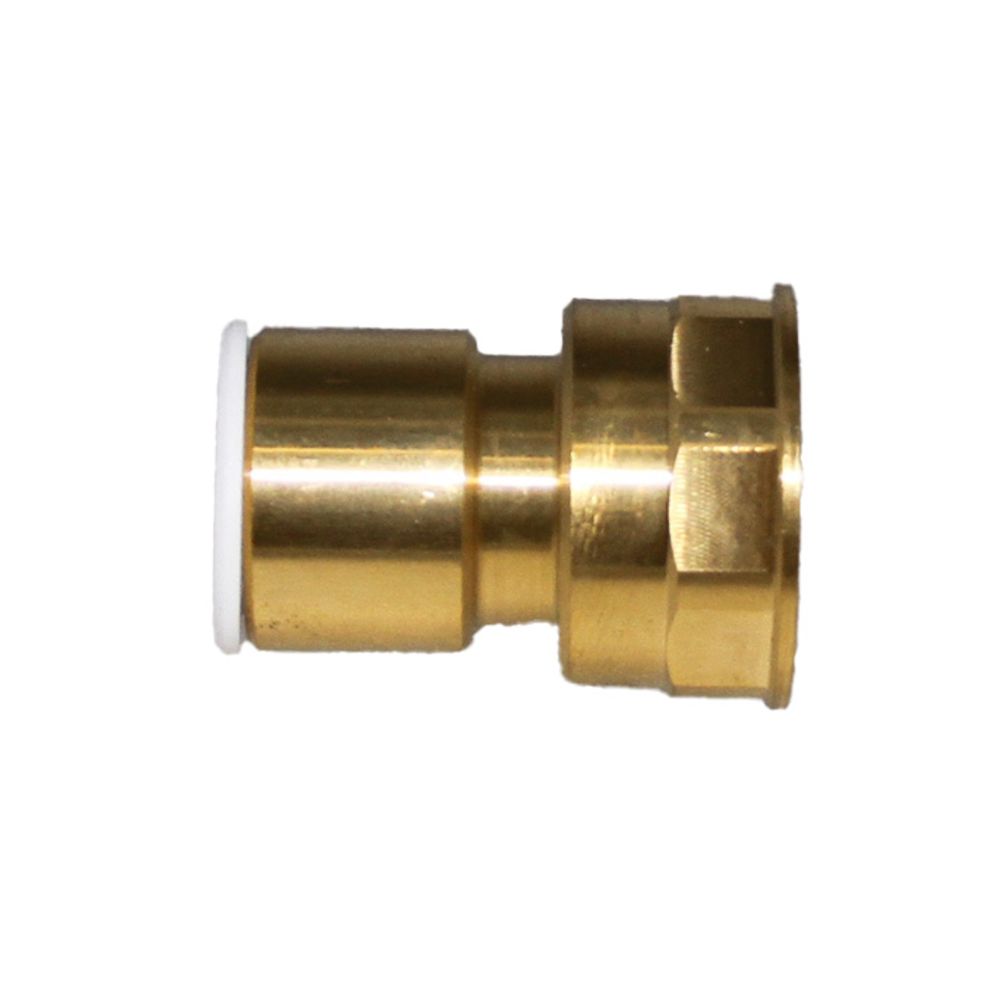

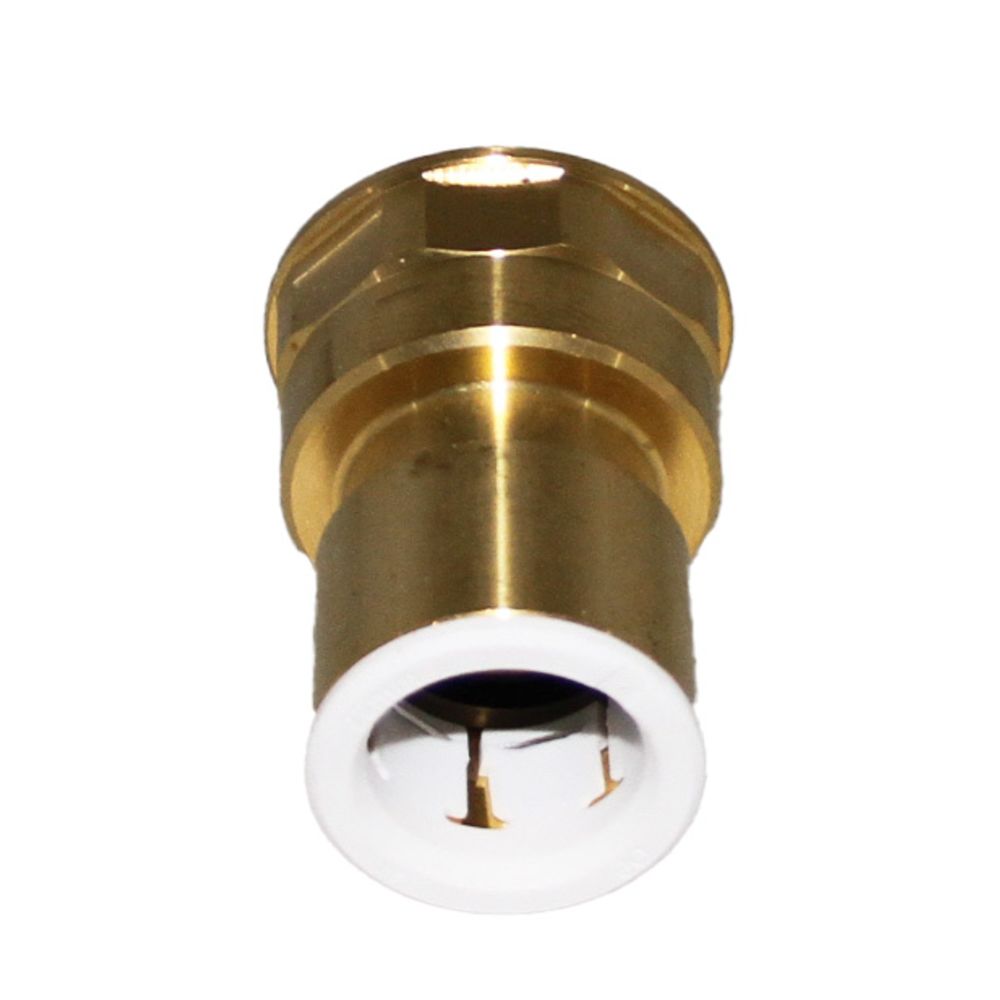

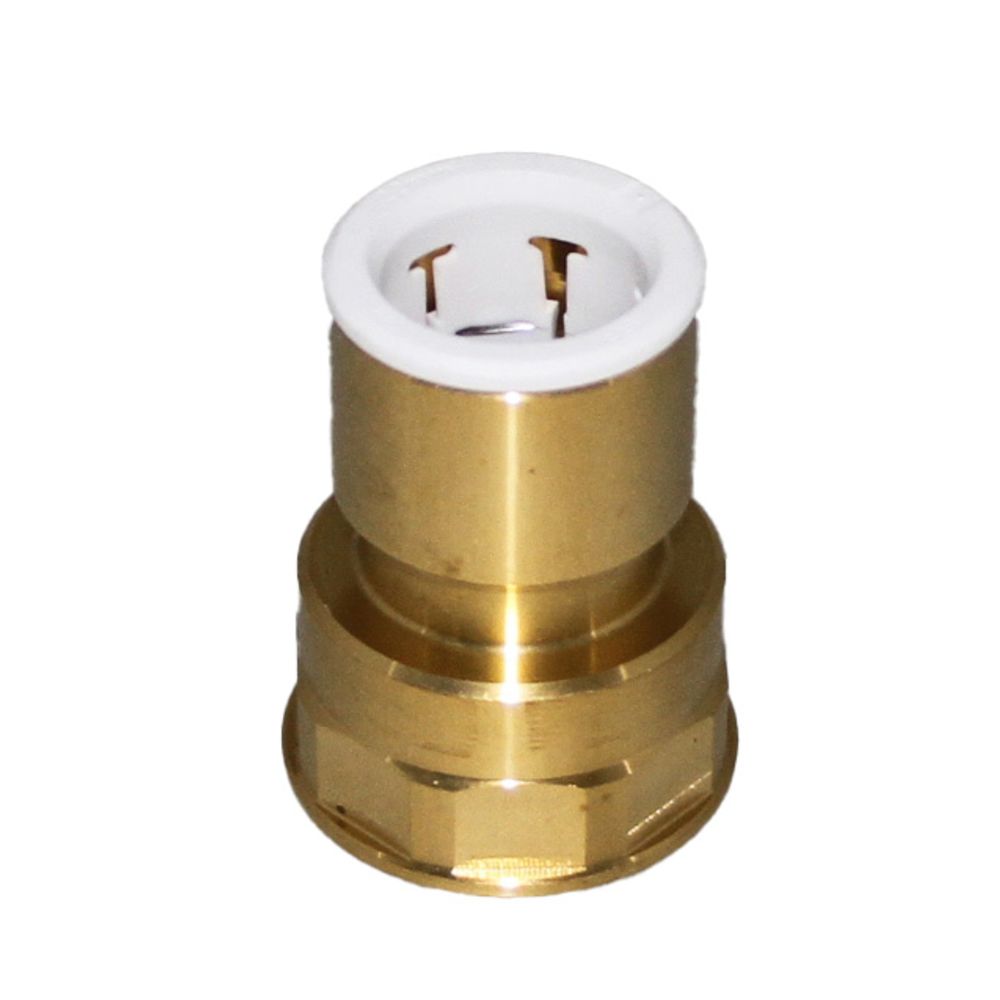

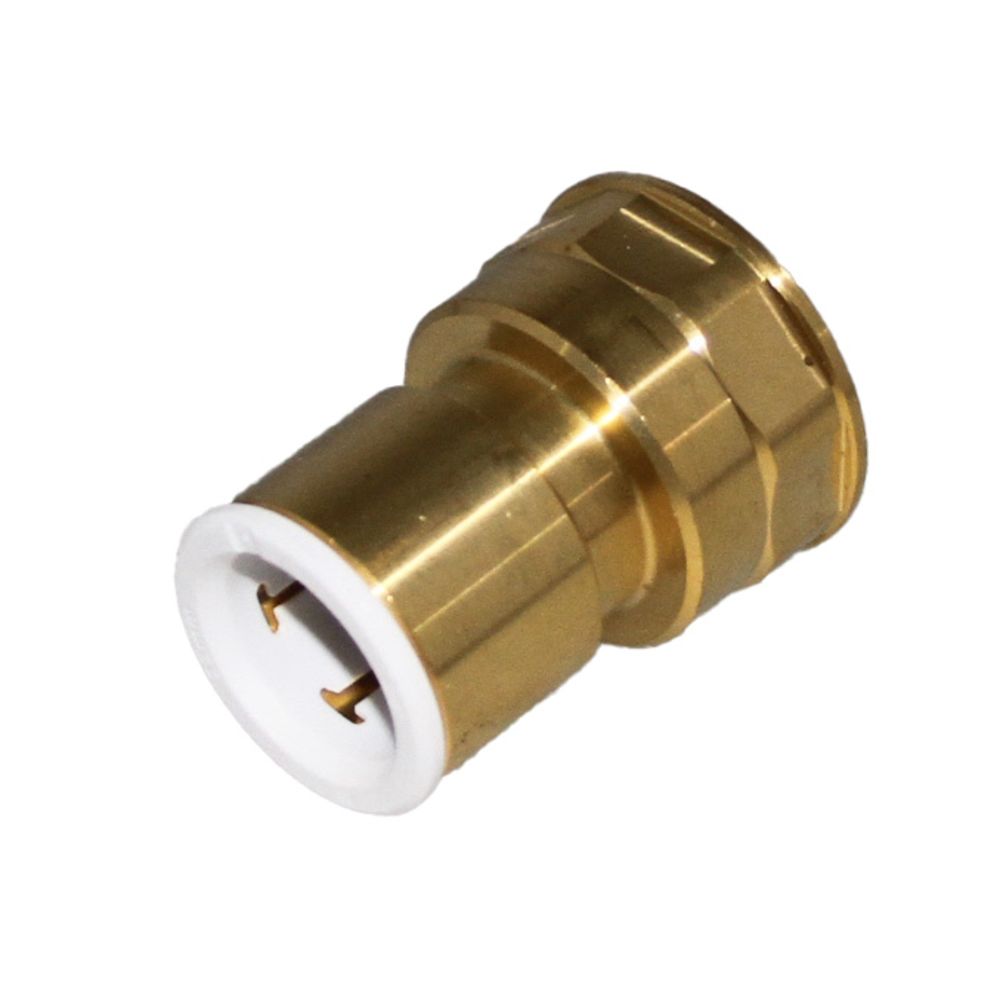

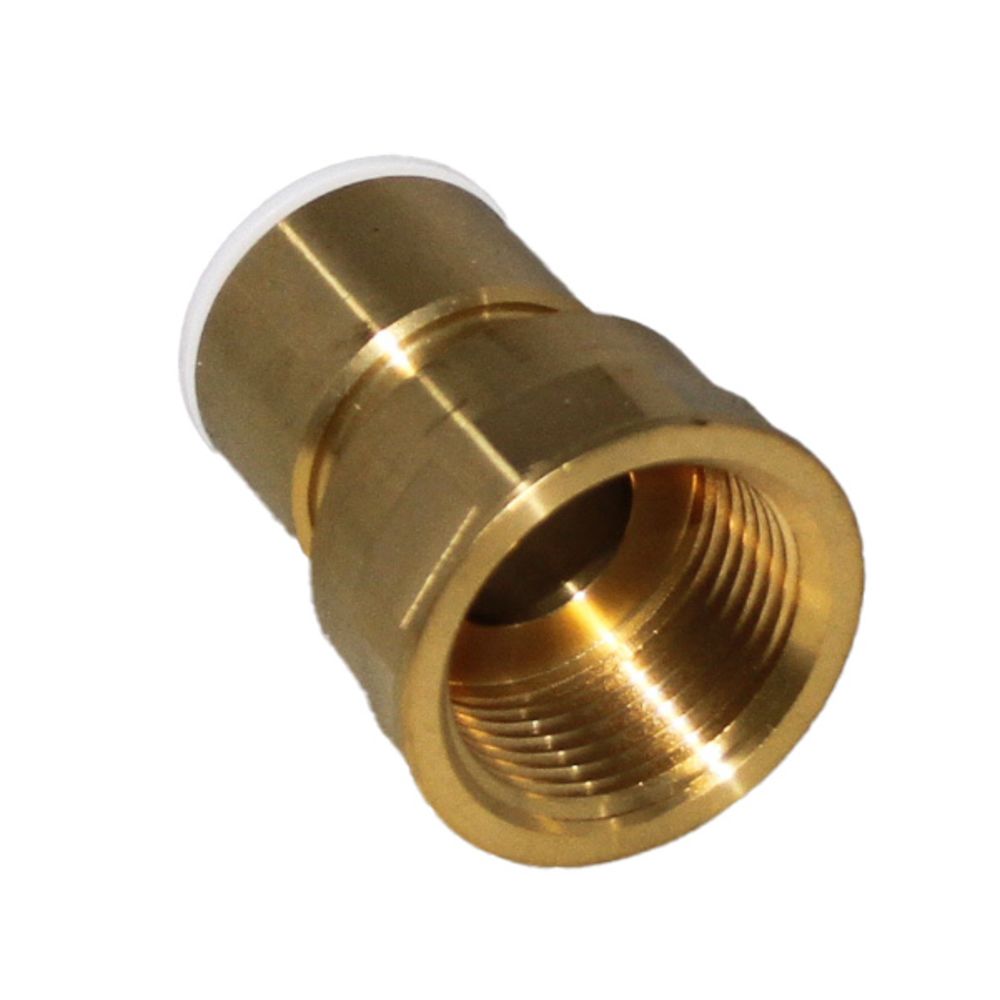

John Guest Lead Free Brass Flare Female Connector - 3/8 x 3/8 FFL

Part Number: MI4512F6SLF

In Stock

out of stock

In Stock

$7.85

Features:
  • 3/8" quick connect x 3/8" female flare
  • Push-fit technology for quick disconnects
  • Connect and disconnect tubing without the use of tools
  • Manufactured in brass with a polypropylene collet
  • Food grade EPDM o-ring
  • Suitable for use in coffee, brewing, and vending machine applications




Weight & Dimensions

Length (inches)

1.25

Height (inches)

0.63

Width (inches)

0.75

Weight (lbs)

0.003125

Details

Series

Brass

Max Temp (°F)

150

Max Pressure (Psi)

145

Min Temp (°F)

-4

Min Pressure (Psi)

0

Push-In Size

3/8" OD

Application

Water, Food, Beverage

Bag Quantity

10

Body Material

Brass

Box Quantity

100

Color / Finish

Brass

Mounting Options

Thread

Origin

UK

Seal Material

EPDM

Size

3/8"

Inlet/Outlet Connection

3/8" Flare

Warranty & Certifications

Certifications

NSF 61, FDA Approved, NSF 372



Features:
  • 3/8" quick connect x 3/8" female flare
  • Push-fit technology for quick disconnects
  • Connect and disconnect tubing without the use of tools
  • Manufactured in brass with a polypropylene collet
  • Food grade EPDM o-ring
  • Suitable for use in coffee, brewing, and vending machine applications



California residents
see Prop 65 warnings WARNING!
This product contains arsenic known to the State of California to cause cancer and birth defects or other reproductive harm.
.

Weight & Dimensions

Length (inches)

1.25

Height (inches)

0.63

Width (inches)

0.75

Weight (lbs)

0.003125

Details

Series

Brass

Max Temp (°F)

150

Max Pressure (Psi)

145

Min Temp (°F)

-4

Min Pressure (Psi)

0

Push-In Size

3/8" OD

Application

Water, Food, Beverage

Bag Quantity

10

Body Material

Brass

Box Quantity

100

Color / Finish

Brass

Mounting Options

Thread

Origin

UK

Seal Material

EPDM

Size

3/8"

Inlet/Outlet Connection

3/8" Flare

Warranty & Certifications

Certifications

NSF 61, FDA Approved, NSF 372
