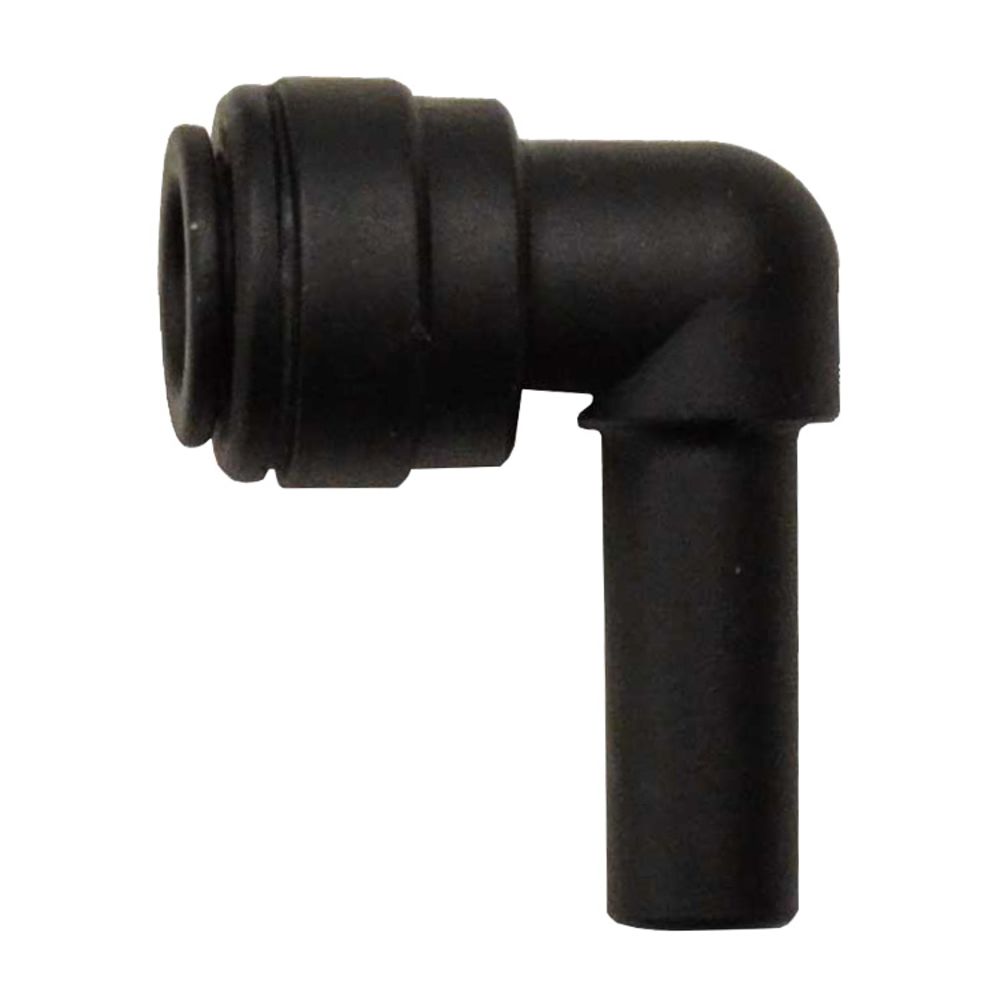

John Guest Stem Elbow Connector Black Polypropylene - 3/8 Stem x 3/8

5.0

(1 reviews)

Part Number: PP221212E Alt. Part Number: PP011224E

1 7

John Guest

John Guest Stem Elbow Connector Black Polypropylene - 3/8 Stem x 3/8

5.0

(1 reviews)

Part Number: PP221212E Alt. Part Number: PP011224E

MSRP: $4.78

$2.87

Quantity

Unit Price

Price

Savings

$2.87

—

$2.57

$25.76

10%

200

$2.50

$500.94

12%

Product variants

You May Also Need

Optional Accessory
Black 3/8" OD LLDPE Polyethylene Tubing

Regular price From $0.20
Optional Accessory
Tube Cutter - Suitable For Up To 1/2" (12mm) Tube

Regular price From $4.99
Optional Accessory
Tubing Clamps (Nylon Loop Clamps) - C-Style For 3/8 OD Tubing

Regular price From $0.15
Optional Accessory
John Guest Collet Release Tool - 1/4, 3/8

Regular price From $2.06
Optional Accessory
John Guest Flow Bend Clip - 3/8

Regular price From $1.27
Optional Accessory
NeoFit - Acetal Locking Clip 3/8"

Regular price From $0.23
Optional Accessory
John Guest Collet Cover - 3/8 OD

Regular price From $0.30
Optional Accessory
John Guest Pipe Insert / Tube Support - 5/16" CTS

Regular price From $0.19
Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest stem elbows make connecting OD tubing sizes quick and easy. The stem inserts into John Guest Push-fit fittings to change tubing direction 90 degrees. Manufactured in polypropylene with food grade EDPM O-ring, these fittings were developed for the water purification and beverage dispense markets. They are also suitable for use in agricultural spraying, farm/dairy equipment, chemical dispense, car washing and a variety of other applications.

Features:

Push-fit Technology creates reliable, leak-free connections
Used to turn tubing direction 90 degrees
Compatible with plastic or copper OD sized tubing
Connect, disconnect, and reconnect in seconds without tools
Food Quality and suitable for potable liquids and pure water applications
Polypropylene body with EDPM O-ring
UV Stabilized
Made with lead free materials

Working pressure and temperature:

Max. 150 psi at 70° F
Max. 60 psi at 140° F

Note: Not suitable for compressed air and vacuum applications

Polypropylene (PP) fittings are for water only. Material is too soft and seal is EPDM for compressed air applications.

View Prop 65 Warning

Specifications

Product Details
Max Pressure (Psi)	150
Max Temp (°F)	140°F
Min Temp (°F)	33°F
Push-In Size	3/8" OD
Series	PP
Shape	Elbow
Stem Size	3/8" OD
Color / Finish	Black
Origin	UK
Sub-Type	Tube to Stem Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	1 Year
Shipping Dimensions
Shipping Length	1.531 in.
Shipping Width	0.78 in.
Shipping Height	1.236 in.
Product Weight & Dimensions
Product Height	1.236 in.
Product Length	1.531 in.
Product Width	0.78 in.
Product Weight (lbs)	0.0112

Product Details
Max Pressure (Psi)	150
Max Temp (°F)	140°F
Min Temp (°F)	33°F
Push-In Size	3/8" OD
Series	PP
Shape	Elbow
Stem Size	3/8" OD
Color / Finish	Black
Origin	UK
Sub-Type	Tube to Stem Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	1 Year
Shipping Dimensions
Shipping Length	5.118 in.
Shipping Width	1.575 in.
Shipping Height	7.087 in.
Product Weight & Dimensions
Product Weight (lbs)	0.121

Product Details
Max Pressure (Psi)	150
Max Temp (°F)	140°F
Min Temp (°F)	33°F
Push-In Size	3/8" OD
Series	PP
Shape	Elbow
Stem Size	3/8" OD
Color / Finish	Black
Origin	UK
Sub-Type	Tube to Stem Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	1 Year
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	4.134 in.
Product Weight & Dimensions
Product Weight (lbs)	2.863

Downloads

John Guest Stem Elbow Connector Black Polypropylene - 3/8 Stem x 3/8 Manual
