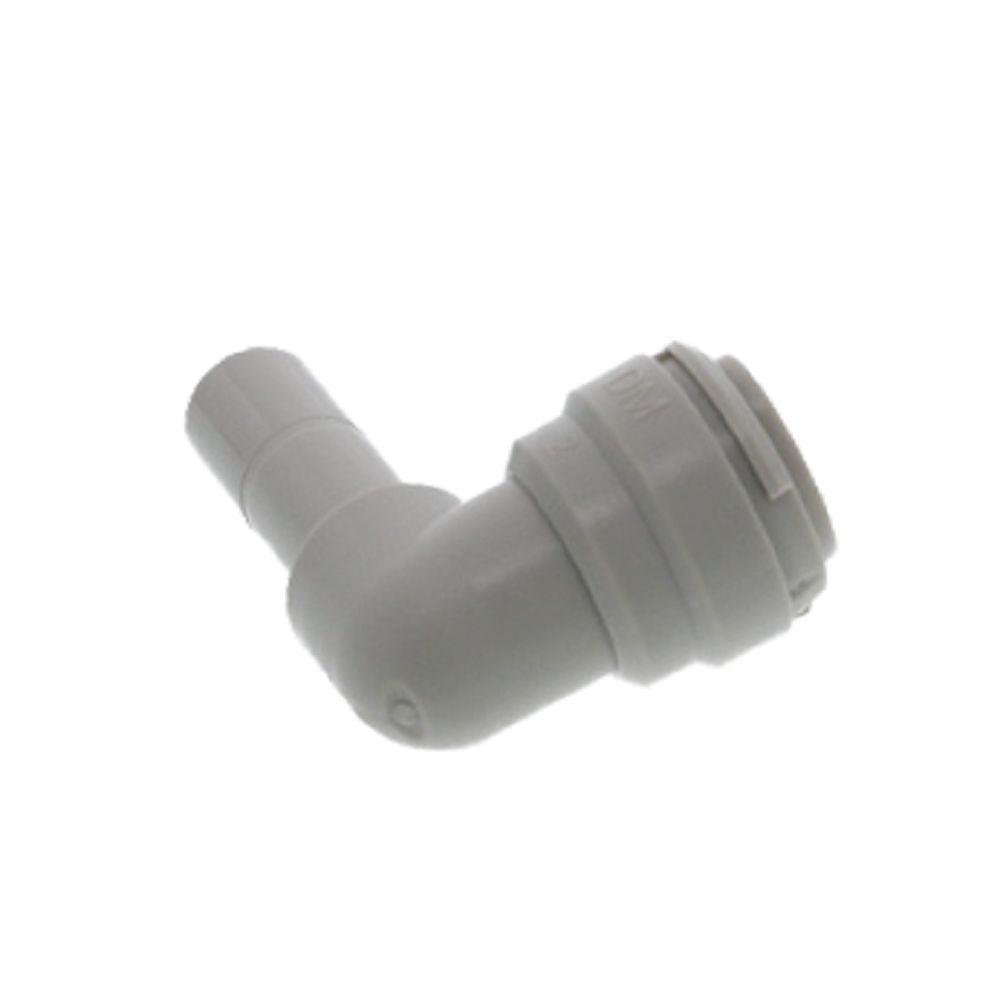

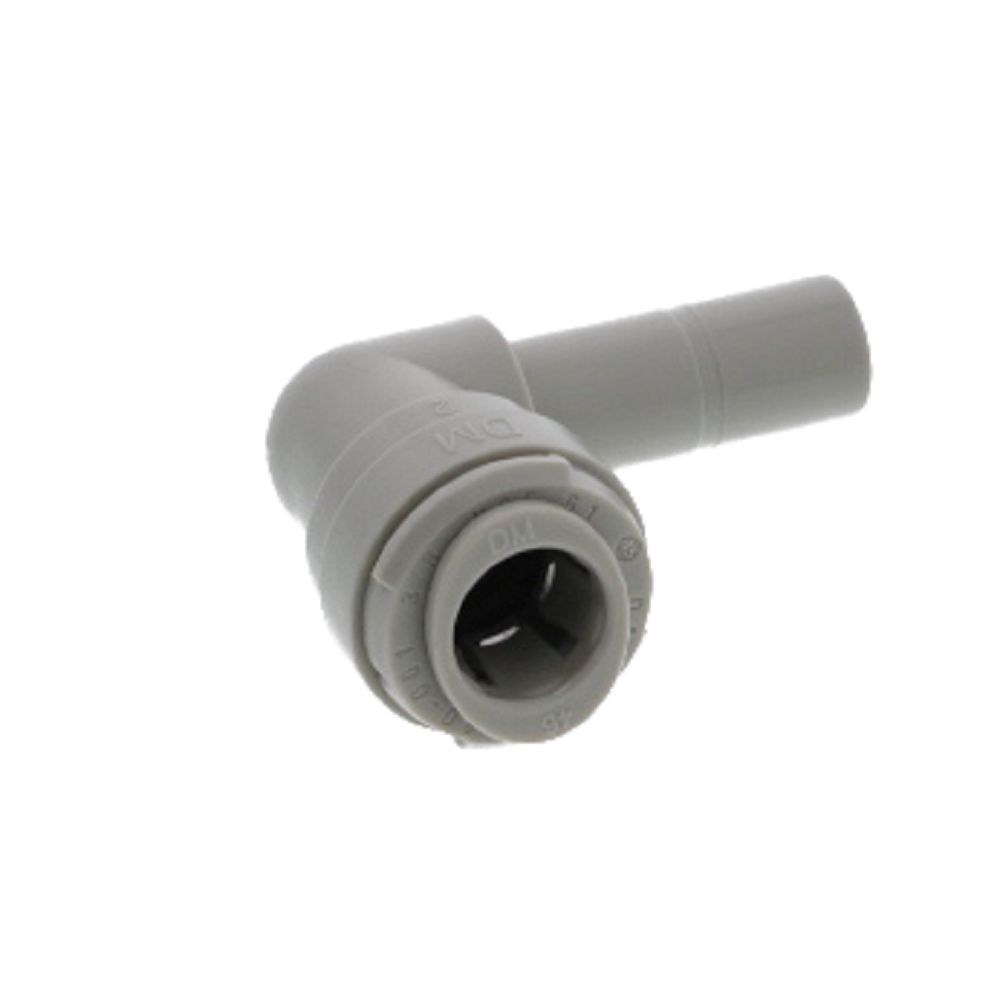

NeoFit - Acetal Gray Stem Elbow- 3/8"tube OD x 3/8"stem

The NeoFit stem elbow connectors are used to connect OD tubing sizes. The stem inserts into push to fit fittings to change tubing direction 90 degrees. Manufactured in acetal with food grade EPDM O-ring, these fittings were design for water, beverage, and food applications. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.

Features:

Used to change tubing direction 90 degrees
Compatible with plastic or copper OD sized tubing
Connect, disconnect, and reconnect quickly
Food Quality and suitable for potable liquids and pure water applications
Can be used for air/pneumatic & vacuum applications
Acetal body with food grade EPDM O-Ring
NSF 51 & 61 Certified

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Acetal
Max Pressure (Psi)	Max. 170 psi at 33° F Max. 170 psi at 68° F Max. 100 psi at 150° F
O-Rings	EPDM
Push-In Size	3/8" OD
Stem Size	3/8"
Color / Finish	Gray
Sub-Type	Tube to Stem Elbow
Type	Elbow
Warranty & Certifications
Certifications	NSF 51 & 61, FDA Approved Materials, NSF 51
