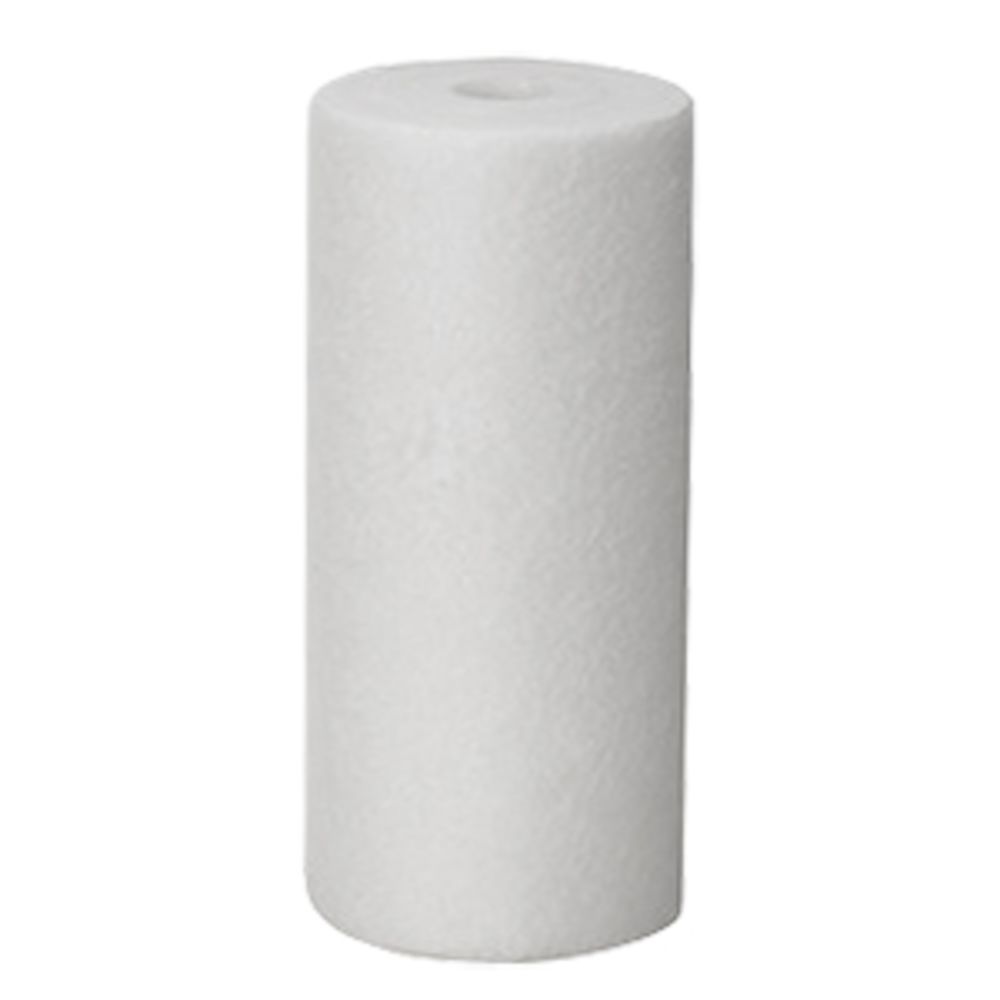

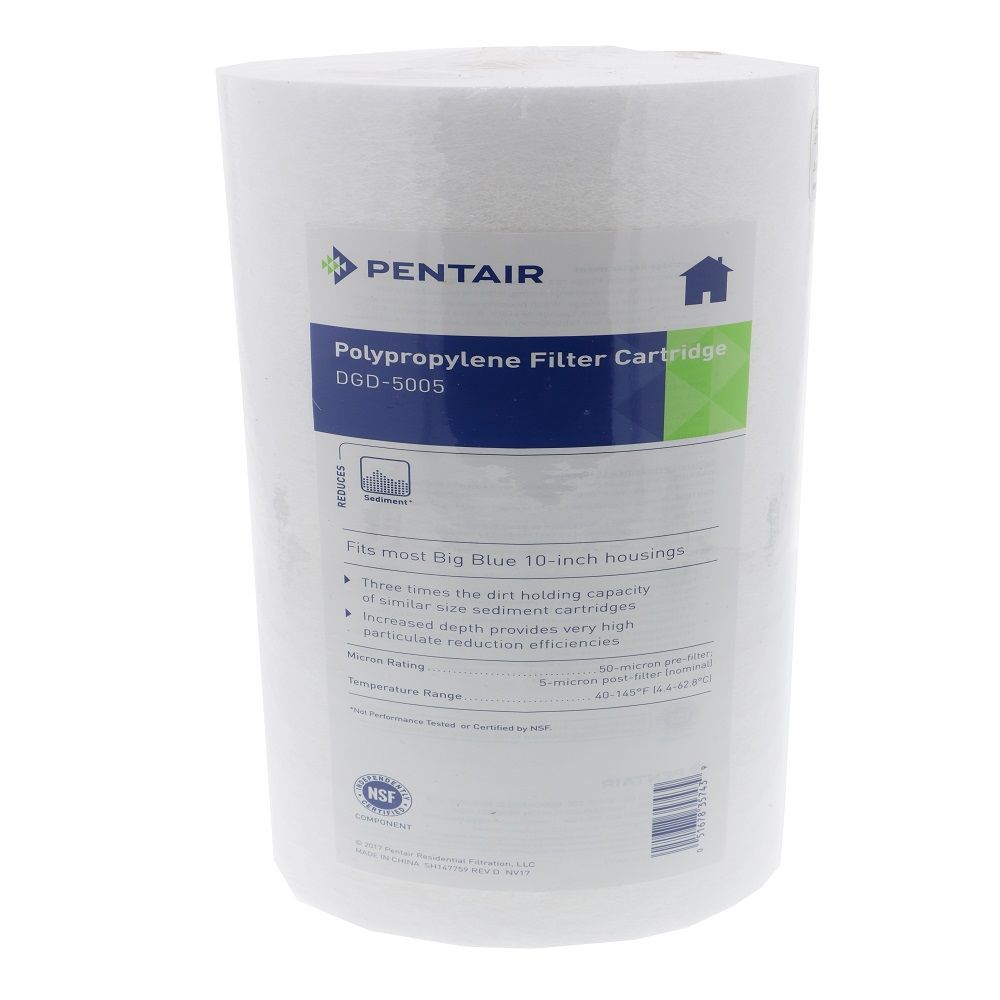

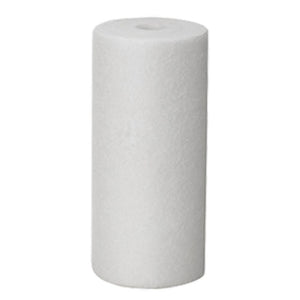

Pentair 10" BB Graded Density Polypropylene Sediment Filter 50/5 mic

5.0
(4 reviews)
Part Number: 155357-43 Alt. Part Number: DGD-5005, SGD-45-1001, MB-45098-05

Pentair 10" BB Graded Density Polypropylene Sediment Filter 50/5 mic

5.0
(4 reviews)
Part Number: 155357-43 Alt. Part Number: DGD-5005, SGD-45-1001, MB-45098-05
MSRP: $24.29
Regular price $19.43
Quantity
Unit Price
Price
Savings

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Pentair DGD Series Cartridges are designed for use in the Pentair/Pentek Big Blue Filter Housings. These 100% pure polypropylene filters provide superior chemical resistance and stop bacterial attacks. Pentair Dual Gradient Density (DGD) filters will not add taste, odor, or color to the liquid being filtered. These filters can be used in either a pre or post filtration application since they achieve up to 3 times the dirt holding capacity of similar sediment filters. The 155357-43 features a larger diameter, which reduces the particle load allowing it to operate at higher velocities. The increased depth of the DGD Series provides very high particulate reduction efficiencies and added loading capacity.

Features:
  • Ideal For a Variety of Applications. The design and performance characteristics of the DGD Series Cartridges make them an excellent choice for all residential, rural, municipal and commercial applications.
  • All in One Design. The Pentair DGD Series Cartridges are a Dual Gradient Density Filter work as a pre and post filter all in one, eliminating the need for step-down filtration systems in your home.

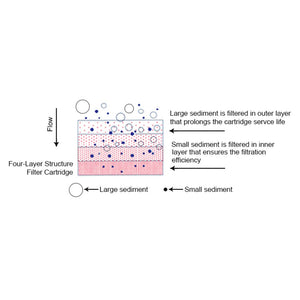

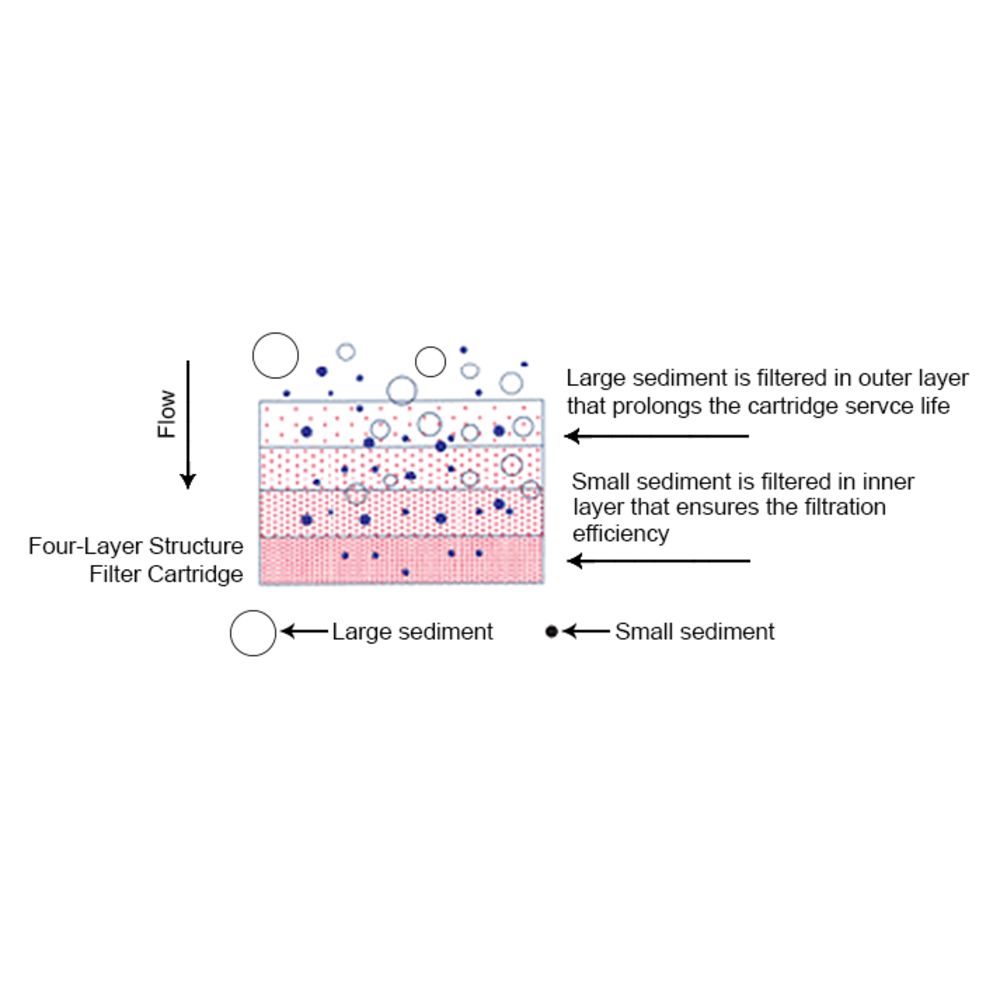

  • Ensures Your Water is Pure and Clean. The outer layer is a 50 micron pre-filter that takes out larger sediment, thus reducing the load on the 5 micron inner-layer post filter allowing it to operate more efficiently and consistently.
Additional Specifications:
  • Length: 10"
  • Diameter: 4-1/2"
  • Micron Rating: Pre 50 μm / Post 5 μm
  • NSF 42 Certified
NOTE: Fits American Plumber, Aqua-Pure, Culligan, Pentek, Ametek and other 10" Big Blue Housings.

Compatible with:
American PlumberWDGD-5005, 155357-51
AXEON Membranes200635
EverpureDEV9108-44, EV9108-44, EV9108-37, EC104, EV910844
Filter SpecialistCMMF05975-45W1
Flexeon200635
HydronixSDC-45-1005
Ideal H2O™738356
LiquatecSDF-45-1005
Replacement Water FiltersAmerican Water Products CMB-510-HF
Shurflo15-052-01, 15-054-01
Valuetrex1227867-V-BB, VX05-10BB
WattsFPMB-BB5-10

Specifications

    Product Details

    Body Material

    Polypropylene

    Initial Pressure Drop

    <1 psi @ 10 gpm (<0.1 bar @ 38 Lpm) PSI Differential

    Max Temp (°F)

    145°F

    Micron Rating (Nominal)

    Post 5 µm

    Min Temp (°F)

    40°F

    Psid@Flow Rate

    < 1 psid @ 10 GPM

    Recommended Flow Rate

    10 GPM

    Cap Material

    Polypropylene

    Cartridge Style

    Drop-in

    Contaminants Reduced

    Sediment/Dirt/Rust

    Diameter

    4-1/2"

    End Cap Type

    Double Open Ended (DOE) - No Cap

    Filter Construction

    Melt Blown

    Filter Type

    Sediment Depth

    Flow Rate

    10 GPM

    Media Type

    Polypropylene

    Micron Rating

    5 µm

    50 µm

    Warranty & Certifications

    Product Certification Standard

    NSF/ANSI 42

    Shipping Dimensions

    Shipping Length

    14 in.

    Shipping Width

    6 in.

    Shipping Height

    6 in.

    Product Weight & Dimensions

    Product Height

    4.375

    Product Length

    9.875

    Product Width

    4.375

    Product Weight (lbs)

    2

Downloads

Pentair 10Pentair 10
