Rusco

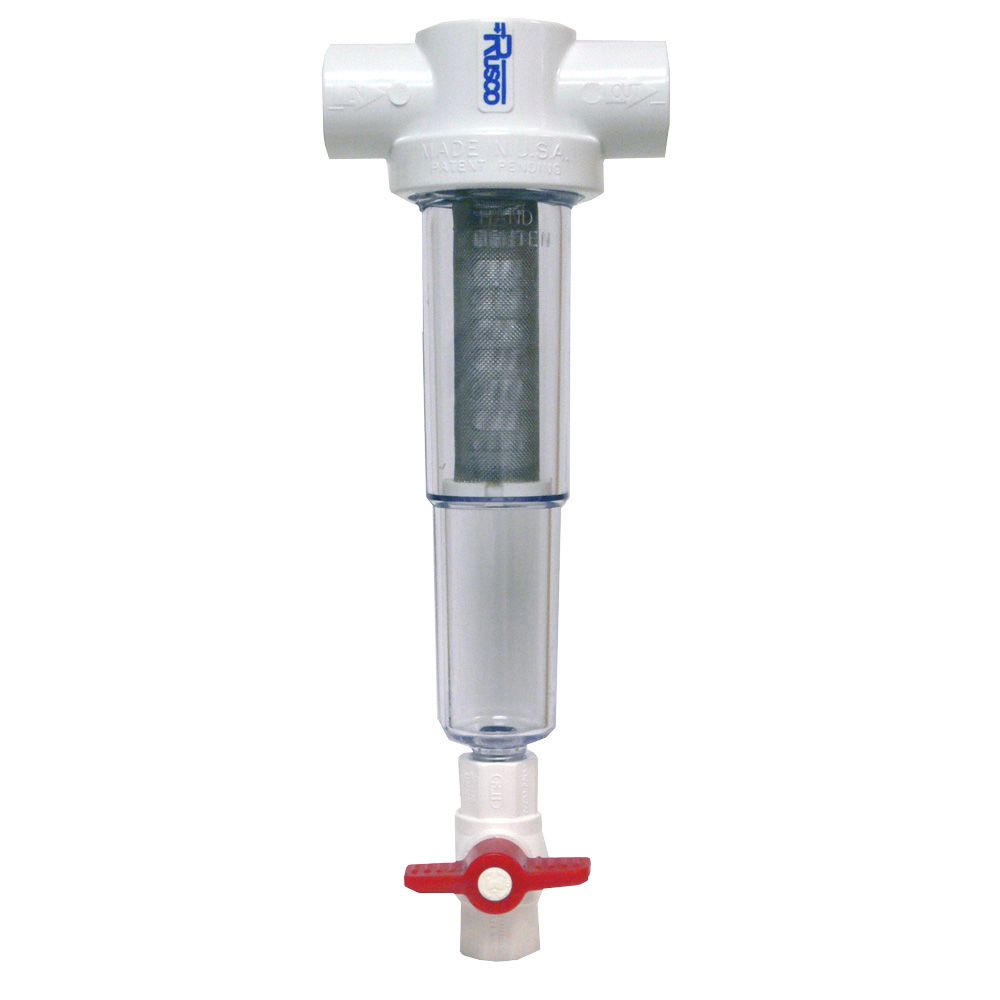

Rusco Sediment Trapper Filter SS Screen T Style 3/4" FPT

Part Number: 3/4-30STSS-F

In Stock

out of stock

In Stock

$60.77

Features:
  • High performance SS (Stainless Steel) sediment trapper
  • Flush valve included
  • Dimensions: 14 3/8" L x 7 1/4" W
  • Size: 3/4" FNPT




Details

Body Material

PVC

Housing Material

High Impact Polymer Resin

Inlet/Outlet Connection

3/4" FPT

Max Pressure (Psi)

150

Max Temp (°F)

100

Mesh Size

30, 60, 100, 140, 200

Micron Rating (Nominal)

533 µm, 254 µm, 152 µm, 104 µm, 74 µm

O-Rings

EPDM

Screen Opening

.021, .010, .006, .004, .0029

Cartridge Style

Sediment Trapper

Connection Type

Female (FPT)

Contaminants Reduced

Sediment/Dirt/Rust

Filter Type

Rusco Spin-Down & Sediment Traps

Flow Rate

1-25 GPM

Housing Resistance

Fresh Water Only

Media Type

Stainless Steel

Micron Rating

533 µm, 254 µm, 152 µm, 104 µm, 74 µm

Port Size

3/4"

Screen Material

Stainless Steel

Sub-Type

T-Style System

Type

Sediment Trapper


Rusco

Rusco

Rusco




Features:
  • High performance SS (Stainless Steel) sediment trapper
  • Flush valve included
  • Dimensions: 14 3/8" L x 7 1/4" W
  • Size: 3/4" FNPT



Details

Body Material

PVC

Housing Material

High Impact Polymer Resin

Inlet/Outlet Connection

3/4" FPT

Max Pressure (Psi)

150

Max Temp (°F)

100

Mesh Size

30, 60, 100, 140, 200

Micron Rating (Nominal)

533 µm, 254 µm, 152 µm, 104 µm, 74 µm

O-Rings

EPDM

Screen Opening

.021, .010, .006, .004, .0029

Cartridge Style

Sediment Trapper

Connection Type

Female (FPT)

Contaminants Reduced

Sediment/Dirt/Rust

Filter Type

Rusco Spin-Down & Sediment Traps

Flow Rate

1-25 GPM

Housing Resistance

Fresh Water Only

Media Type

Stainless Steel

Micron Rating

533 µm, 254 µm, 152 µm, 104 µm, 74 µm

Port Size

3/4"

Screen Material

Stainless Steel

Sub-Type

T-Style System

Type

Sediment Trapper
