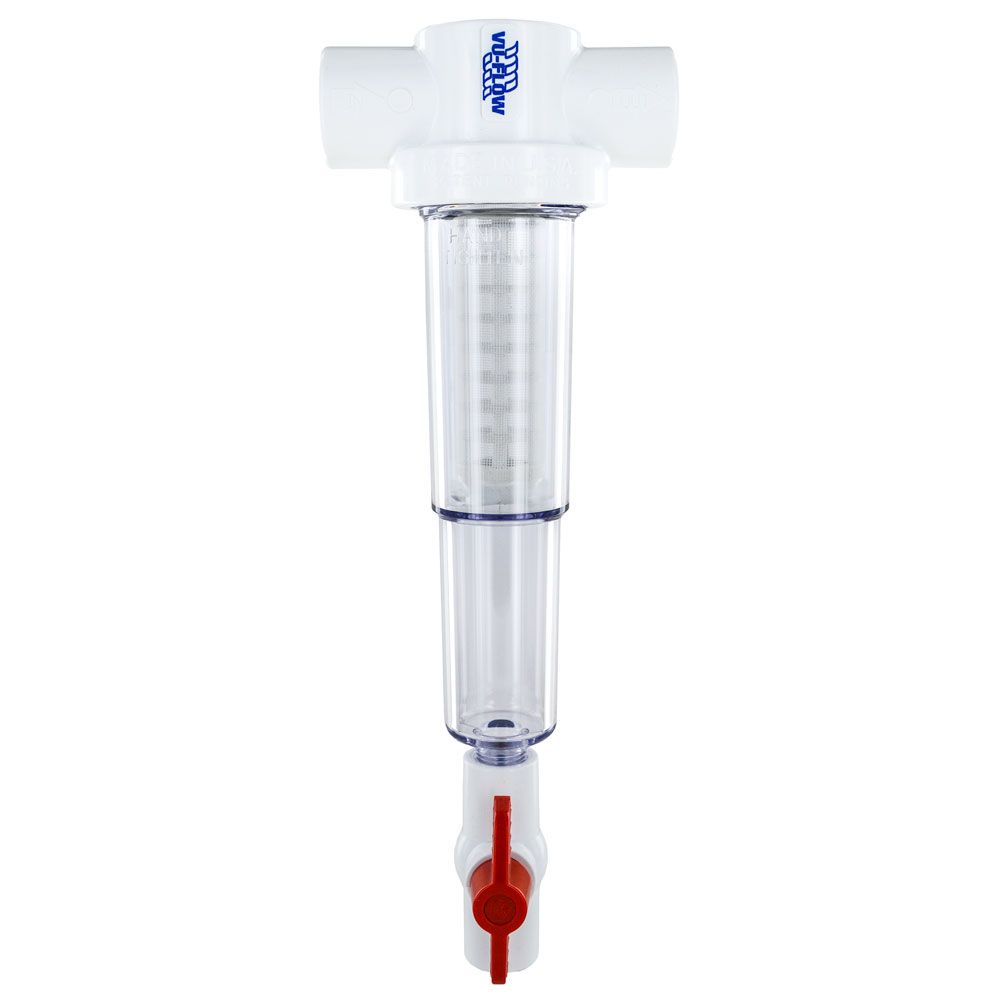

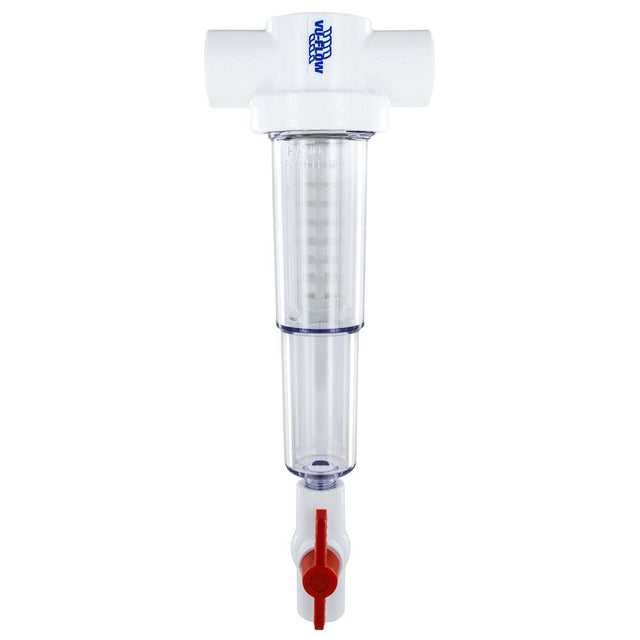

Vu-Flow Sand Separator Filter T Style 3/4"

Part Number: NT-75-SO-24-P

Description

Vu-Flow 3/4" FPT Sand Separator Filter System makes solid particle removal simple and economical. The benefit of these systems are the ability to be cleaned and reused, and can handle large volumes of sediment. The 3/4" Sand Separator Filter by Vu-Flow has a clear cover that can be easily removed for total cleaning. The unique tornado (spin-down action) effect created by the patented process is unique.

Features:

Unique element design traps sediment in lower reservoir of clear cover.
Clear bowl easily removed for total cleaning (No tools required-using tools voids warranty)
Sediment is visible through the clear cover indicating when the filter needs cleaning
Ball valve allows for quick sediment removal from bottom of cover
Centrifuge type sediment separation
No filter cartridges to replace
No down time required flushing out sediment
Small size takes little space
Screen mesh sizes can be easily changed if required

Applications:

Well water
Irrigation
Sand Sensitive Valves
Drip Irrigation
Faucet Aerators
Poultry Growers
Fogger nozzles
Pretreatment for RO

Specifications

Product Details
Body Material	PVC
Housing Material	High Impact Polymer Resin
Inlet Connection	3/4" FPT
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Outlet Connection	3/4" FPT
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	1-25 GPM
Micron Rating	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	3/4"
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1.8

Product Details
Body Material	PVC
Housing Material	High Impact Polymer Resin
Inlet Connection	3/4" FPT
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Outlet Connection	3/4" FPT
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	1-25 GPM
Micron Rating	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	3/4"
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	2.15

Product Details
Body Material	PVC
Housing Material	High Impact Polymer Resin
Inlet Connection	3/4" FPT
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Outlet Connection	3/4" FPT
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	1-25 GPM
Micron Rating	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	3/4"
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	1.85

Product Details
Body Material	PVC
Housing Material	High Impact Polymer Resin
Inlet Connection	3/4" FPT
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Outlet Connection	3/4" FPT
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	1-25 GPM
Micron Rating	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	3/4"
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	2

Product Details
Body Material	PVC
Housing Material	High Impact Polymer Resin
Inlet Connection	3/4" FPT
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Outlet Connection	3/4" FPT
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	1-25 GPM
Micron Rating	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	3/4"
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1.95

Product Details
Body Material	PVC
Housing Material	High Impact Polymer Resin
Inlet Connection	3/4" FPT
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Outlet Connection	3/4" FPT
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	1-25 GPM
Micron Rating	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	3/4"
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	3

Product Details
Body Material	PVC
Housing Material	High Impact Polymer Resin
Inlet Connection	3/4" FPT
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Outlet Connection	3/4" FPT
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	1-25 GPM
Micron Rating	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	3/4"
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1.85

Product Details
Body Material	PVC
Housing Material	High Impact Polymer Resin
Inlet Connection	3/4" FPT
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Outlet Connection	3/4" FPT
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	1-25 GPM
Micron Rating	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	3/4"
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1.65

Product Details
Body Material	PVC
Housing Material	High Impact Polymer Resin
Inlet Connection	3/4" FPT
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Outlet Connection	3/4" FPT
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	1-25 GPM
Micron Rating	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	3/4"
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1.9

Product Details
Body Material	PVC
Housing Material	High Impact Polymer Resin
Inlet Connection	3/4" FPT
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Outlet Connection	3/4" FPT
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	1-25 GPM
Micron Rating	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	3/4"
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	2.15

Product Details
Body Material	PVC
Housing Material	High Impact Polymer Resin
Inlet Connection	3/4" FPT
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Outlet Connection	3/4" FPT
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	1-25 GPM
Micron Rating	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	3/4"
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1.95

Product Details
Body Material	PVC
Housing Material	High Impact Polymer Resin
Inlet Connection	3/4" FPT
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Outlet Connection	3/4" FPT
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	1-25 GPM
Micron Rating	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	3/4"
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	2

Product Details
Body Material	PVC
Housing Material	High Impact Polymer Resin
Inlet Connection	3/4" FPT
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Outlet Connection	3/4" FPT
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	1-25 GPM
Micron Rating	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	3/4"
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1.95

Product Details
Body Material	PVC
Housing Material	High Impact Polymer Resin
Inlet Connection	3/4" FPT
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Outlet Connection	3/4" FPT
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT)
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	1-25 GPM
Micron Rating	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	3/4"
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1.8

Downloads

Vu-Flow Sand Separator Filter T Style 3/4

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products
Facet	VuFlow Vu-Flow Sand Separator Filter T Style 3/4" Regular price From $68.10 Part #: NT-75-SO-24-P Current Product	Rusco Rusco Sediment Trapper Filter SS Screen T Style 3/4" FPT 4.9 Regular price From $78.32 Part #: 3/4-30STSS-F View details
Price
Price	Regular price From $68.10	Regular price From $78.32
Part #
Part #	NT-75-SO-24-P	3/4-30STSS-F
Description
Description	Vu-Flow 3/4" FPT Sand Separator Filter System makes solid particle removal simple and economical. The benefit of these systems are the ability to be cleaned...	Features: High performance SS (Stainless Steel) sediment trapper Flush valve included Dimensions: 14 3/8" L x 7 1/4" W Size: 3/4" FNPT

Vu-Flow Sand Separator Filter T Style 3/4"

Vu-Flow Sand Separator Filter T Style 3/4"

Request A Quote

Shipping Information

Description

Specifications

Downloads

Reviews (0)

Safe & Secure Checkout

Compare Similar Products

We’re here to help

Your cart

Vu-Flow Sand Separator Filter T Style 3/4"

Shop

Help

Info

Choose options
