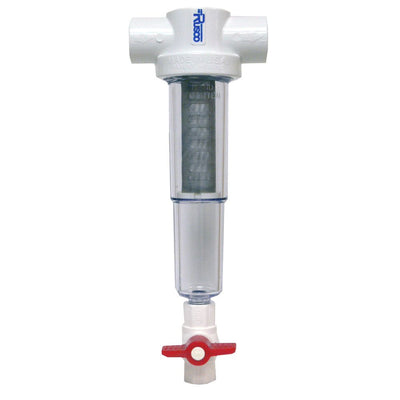

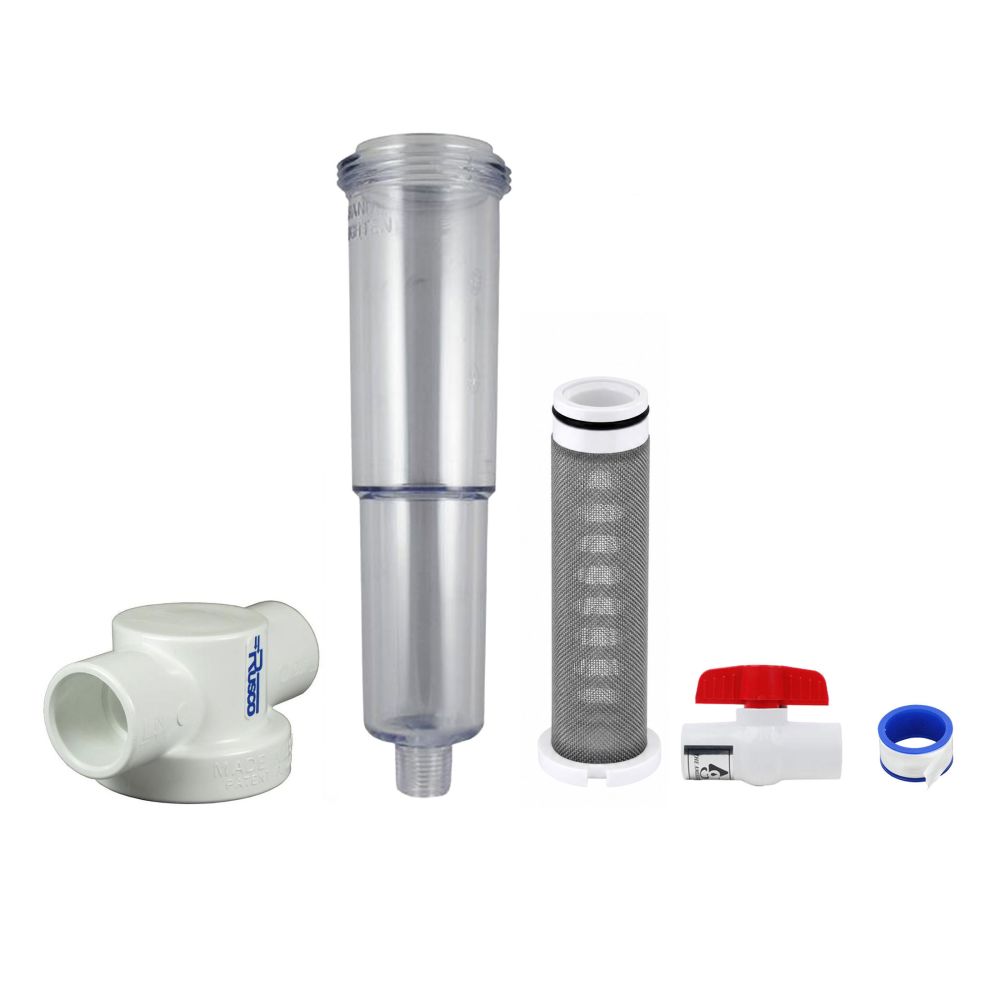

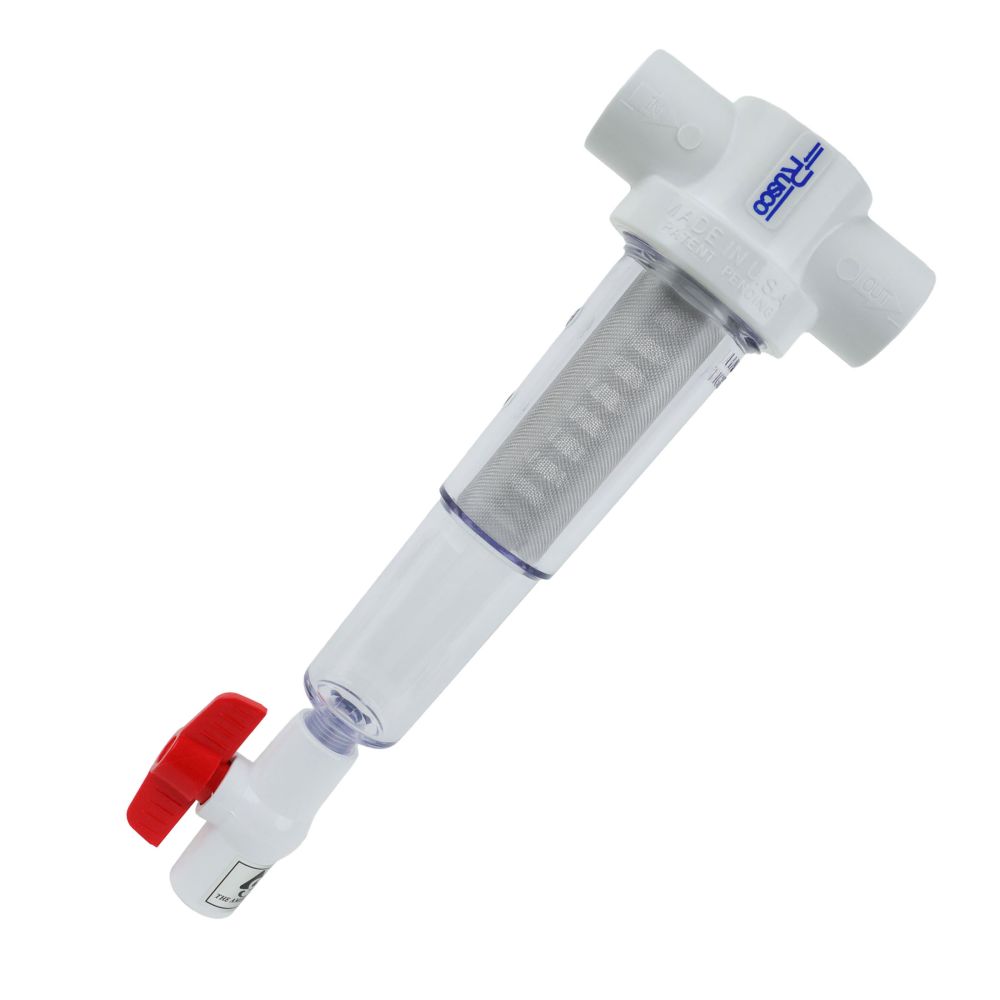

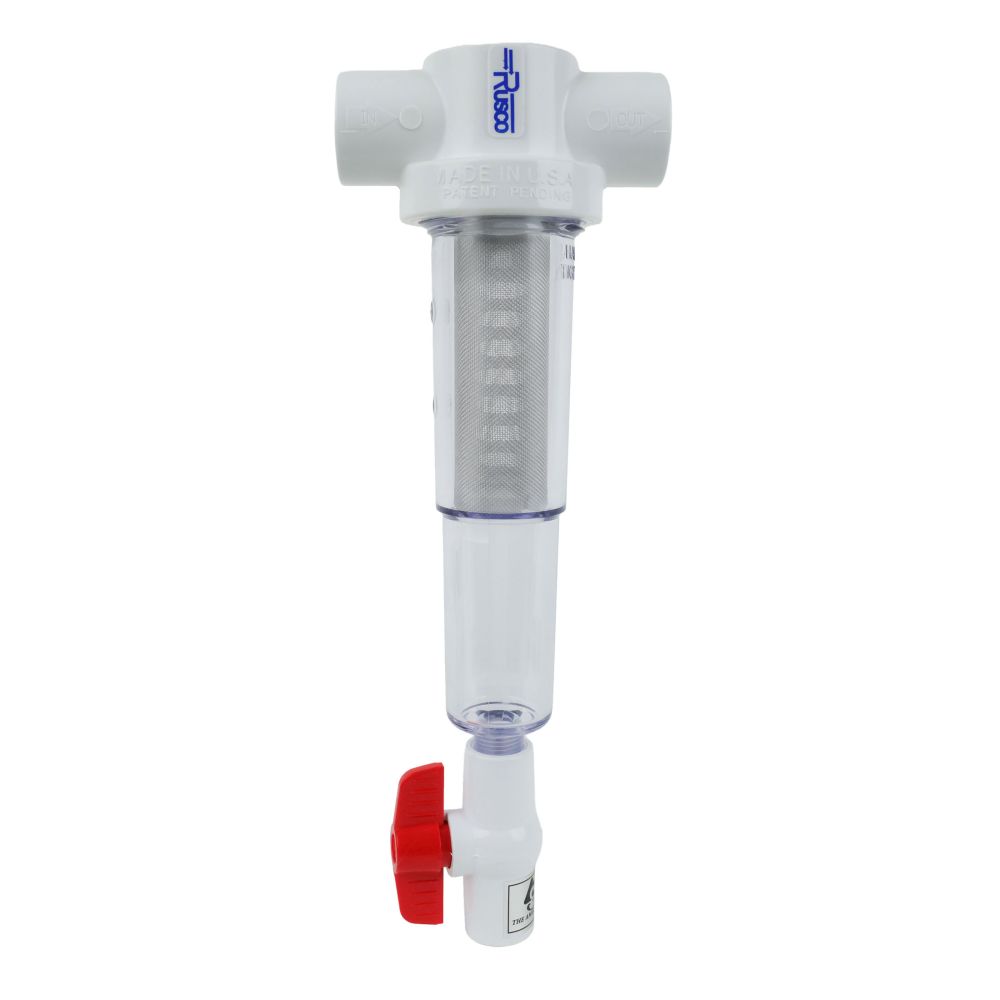

- High performance SS (Stainless Steel) sediment trapper
- Flush valve included
- Dimensions: 14 3/8" L x 7 1/4" W
- Size: 3/4" FNPT
Details
Screen Material | Stainless Steel Screen |
Housing Resistance | Fresh Water Only |
Max Temp (°F) | 100 |
Max Pressure (Psi) | 150 |
Body Material | PVC |
Cartridge Style | Sediment Trapper |
Diameter | .021, .010, .006, .004, .0029 |
Flow Rate | 1-25 GPM |
Housing Material | High Impact Polymer Resin |
Media Type | Stainless Steel |
Mesh Size | 30, 60, 100, 140, 200 |
Micron Rating (Nominal) | 533 µm, 254 µm, 152 µm, 104 µm, 74 µm |
O-Rings | EPDM |
Size | 3/4" |
Inlet/Outlet Connection | 3/4" FPT |
Features:
- High performance SS (Stainless Steel) sediment trapper
- Flush valve included
- Dimensions: 14 3/8" L x 7 1/4" W
- Size: 3/4" FNPT
Details
Screen Material | Stainless Steel Screen |
Housing Resistance | Fresh Water Only |
Max Temp (°F) | 100 |
Max Pressure (Psi) | 150 |
Body Material | PVC |
Cartridge Style | Sediment Trapper |
Diameter | .021, .010, .006, .004, .0029 |
Flow Rate | 1-25 GPM |
Housing Material | High Impact Polymer Resin |
Media Type | Stainless Steel |
Mesh Size | 30, 60, 100, 140, 200 |
Micron Rating (Nominal) | 533 µm, 254 µm, 152 µm, 104 µm, 74 µm |
O-Rings | EPDM |
Size | 3/4" |
Inlet/Outlet Connection | 3/4" FPT |
