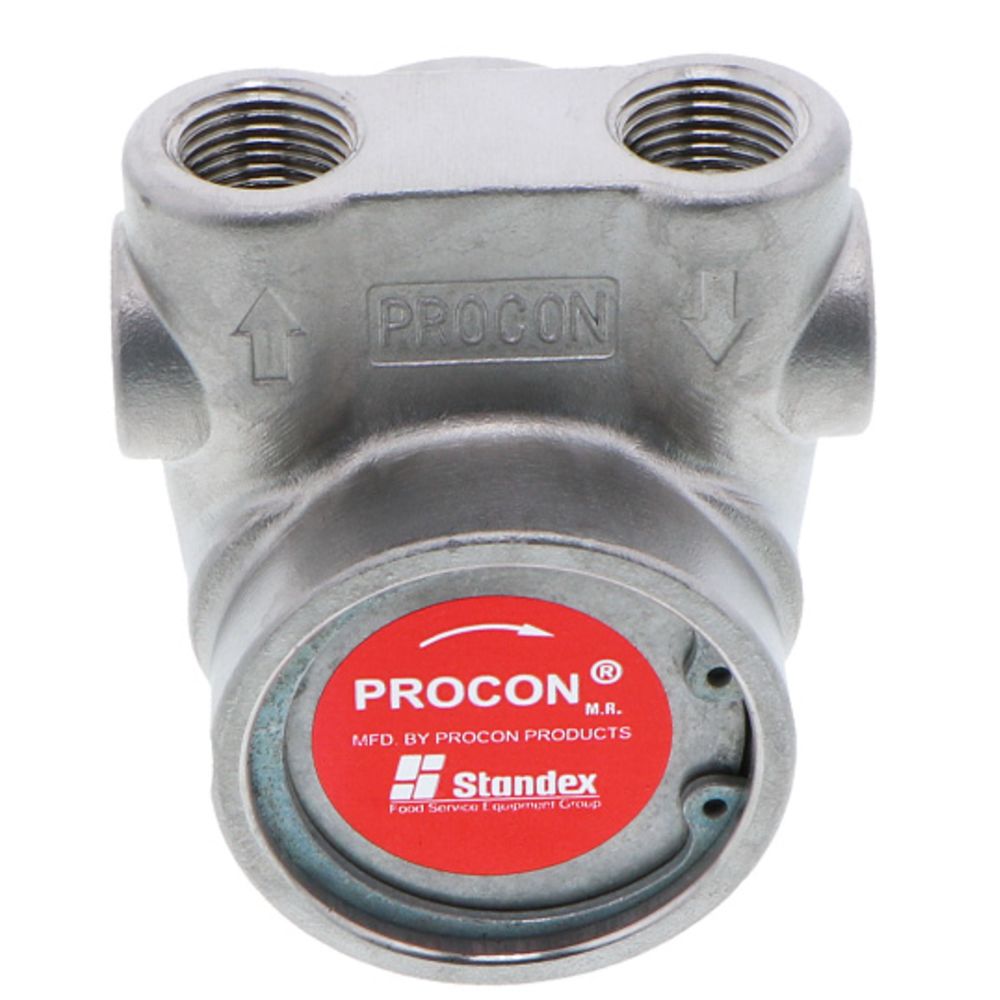

Procon Pump NSF Stainless Steel 100 GPH 3/8" NPT w/ .188" Double Flat Drive (Clamp-on)

4.0

(1 reviews)

Part Number: 113A100F31XX

1 3

Procon

Procon Pump NSF Stainless Steel 100 GPH 3/8" NPT w/ .188" Double Flat Drive (Clamp-on)

4.0

(1 reviews)

Part Number: 113A100F31XX

MSRP: $323.26

$116.28

Quantity

Unit Price

Price

Savings

$116.28

—

$98.83

$395.35

15%

$81.39

$976.75

30%

Product variants

You May Also Need

Optional Accessory
Procon V-Band Clamp

Regular price From $2.05
Optional Accessory
Procon 3045 Coupler 7/16 x 5/8 Bolt-On 56C for Series 2, 3, 4 & 5

Regular price From $45.99
Optional Accessory
Procon mtg bracket for bolt-on 56C for Series 2, 3, 4 & 5

Regular price From $42.95
Optional Accessory
Procon 1143 Bronze Coupling Slotted Rotor C/O

Regular price From $12.65

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Procon Pump NSF Stainless Steel 100 GPH 3/8" NPT w/ .188" Double Flat Drive (Clamp-on) rotary vane pump is a positive displacement pump. This Series 3 Procon pump is stainless steel with 1143 Bronze Coupling. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 100 gallons per hour. The seal configuration for the 113A100F11XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 3 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 113A100F11XX pump is designed to be directly connected to the motor with a stainless steel clamp.

Additional Specifications:

Capacity: 100 GPH
Nominal Speed: 1725 RPM
Maximum Discharge Pressure: 250 PSI
Rotation: Clockwise
Weight: 2.5 lbs
Port Size: 3/8" NPT Inlet and Outlet
Stainless Steel
1143 Bronze Coupling

Specifications

Product Details
Body Material	Stainless Steel
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	3/8" MPT
Mounting Options	Clamp On
Outlet Connection	3/8" MPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	100
Series	3
Size	3/8"
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	3.25
Product Length	4
Product Width	2.75
Product Weight (lbs)	2.5

Product Details
Body Material	Stainless Steel
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	3/8" MPT
Mounting Options	Clamp On
Outlet Connection	3/8" MPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	100
Series	3
Size	3/8"
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	10

Product Details
Body Material	Stainless Steel
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	3/8" MPT
Mounting Options	Clamp On
Outlet Connection	3/8" MPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	100
Series	3
Size	3/8"
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	8 in.
Product Weight & Dimensions
Product Weight (lbs)	30

Downloads

Procon Pump NSF Stainless Steel 100 GPH 3/8

Reviews (1)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products
Facet	Procon Procon Pump NSF Stainless Steel 100 GPH 3/8" NPT w/ .188" Double Flat Drive (Clamp-on) 4.0 Regular price From $116.28 Low stock Part #: 113A100F31XX Save up to 30% with bulk pricing Current Product	Procon Procon Pump NSF Stainless Steel 100 GPH 3/8" NPT - 250 psi PRV w/ .188" Double Flat Drive (Clamp-on) Regular price From $149.99 Very low stock Part #: 113A100F31BA250 Save up to 30% with bulk pricing View details
Price
Price	Regular price From $116.28	Regular price From $149.99
Part #
Part #	113A100F31XX	113A100F31BA250
Description
Description	The Procon Pump NSF Stainless Steel 100 GPH 3/8" NPT w/ .188" Double Flat Drive (Clamp-on) rotary vane pump is a positive displacement pump. This Series 3...	The Procon Pump NSF Stainless Steel 100 GPH 3/8" NPT - 250 psi PRV w/ .188" Double Flat Drive (Clamp-on) rotary vane pump is a positive displacement...
