Procon Pump NSF Stainless Steel 100 GPH 3/8" NPT w/ .188" Double Flat Drive (Clamp-on)
Part Number: 113A100F31XX
Product image 1
Product image 2
Product image 3
Your price:
Choose
Single
Pack of 4
Pack of 12
similar items

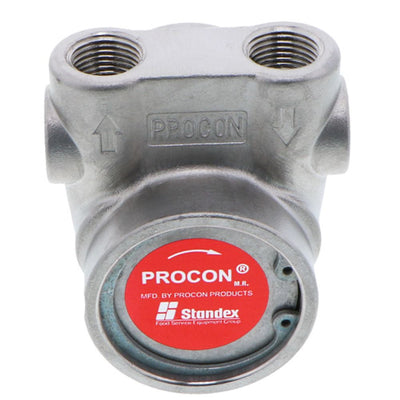

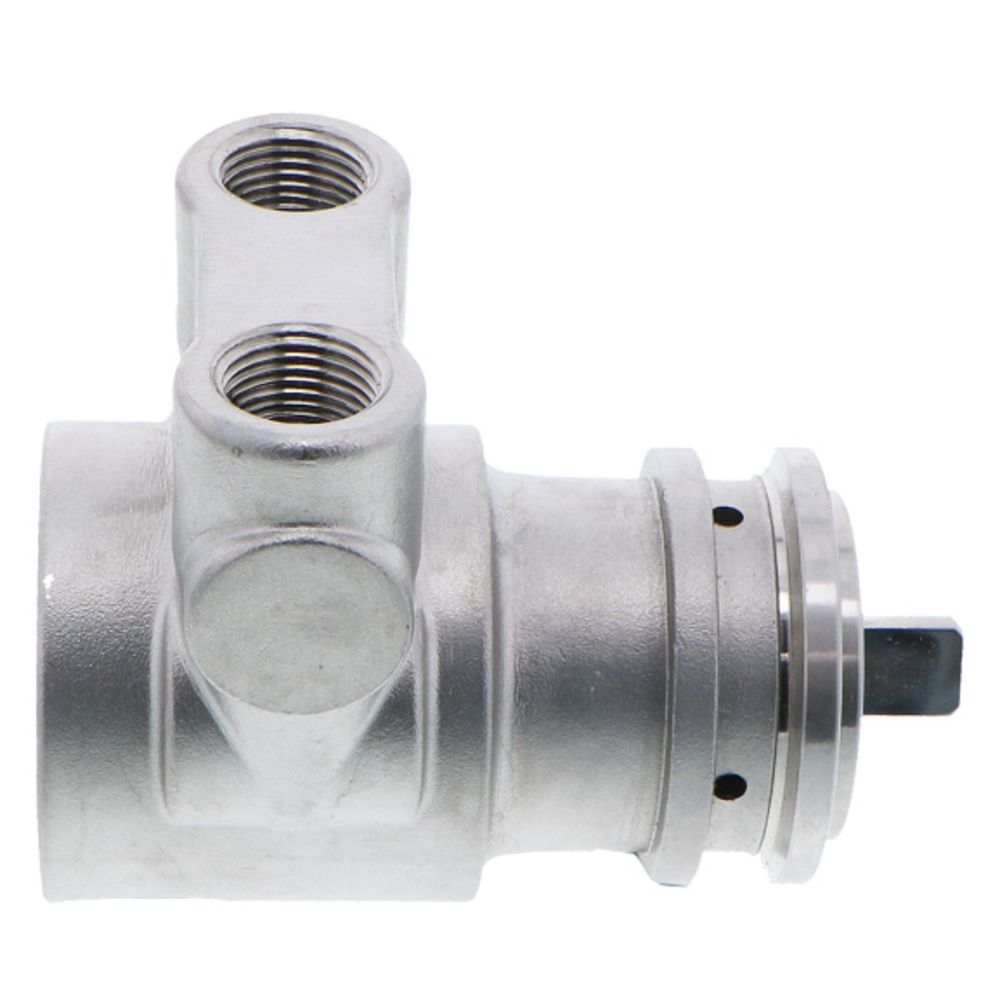

The Procon Pump NSF Stainless Steel 100 GPH 3/8" NPT w/ .188" Double Flat Drive (Clamp-on) rotary vane pump is a positive displacement pump. This Series 3 Procon pump is stainless steel with 1143 Bronze Coupling. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 100 gallons per hour. The seal configuration for the 113A100F11XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 3 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 113A100F11XX pump is designed to be directly connected to the motor with a stainless steel clamp.

Additional Specifications:
  • Capacity: 100 GPH
  • Nominal Speed: 1725 RPM
  • Maximum Discharge Pressure: 250 PSI
  • Rotation: Clockwise
  • Weight: 2.5 lbs
  • Port Size: 3/8" NPT Inlet and Outlet
  • Stainless Steel
  • 1143 Bronze Coupling
