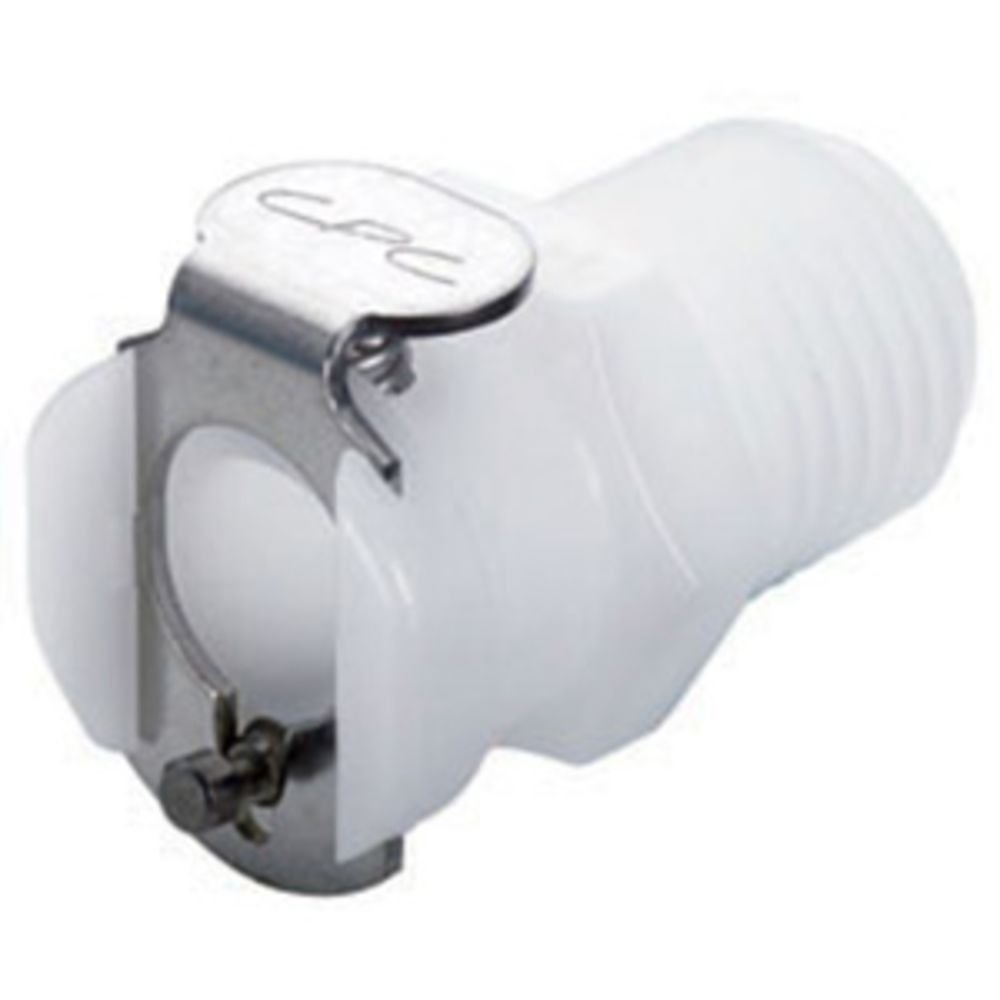

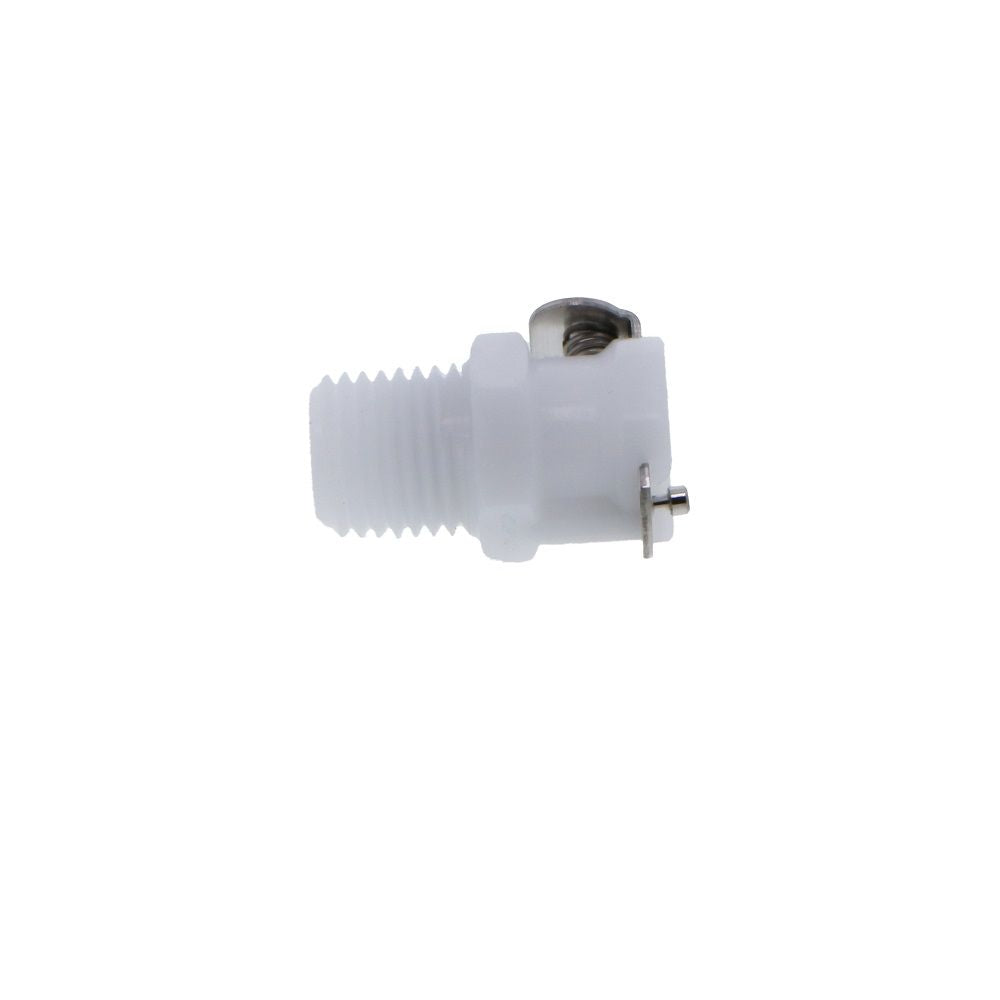

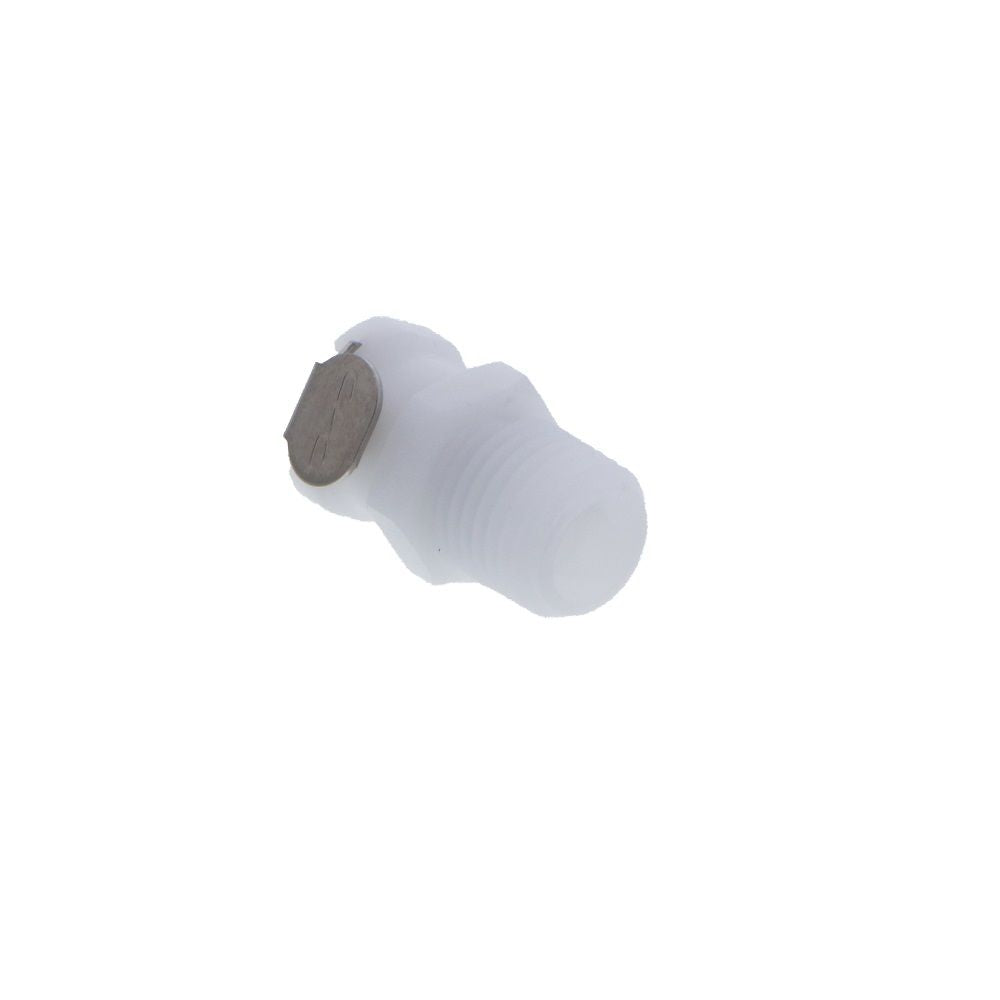

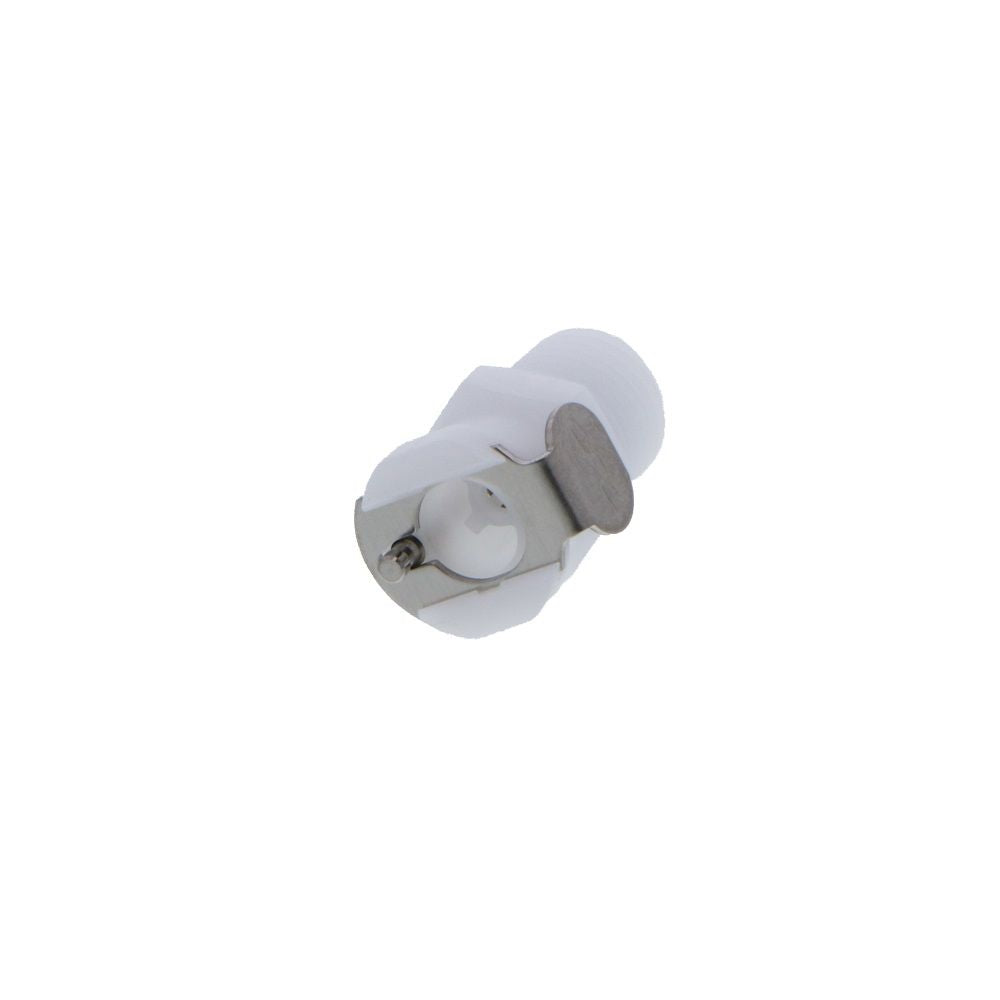

PMCD1004 Valved Male Thread Coupling Body 1/4 NPT

5.0

(2 reviews)

Part Number: PMCD1004 Alt. Part Number: 20ACV-SB1-04

1 4

Sold Out

Colder Products

PMCD1004 Valved Male Thread Coupling Body 1/4 NPT

5.0

(2 reviews)

Part Number: PMCD1004 Alt. Part Number: 20ACV-SB1-04

MSRP: $7.94

$7.94

Quantity

Unit Price

Price

Savings

$7.94

—

$7.74

$193.54

250

$7.54

$1,885.75

Product variants

Due to supply chain issues at the start , If the non-NSF version is not in stock, an identical Colder part with NSF testing (Auto-upgrade) will be sent to fulfill the order instead of the original part.

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

PMC Series couplings have a 1/8" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:

Material: Acetal
Color: White
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: 1/4" NPT Thread
Valve Option: Valved
Temperature Range: -40ºF to 180ºF
Valve Spring: 316 Stainless Steel
Seal Options: Buna-N
Available in Bags of 25 units
NSF Listed Version (part # 12100) Available Upon Request

Specifications

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	120
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	No
Outlet Connection	1/4" MPT
Series	PMC
Shape	Straight
Size	1/4"
Valve Type	Valved
Color / Finish	White
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling
Shipping Dimensions
Shipping Length	1.125 in.
Shipping Width	0.875 in.
Shipping Height	0.75 in.
Product Weight & Dimensions
Product Weight (lbs)	0.009

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	120
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	No
Outlet Connection	1/4" MPT
Series	PMC
Shape	Straight
Size	1/4"
Valve Type	Valved
Color / Finish	White
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	10 in.
Shipping Height	10 in.
Product Weight & Dimensions
Product Weight (lbs)	0.35

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	120
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	No
Outlet Connection	1/4" MPT
Series	PMC
Shape	Straight
Size	1/4"
Valve Type	Valved
Color / Finish	White
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	15

Downloads

PMCD1004 Valved Male Thread Coupling Body 1/4 NPT Manual

Reviews (2)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

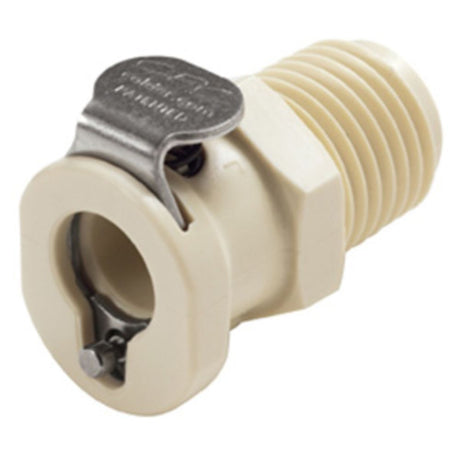

Facet	Sold Out Colder Products PMCD1004 Valved Male Thread Coupling Body 1/4 NPT 5.0 Regular price From $7.94 Sold out Part #: PMCD1004 Save up to 5% with bulk pricing Current Product	Colder Products PMCD100412 Valved Male Thread Coupling Body 1/4 NPT 2.0 Regular price From $10.46 Part #: PMCD100412 Save up to 5% with bulk pricing View details	Sold Out Colder Products 12100 NSF Valved Coupling Body 1/4 NPT 5.0 Regular price From $8.80 Sold out Part #: 12100 Save up to 5% with bulk pricing View details
