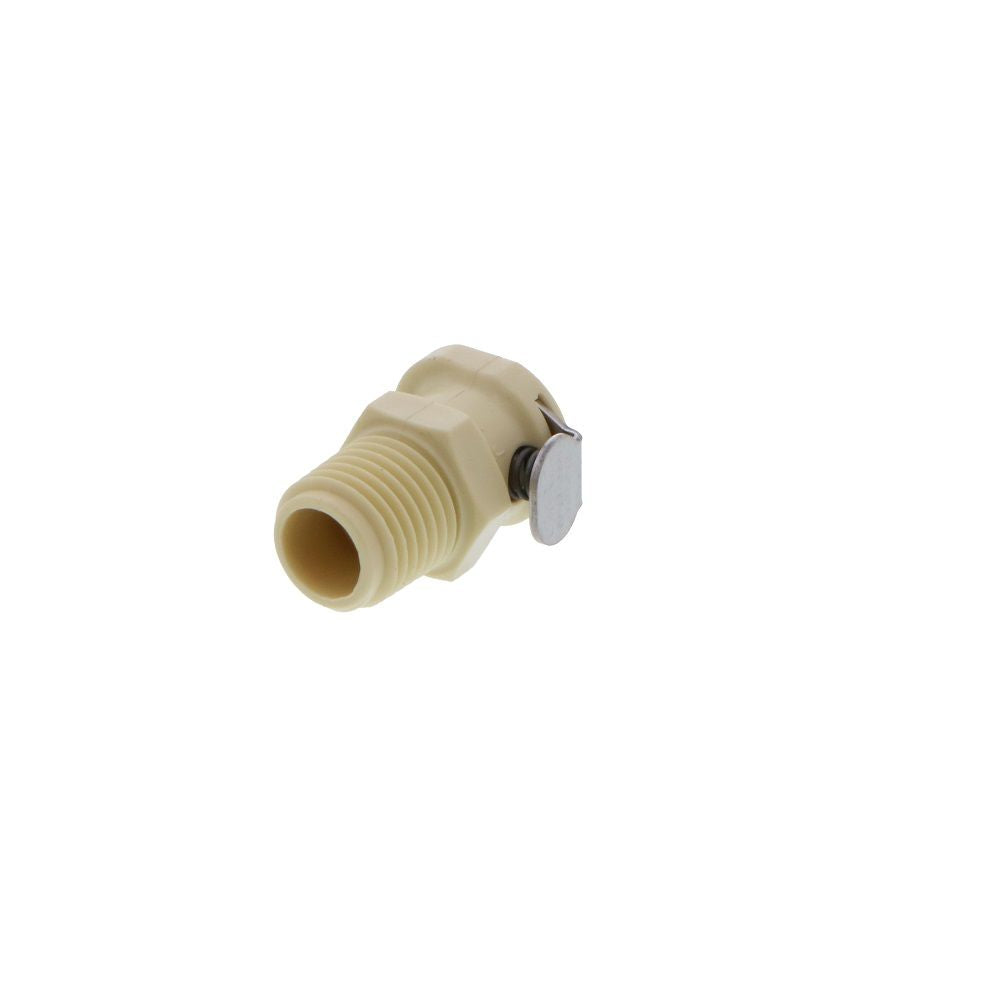

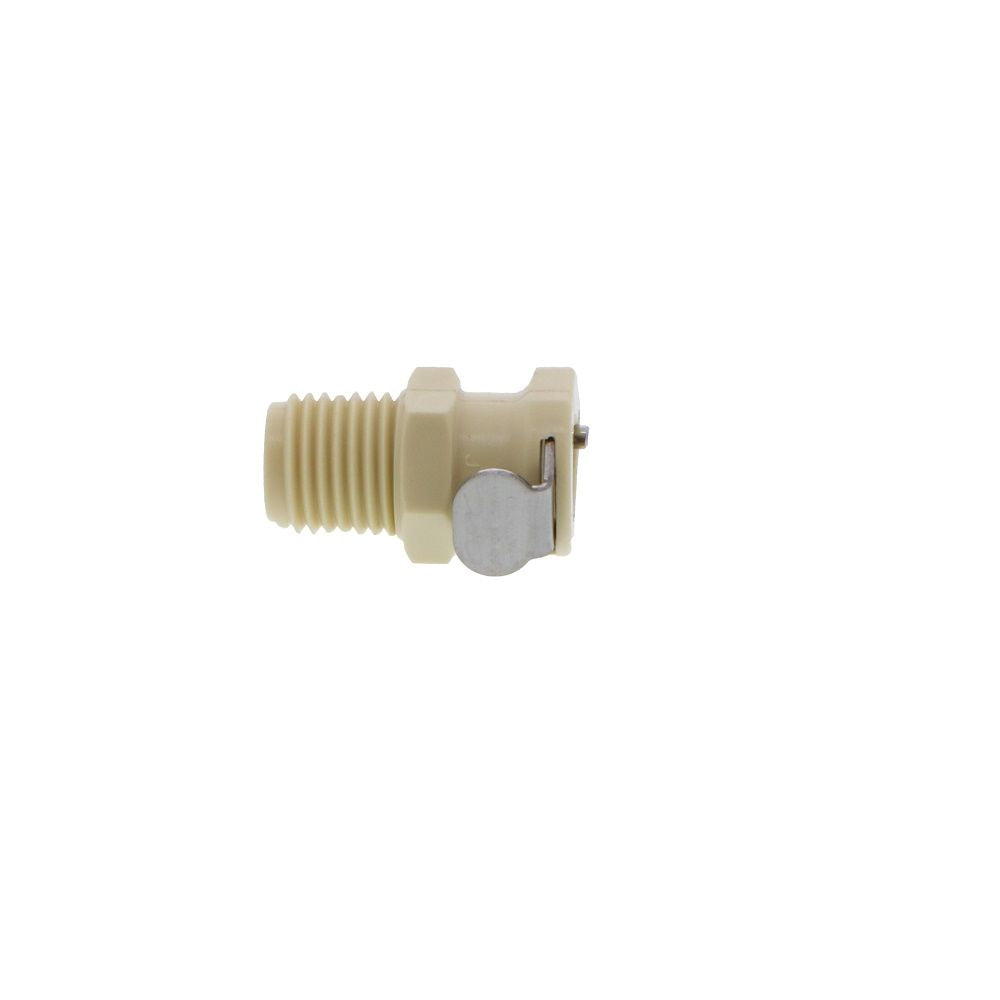

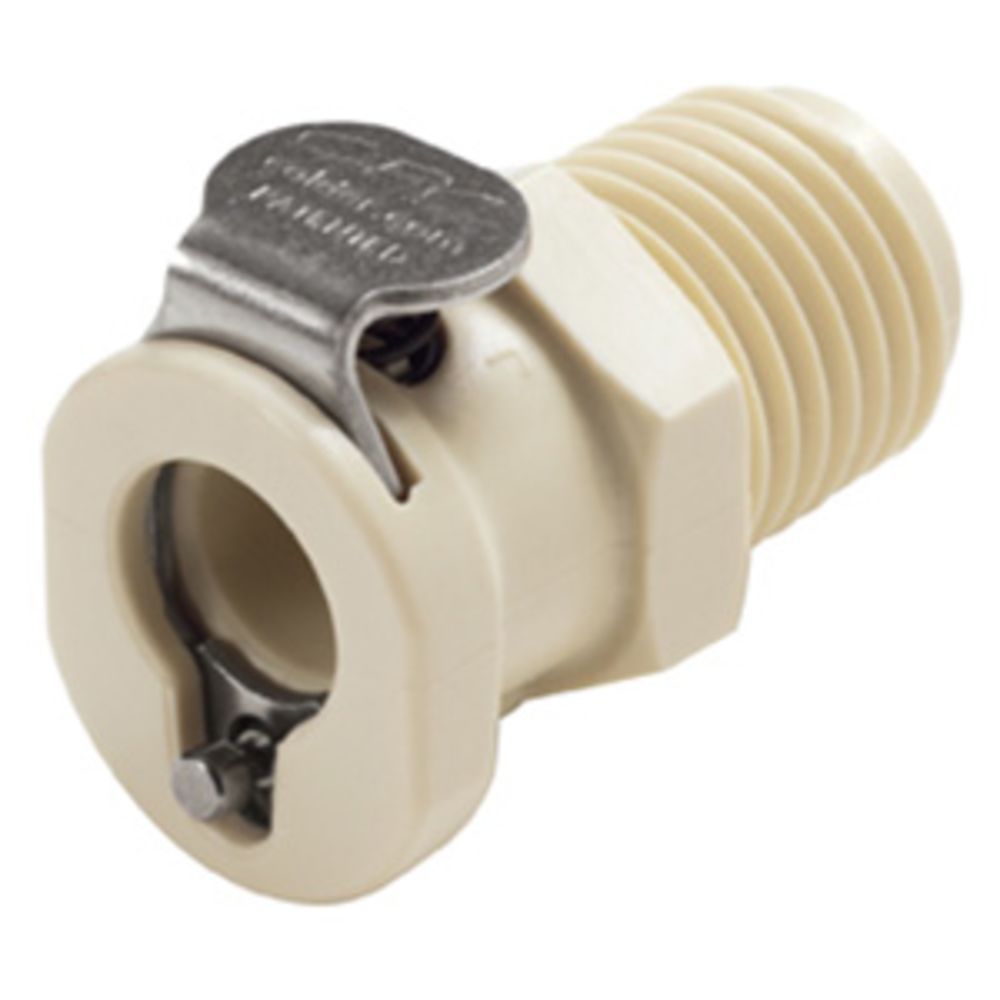

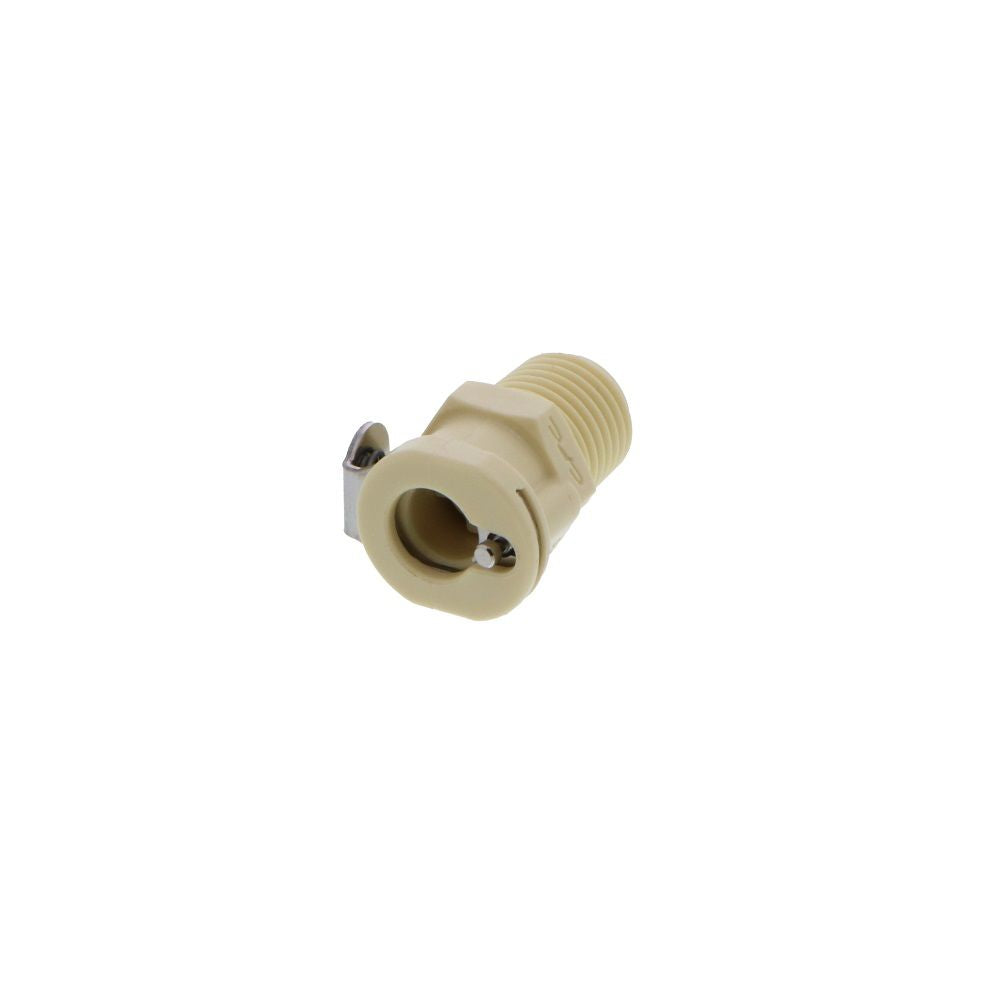

PMCD100412 Valved Male Thread Coupling Body 1/4 NPT

2.0

(1 reviews)

Part Number: PMCD100412 Alt. Part Number: 20PPV-SE1-04

1 4

Colder Products

PMCD100412 Valved Male Thread Coupling Body 1/4 NPT

2.0

(1 reviews)

Part Number: PMCD100412 Alt. Part Number: 20PPV-SE1-04

MSRP: $10.46

$10.46

Quantity

Unit Price

Price

Savings

$10.46

—

$10.19

$254.96

250

$9.93

$2,484.25

Product variants

Due to supply chain issues at the start , If the non-NSF version is not in stock, an identical Colder part with NSF testing (Auto-upgrade) will be sent to fulfill the order instead of the original part.

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The 1/8" flow PMC12 Series offers many of the same configuration options as the PMC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:

Material: Polypropylene
Color: Almond
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: Thread
Valve Option: Valved
Temperature Range: 32ºF to 160ºF
Valve Spring: 316 Stainless Steel
Seal Options: EPDM
Available in Bags of 25 units

Specifications

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	120
Max Temp (°F)	160°F
Min Temp (°F)	32°F
Nsf Version	No
Outlet Connection	1/4" MPT
Seal / O-Ring Material	EPDM
Series	PMC12
Shape	Straight
Size	1/4"
Valve Type	Valved
Color / Finish	Almond
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling
Shipping Dimensions
Shipping Length	1.125 in.
Shipping Width	0.875 in.
Shipping Height	0.75 in.
Product Weight & Dimensions
Product Height	0.75 in.
Product Length	1.125 in.
Product Width	0.875 in.
Product Weight (lbs)	0.009

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	120
Max Temp (°F)	160°F
Min Temp (°F)	32°F
Nsf Version	No
Outlet Connection	1/4" MPT
Seal / O-Ring Material	EPDM
Series	PMC12
Shape	Straight
Size	1/4"
Valve Type	Valved
Color / Finish	Almond
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling
Shipping Dimensions
Shipping Length	9 in.
Shipping Width	9 in.
Shipping Height	9 in.
Product Weight & Dimensions
Product Weight (lbs)	0.35

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	120
Max Temp (°F)	160°F
Min Temp (°F)	32°F
Nsf Version	No
Outlet Connection	1/4" MPT
Seal / O-Ring Material	EPDM
Series	PMC12
Shape	Straight
Size	1/4"
Valve Type	Valved
Color / Finish	Almond
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	15

Downloads

PMCD100412 Valved Male Thread Coupling Body 1/4 NPT Manual

Reviews (1)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

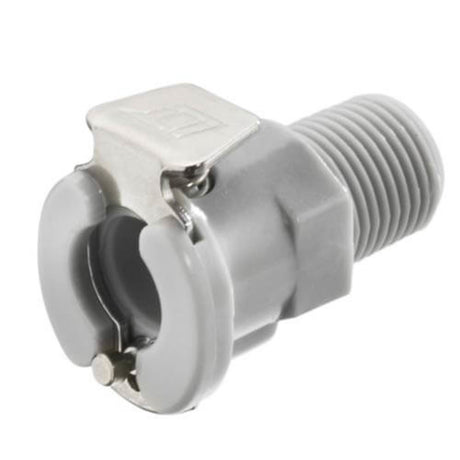

Facet	Colder Products PMCD100412 Valved Male Thread Coupling Body 1/4 NPT 2.0 Regular price From $10.46 Part #: PMCD100412 Save up to 5% with bulk pricing Current Product	Sold Out Colder Products PMCD1004 Valved Male Thread Coupling Body 1/4 NPT 5.0 Regular price From $7.94 Sold out Part #: PMCD1004 Save up to 5% with bulk pricing View details	Linktech LinkTech 20PP Series Male Thread Female, Valved, 1/4" NPT, Molded Almond Color, Polypropylene, EPDM Regular price From $9.02 Backordered Part #: 20PPV-SE1-04 Save up to 15% with bulk pricing View details
