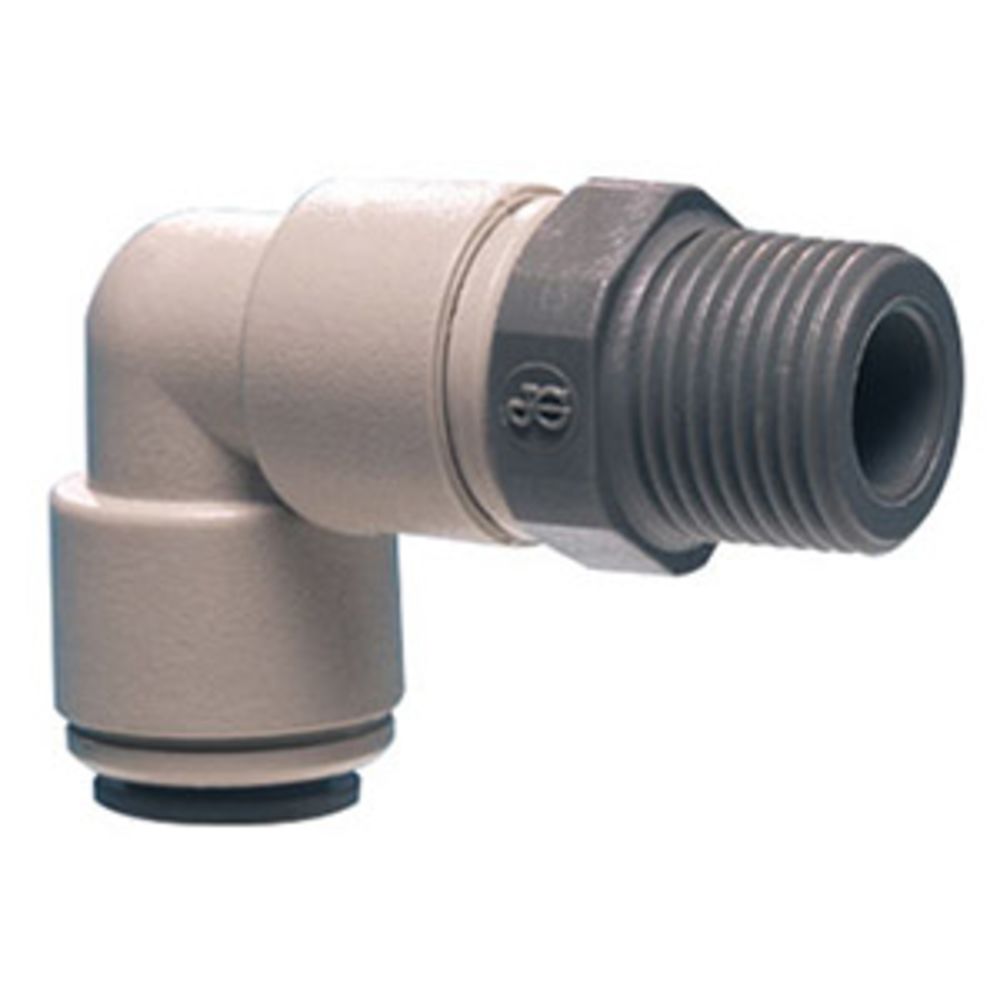

John Guest Swivel Elbow NPTF - 5/16 x 1/8 NPTF

Part Number: PM090821S-K Alt. Part Number: AMES5-N1-G, AMES8M-N1-G

John Guest

John Guest Swivel Elbow NPTF - 5/16 x 1/8 NPTF

Part Number: PM090821S-K Alt. Part Number: AMES5-N1-G, AMES8M-N1-G

MSRP: $6.94

$4.96

Quantity

Unit Price

Price

Savings

$4.96

—

$4.40

$44.07

11%

300

$4.05

$1,217.97

18%

Product variants

You May Also Need

Optional Accessory
Tube Cutter - Suitable For Up To 1/2" (12mm) Tube

Regular price From $4.99
Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Features:

Gray acetal copolymer construction
Nitrile O-rings
FDA approved materials
NSF Certified 51 & 61
Suitable for water, air, inert gases
And pneumatic applications or vacuum

View Prop 65 Warning

Specifications

Product Details
Inlet Connection	1/8" BSP
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Outlet Connection	1/8" BSP
Push-In Size	5/16" OD
Series	PI
Shape	Elbow
Size	1/8"
Color / Finish	Gray
Connection Type	BSP
Origin	UK
Sub-Type	Male Swivel Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	1.752 in.
Shipping Width	0.752 in.
Shipping Height	1.181 in.
Product Weight & Dimensions
Product Height	1.181 in.
Product Length	1.752 in.
Product Width	0.752 in.
Product Weight (lbs)	0.0236

Product Details
Inlet Connection	1/8" BSP
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Outlet Connection	1/8" BSP
Push-In Size	5/16" OD
Series	PI
Shape	Elbow
Size	1/8"
Color / Finish	Gray
Connection Type	BSP
Origin	UK
Sub-Type	Male Swivel Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	0.236

Product Details
Inlet Connection	1/8" BSP
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Outlet Connection	1/8" BSP
Push-In Size	5/16" OD
Series	PI
Shape	Elbow
Size	1/8"
Color / Finish	Gray
Connection Type	BSP
Origin	UK
Sub-Type	Male Swivel Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	4.134 in.
Product Weight & Dimensions
Product Weight (lbs)	5.33

Downloads

John Guest Swivel Elbow NPTF - 5/16 x 1/8 NPTF Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

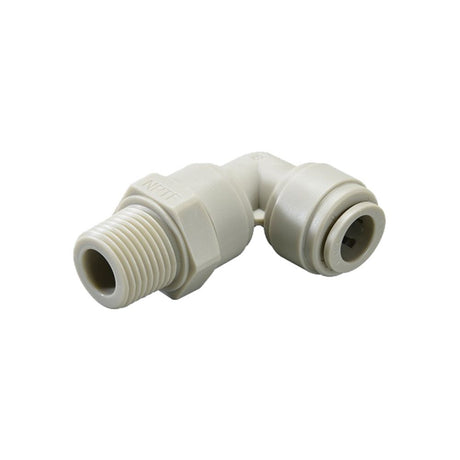

Facet	John Guest John Guest Swivel Elbow NPTF - 5/16 x 1/8 NPTF Regular price From $4.96 Part #: PM090821S-K Save up to 18% with bulk pricing Current Product	NeoFit NeoFit - Acetal Gray Swivel Elbow 8mm (5/16") tube x 1/8" NPTF Regular price From $3.37 Part #: AMES8M-N1-G Save up to 6% with bulk pricing View details
