Home / Fittings / Quick-Connect Fittings / NeoFit - Acetal Gray Swivel Elbow 8mm (5/16") tube x 1/8" NPTF
NeoFit

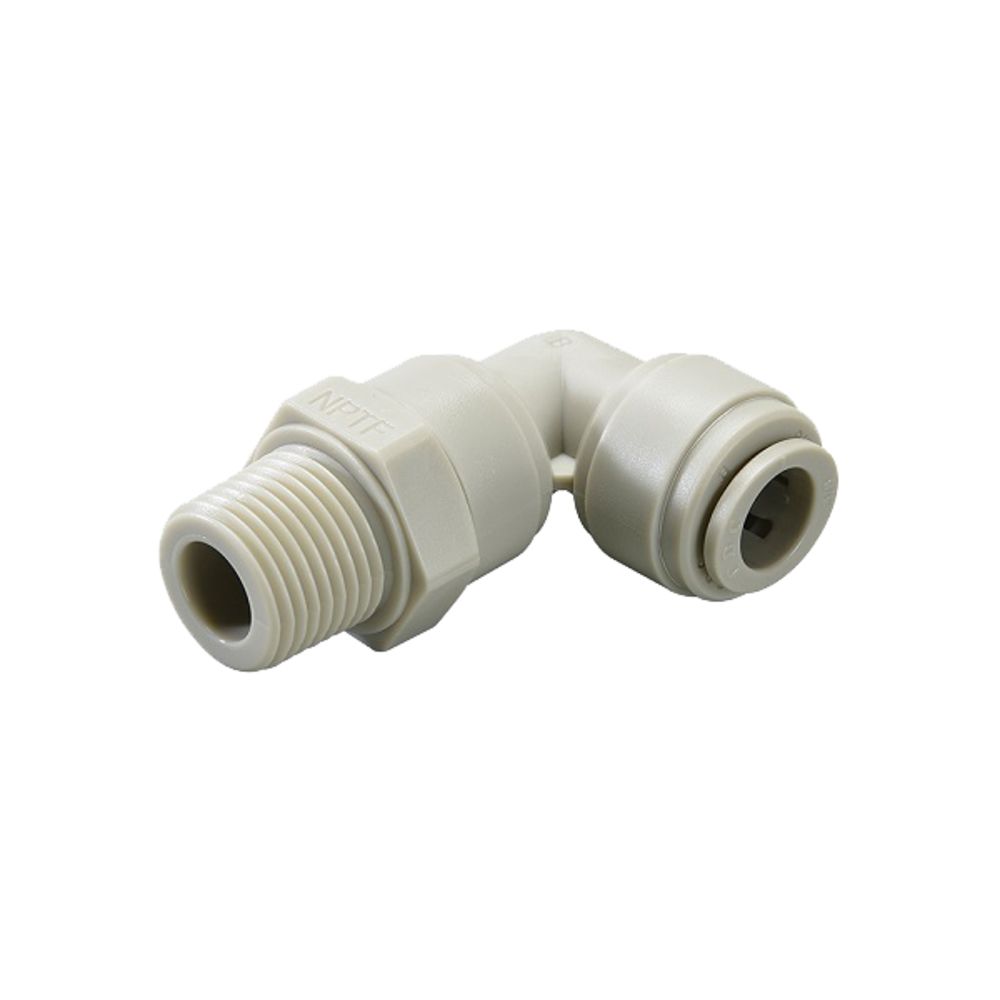

NeoFit - Acetal Gray Swivel Elbow 8mm (5/16") tube x 1/8" NPTF

Part Number: AMES8M-N1-G
Alt. Part Number: PM090821S, AMES5-N1-G
Your price:

Note: For reference purposes, please note that part number AMES5-N1-G is equivalent to AMES8M-N1-G


Note: These fittings possess the capability to orient the fitting connection in any direction autonomously, separate from the threaded segment of the fitting.


The NeoFit male swivel elbows are used to connect OD tubing sizes to female NPTF threads. Manufactured in acetal with food grade EPDM O-ring, these fittings were designed for water, beverage, and food applications. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.

Features:

  • Used to connect OD tubing sizes
  • Swivel elbows allow you to position the tubing in the desired direction
  • Compatible with plastic or copper OD sized tubing

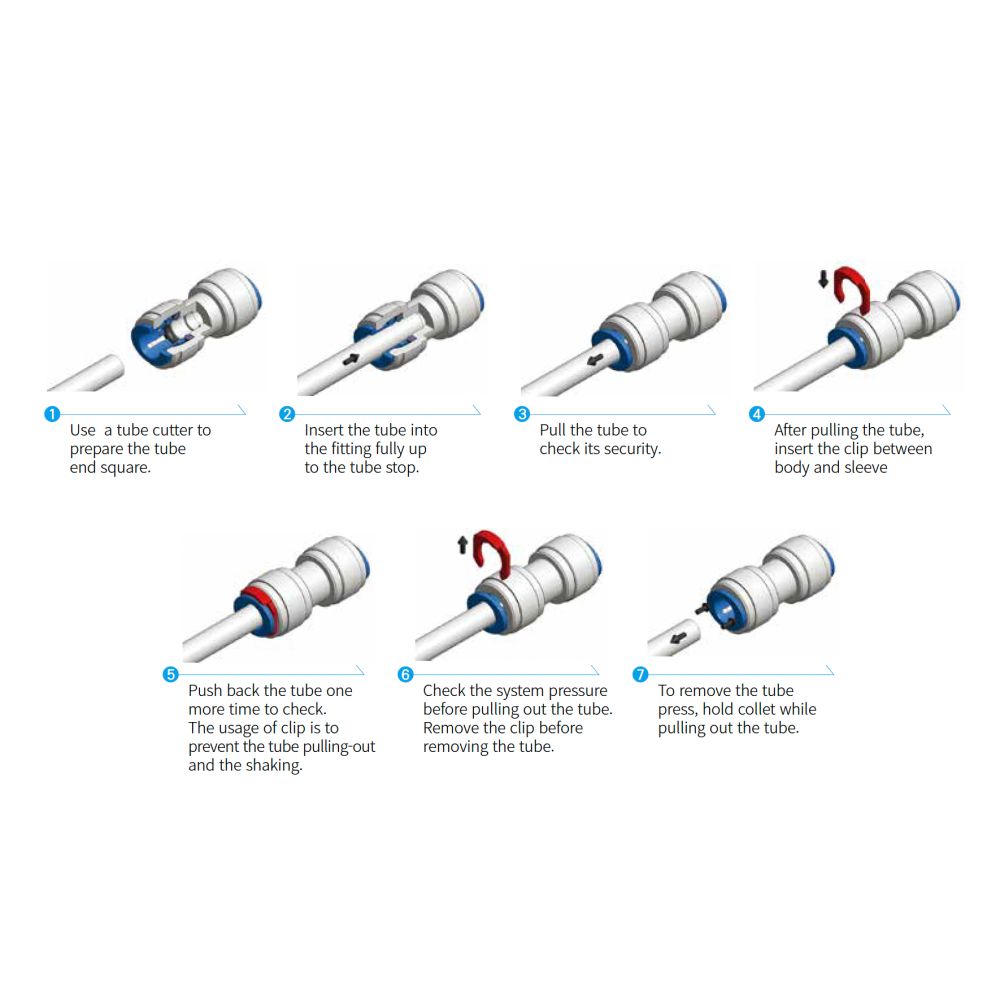

  • Connect, disconnect, and reconnect quickly
  • Food Quality and suitable for potable liquids and pure water applications
  • Can be used for air/pneumatic & vacuum applications
  • Acetal body with food grade EPDM O-Ring
  • NSF 51 & 61 Certified


California residents Prop 65 Warning
WARNING!
This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
