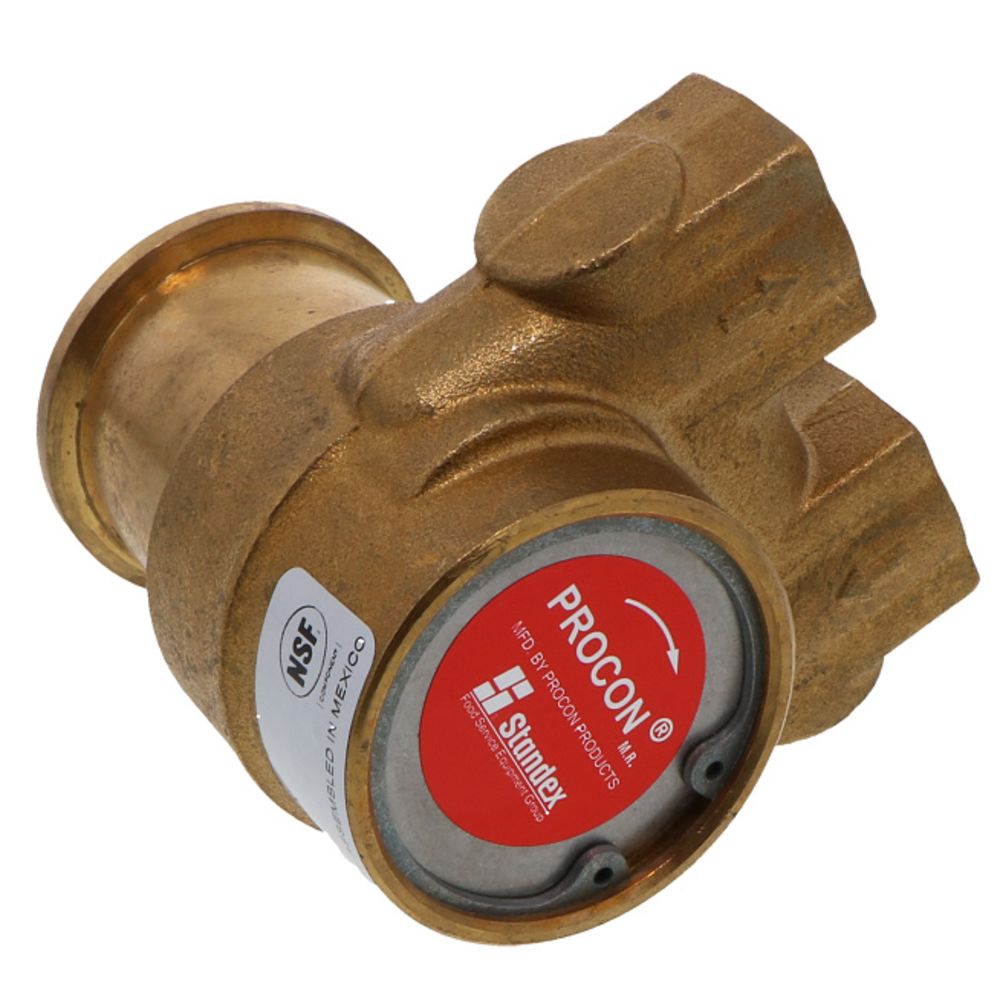

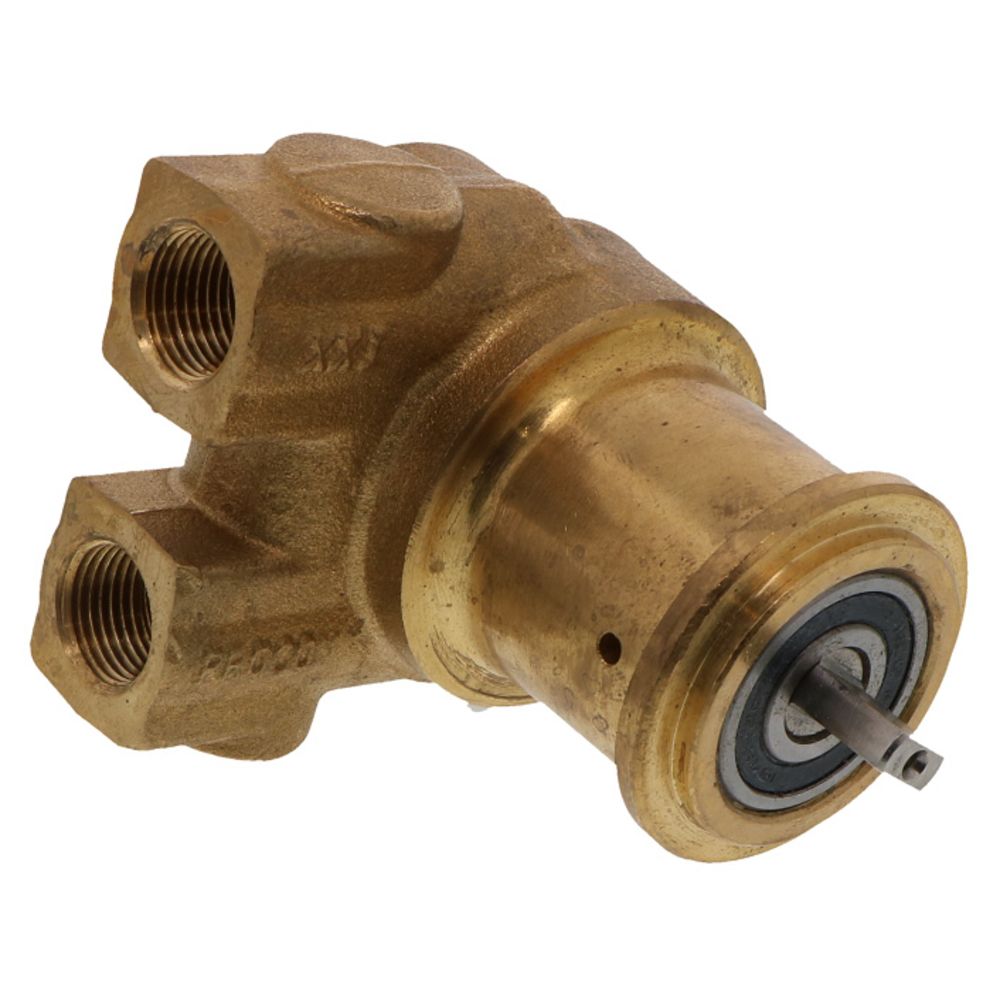

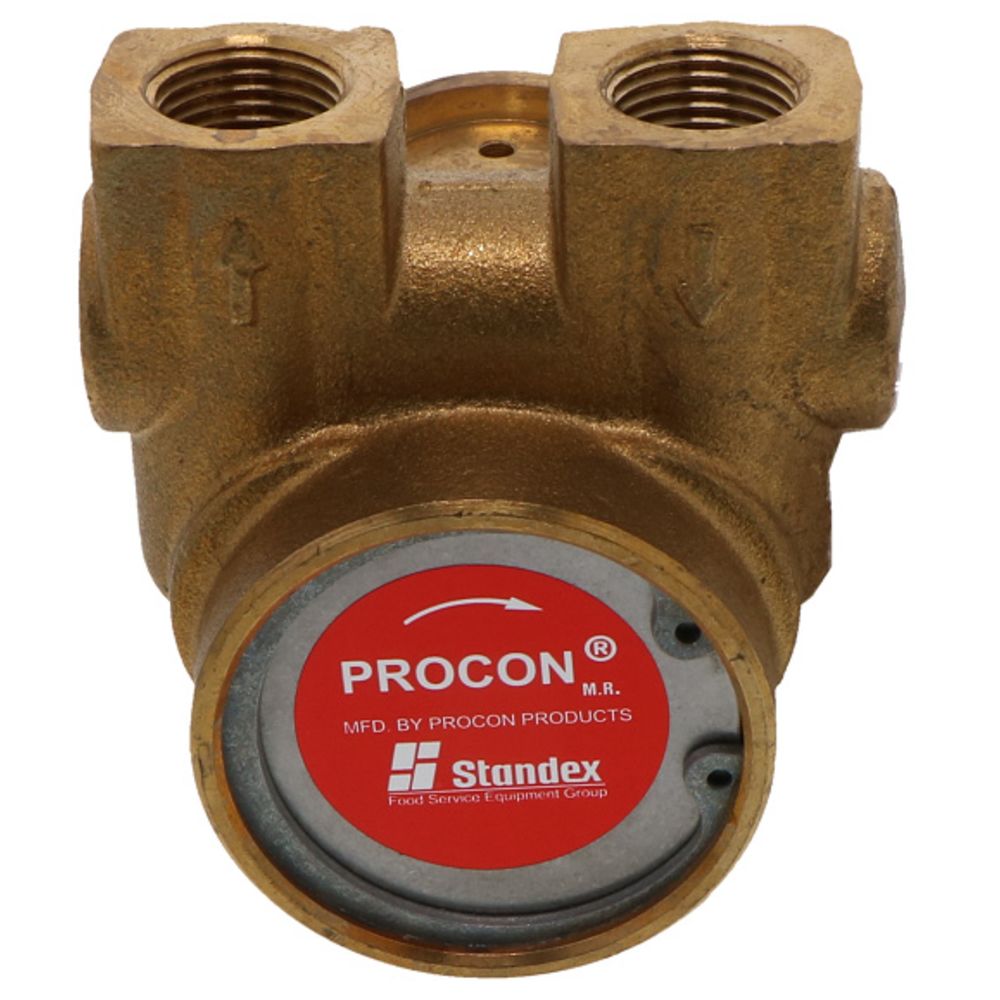

Procon Pump NSF Brass 80 GPH 3/8" NPT w/ .188" Double Flat Drive (Clamp-on)

Part Number: 112A080F12XX Alt. Part Number: 112A080R12XX

1 3

Procon

Procon Pump NSF Brass 80 GPH 3/8" NPT w/ .188" Double Flat Drive (Clamp-on)

Part Number: 112A080F12XX Alt. Part Number: 112A080R12XX

MSRP: $234.80

$69.99

Quantity

Unit Price

Price

Savings

$69.99

—

$59.49

$713.90

15%

Product variants

You May Also Need

Optional Accessory
Procon V-Band Clamp

Regular price From $2.05
Optional Accessory
Procon 3045 Coupler 7/16 x 5/8 Bolt-On 56C for Series 2, 3, 4 & 5

Regular price From $45.99
Optional Accessory
Procon mtg bracket for bolt-on 56C for Series 2, 3, 4 & 5

Regular price From $42.95
Optional Accessory
Procon 1143 Bronze Coupling Slotted Rotor C/O

Regular price From $12.65

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Procon Pump NSF Brass 80 GPH 3/8" NPT w/ .188" Double Flat Drive (Clamp-on) Series 2 Rotary Vane Pump is a positive displacement pump. This Series 2 Procon pump is brass and includes a .188" Double Flat Drive. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 80 gallons per hour. The elastometer and seal configuration for this pump is high-quality Nitrile Type 21, which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 112B125F11XX pump is designed to be directly connected to the motor with a stainless steel clamp.
Specifications:

NSF Standard 169 listed
Capacity: 80 GPH
Nominal Speed: 1725 RPM
Maximum Discharge Pressure: 250 PSI
Rotation: Clockwise
Self-priming & maintenance free
Port Size: 3/8" NPT Inlet and Outlet
.188" Double Flat Drive

Typical Applications:

Carbonation
Espresso & coffee
Welding
Cold carb circulation
Reverse osmosis
Beer chillers
Pesticide Systems
Solar Applications

Specifications

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	3/8" MPT
Mounting Options	Clamp On
Outlet Connection	3/8" MPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	80
Series	2
Size	3/8"
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Dimensions	SPCL Clearance (1x) Liner & BRGS
Product Height	3
Product Length	4
Product Width	3
Product Weight (lbs)	2.8

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	3/8" MPT
Mounting Options	Clamp On
Outlet Connection	3/8" MPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	80
Series	2
Size	3/8"
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	12.5 in.
Shipping Width	10.5 in.
Shipping Height	5.5 in.
Product Weight & Dimensions
Dimensions	SPCL Clearance (1x) Liner & BRGS
Product Height	5.5
Product Length	12.5
Product Width	5.5
Product Weight (lbs)	26.5
