Home / Pumps & Tanks / Pumps & Motors / Procon Pump NSF Brass 80 GPH 3/8" NPT w/ .188" Double Flat Drive (Clamp-on)
Procon

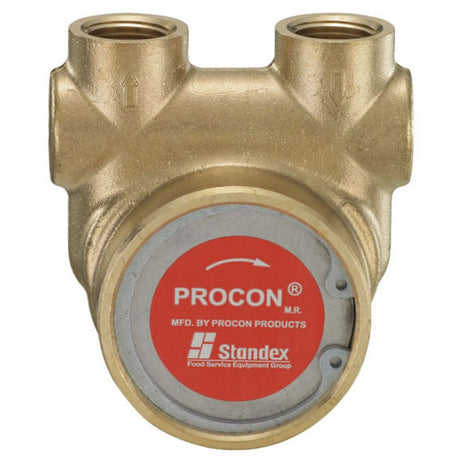

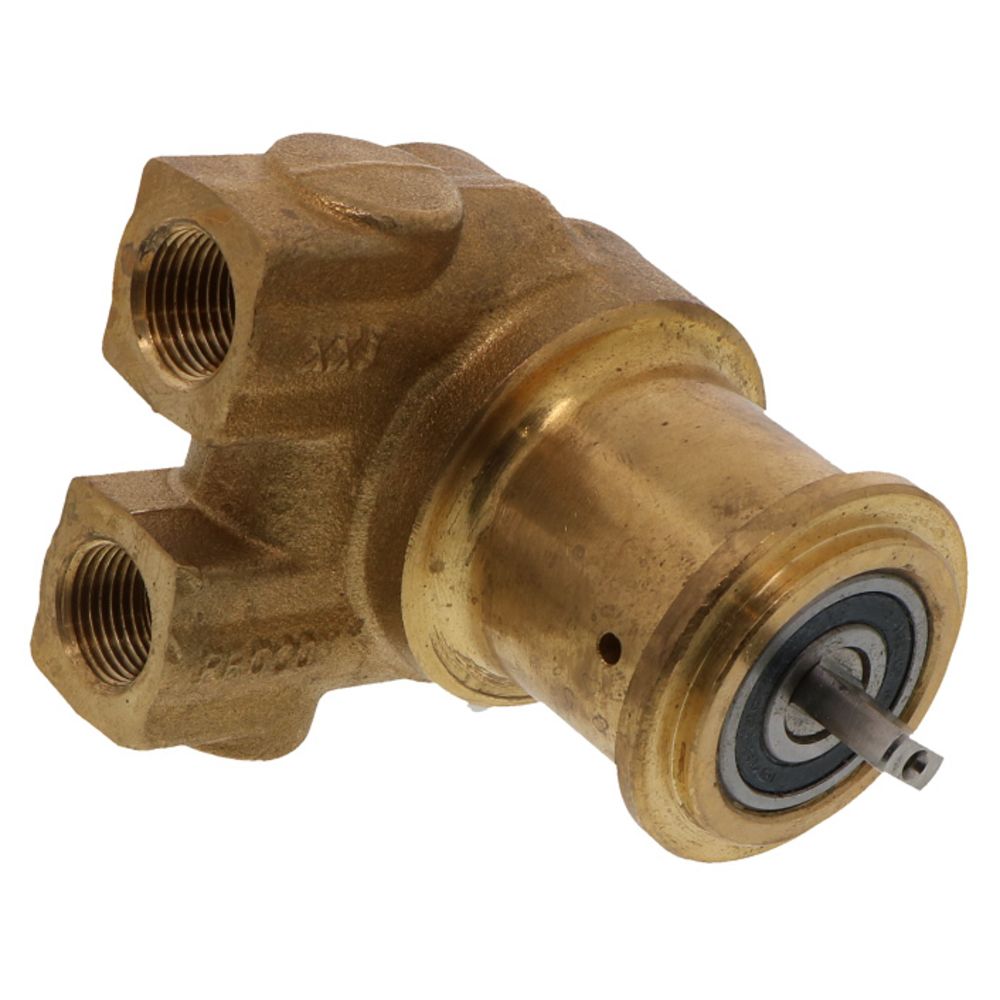

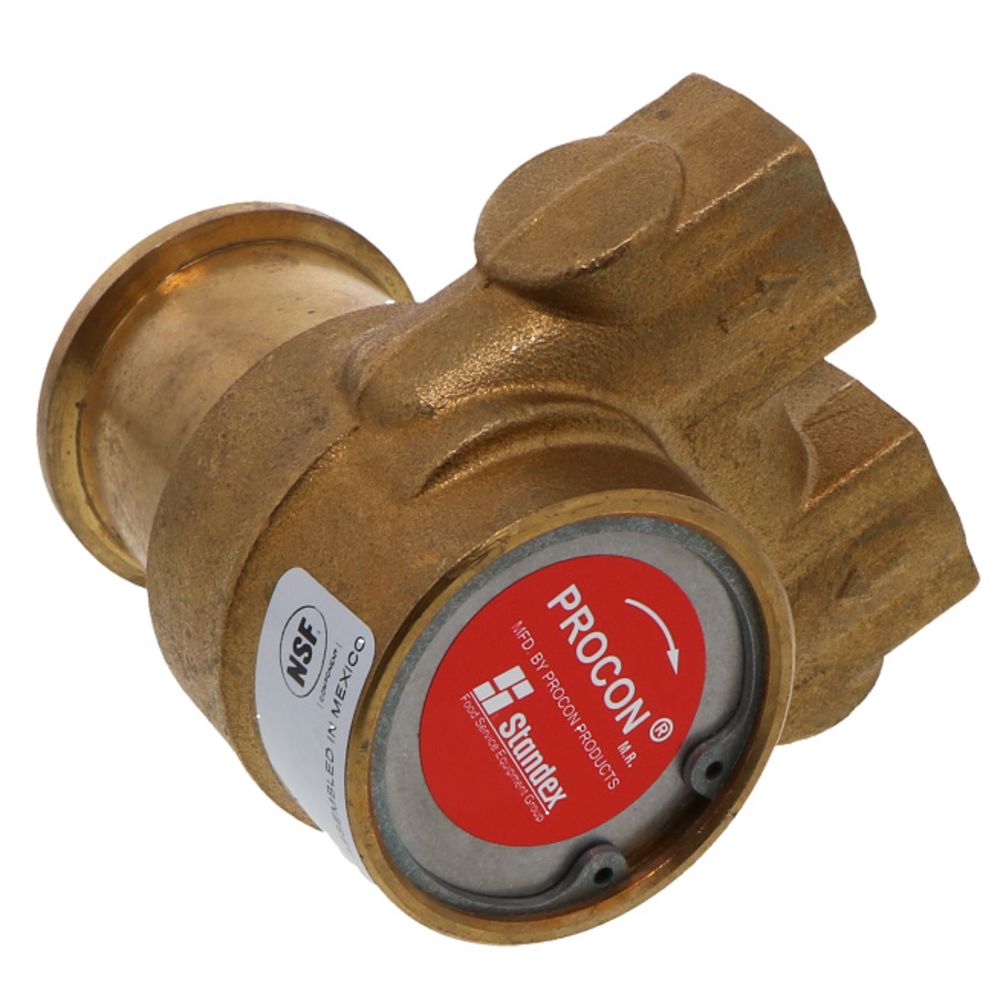

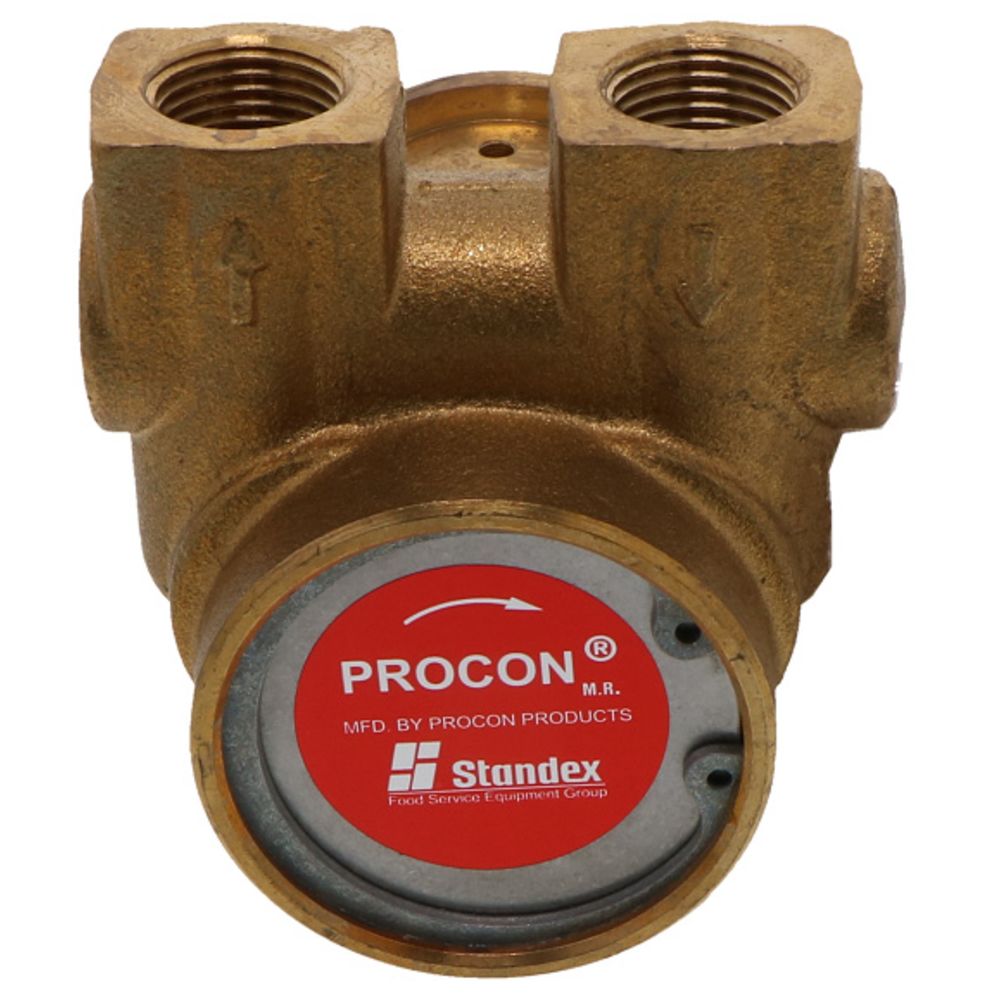

Procon Pump NSF Brass 80 GPH 3/8" NPT w/ .188" Double Flat Drive (Clamp-on)

Part Number: 112A080F12XX
Alt. Part Number: 112A080R12XX
Product image 1
Product image 2
Product image 3
Your price:
Choose
Single
Box of 12
similar items
The Procon Pump NSF Brass 80 GPH 3/8" NPT w/ .188" Double Flat Drive (Clamp-on) Series 2 Rotary Vane Pump is a positive displacement pump. This Series 2 Procon pump is brass and includes a .188" Double Flat Drive. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 80 gallons per hour. The elastometer and seal configuration for this pump is high-quality Nitrile Type 21, which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 112B125F11XX pump is designed to be directly connected to the motor with a stainless steel clamp.
Specifications:
  • NSF Standard 169 listed
  • Capacity: 80 GPH
  • Nominal Speed: 1725 RPM
  • Maximum Discharge Pressure: 250 PSI
  • Rotation: Clockwise
  • Self-priming & maintenance free
  • Port Size: 3/8" NPT Inlet and Outlet
  • .188" Double Flat Drive
Typical Applications:
  • Carbonation
  • Espresso & coffee
  • Welding
  • Cold carb circulation
  • Reverse osmosis
  • Beer chillers
  • Pesticide Systems
  • Solar Applications


California residents Prop 65 Warning
warning symbol WARNING!
This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
