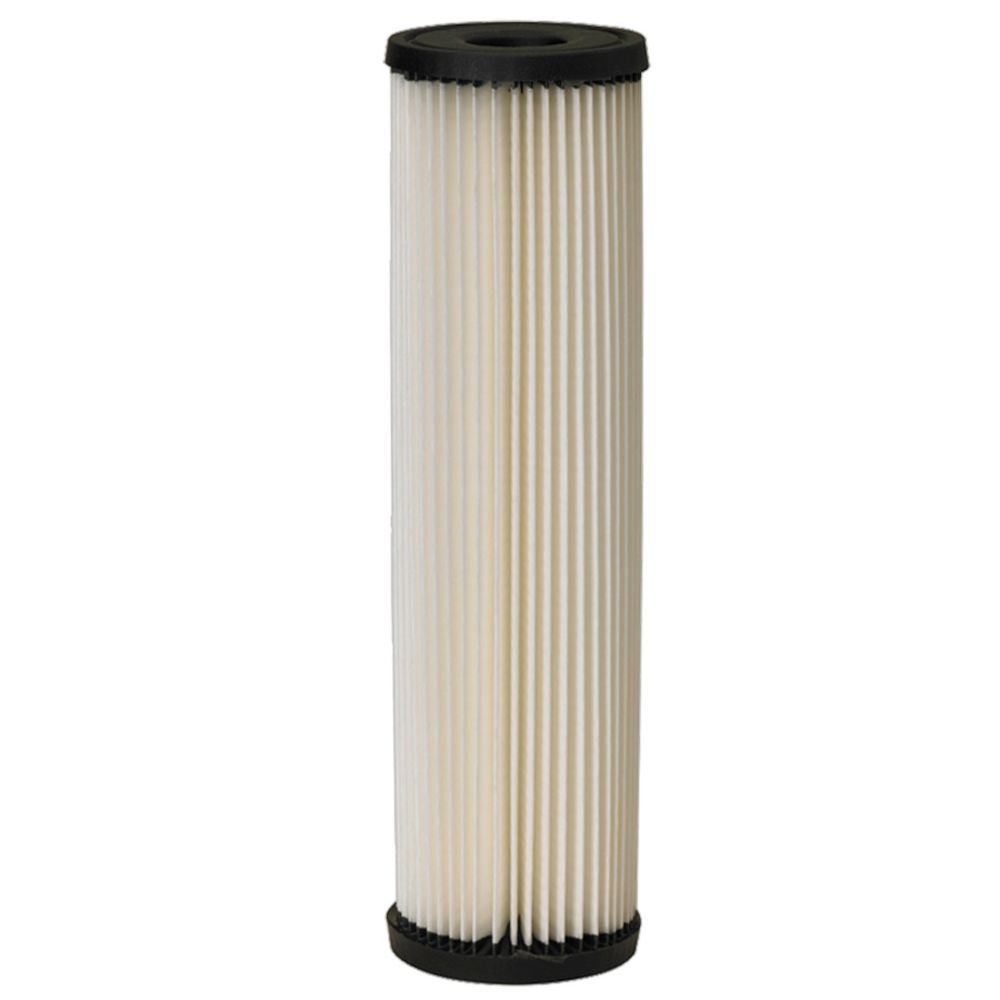

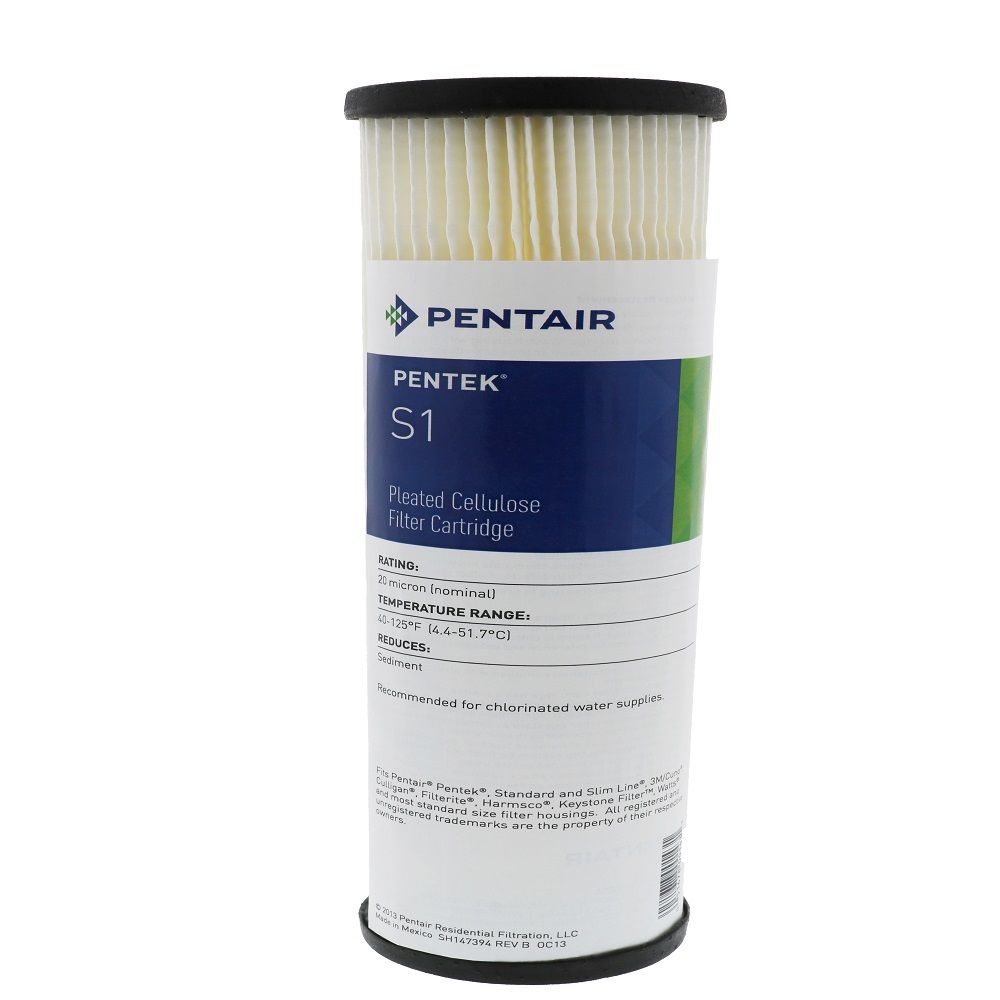

9-3/4" Pentek S1 Pleated Cellulose 20 mic Filter

5.0
(7 reviews)
Part Number: 155001-43:24PK Alt. Part Number: 155001-131, 255974-06, RS1-DS

9-3/4" Pentek S1 Pleated Cellulose 20 mic Filter

5.0
(7 reviews)
Part Number: 155001-43:24PK Alt. Part Number: 155001-131, 255974-06, RS1-DS
MSRP: $185.76
Regular price $163.51
Quantity
Unit Price
Price
Savings

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unitized end cap and gasket. An external netted sheath helps retain uniform pleat spacing in high flow and pulsating flow streams. The overlap seam is sonically welded to reduce bypass improving filtration efficiency.

Features:
  • Economically priced
  • Nominal 20-micron rating
  • Reduces sand, sediment, silt, rust particles, and scale particles
  • Pleated cellulose design maximizes dirt-holding capacity
Fits in the following filter housings: Culligan (HF-150, HF-160, HF-360, RO-2127), Omni (U25, OB1, OB5), Cuno, AquaPure, Sears, Fulflo, Teledyne Water Pik, Ace 45025 (HF-150), Ace 49560 (HF-360), Master Plumber, Flotec, Honeywell, General Electric, American Plumber, Ametek and most other water filter housings with 9.75" x 2.5" filters.

S1 filter is the same as: Culligan S1 or S1a, USFilter S1, Plymouth Products S1, Kleen-Plus S1, Sears, American Plumber W20CLa, Ace Hardware 49641, MasterPlumber TrueValue 614-800, Bruner S1, Flotec RS2, and GE FXWPC.

Compatible with:
Ace Hardware49641
American PlumberW20CLa, 155001-52
AmetekS1
Culligan Water FiltersS1, S1A, 01019124, WH-1R
General ElectricFXWPC, GXWH20S, GXWH04F
Keystone210
OmniFilter, FlotecFPWF-RS2, RS1-SS, RS1-DS
PurwaterPC20-S
Sta-RiteRS1-DS
US FilterS1

Specifications

    Product Details

    Core Material

    Polypropylene

    Initial Pressure Drop

    2.4 PSI Differential

    Max Temp (°F)

    145°F

    Micron Rating (Nominal)

    20 µm

    Min Temp (°F)

    40°F

    Psid@Flow Rate

    2.4 psi @ 10 GPM

    Recommended Flow Rate

    12 GPM

    Surface Area

    580 Square Feet

    Cap Material

    Vinyl-Plastisol

    Cartridge Style

    Drop-in

    Contaminants Reduced

    Sediment/Dirt/Rust

    Diameter

    2-5/8"

    End Cap Type

    Double Open Ended (DOE)

    Filter Construction

    Pleated

    Filter Type

    Pleated

    Flow Rate

    12 GPM

    Media Type

    Resin Impregnated Cellulose

    Micron Rating

    20 µm

    Shipping Dimensions

    Shipping Length

    17.25 in.

    Shipping Width

    11.75 in.

    Shipping Height

    10.5 in.

    Product Weight & Dimensions

    Product Height

    10.5

    Product Length

    17.25

    Product Width

    11.75

    Product Weight (lbs)

    7.589
