Pentek

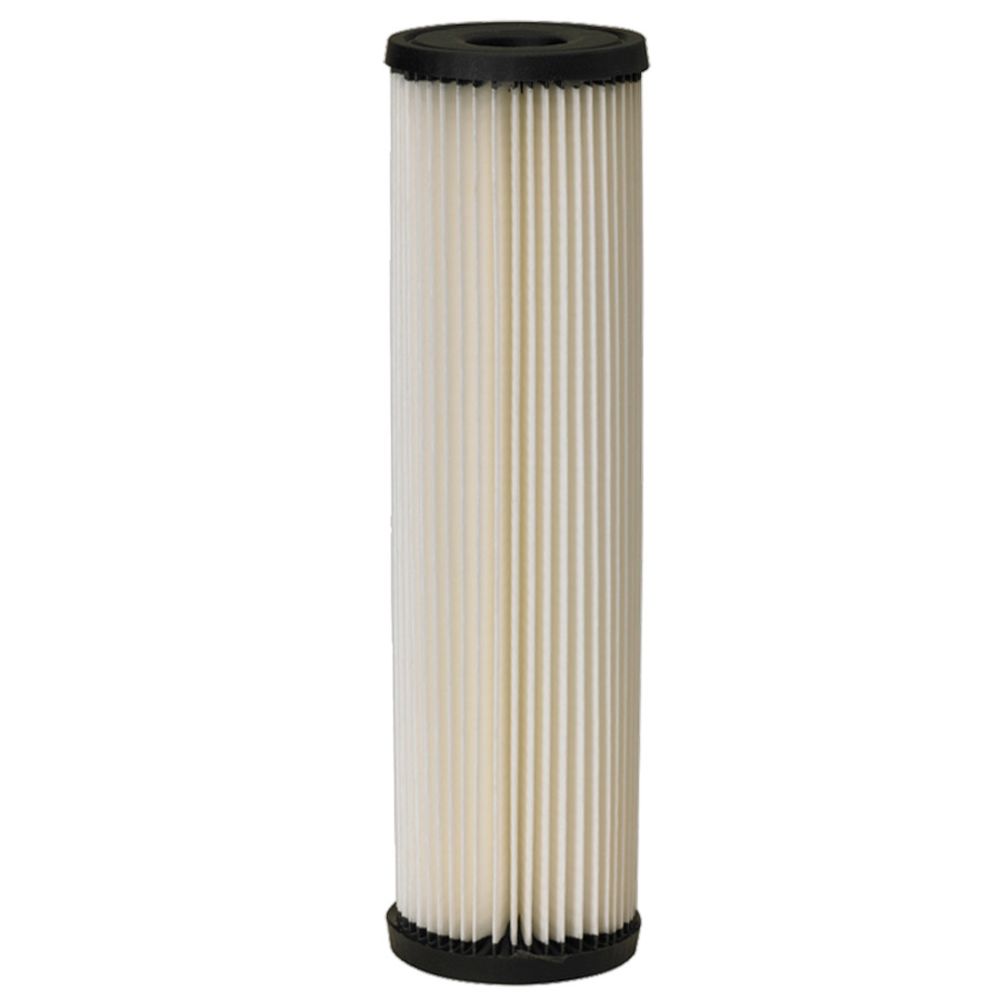

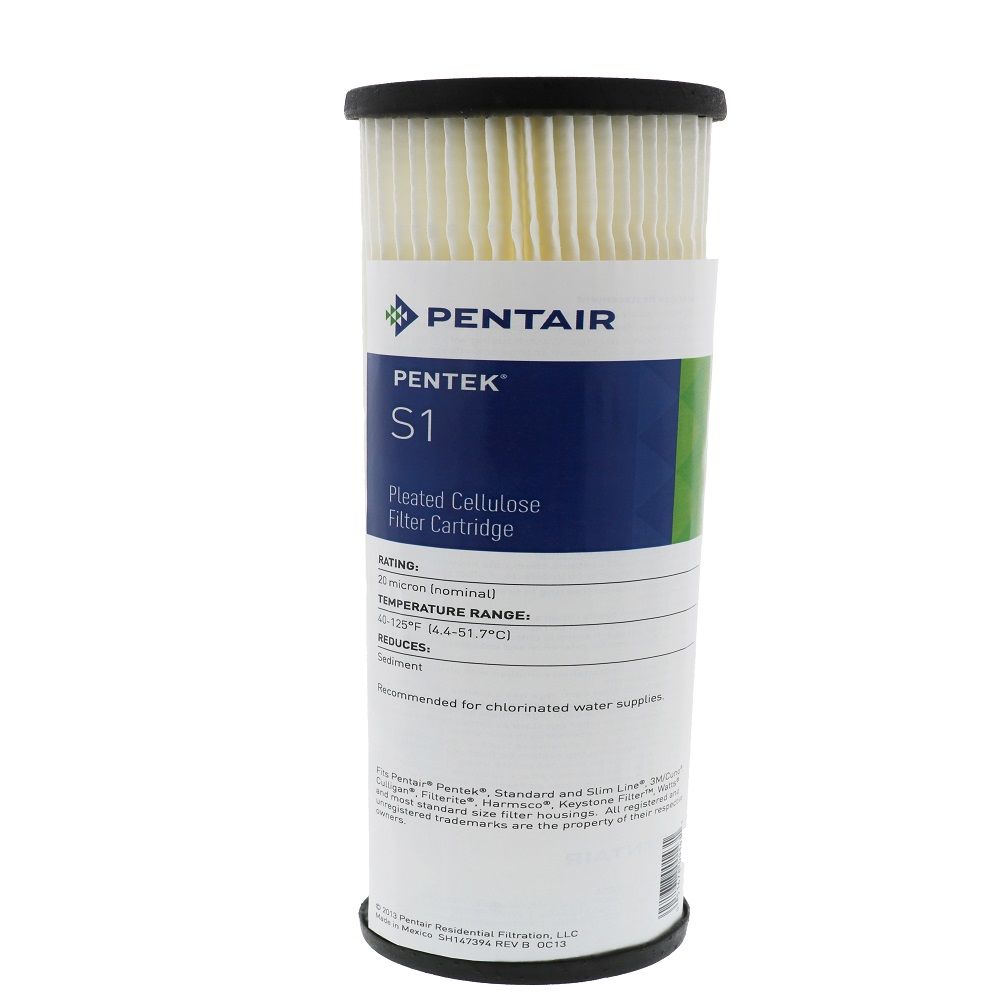

9-3/4" Pentek S1 Pleated Cellulose 20 mic Filter

Part Number: 155001-43

Alt. Part Number: 155001-131, 255974-06, RS1-DS

In Stock

out of stock

In Stock

$10.37

The media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unitized end cap and gasket. An external netted sheath helps retain uniform pleat spacing in high flow and pulsating flow streams. The overlap seam is sonically welded to reduce bypass improving filtration efficiency.

Features:
  • Economically priced
  • Nominal 20-micron rating
  • Reduces sand, sediment, silt, rust particles, and scale particles
  • Pleated cellulose design maximizes dirt-holding capacity
Fits in the following filter housings: Culligan (HF-150, HF-160, HF-360, RO-2127), Omni (U25, OB1, OB5), Cuno, AquaPure, Sears, Fulflo, Teledyne Water Pik, Ace 45025 (HF-150), Ace 49560 (HF-360), Master Plumber, Flotec, Honeywell, General Electric, American Plumber, Ametek and most other water filter housings with 9.75" x 2.5" filters.

S1 filter is the same as: Culligan S1 or S1a, USFilter S1, Plymouth Products S1, Kleen-Plus S1, Sears, American Plumber W20CLa, Ace Hardware 49641, MasterPlumber TrueValue 614-800, Bruner S1, Flotec RS2, and GE FXWPC.


Compatible with:
Ace Hardware49641
American PlumberW20CLa, 155001-52
AmetekS1
Culligan Water FiltersS1, S1A, 01019124, WH-1R
General ElectricFXWPC, GXWH20S, GXWH04F
Keystone210
OmniFilter, FlotecFPWF-RS2, RS1-SS, RS1-DS
PurwaterPC20-S
Sta-RiteRS1-DS
US FilterS1

Weight & Dimensions

Approx Length (Inches)

9-3/4" (24.8 cm)

Box Quantity

24

Case Dimensions

11-1/2" x 17" x 10"

Case Weight

8.85 Lbs

Cube Measurement

1.29687962962963

Height (inches)

10.7

Length (inches)

17.6

Weight (lbs)

8.45

Width (inches)

11.9

Details

Capacity

As Needed

Core Material

Polypropylene

Initial Pressure Drop

2.4 PSI Differential

Max Temp (°F)

145

Micron Rating (Nominal)

20 µm

Min Temp (°F)

40

Psid@Flow Rate

2.4 psi @ 10 GPM

Recommended Flow Rate

12 GPM

Surface Area

580 Square Feet

Cap Material

Vinyl-Plastisol

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-5/8"

End Cap Type

Double Open Ended (DOE)

Filter Construction

Pleated

Filter Type

Pleated

Flow Rate

12 GPM

Media Type

Resin Impregnated Cellulose

Micron Rating

20 µm

Product Length

9-3/4"


9-3/4"




The media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unitized end cap and gasket. An external netted sheath helps retain uniform pleat spacing in high flow and pulsating flow streams. The overlap seam is sonically welded to reduce bypass improving filtration efficiency.

Features:
  • Economically priced
  • Nominal 20-micron rating
  • Reduces sand, sediment, silt, rust particles, and scale particles
  • Pleated cellulose design maximizes dirt-holding capacity
Fits in the following filter housings: Culligan (HF-150, HF-160, HF-360, RO-2127), Omni (U25, OB1, OB5), Cuno, AquaPure, Sears, Fulflo, Teledyne Water Pik, Ace 45025 (HF-150), Ace 49560 (HF-360), Master Plumber, Flotec, Honeywell, General Electric, American Plumber, Ametek and most other water filter housings with 9.75" x 2.5" filters.

S1 filter is the same as: Culligan S1 or S1a, USFilter S1, Plymouth Products S1, Kleen-Plus S1, Sears, American Plumber W20CLa, Ace Hardware 49641, MasterPlumber TrueValue 614-800, Bruner S1, Flotec RS2, and GE FXWPC.


Compatible with:
Ace Hardware49641
American PlumberW20CLa, 155001-52
AmetekS1
Culligan Water FiltersS1, S1A, 01019124, WH-1R
General ElectricFXWPC, GXWH20S, GXWH04F
Keystone210
OmniFilter, FlotecFPWF-RS2, RS1-SS, RS1-DS
PurwaterPC20-S
Sta-RiteRS1-DS
US FilterS1

Weight & Dimensions

Approx Length (Inches)

9-3/4" (24.8 cm)

Box Quantity

24

Case Dimensions

11-1/2" x 17" x 10"

Case Weight

8.85 Lbs

Cube Measurement

1.29687962962963

Height (inches)

10.7

Length (inches)

17.6

Weight (lbs)

8.45

Width (inches)

11.9

Details

Capacity

As Needed

Core Material

Polypropylene

Initial Pressure Drop

2.4 PSI Differential

Max Temp (°F)

145

Micron Rating (Nominal)

20 µm

Min Temp (°F)

40

Psid@Flow Rate

2.4 psi @ 10 GPM

Recommended Flow Rate

12 GPM

Surface Area

580 Square Feet

Cap Material

Vinyl-Plastisol

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-5/8"

End Cap Type

Double Open Ended (DOE)

Filter Construction

Pleated

Filter Type

Pleated

Flow Rate

12 GPM

Media Type

Resin Impregnated Cellulose

Micron Rating

20 µm

Product Length

9-3/4"
