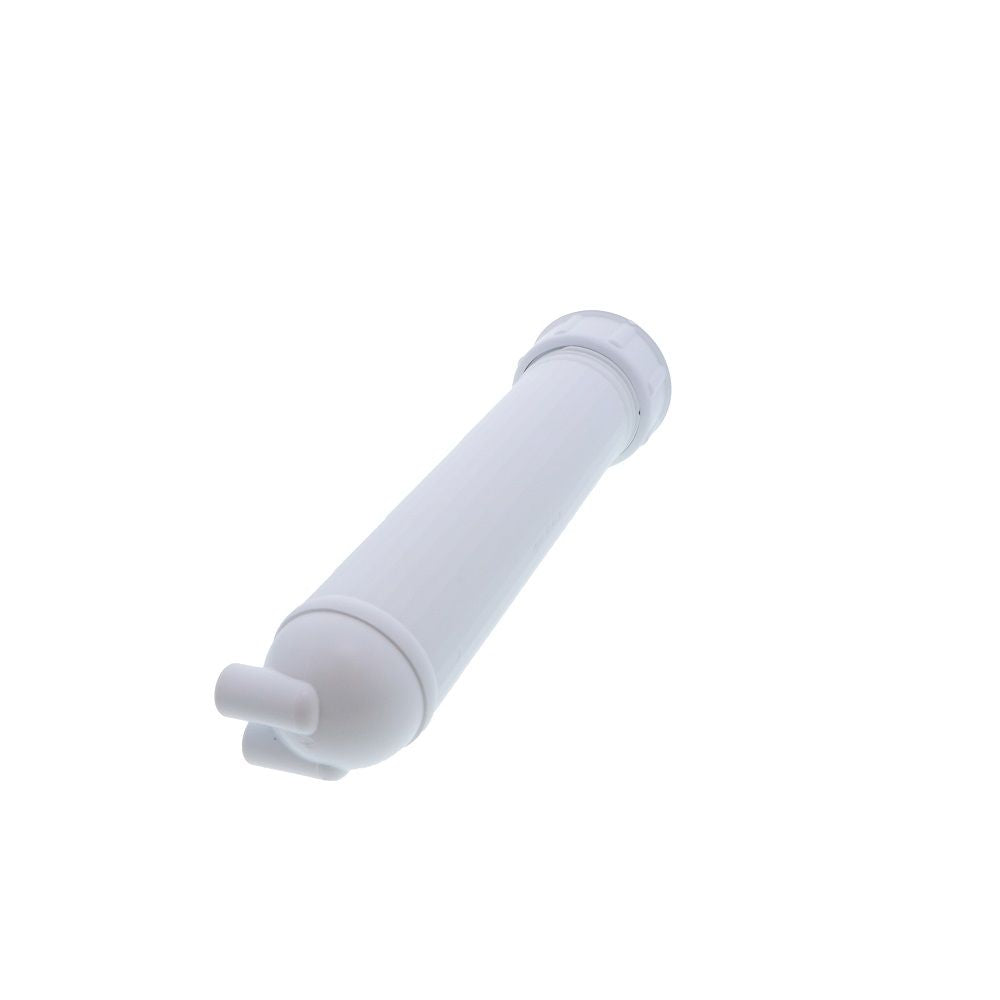

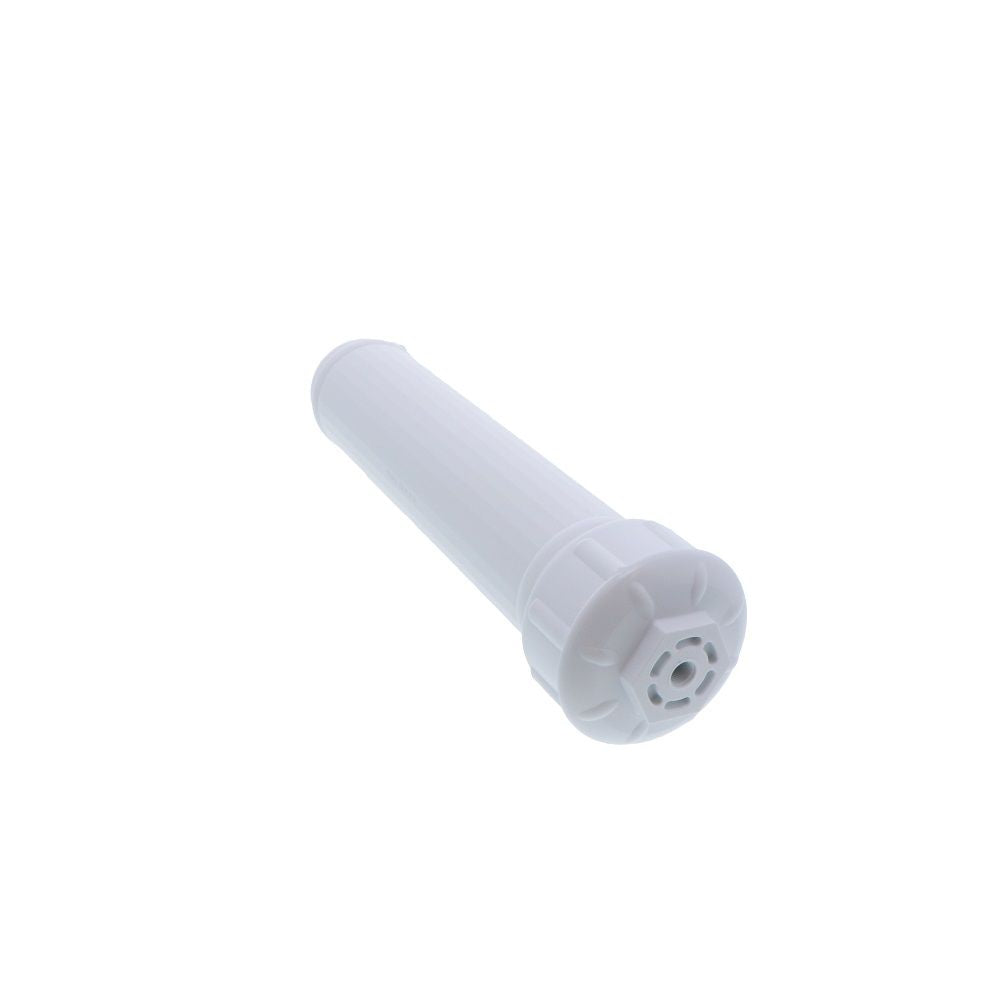

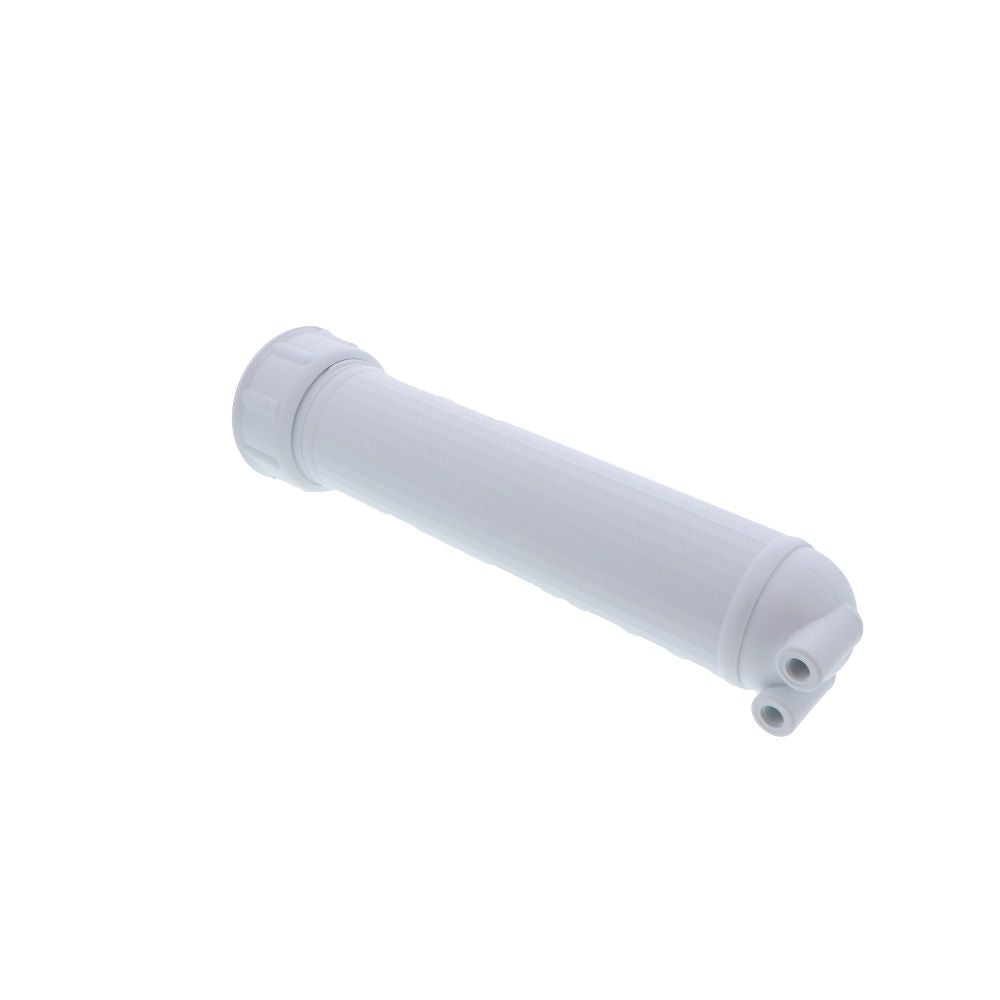

Housing for Standard 12" Membrane Size 1/8" Permeate

Part Number: PPV-111W
Alt. Part Number: EH2501KHCW
Your price:
similar items
The PPV-111W Reverse Osmosis Membrane Housing accepts all 12" standard size membranes and is manufactured using the highest quality FDA grade polypropylene. The RO membrane housing inlet/outlet ports are 1/8" FPT. The drain (brine) and product (permeate) ports exit at 90°.

Specifications:
  • Material: Polypropylene
  • Inlet Port: 1/8" FPT
  • Brine Out: 1/8" FPT
  • Permeate Out: 1/8" FPT
NOTE: Brine port requires an external flow control (flow restrictor) that is sized to the membrane capacity, typically a 3:1 ratio.
Permeate (RO or Product water) port requires an external inline check valve.


Compatible with:
AXEON/RO Ultratec200507
Pentek144376, 020-MVH90
WattsEH2501W
