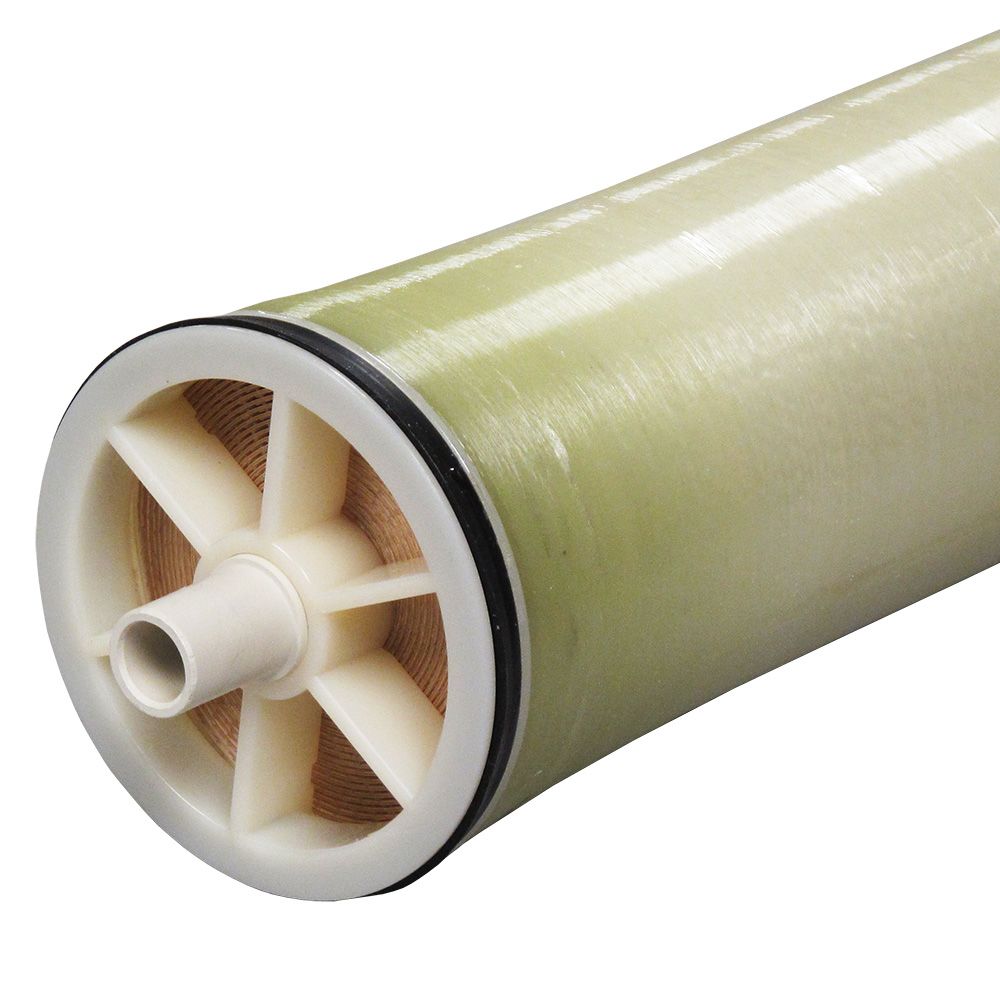

Toray TMH10A 2400 gpd Brackish Water Membrane 4 x 40

5.0
(1 reviews)
Part Number: TMH10A

Toray TMH10A 2400 gpd Brackish Water Membrane 4 x 40

5.0
(1 reviews)
Part Number: TMH10A
Regular price $242.86

Product not eligible for free shipping

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Toray TMH10A 2400 gpd Brackish Water Membrane is designed to be used on water sources with low salinity (<2,000 ppm). They can be used in multiple membrane systems to treat, municipal, industrial, commercial or process water.

Specifications:
  • Permeate Flow Rate: 2400 gallons per day
  • Membrane Type: Polyamide Composite
  • Applied Pressure: 100 psi
  • Dimensions: 4" x 40"
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Tap Water, Brackish Water, Well Water, Surface Water


Compatible with:
AXEON Membranes200391
CSM MembranesRE4040 BLF
Filmtec MembranesXLE-4040
Hydranautics MembranesESPA4-4040

Specifications

    Product Details

    Active Area

    87 sq. ft.

    Average Nacl Rejection

    0.99

    Cleaning Ph Range

    1-12

    Direction

    Outside - In

    Feed Water Temperature

    77°F

    Inlet Pressure

    100 PSI

    Material Of Construction

    Cross-Linked Polyamide

    Max Feed Silt Density Index

    5 Silt Density Index

    Max Pressure Drop

    20 PSI Differential

    Max Pressure (Psi)

    365 psi

    Max Temp (°F)

    113°F

    Membrane Type

    Spiral Wound

    Minimum Salt Rejection Cl- (%)

    0.993

    Permeate Flow Rate

    2,400 gdp (9.1)

    Permeate Tube Diameter

    3/4"

    Ph Range

    2-11

    Diameter

    4"

    Origin

    U.S.A.

    Shipping Dimensions

    Shipping Length

    40 in.

    Shipping Width

    5.88 in.

    Shipping Height

    5.25 in.

    Product Weight & Dimensions

    Product Height

    5.25 in.

    Product Length

    40 in.

    Product Width

    5.88 in.

    Product Weight (lbs)

    9.05

Downloads

Toray TMH10A 2400 gpd Brackish Water Membrane 4 x 40 ManualToray TMH10A 2400 gpd Brackish Water Membrane 4 x 40 ManualToray TMH10A 2400 gpd Brackish Water Membrane 4 x 40 ManualToray TMH10A 2400 gpd Brackish Water Membrane 4 x 40 Manual
