Toray

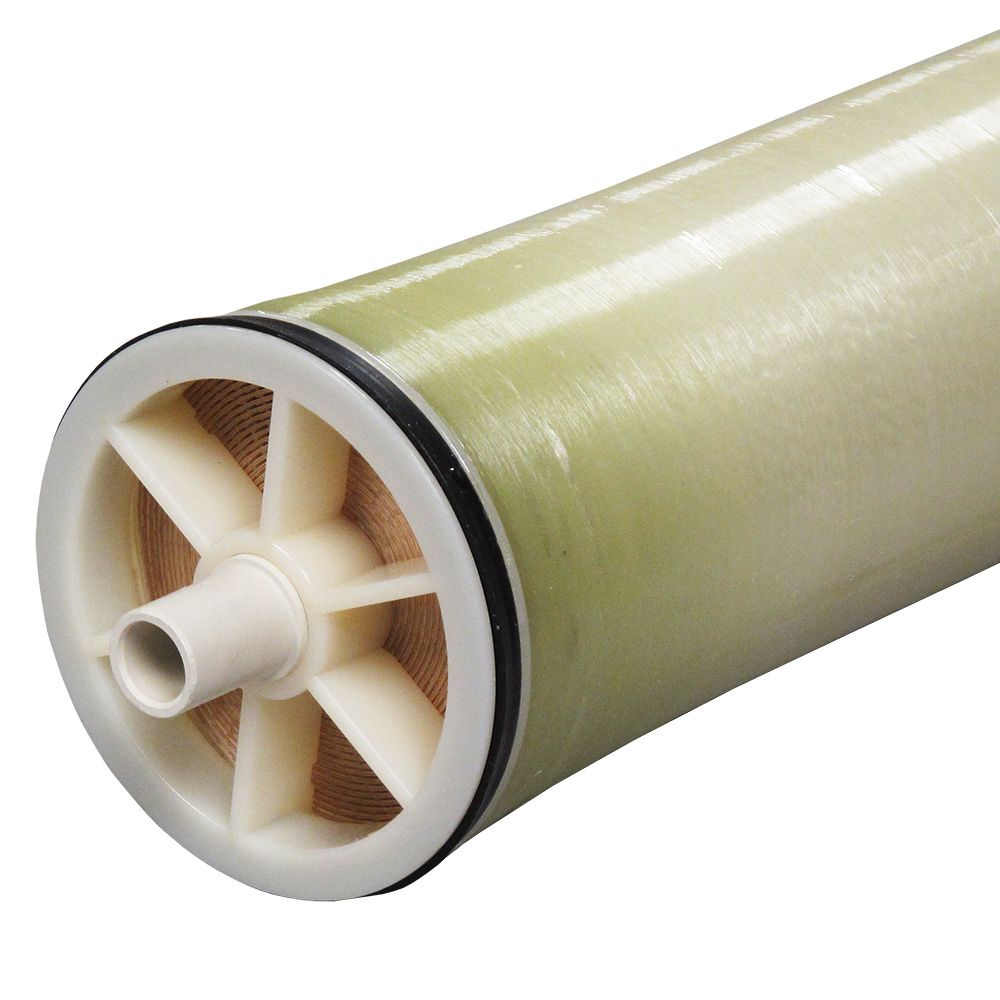

Toray TMH10A 2400 gpd Brackish Water Membrane 4 x 40

Part Number: TMH10A

In Stock

out of stock

In Stock

$239.99

The Toray TMH10A 2400 gpd Brackish Water Membrane is designed to be used on water sources with low salinity (<2,000 ppm). They can be used in multiple membrane systems to treat, municipal, industrial, commercial or process water.

Specifications:
  • Permeate Flow Rate: 2400 gallons per day
  • Membrane Type: Polyamide Composite
  • Applied Pressure: 100 psi
  • Dimensions: 4" x 40"
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Tap Water, Brackish Water, Well Water, Surface Water



Compatible with:
AXEON Membranes200391
CSM MembranesRE4040 BLF
Filmtec MembranesXLE-4040
Hydranautics MembranesESPA4-4040

Weight & Dimensions

Box Quantity

1

Height (inches)

5.25

Length (inches)

40

Weight (lbs)

9.05

Width (inches)

5.88

Details

Active Area

87 sq. ft.

Average Nacl Rejection

0.99

Cleaning Ph Range

1-12

Direction

Outside - In

Feed Spacer Thickness

31 mil

Feed Water Temperature

77°F

Inlet Pressure

100 PSI

Material Of Construction

Cross-Linked Polyamide

Max Feed Silt Density Index

5 Silt Density Index

Maximum Feed Water Sdi15

5

Max Pressure Drop

20 PSI Differential

Max Pressure (Psi)

365 psi

Max Temp (°F)

113°F

Membrane Type

Spiral Wound

Min Flow Rate

1,900 gpd (7.2m3 /d)(TMH10A

Minimum Salt Rejection Ci- (%)

0.993

Permeate Flow Rate

2,400 gdp (9.1)

Permeate Tube Diameter

3/4"

Ph Range

2-11

Diameter

4"

Origin

USA

Product Length

40"


Toray

Toray

Toray

Toray




The Toray TMH10A 2400 gpd Brackish Water Membrane is designed to be used on water sources with low salinity (<2,000 ppm). They can be used in multiple membrane systems to treat, municipal, industrial, commercial or process water.

Specifications:
  • Permeate Flow Rate: 2400 gallons per day
  • Membrane Type: Polyamide Composite
  • Applied Pressure: 100 psi
  • Dimensions: 4" x 40"
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Tap Water, Brackish Water, Well Water, Surface Water



Compatible with:
AXEON Membranes200391
CSM MembranesRE4040 BLF
Filmtec MembranesXLE-4040
Hydranautics MembranesESPA4-4040

Weight & Dimensions

Box Quantity

1

Height (inches)

5.25

Length (inches)

40

Weight (lbs)

9.05

Width (inches)

5.88

Details

Active Area

87 sq. ft.

Average Nacl Rejection

0.99

Cleaning Ph Range

1-12

Direction

Outside - In

Feed Spacer Thickness

31 mil

Feed Water Temperature

77°F

Inlet Pressure

100 PSI

Material Of Construction

Cross-Linked Polyamide

Max Feed Silt Density Index

5 Silt Density Index

Maximum Feed Water Sdi15

5

Max Pressure Drop

20 PSI Differential

Max Pressure (Psi)

365 psi

Max Temp (°F)

113°F

Membrane Type

Spiral Wound

Min Flow Rate

1,900 gpd (7.2m3 /d)(TMH10A

Minimum Salt Rejection Ci- (%)

0.993

Permeate Flow Rate

2,400 gdp (9.1)

Permeate Tube Diameter

3/4"

Ph Range

2-11

Diameter

4"

Origin

USA

Product Length

40"
