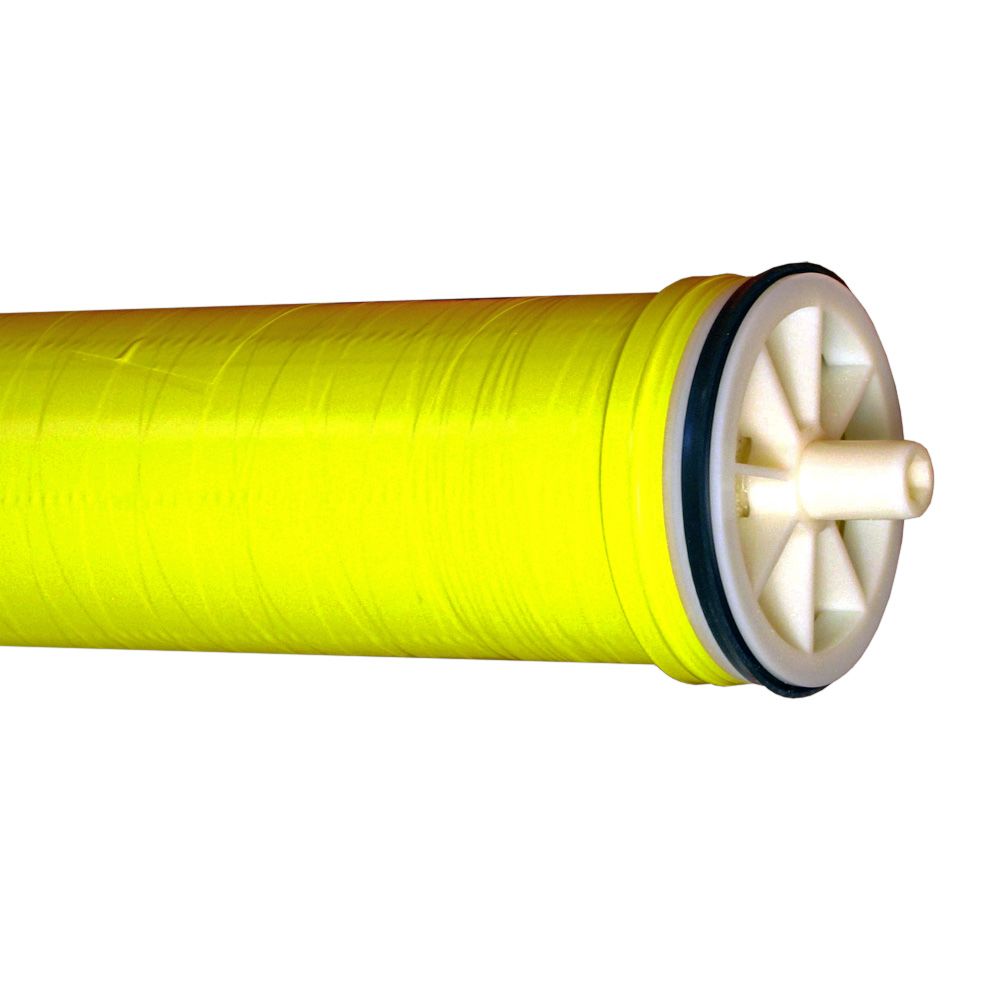

Filmtec NF90-400 7500 GPD Nano Membrane Element

Part Number: NF90-400
Sold Out

Filmtec NF90-400 7500 GPD Nano Membrane Element

Part Number: NF90-400
Regular price $1,423.41

This item is discontinued. We recommend the Filmtec NF90-400/34i 10000 GPD Nano Membrane Element as a substitute.

Product not eligible for free shipping

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description


The Dow FILMTEC NF90-400 Nanofiltration Membrane is specifically designed for applications with high concentrations of silt, nitrates, iron and organic compounds such as pesticides, herbicides and THM (Trihalomethane gas) precursors, while offering effectiveness even at low operating pressures.
Features:
  • Up to 7500 Gallon Per Day production
  • Up to 600 SIPG
  • Fits Standard 8" Housings or Pressure Vessels
  • Nanofiltration Element for Commercial Systems
  • High serface area
  • Removes salts, nitrate, iron and organic compounds such as pesticides, herbicides and THM precursors
  • High active area membrane combined with low net driving pressure


Compatible with:
Filmtec Membranes149985

Specifications

    Product Details

    Active Area

    400 sq. ft.

    Average Nacl Rejection

    85-95%

    Chlorine Tolerance

    <0.1 ppm

    Cleaning Ph Range

    1-13

    Inlet Pressure

    70 PSI

    Inner/Outer Wraps

    Fiberglass

    Material Of Construction

    Polyamide Thin-Film

    Max Feed Silt Density Index

    5 Silt Density Index

    Max Flow Rate

    70 gpm (15.9 m3/hr)

    Max Pressure Drop

    15 PSI Differential

    Max Pressure (Psi)

    600 psi

    Max Temp (°F)

    113°F

    Permeate Flow Rate

    7,500 gpd (28.4)

    Permeate Tube Diameter

    1-1/2"

    Ph Range

    3-10

    Cartridge Style

    Drop-in

    Diameter

    8"

    Shipping Dimensions

    Shipping Length

    40 in.

    Product Weight & Dimensions

    Product Length

    40 in.

    Product Weight (lbs)

    11.75

Downloads

Filmtec NF90-400 7500 GPD Nano Membrane Element Manual
