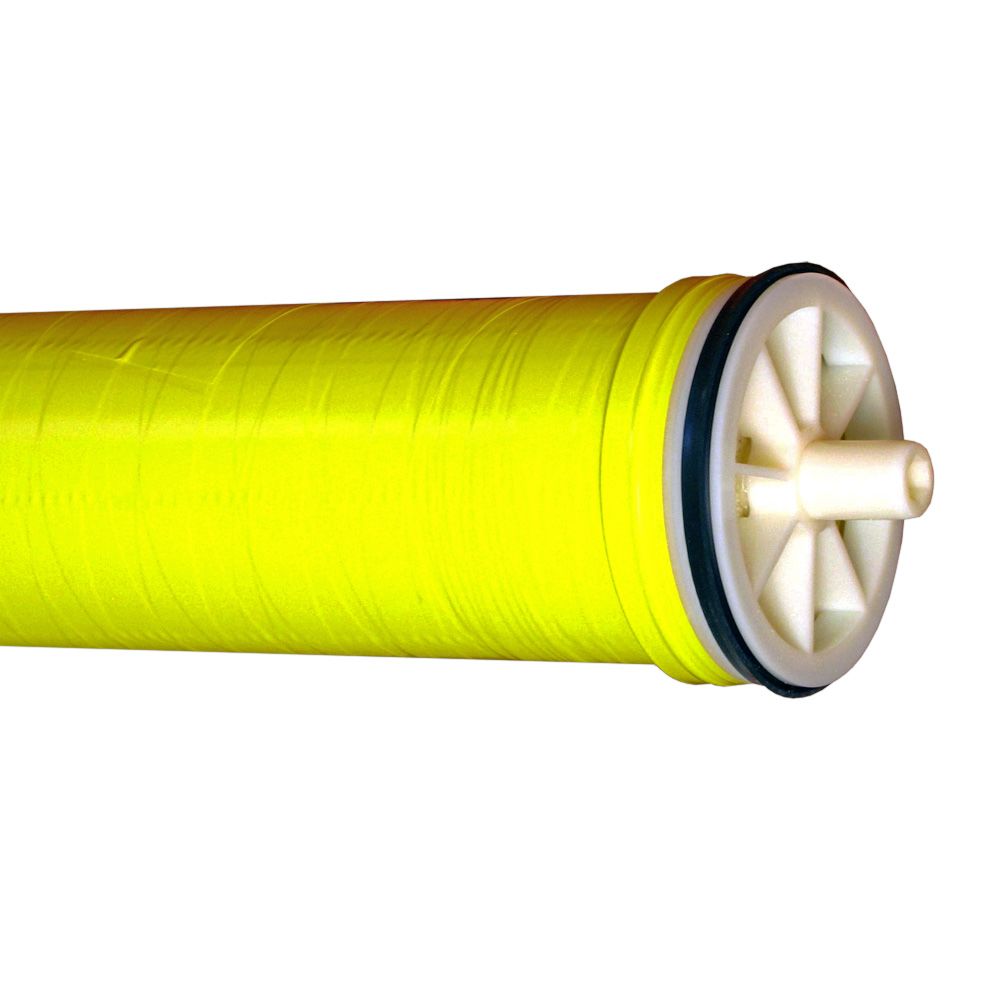

Filmtec NF90-400 7500 GPD Nano Membrane Element

The Dow FILMTEC NF90-400 Nanofiltration Membrane is specifically designed for applications with high concentrations of silt, nitrates, iron and organic compounds such as pesticides, herbicides and THM (Trihalomethane gas) precursors, while offering effectiveness even at low operating pressures.
Features:

Up to 7500 Gallon Per Day production
Up to 600 SIPG
Fits Standard 8" Housings or Pressure Vessels
Nanofiltration Element for Commercial Systems
High serface area
Removes salts, nitrate, iron and organic compounds such as pesticides, herbicides and THM precursors
High active area membrane combined with low net driving pressure

Compatible with:

Filmtec Membranes

149985

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	400 sq. ft.
Average Nacl Rejection	85-95%
Chlorine Tolerance	<0.1 ppm
Cleaning Ph Range	1-13
Inlet Pressure	70 PSI
Inner/Outer Wraps	Fiberglass
Magnesium Sulfate Reduction	>97%
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Flow Rate	70 gpm (15.9 m3/hr)
Max Pressure Drop	15 PSI Differential
Max Pressure (Psi)	600 psi
Max Temp (°F)	113°F
Permeate Flow Rate	7,500 gpd (28.4)
Permeate Tube Diameter	1-1/2"
Ph Range	3-10
Stabilized Salt Rejection Cl- (%)	0.95
Cartridge Style	Drop-in
Diameter	8"
Shipping Dimensions
Shipping Length	40 in.
Product Weight & Dimensions
Product Length	40 in.
Product Weight (lbs)	11.75

Filmtec NF90-400 7500 GPD Nano Membrane Element Manual
