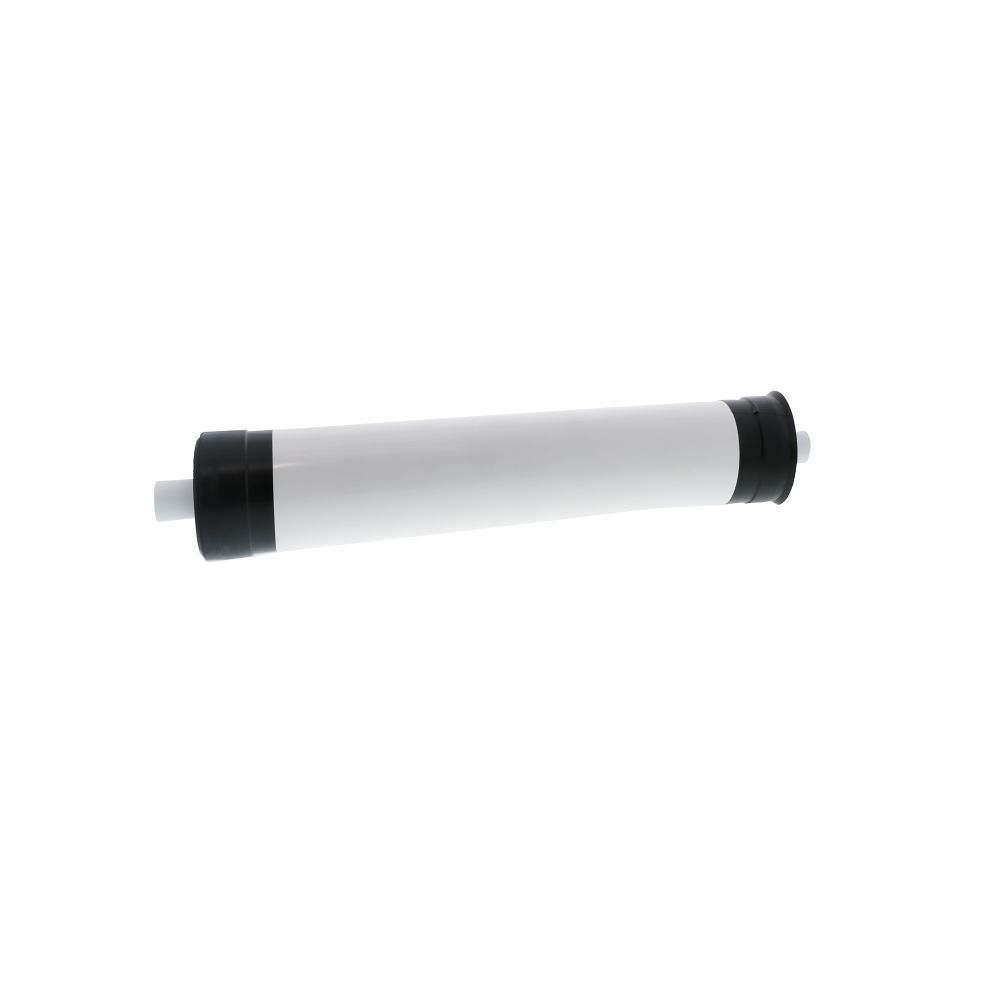

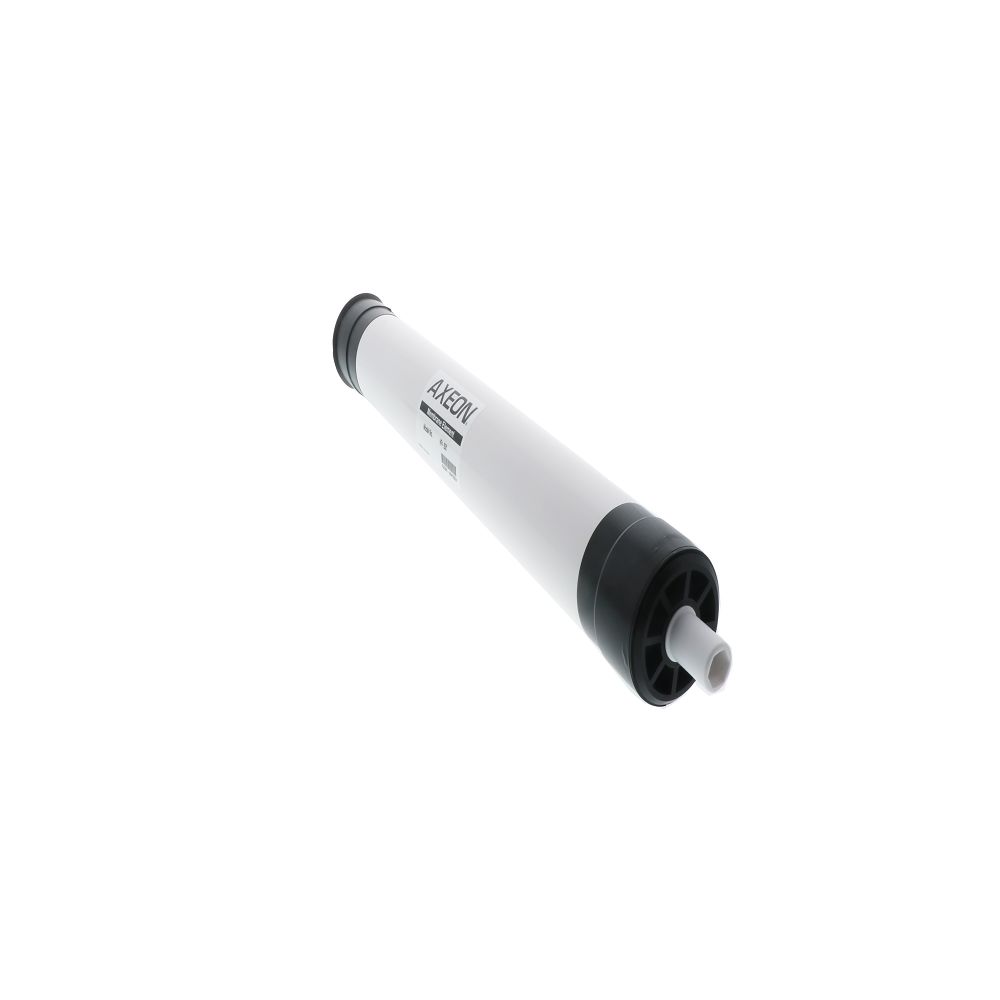

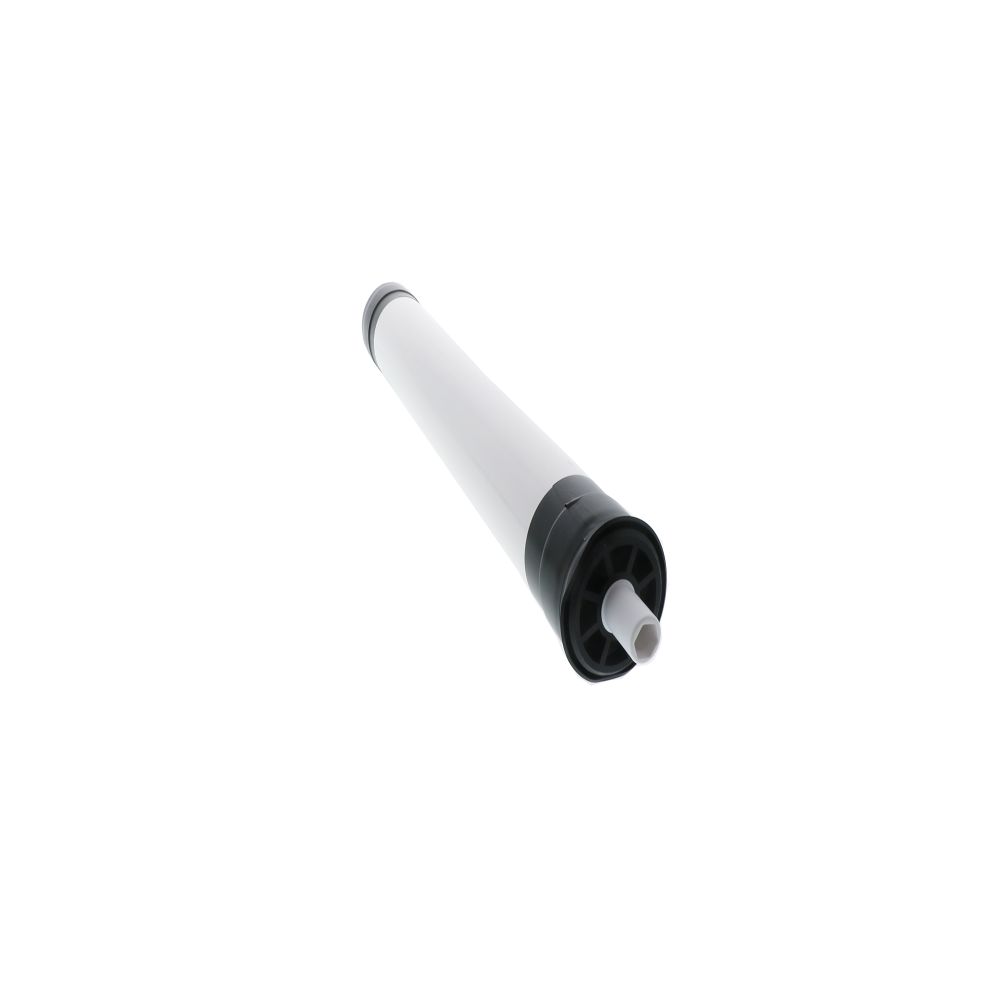

AXEON HF4-2521 400 GPD RO Membrane Element

5.0
(4 reviews)
Part Number: 200387

AXEON HF4-2521 400 GPD RO Membrane Element

5.0
(4 reviews)
Part Number: 200387
MSRP: $211.00
Regular price $121.24

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The AXEON HF4-2521 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The HF4-2521 RO membrane elements are available in all standard commercial sizes, feature a protective ABS shell, and are 100% vacuum integrity tested.The polyamide thin-film used in the AXEON HF4 Series membranes is manufactured by a major US membrane film manufacturer.

Specifications:
  • Permeate Flow Rate: 400 gallons per day
  • Membrane Type: Polyamide Thin-Film
  • Applied Pressure: 100 psi
  • Dimensions: 2.5" x 21"
  • Minimum Concentrate Flow Rate: 5:1
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Extra Low Energy, Brackish Water
  • Formerly known as RO UltraTec HF4-2521


AXEON RO membranes are dry packed

Compatible with:
Desal MembranesAK2521TF, 1206799
Filmtec MembranesXLE-2521

Specifications

    Product Details

    Application

    Brackish Water

    Average Nacl Rejection

    0.98

    Chlorine Tolerance

    0 ppm

    Cleaning Ph Range

    1-13

    Direction

    Outside - In

    Feed Water Temperature

    77°F

    Inlet Pressure

    100 PSI

    Inner/Outer Wraps

    ABS

    Material Of Construction

    Polyamide Thin-Film

    Max Feed Silt Density Index

    5 Silt Density Index

    Max Feed Water Turbidity

    1 Nephelometric Turbidity Units

    Max Pressure Drop

    10 PSI Differential

    Max Pressure (Psi)

    600psi

    Max Temp (°F)

    113°F

    Membrane Type

    Spiral Wound

    Minimum Salt Rejection Cl- (%)

    0.96

    Permeate Flow Rate

    400 gpd / (1.51 m³/d)

    Permeate Tube Diameter

    3/4"

    Ph Range

    2-11

    Recovery Rate

    0.15

    Diameter

    2.4"

    Shipping Dimensions

    Shipping Length

    22.5 in.

    Shipping Width

    3 in.

    Shipping Height

    3 in.

    Product Weight & Dimensions

    Product Length

    21 in.

    Product Weight (lbs)

    3

Downloads

AXEON HF4-2521 400 GPD RO Membrane Element ManualAXEON HF4-2521 400 GPD RO Membrane Element ManualAXEON HF4-2521 400 GPD RO Membrane Element ManualAXEON HF4-2521 400 GPD RO Membrane Element ManualAXEON HF4-2521 400 GPD RO Membrane Element Manual
