Home / Filters & Cartridges / RO Membranes / Tap Water / Filmtec XLE-2521 Tap Water Extra low Energy 365 GPD RO Membrane Element

Filmtec

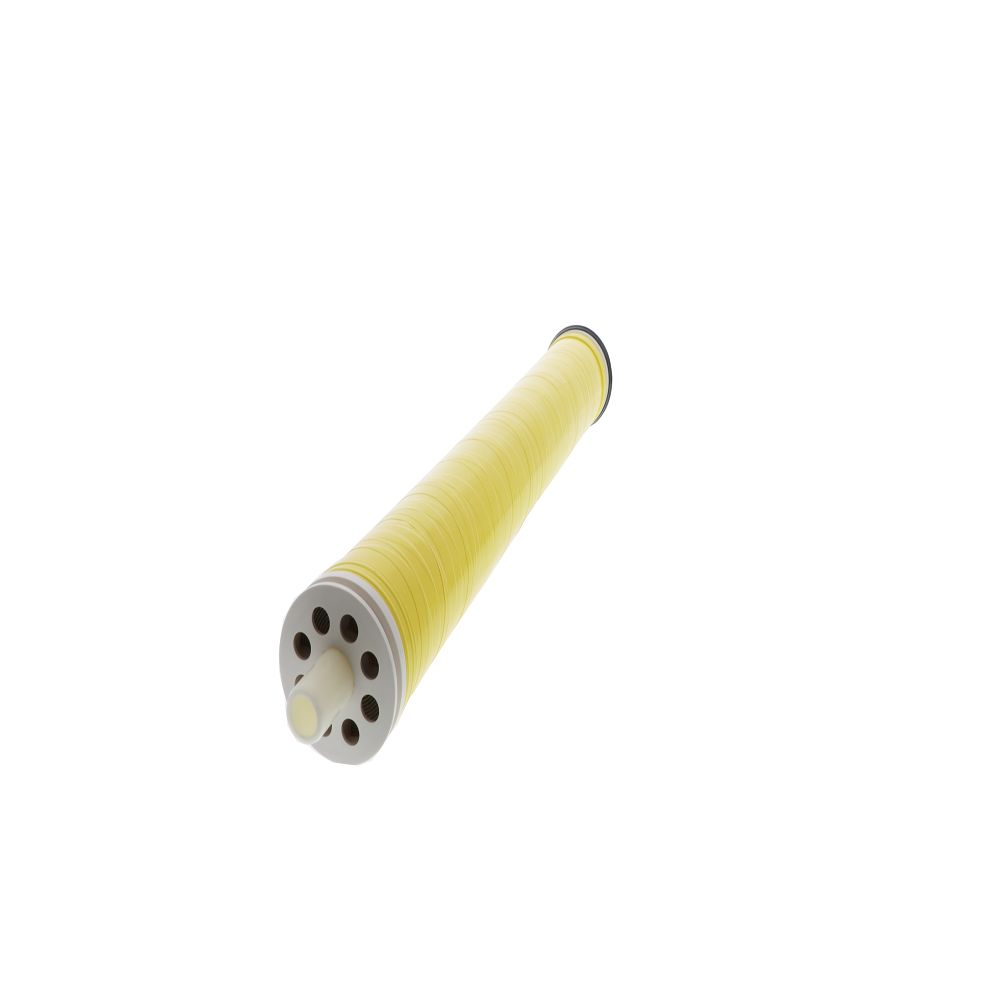

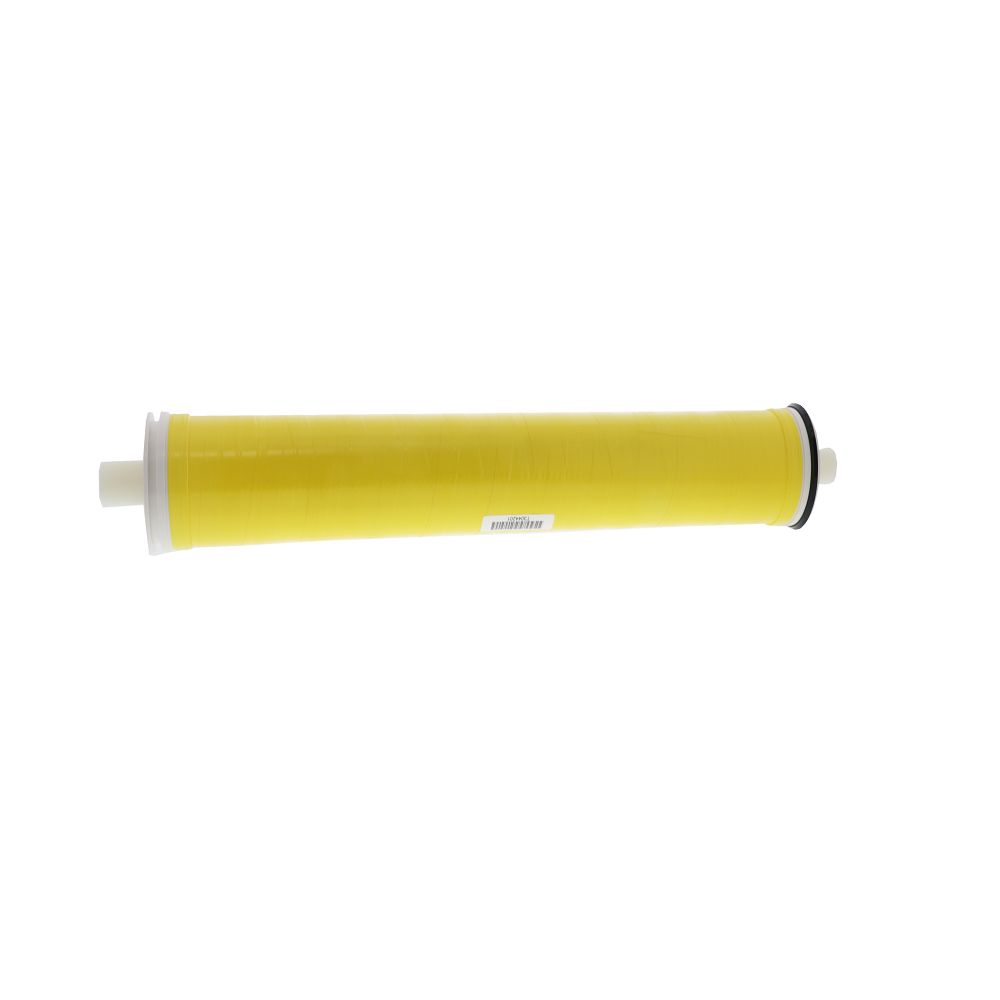

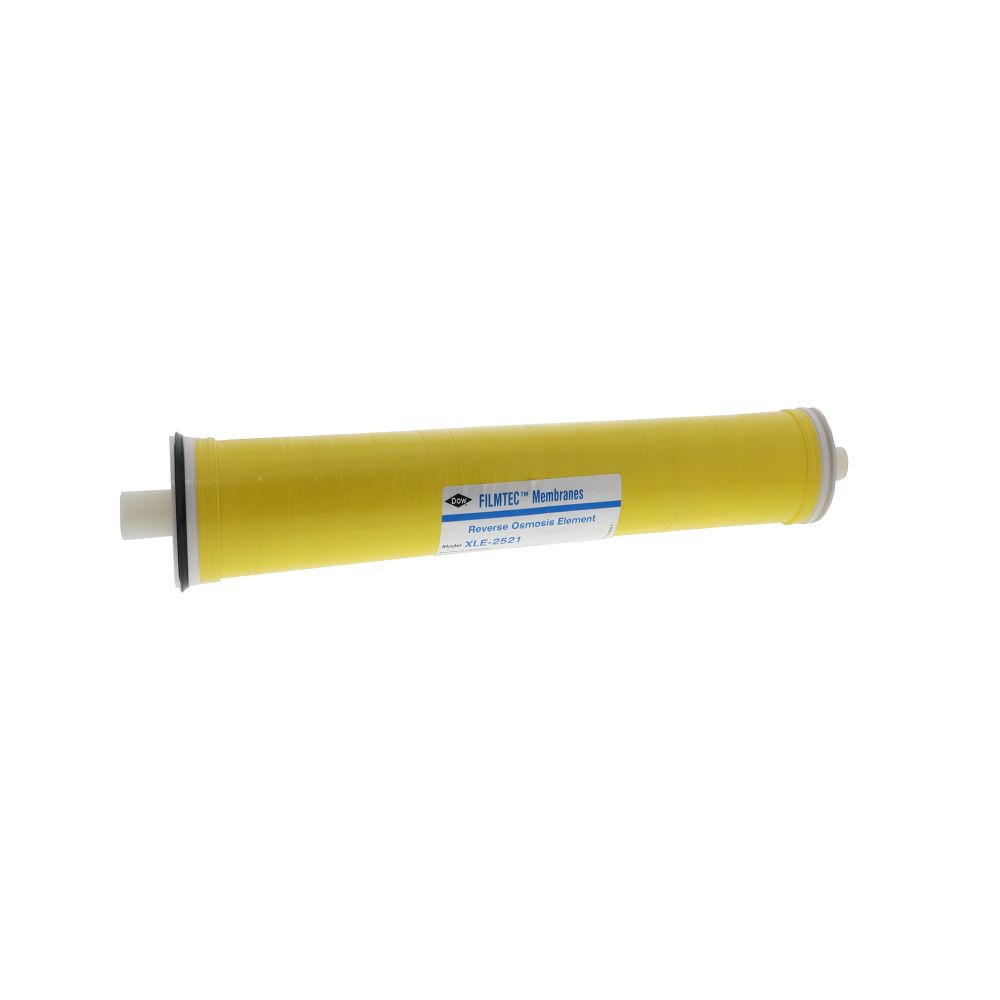

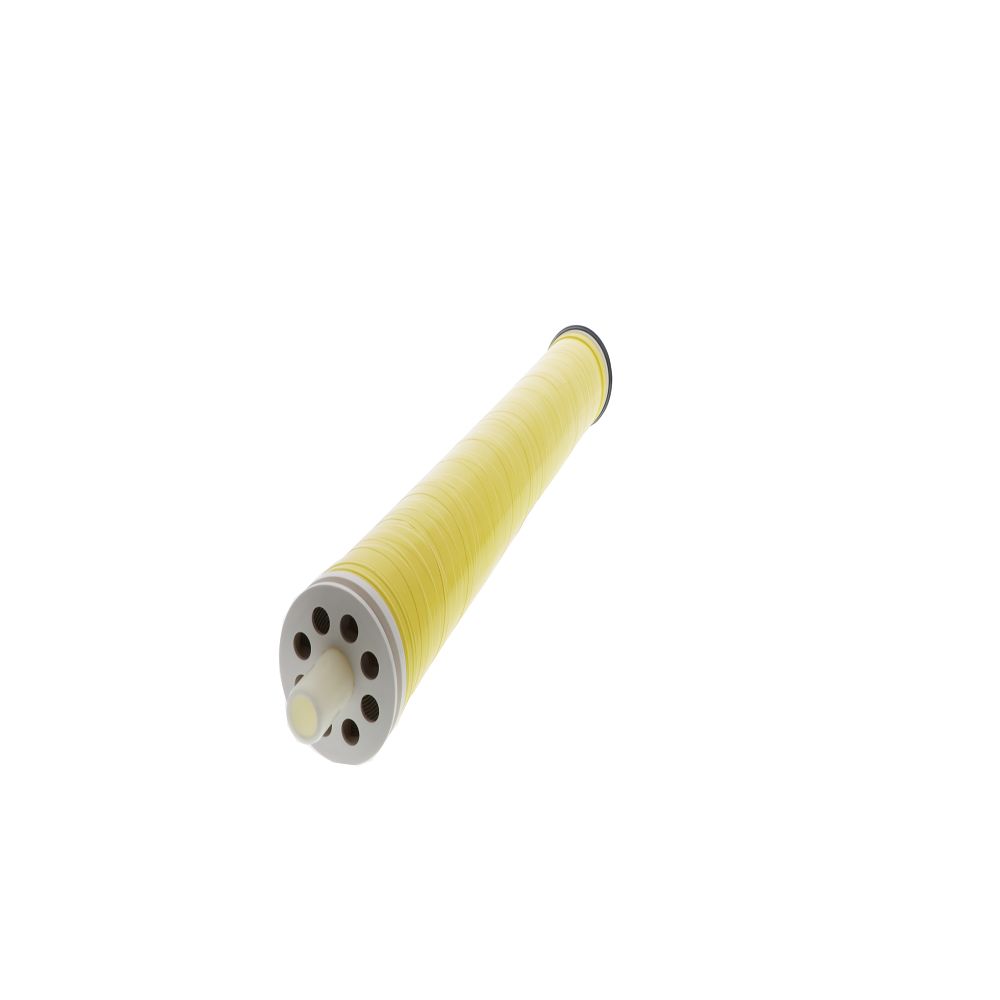

Filmtec XLE-2521 Tap Water Extra low Energy 365 GPD RO Membrane Element

Part Number: XLE-2521

Alt. Part Number: 154530

Filmtec

Filmtec XLE-2521 Tap Water Extra low Energy 365 GPD RO Membrane Element

Part Number: XLE-2521

Alt. Part Number: 154530

One-time purchase

Subscription

Subscription details

Quantity

similar items

The Dow FILMTEC XLE Membranes are engineered to optimize performance at very low applied pressure in commercial applications. The XLE (Extra Low Energy) membranes replace the older TW30LE technology, and are available in both wet and dry packaging for extended shelf-life or rapid start-up.

Features:

Up to 365 Gallon Per Day production
Up to 600 SIPG
Fits Standard 2.5" Housings or Pressure Vessels
Better system performance & economics by operating at very low applied pressure
Made with a patented technology
Provides consistent and reliable system performance
The new XLE series of elements replaces TW30LE elements which were made with an older membrane technology

Filmtec RO membranes are wet packed

Up to 365 Gallon Per Day production
Up to 600 SIPG
Fits Standard 2.5" Housings or Pressure Vessels
Better system performance & economics by operating at very low applied pressure
Made with a patented technology
Provides consistent and reliable system performance
The new XLE series of elements replaces TW30LE elements which were made with an older membrane technology

Filmtec RO membranes are wet packed

Product Details
Active Area	13 sq. ft.
Average Nacl Rejection	0.99
Chlorine Tolerance	<0.1 ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Inlet Pressure	100 PSI
Inner/Outer Wraps	Tape
Material Of Construction	Polyamide Thin-Film Composite
Max Feed Silt Density Index	5 Silt Density Index
Max Flow Rate	6 gpd (1.4)
Max Pressure Drop	13 PSI Differential
Max Pressure (Psi)	600 psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Permeate Flow Rate	365 gpd (1.4)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Stabilized Salt Rejection Cl- (%)	0.99
Cartridge Style	Drop-in
Diameter	2.4"
Shipping Dimensions
Shipping Length	21 in.
Shipping Width	2.25 in.
Shipping Height	2.25 in.
Product Weight & Dimensions
Product Height	2.25 in.
Product Length	21 in.
Product Width	2.25 in.
Product Weight (lbs)	1.2
