Flowmatic

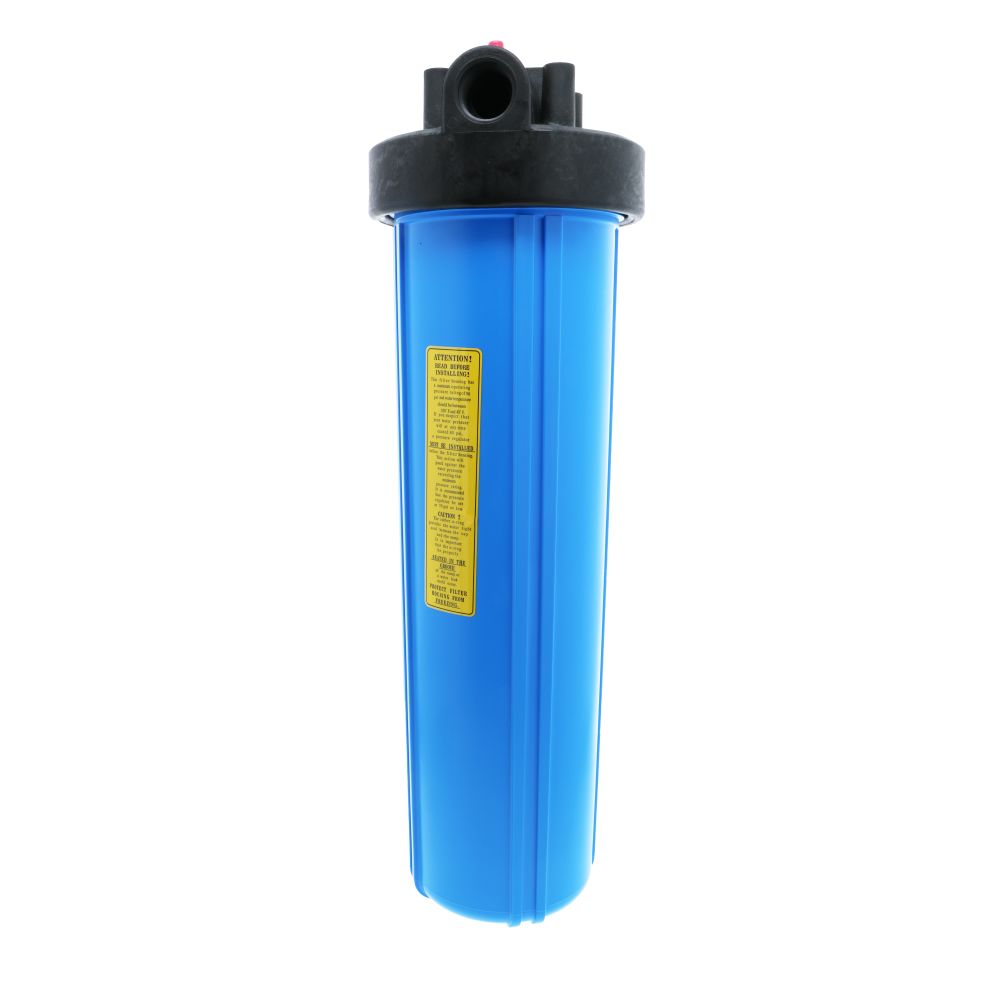

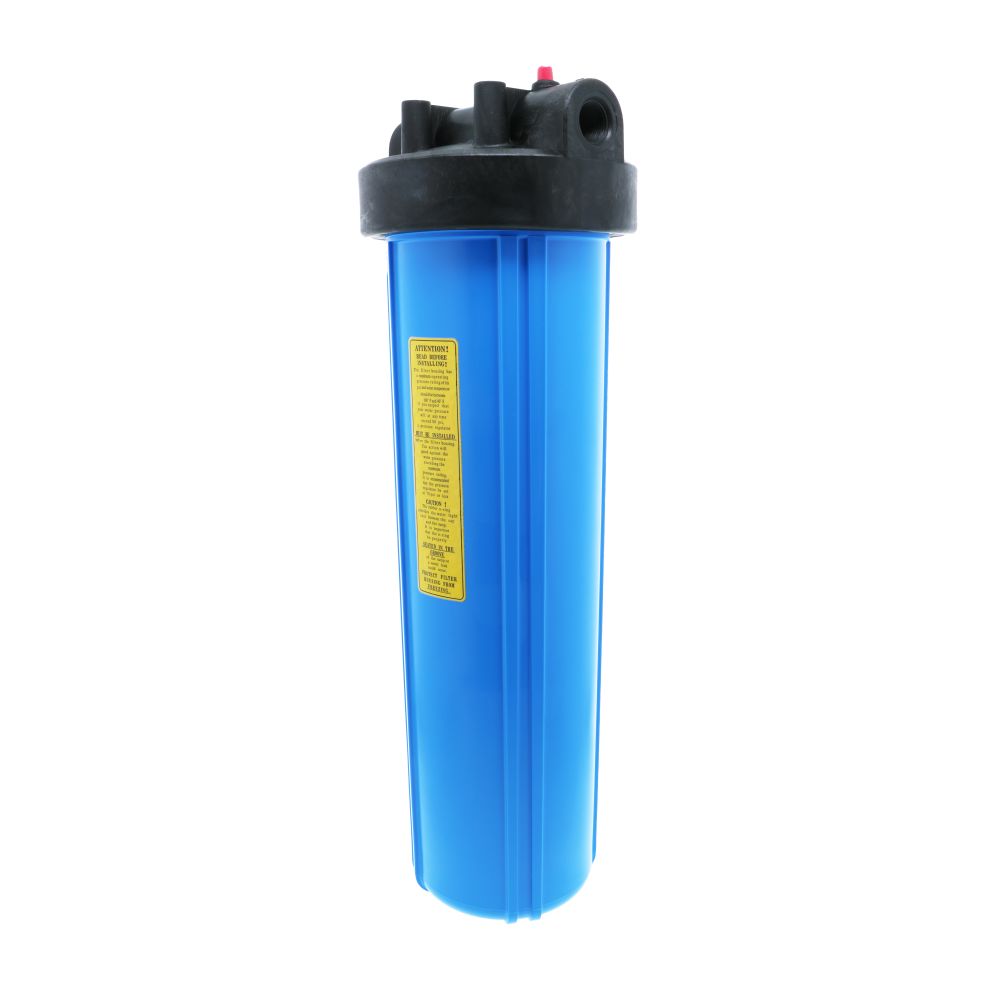

Watts Flowmatic 20" Full Flow Water Filter Housing Black/Blue W/ PR

Part Number: FH10000BL34PR

Alt. Part Number: W20FFPH1BLPR

In Stock

out of stock

In Stock

$58.31

Watts Flowmatic 20" Full Flow Water Filter Housings are ideal substitutes for costly low pressure stainless steel vessels. Full Flow filter housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high-flow rate applications. Full Flow Housings are compatible with a broad range of chemicals. Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications.

Specifications:
  • Made of FDA grade polypropylene
  • Buttress thread design for superior sealing
  • Thick side walls with heavy duty ribs for greater strength
  • EPDM o-ring
  • Max Temperature: 125°F
  • Max Pressure: 90 psi (6.3 bar)




Details

Button Assembly

300 Stainless Steel-EPDM-Polypropylene

Cap Color

Black

Features

Pressure Relief

Housing Material

Polypropylene

Inlet/Outlet Connection

3/4" FPT, 1" FPT, 1-1/2" FPT

Max Pressure (Psi)

90

Max Temp (°F)

115

Mounting Options

Mounting Bosses

O-Rings

EPDM

Size

3/4", 1", 1-1/2"

Cap Material

Polypropylene

Color / Finish

Blue

Connection Type

Female (FPT)

Flow Rate

Up to 35 GPM at 60 PSI

Origin

Taiwan


Watts




Watts Flowmatic 20" Full Flow Water Filter Housings are ideal substitutes for costly low pressure stainless steel vessels. Full Flow filter housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high-flow rate applications. Full Flow Housings are compatible with a broad range of chemicals. Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications.

Specifications:
  • Made of FDA grade polypropylene
  • Buttress thread design for superior sealing
  • Thick side walls with heavy duty ribs for greater strength
  • EPDM o-ring
  • Max Temperature: 125°F
  • Max Pressure: 90 psi (6.3 bar)



Details

Button Assembly

300 Stainless Steel-EPDM-Polypropylene

Cap Color

Black

Features

Pressure Relief

Housing Material

Polypropylene

Inlet/Outlet Connection

3/4" FPT, 1" FPT, 1-1/2" FPT

Max Pressure (Psi)

90

Max Temp (°F)

115

Mounting Options

Mounting Bosses

O-Rings

EPDM

Size

3/4", 1", 1-1/2"

Cap Material

Polypropylene

Color / Finish

Blue

Connection Type

Female (FPT)

Flow Rate

Up to 35 GPM at 60 PSI

Origin

Taiwan

Documentation
Watts
