Pentek

Pentek 20" Big Blue Water Filter Housing with PR and 3/8" Drain Valve

Part Number: 150689

In Stock

out of stock

In Stock

$50.25

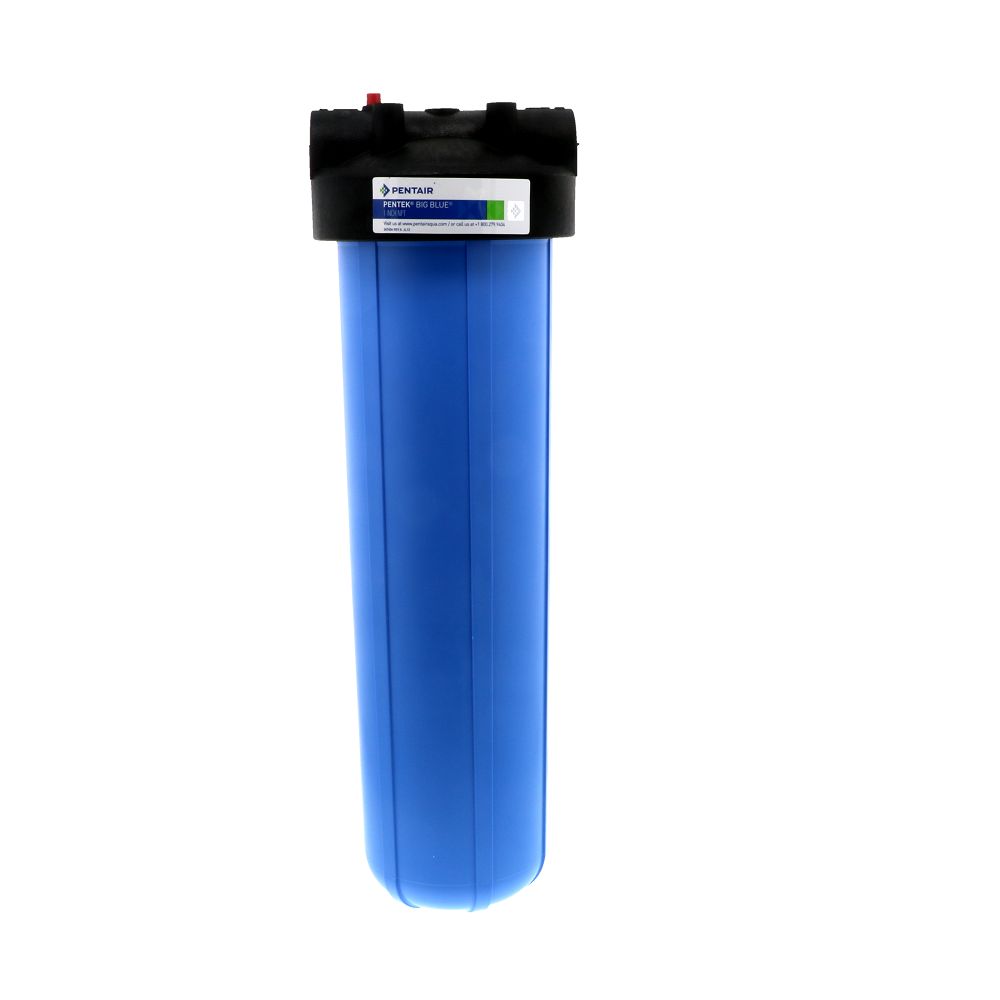

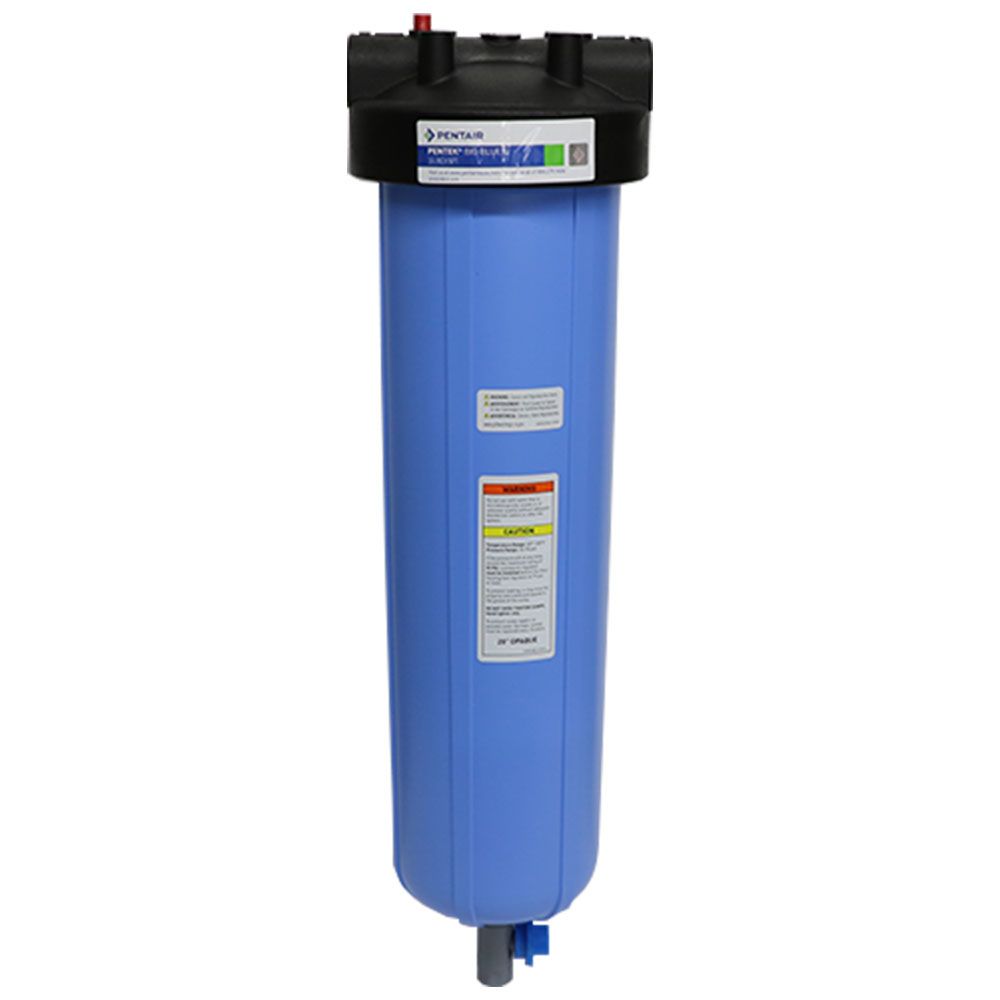

Pentek 20" Big Blue Filter Housings are large capacity housings constructed out of durable polypropylene. All housings include a 3/8" drain valve and can be used in high flow and heavy sediment applications. Pentek 20" BB Housings utilize 4-1/2" diameter filter cartridges and have temperature range of 40-100°F.

Specifications:
  • For high capacity, high flow applications
  • Accepts 20" length x 4-1/2" diameter cartridges
  • Includes 3/8" drain and drain plug
  • Comes with pressure relief button
  • Temperature Rating: 40-100°F
  • Max Pressure: 90 psi
  • Materials of Construction
  • Housing: Polypropylene

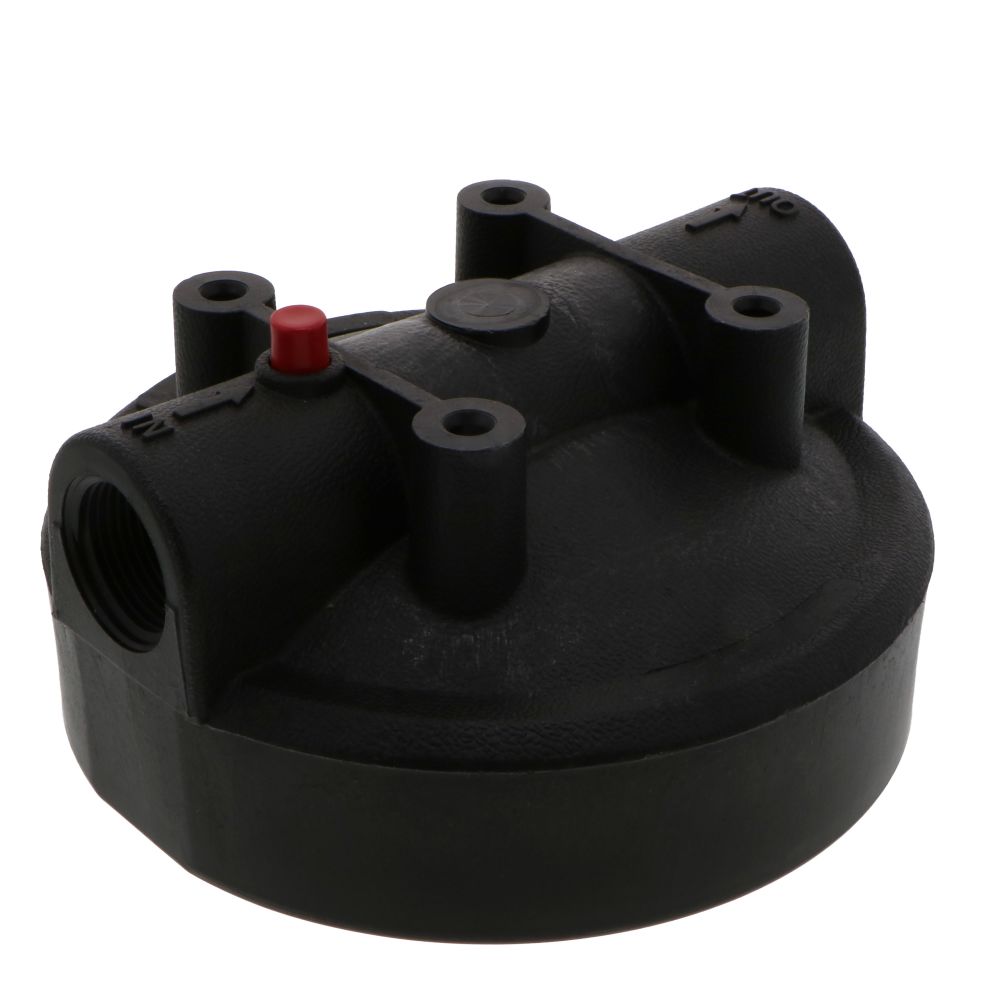

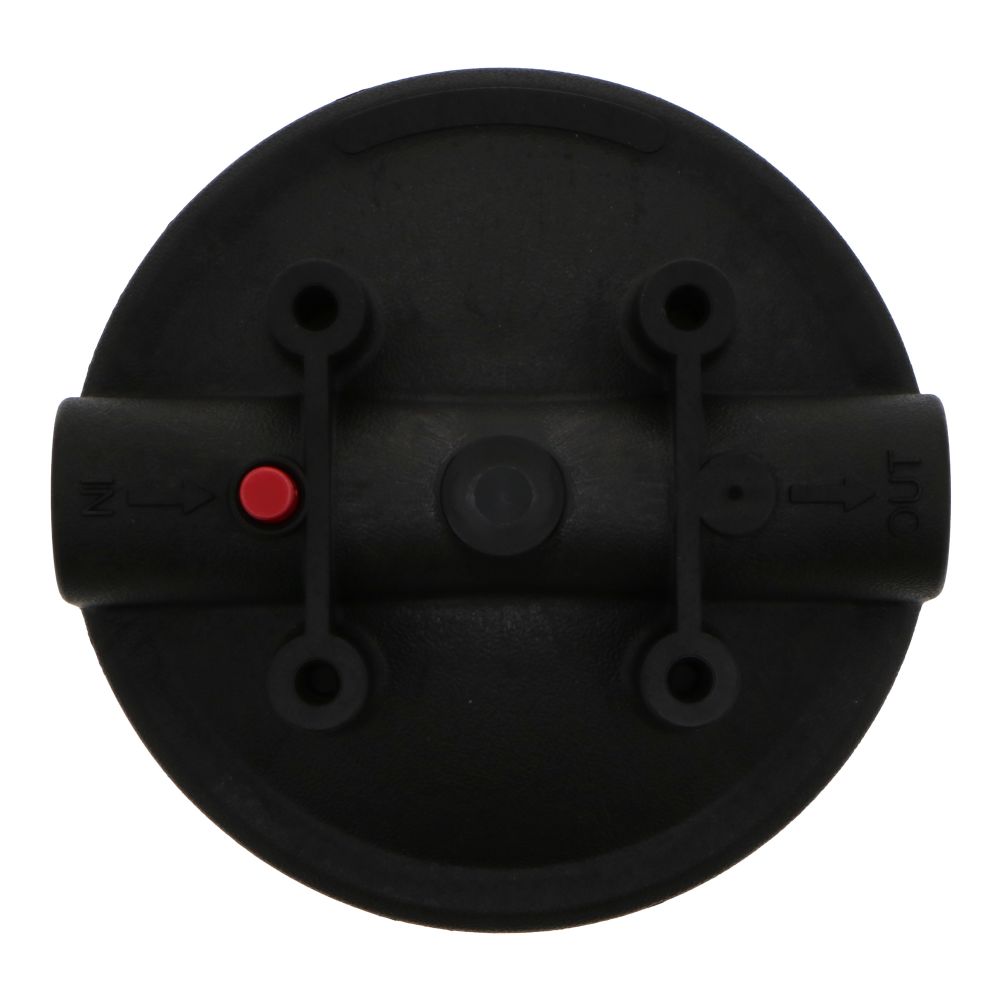

  • Cap: Polypropylene (HFPP)
  • O-Ring: Buna-N

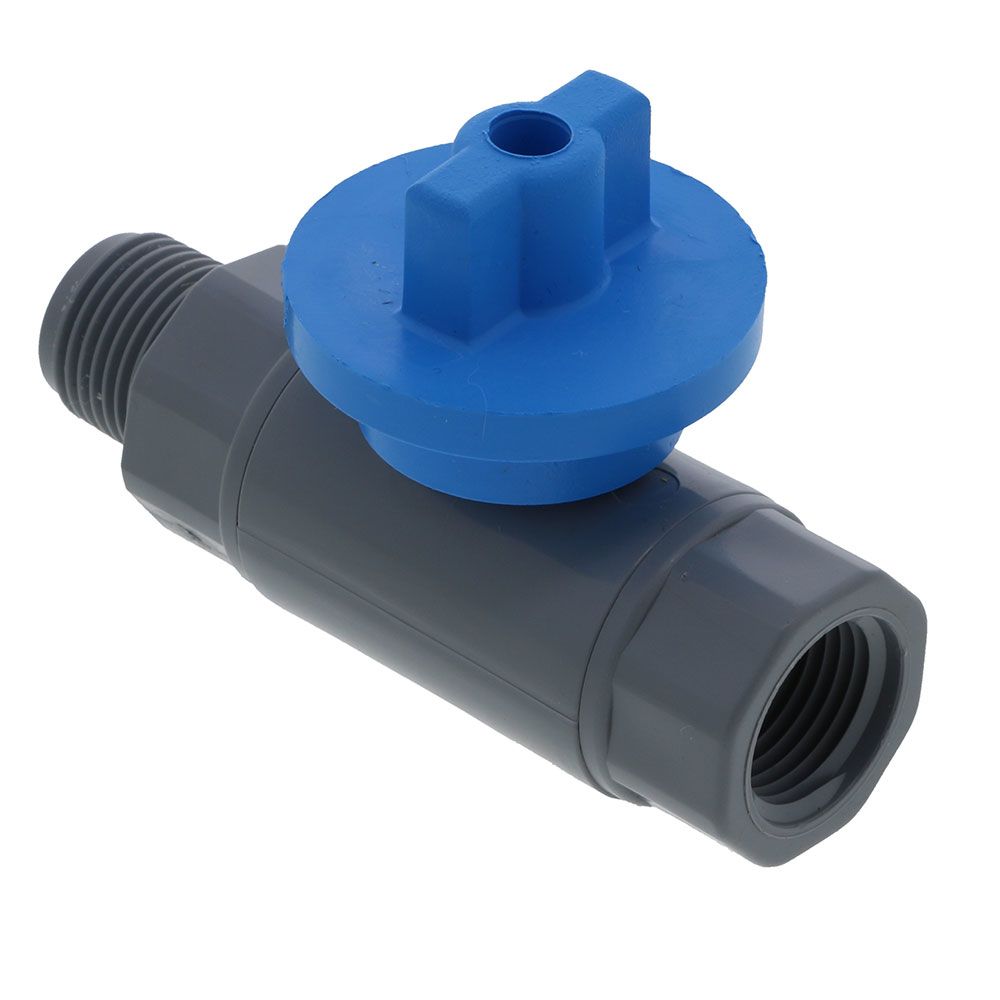

  • Ball Valve: PVC/Buna-N Seals
  • Drain Plug: High Density Polypropylene




Details

Max Temp (°F)

100

Max Pressure (Psi)

90

Min Temp (°F)

40

Cap Color

Black

Cap Material

Polypropylene

Cartridge Style

Jumbo

Color / Finish

Blue

Drain Size

3/8" OD

Features

Pressure Relief

Housing Material

Polypropylene

Material Of Construction

Polypropylene

Number Of Cartridges

1

O-Rings

Buna-N

Size

3/4", 1", 1-1/2"

Button Assembly

300 Stainless Steel-EPDM-Polypropylene

Inlet/Outlet Connection

3/4" FPT, 1" FPT, 1-1/2" FPT
