Features:
Standard Set-Up Diagram:
Optional Bypass Set-up Diagram:

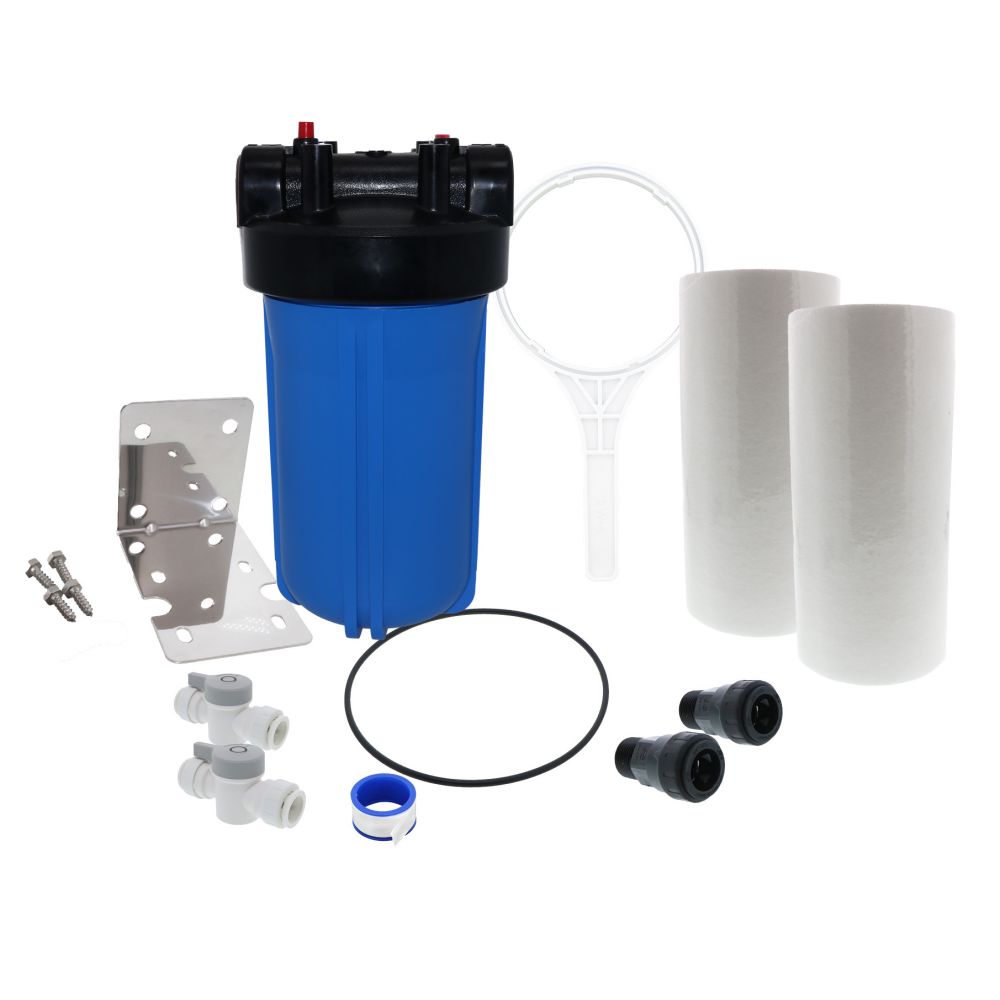

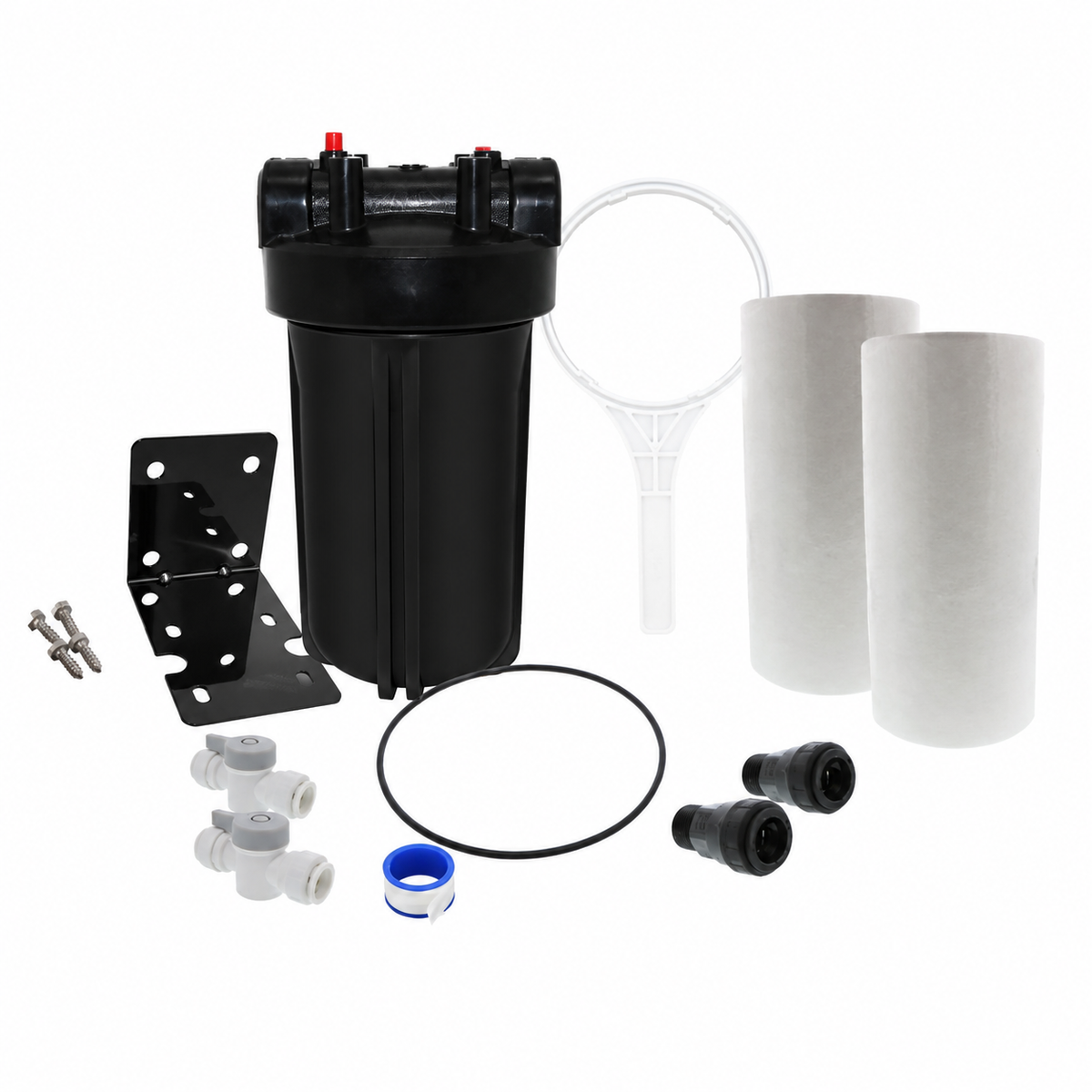

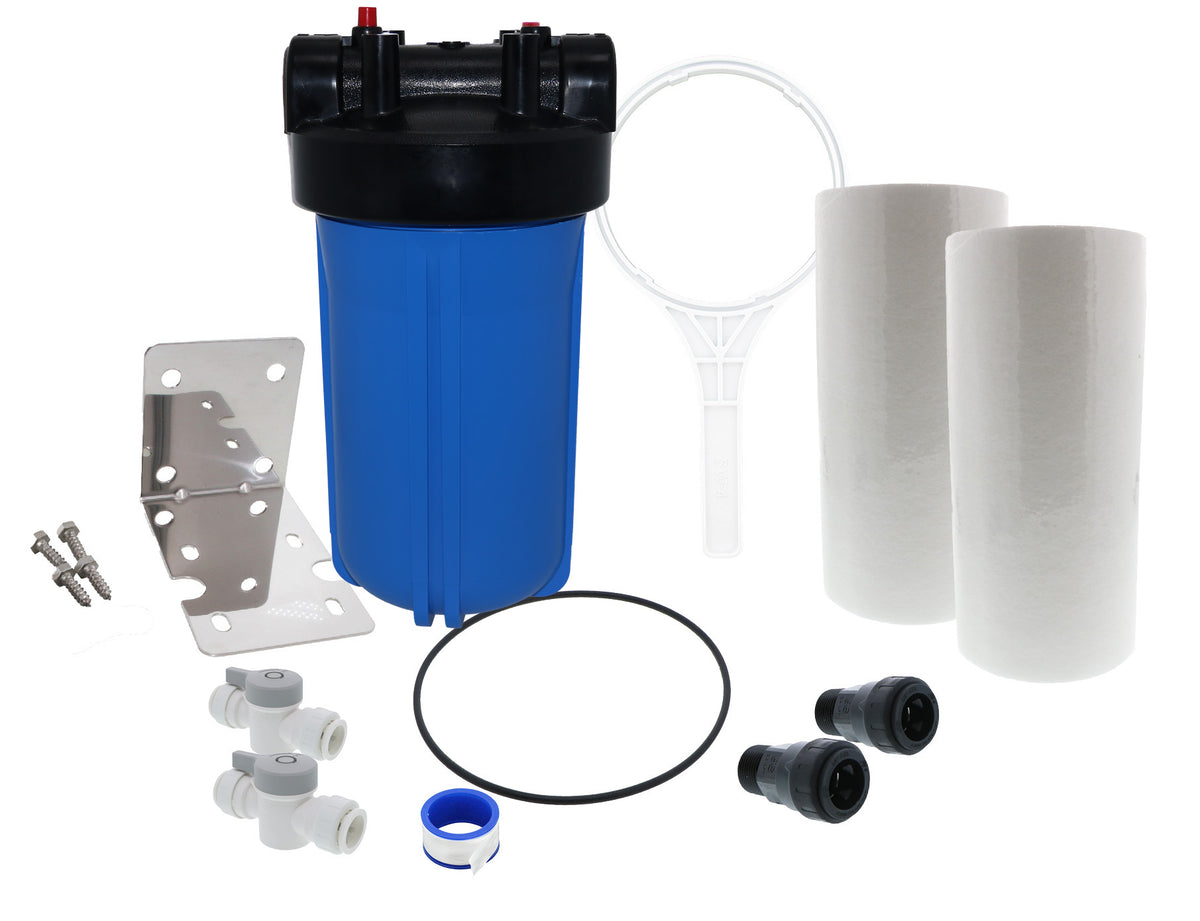

- 10" Heavy Duty Filter Housing 3/4" Inlet/Outlet

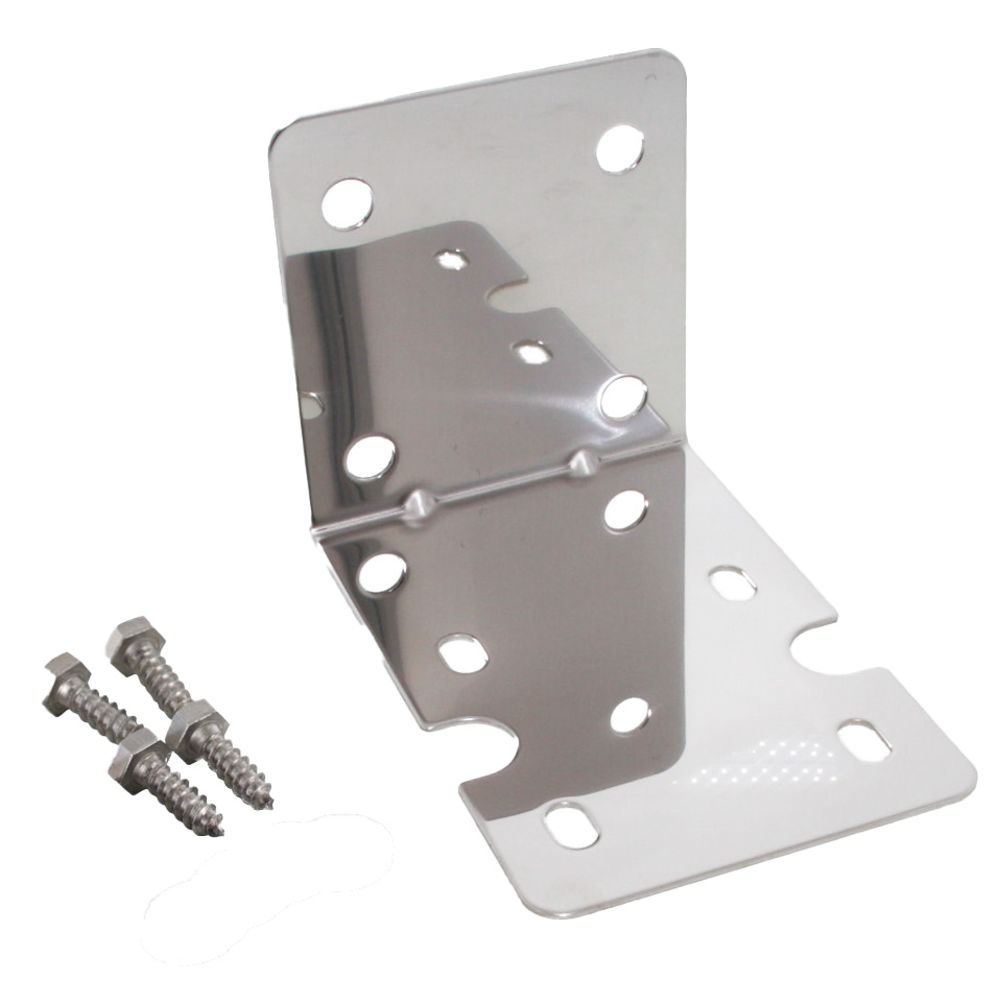

- White Powder Coated Steel Mounting Bracket w/lag bolts

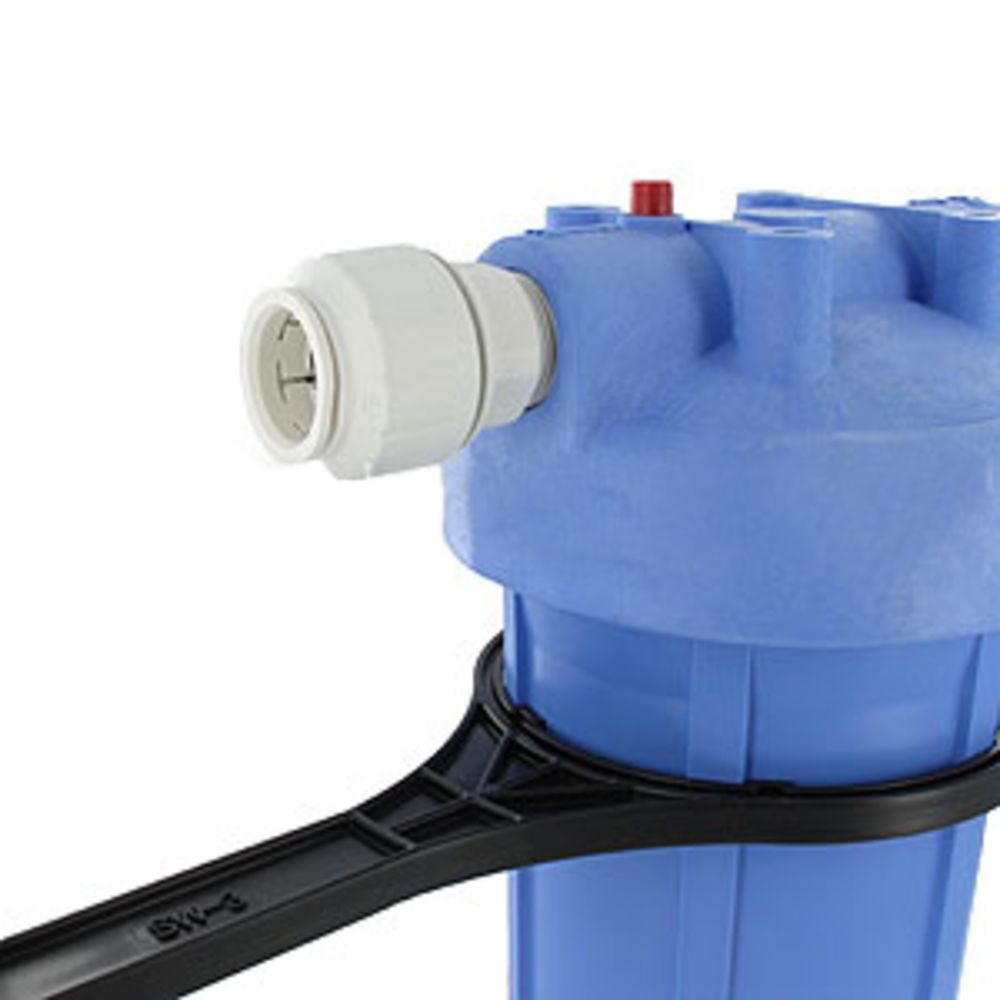

- Filter Wrench for Heavy Duty Housings
- Extra O-ring for Heavy Duty Housings

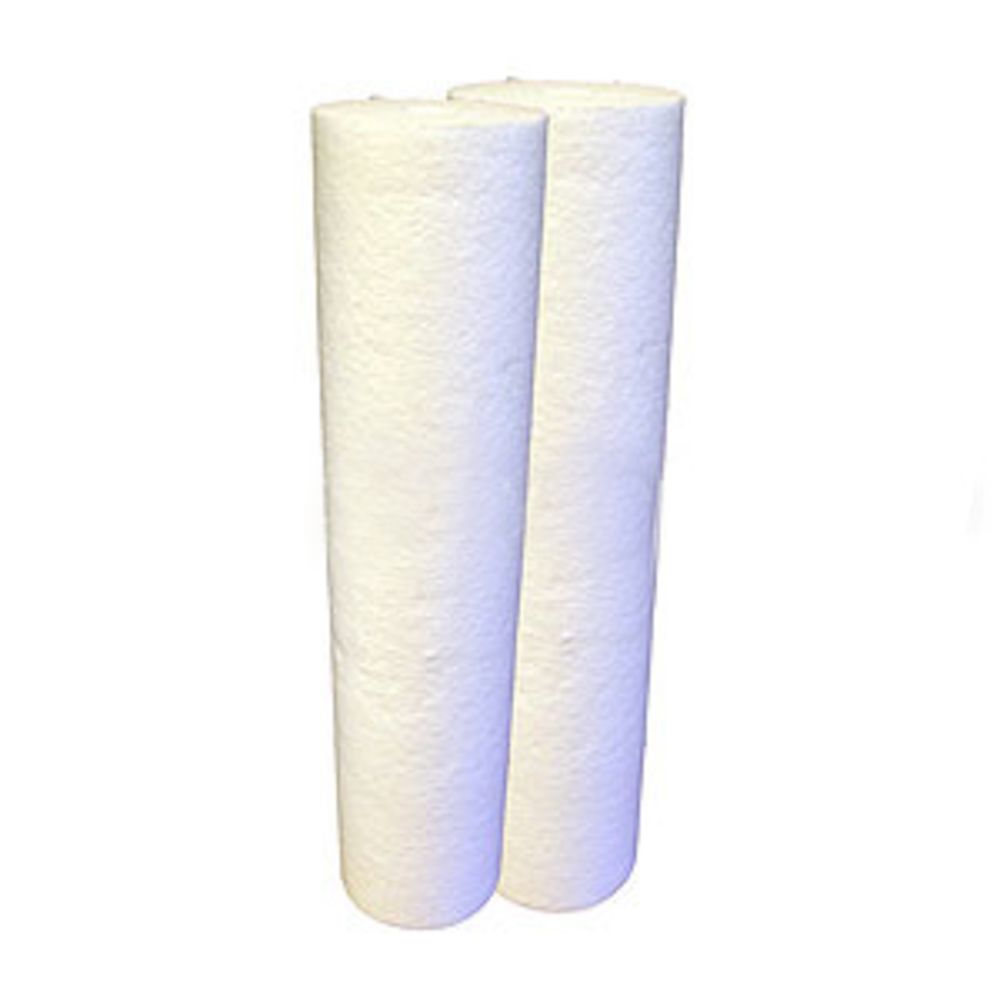

- Two Dual Gradient Polypropylene 5 micron filters
- Two 3/4" CTS x 3/4" NPT Male Connectors for Copper, PEX, and CPVC
- 3/4" CTS Stop Valve for Copper, PEX, and CPVC
Standard Set-Up Diagram:
Optional Bypass Set-up Diagram:
Weight & Dimensions
Weight (lbs) | 11.4 |
Approx Height (Inches) | 13-1/8" |
Approx Width (Inches) | 7-1/4" |
Details
Max Temp (°F) | 100 |
Max Pressure (Psi) | 100 |
Filter Application | Sediment/Dirt/Rust |
Flow Rate | 10 GPM |
Housing Material | Polypropylene |
Media Type | Dual Gradient Polypropylene |
Micron Rating (Nominal) | 5 µm |
Nut / Fitting Material | Polysulfone |
Size | 3/4" |
Contaminants Reduced | Sediment/Dirt/Rust |
Inlet/Outlet Connection | 3/4" FPT |
