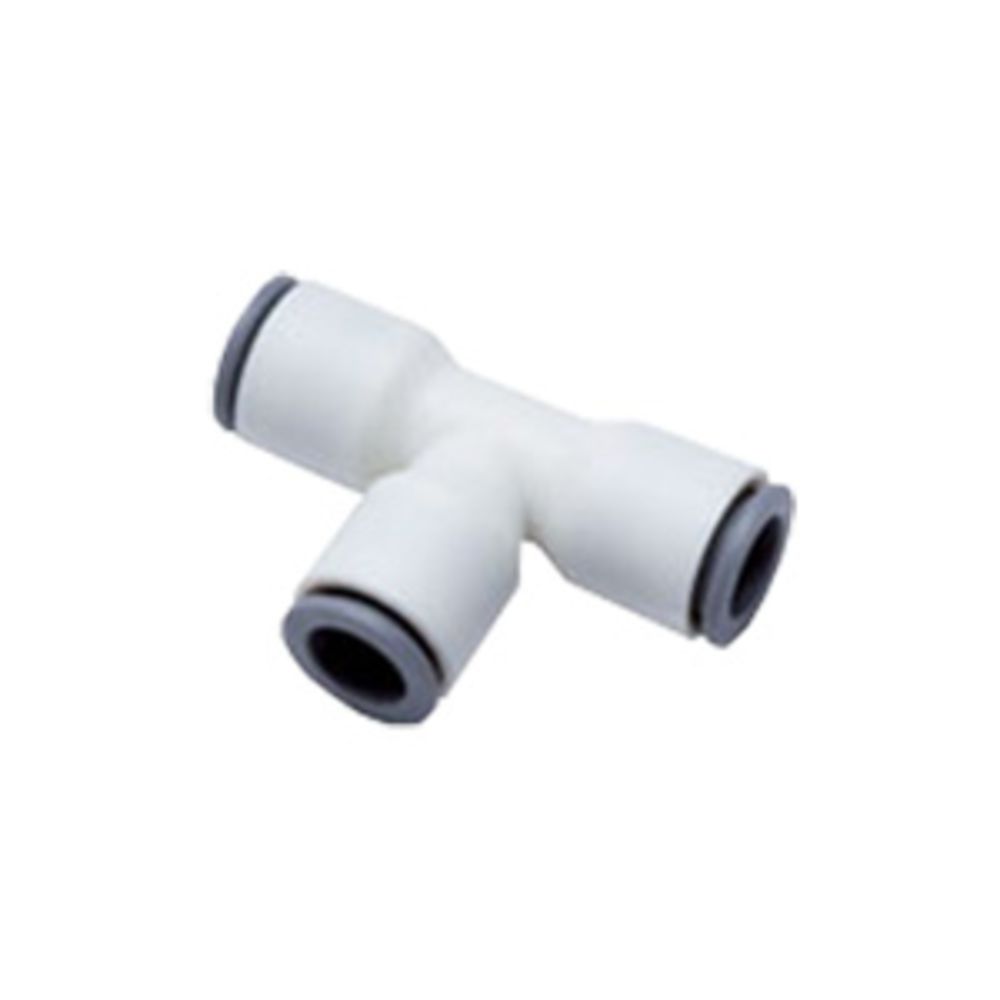

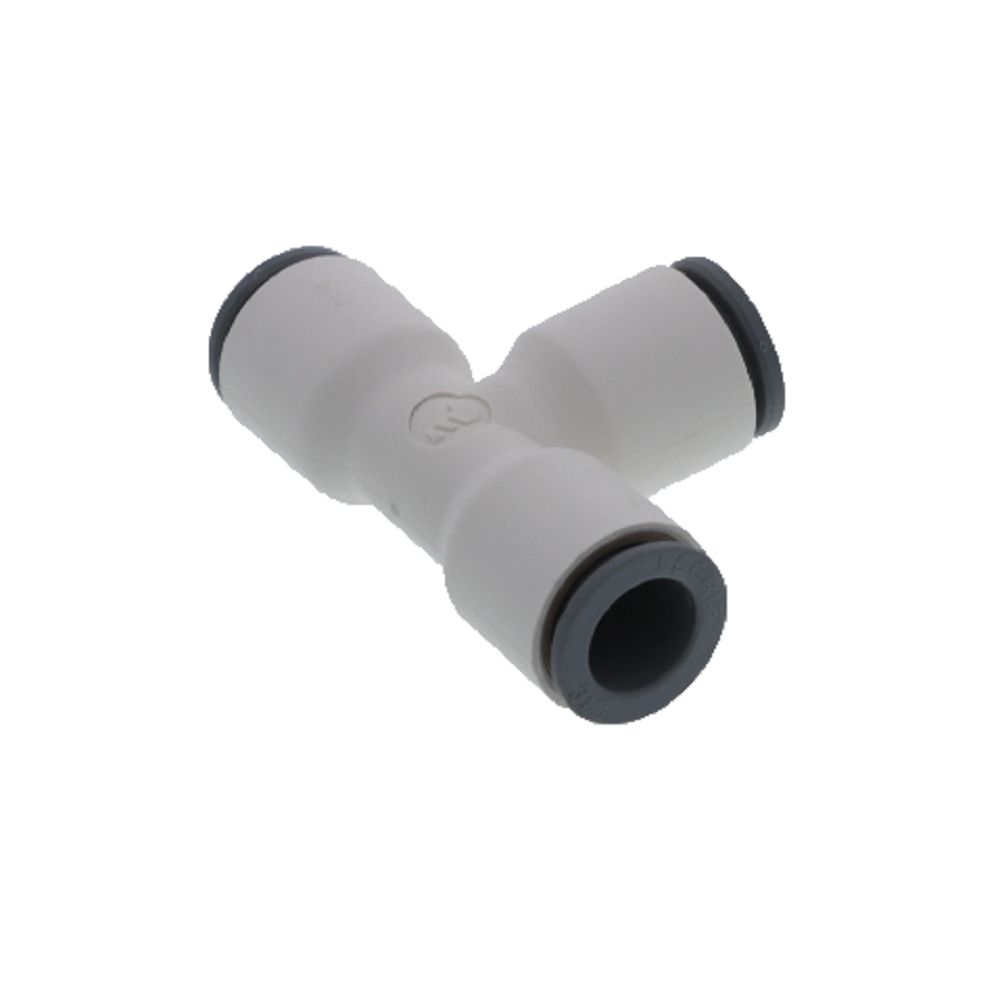

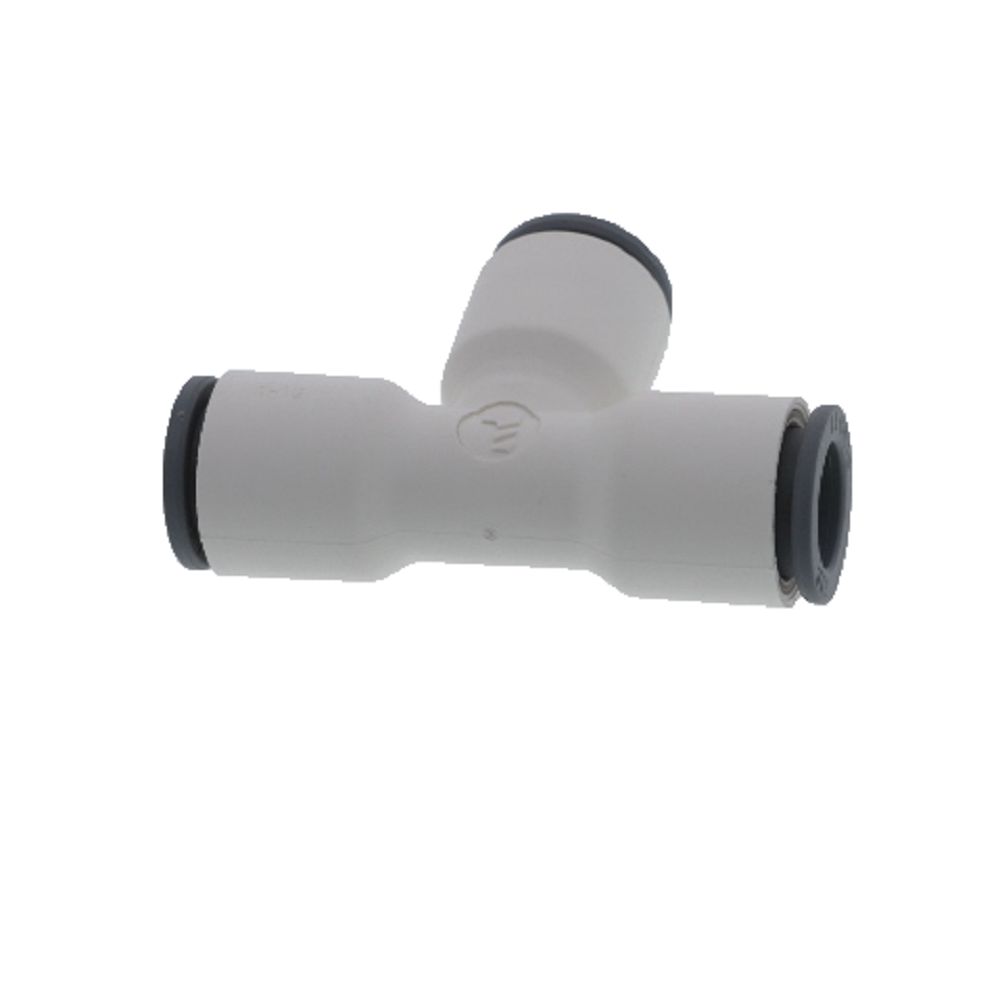

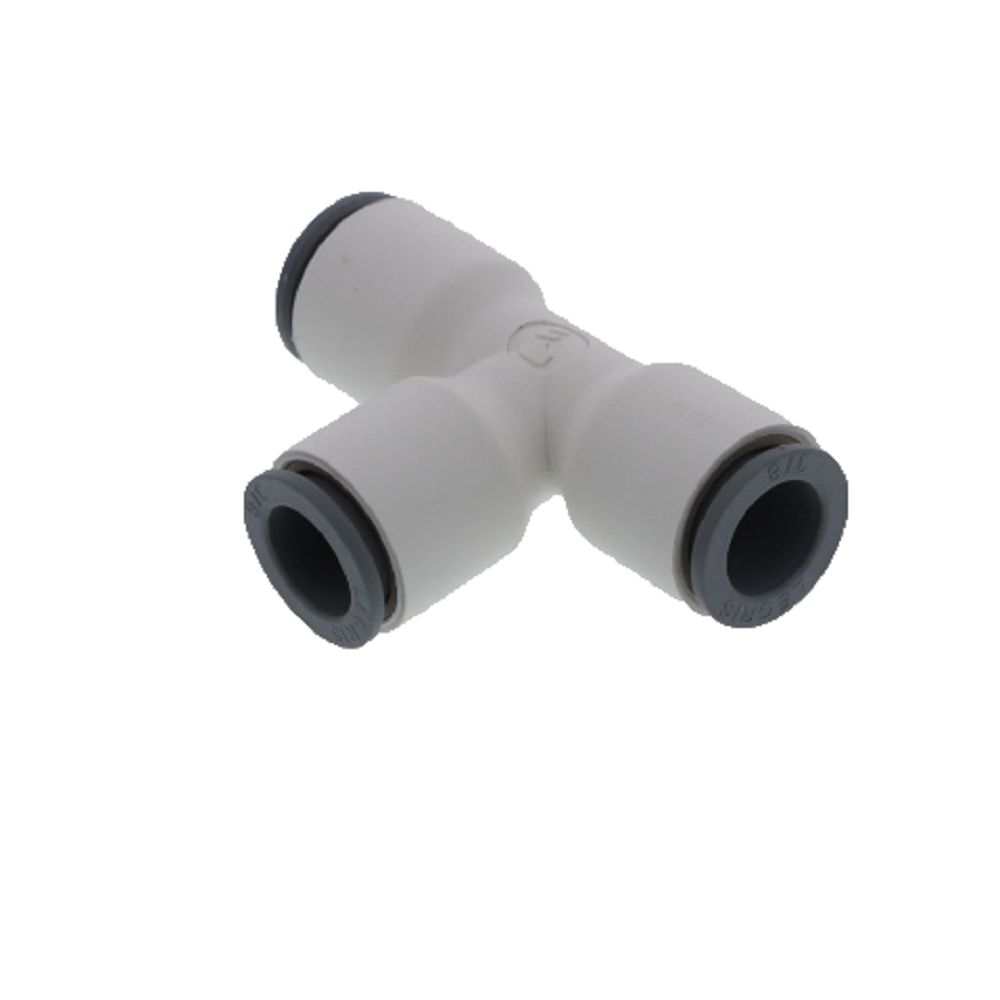

Parker LIQUIfit Union Tee - 3/8

Part Number: 6304-60-00WP2

1 4

Parker

Parker LIQUIfit Union Tee - 3/8

Part Number: 6304-60-00WP2

MSRP: $9.39

$2.92

Quantity

Unit Price

Price

Savings

$2.92

—

100

$2.84

$284.31

1000

$2.77

$2,770.20

Product variants

You May Also Need

Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Features:

Engineered Hi-Performance Nylon
High chemical resistance
EPDM O-ring
FDA Approved material
NSF Standard 51 & 61 Certified
Temperature rated up to 200º F
Suitable for potable liquids and food applications

Specifications

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	200°F
Min Temp (°F)	35°F
Push-In Size	3/8" OD
Series	LIQUIFit
Shape	Tee
Color / Finish	White
Origin	Mexico
Sub-Type	Union Tee
Type	Tee
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	2 in.
Shipping Width	1.38 in.
Shipping Height	0.5 in.
Product Weight & Dimensions
Product Height	0.5 in.
Product Length	2 in.
Product Width	1.38 in.
Product Weight (lbs)	0.1

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	200°F
Min Temp (°F)	35°F
Push-In Size	3/8" OD
Series	LIQUIFit
Shape	Tee
Color / Finish	White
Origin	Mexico
Sub-Type	Union Tee
Type	Tee
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	2.15

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	200°F
Min Temp (°F)	35°F
Push-In Size	3/8" OD
Series	LIQUIFit
Shape	Tee
Color / Finish	White
Origin	Mexico
Sub-Type	Union Tee
Type	Tee
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	11 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	7

Downloads

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

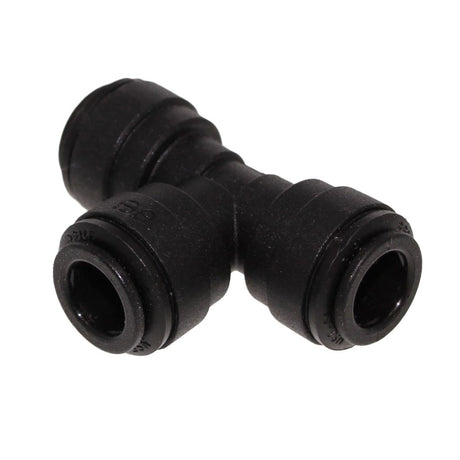

Facet	Parker Parker LIQUIfit Union Tee - 3/8 Regular price From $2.92 Part #: 6304-60-00WP2 Save up to 5% with bulk pricing Current Product	John Guest John Guest Union Tee Black Polypropylene - 3/8 Regular price From $2.90 Part #: PP0212E Save up to 12% with bulk pricing View details	NeoFit NeoFit - Acetal Natural White Union Tee- 3/8" tube Regular price From $2.55 Part #: ATU666-W Save up to 7% with bulk pricing View details
