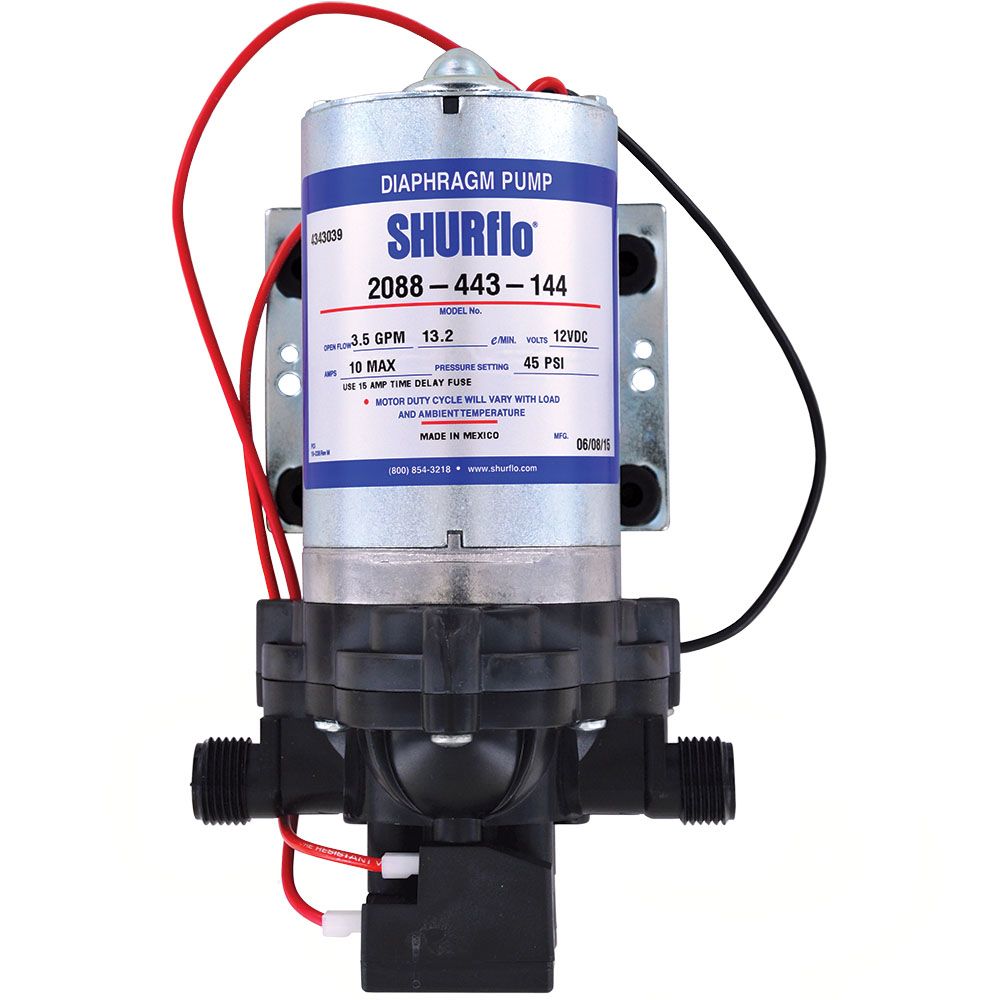

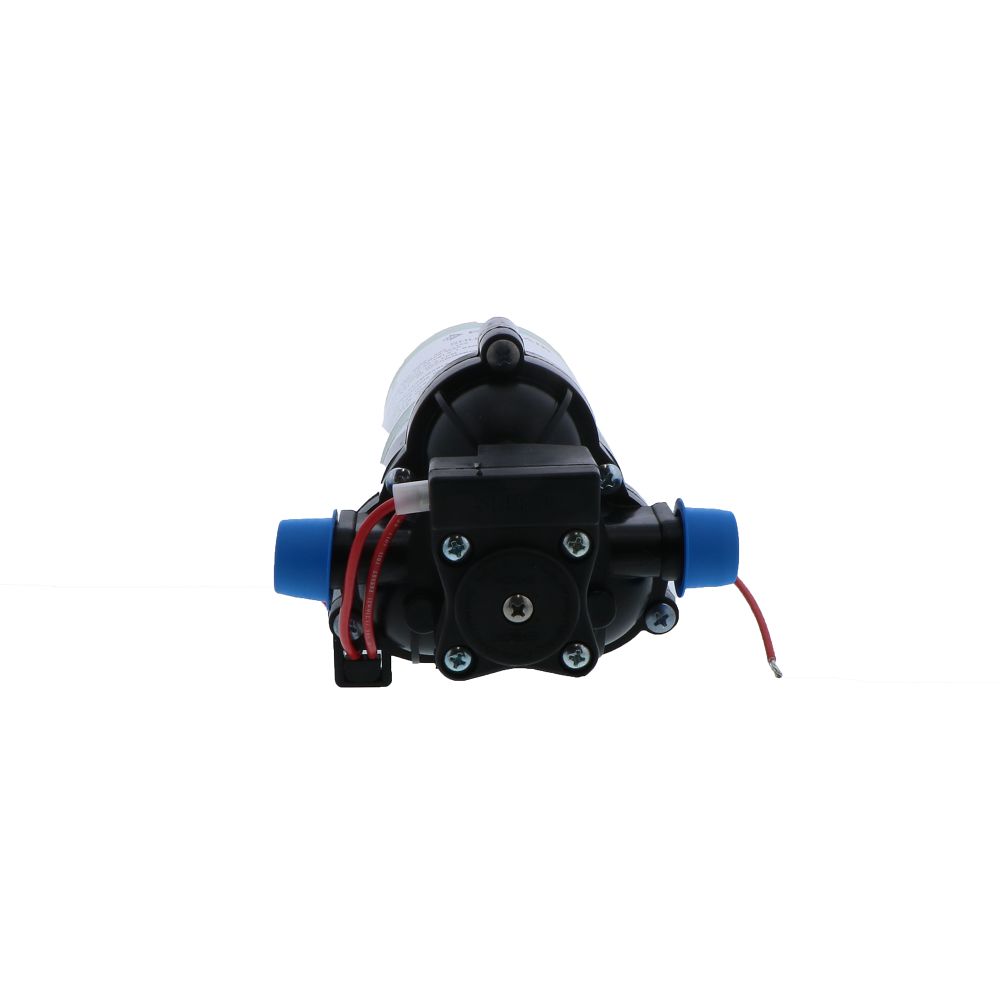

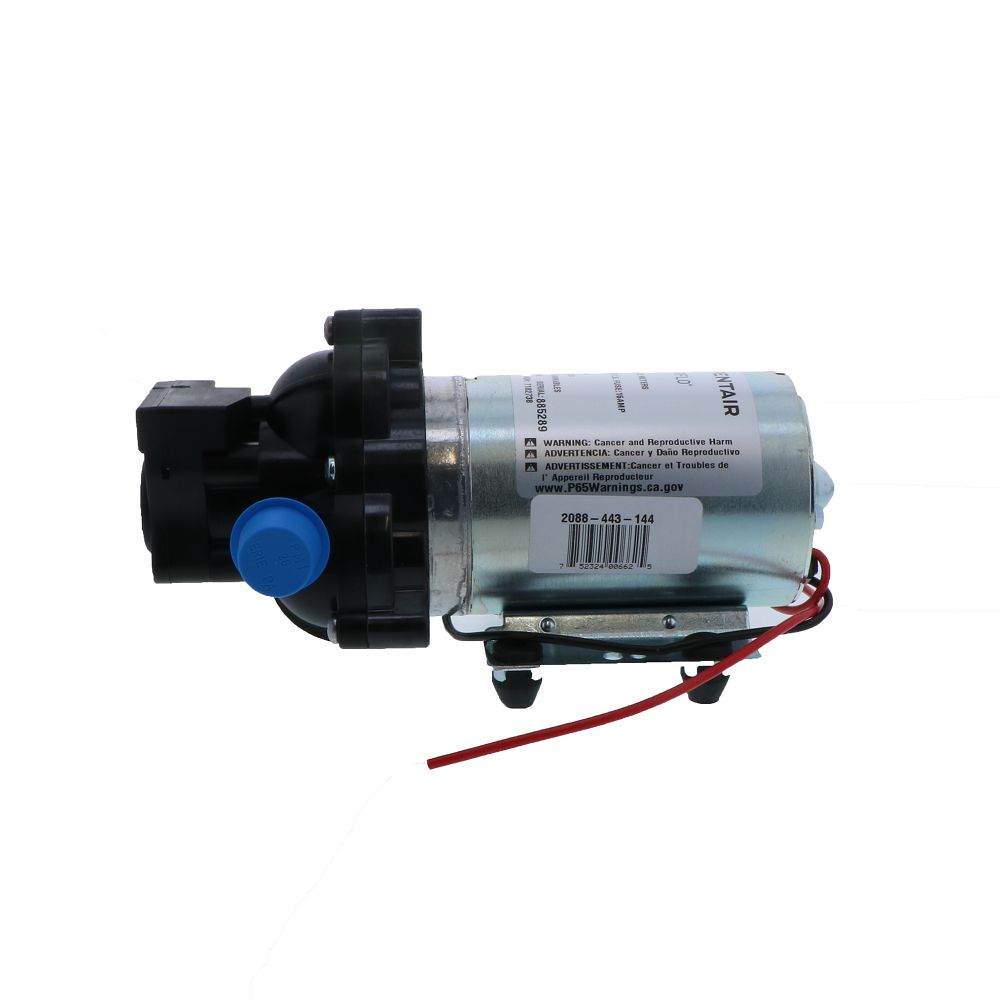

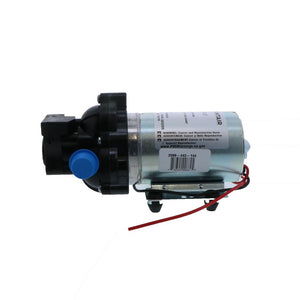

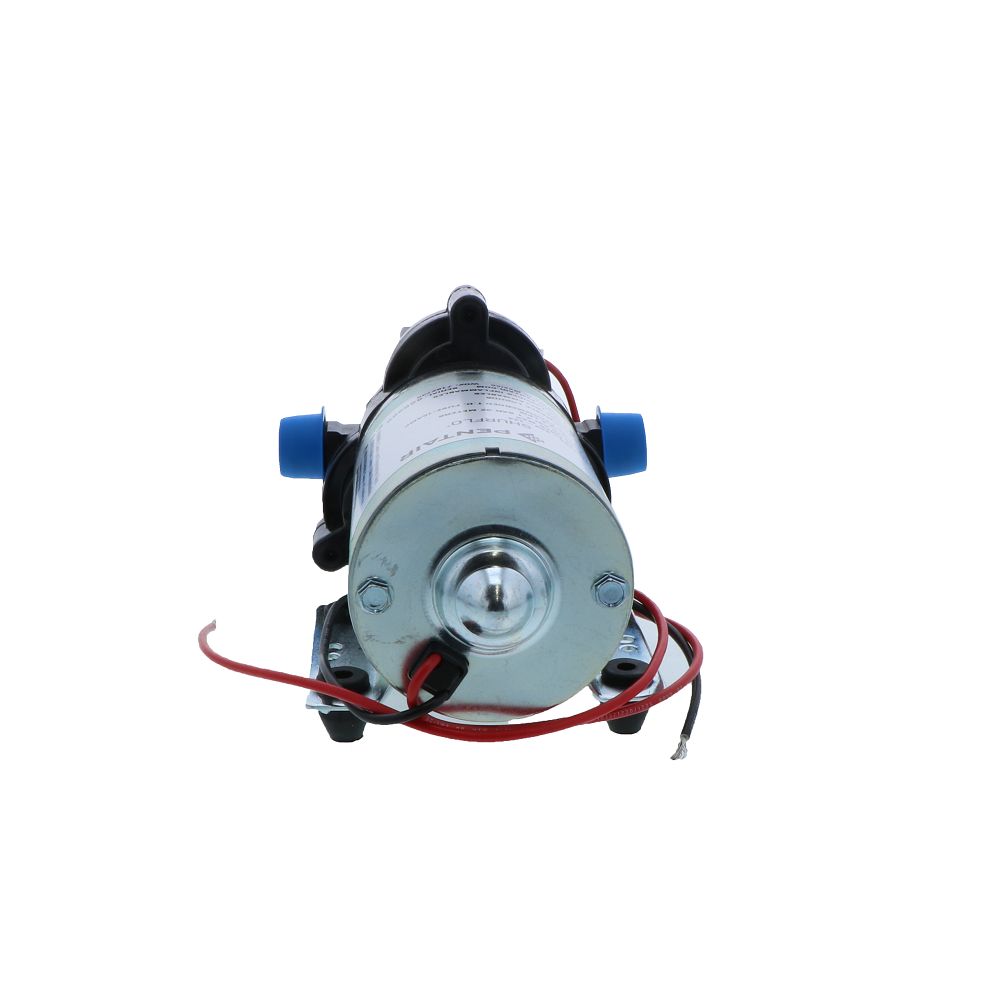

SHURflo 2088-443-144 Delivery Pump 3.5 GPM 45 PSI 12VDC 1/2 MPT

Part Number: 2088-443-144

In Stock

out of stock

In Stock

$79.99


The SHURflo 2088-443-144 Delivery Pump delivers reliable performance in high flow, moderate pressure applications that require flow up to 3.5 gpm. 2088 series pumps are used in a variety of transfer and dispense on-demand applications. They can be mounted in any position and are designed for easy maintenance.

Features:
  • Light Weight Convenient Design. The Shurflo 2088-443-144 is light weight and can be mounted vertically or horizontally. This self priming pump and can prime up to 9 feet vertically. The pump can handle media temperatures up to 130° F, and the pump itself can heat up to 250° F without damage.
  •   45 PSI Shut-off Switch. The Shurflo 2088-443-144 features a pressure switch that has been factory set for 45 PSI shut-off. The pump will cut on at 25 PSI (±5) and is adjustable from 30 to 50 PSI.
  • Non-Potable Water for RVs or Campers. The Shurflo 2088-443-144 pump is ideal for RV non-potable water applications like waste disposal or water hosing.
Additional Specifications:
  • Flow Rate: 3.5 gpm
  • Net Weight: 4.8 LBS
  • Voltage: 12VDC nominal
  • Motor: Thermal protection
  • Port Connections: 1/2" MPT
  • Check Valve prevents reverse flow
  • Pump Design: Positive displacement 3 chamber diaphragm

Compatible with: Aquatec | 5502-1E12-B666


Details

Series

2088

Amps

5.3-9.9 Amps @ 0-50 PSI

Diaphragm Materials

Santoprene

Flow Rate

3.5 GPM

Housing Material

Polypropylene

Liquid Temperature

Max 130 °F

Size

1/2"

Voltage

12VDC

Power Source

None

Suction Lift

Self prime up to 9 ft

Cut In Flow Rate

25 (+/-5) GPM

Inlet/Outlet Connection

1/2" | MPT

Wire Option

Bare Wire

Warranty & Certifications

Certifications

NSF

Warranty

SHURflo warrants Industrial 2088 series pumps to be free from material and workmanship defects (under normal use and service) for a period of one (1) year from the date of manufacture. or (1) one year use with proof of purchase, not to exceed 2 years


SHURflo

SHURflo

SHURflo

SHURflo





The SHURflo 2088-443-144 Delivery Pump delivers reliable performance in high flow, moderate pressure applications that require flow up to 3.5 gpm. 2088 series pumps are used in a variety of transfer and dispense on-demand applications. They can be mounted in any position and are designed for easy maintenance.

Features:
  • Light Weight Convenient Design. The Shurflo 2088-443-144 is light weight and can be mounted vertically or horizontally. This self priming pump and can prime up to 9 feet vertically. The pump can handle media temperatures up to 130° F, and the pump itself can heat up to 250° F without damage.
  •   45 PSI Shut-off Switch. The Shurflo 2088-443-144 features a pressure switch that has been factory set for 45 PSI shut-off. The pump will cut on at 25 PSI (±5) and is adjustable from 30 to 50 PSI.
  • Non-Potable Water for RVs or Campers. The Shurflo 2088-443-144 pump is ideal for RV non-potable water applications like waste disposal or water hosing.
Additional Specifications:
  • Flow Rate: 3.5 gpm
  • Net Weight: 4.8 LBS
  • Voltage: 12VDC nominal
  • Motor: Thermal protection
  • Port Connections: 1/2" MPT
  • Check Valve prevents reverse flow
  • Pump Design: Positive displacement 3 chamber diaphragm

Compatible with: Aquatec | 5502-1E12-B666

Details

Series

2088

Amps

5.3-9.9 Amps @ 0-50 PSI

Diaphragm Materials

Santoprene

Flow Rate

3.5 GPM

Housing Material

Polypropylene

Liquid Temperature

Max 130 °F

Size

1/2"

Voltage

12VDC

Power Source

None

Suction Lift

Self prime up to 9 ft

Cut In Flow Rate

25 (+/-5) GPM

Inlet/Outlet Connection

1/2" | MPT

Wire Option

Bare Wire

Warranty & Certifications

Certifications

NSF

Warranty

SHURflo warrants Industrial 2088 series pumps to be free from material and workmanship defects (under normal use and service) for a period of one (1) year from the date of manufacture. or (1) one year use with proof of purchase, not to exceed 2 years
