Specifications:
- NSF certified
- Cam: 3.5 degree
- Net weight: 4.8 LBS
- Voltage: 12VDC nominal
- Motor: thermal protection
- Port connections: 1/2" MNPS
- Self-priming: up-to 9' (vertical)
- Max liquid temperature: 130° F
- Check valve: prevents reverse flow
- Pressure switch: factory set at 45 PSI shut off
- Pump design: positive displacement 3 chamber diaphragm
Weight & Dimensions
Height (inches) | 4.5 |
Length (inches) | 8.5 |
Weight (lbs) | 4.794 |
Width (inches) | 5 |
Details
Amps | 4.2-4.5 Amps @ 0-50 PSI |
Cut In Flow Rate | 25 (+/-5) GPM |
Diaphragm Materials | Santoprene |
Housing Material | Poly |
Inlet/Outlet Connection | 1/2" MPT |
Liquid Temperature | Max 130 °F |
Power Source | NONE |
Series | 2088 |
Size | 1/2" |
Suction Lift | Self prime up to 9 ft |
Wire Option | Bare Wire |
Connection Type | Male (MPT) |
Flow Rate | 3.5 GPM |
Type | Diaphragm Pump |
Voltage | 12VDC |
Warranty & Certifications
Certifications | NSF; CSA |
Warranty | SHURflo warrants Industrial 2088 series pumps to be free from material and workmanship defects (under normal use and service) for a period of one (1) year from the date of manufacture. or (1) one year use with proof of purchase, not to exceed 2 years |

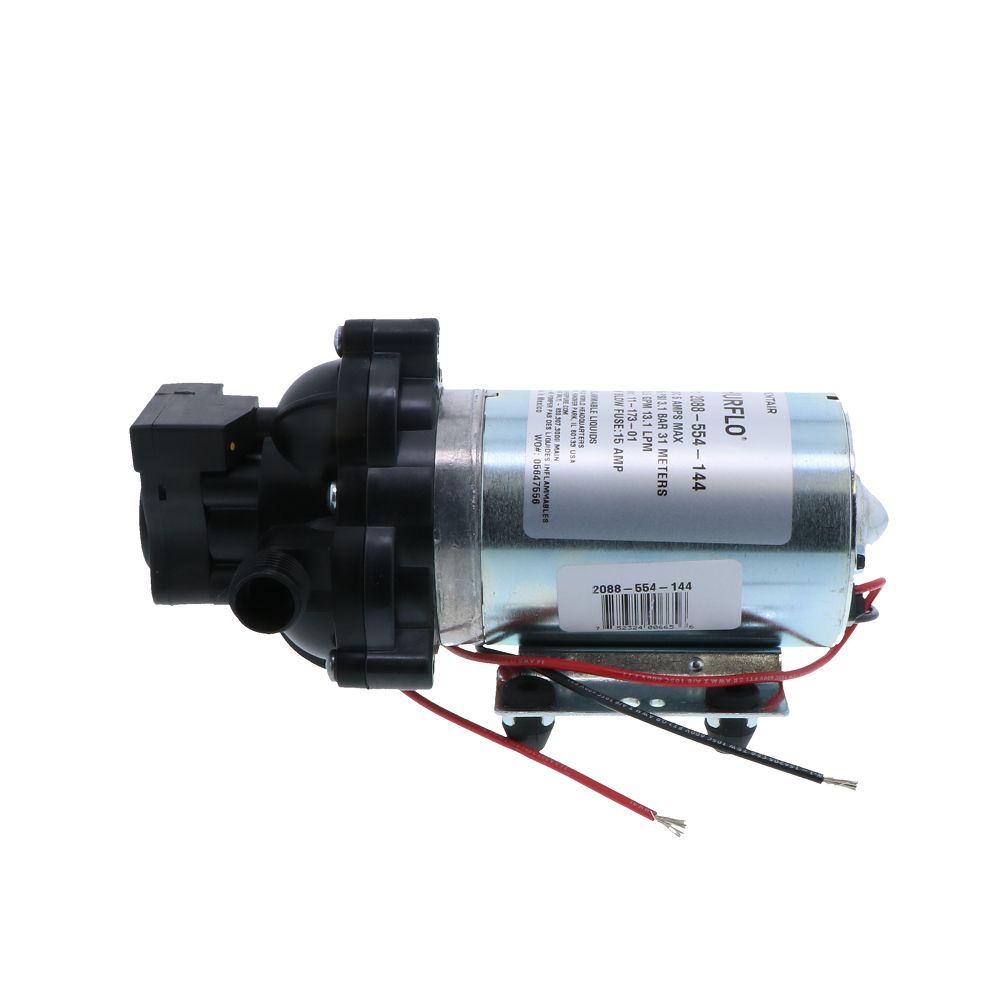

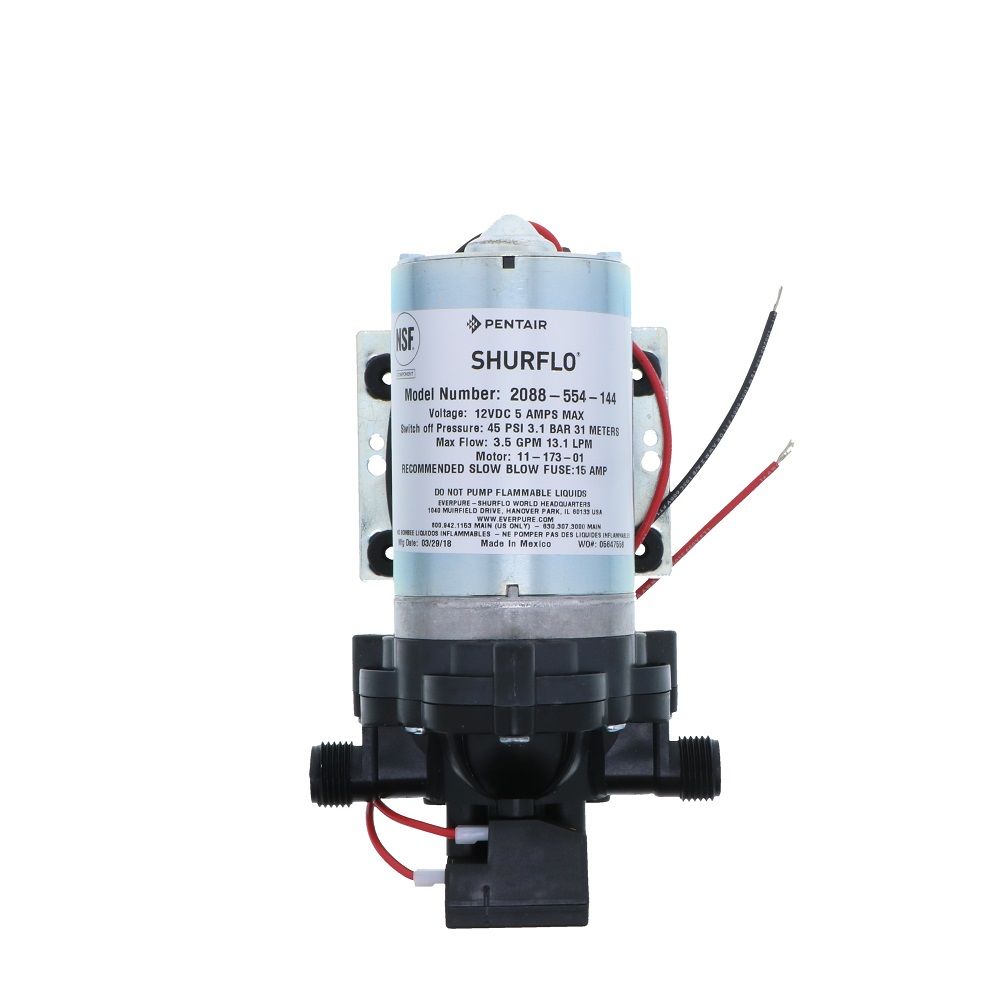

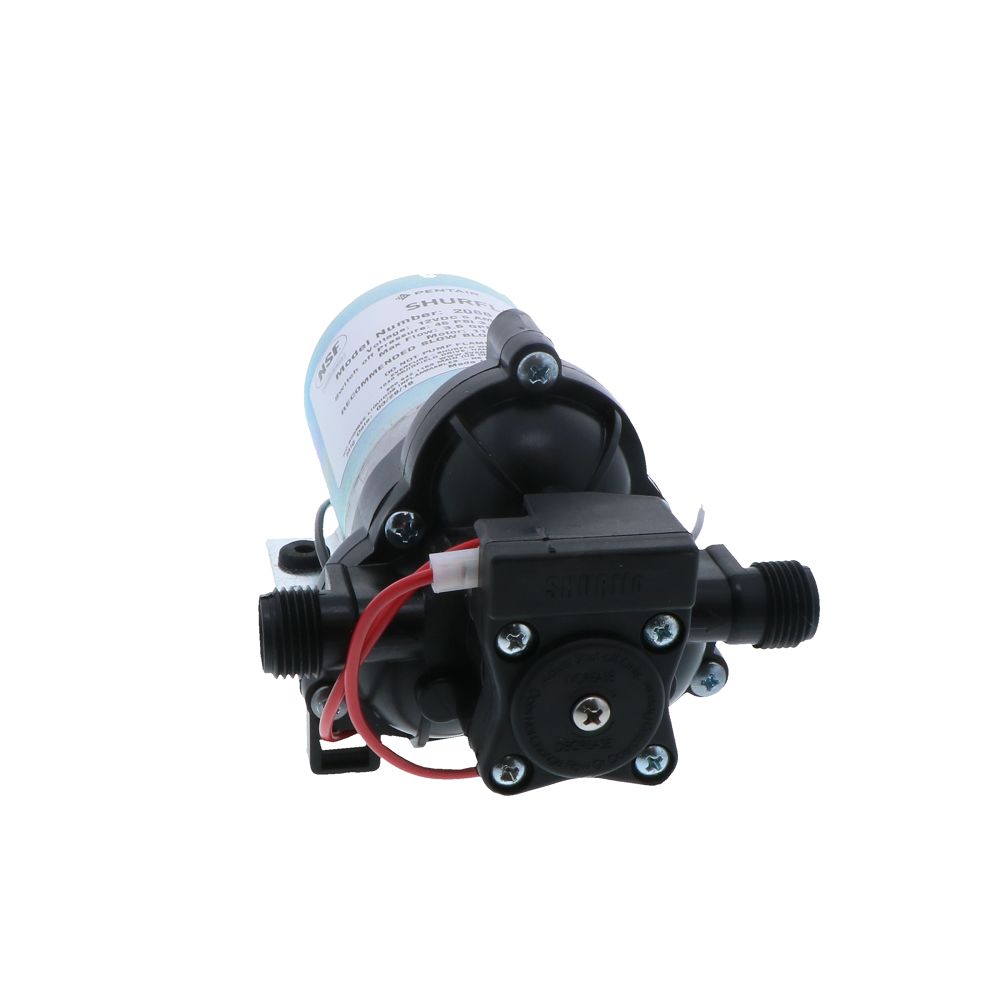

SHURflo on demand delivery pumps deliver reliable performance in high flow, moderate pressure applications. The Shurflo 2088-554-144 is is specifically intended to pump potable water for your RV or camper. 2088 series pumps are used in a variety of transfer and dispense on demand applications. They can be mounted in any position and are designed for easy maintenance. This water pump is lightweight and can be mounted vertically or horizontally. The materials that come in contact with the water are made of polypropylene or santoprene, which ensures that the water is safe for consumption or absorption.
Specifications:
- NSF certified
- Cam: 3.5 degree
- Net weight: 4.8 LBS
- Voltage: 12VDC nominal
- Motor: thermal protection
- Port connections: 1/2" MNPS
- Self-priming: up-to 9' (vertical)
- Max liquid temperature: 130° F
- Check valve: prevents reverse flow
- Pressure switch: factory set at 45 PSI shut off
- Pump design: positive displacement 3 chamber diaphragm
Weight & Dimensions
Height (inches) | 4.5 |
Length (inches) | 8.5 |
Weight (lbs) | 4.794 |
Width (inches) | 5 |
Details
Amps | 4.2-4.5 Amps @ 0-50 PSI |
Cut In Flow Rate | 25 (+/-5) GPM |
Diaphragm Materials | Santoprene |
Housing Material | Poly |
Inlet/Outlet Connection | 1/2" MPT |
Liquid Temperature | Max 130 °F |
Power Source | NONE |
Series | 2088 |
Size | 1/2" |
Suction Lift | Self prime up to 9 ft |
Wire Option | Bare Wire |
Connection Type | Male (MPT) |
Flow Rate | 3.5 GPM |
Type | Diaphragm Pump |
Voltage | 12VDC |
Warranty & Certifications
Certifications | NSF; CSA |
Warranty | SHURflo warrants Industrial 2088 series pumps to be free from material and workmanship defects (under normal use and service) for a period of one (1) year from the date of manufacture. or (1) one year use with proof of purchase, not to exceed 2 years |
