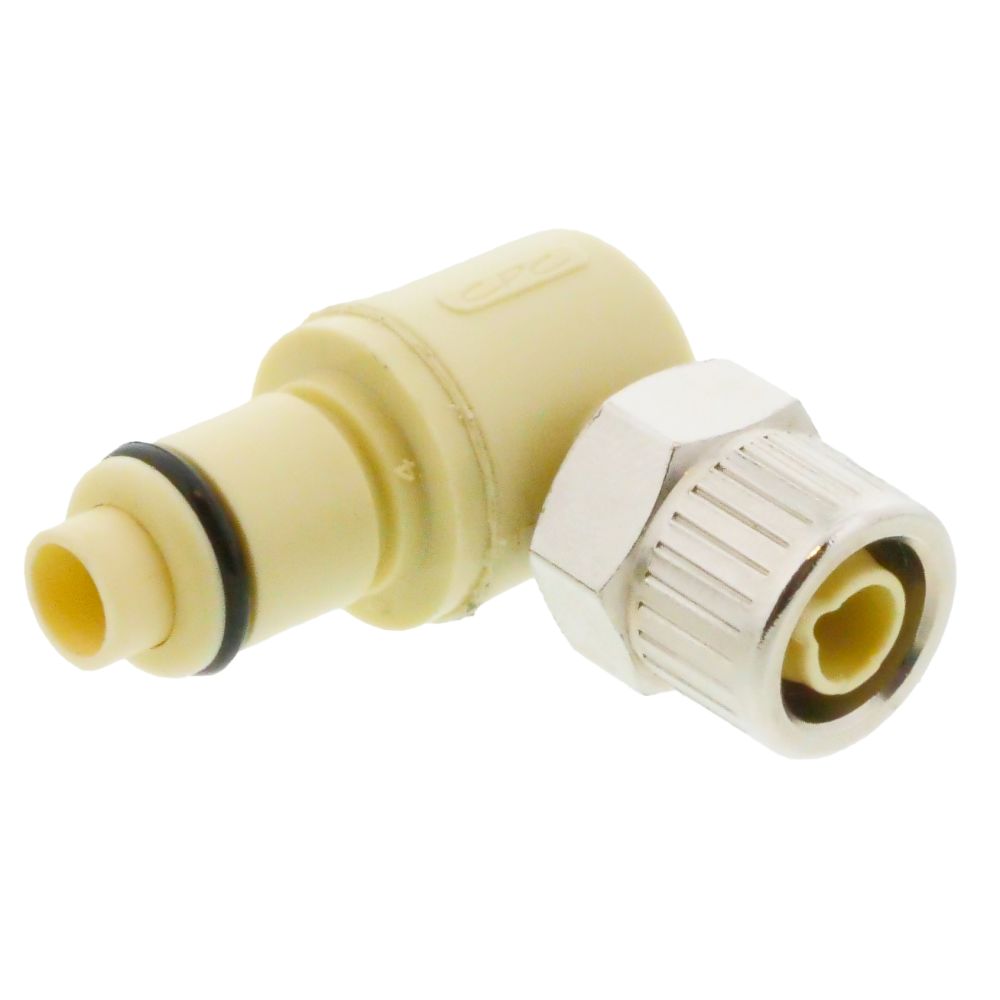

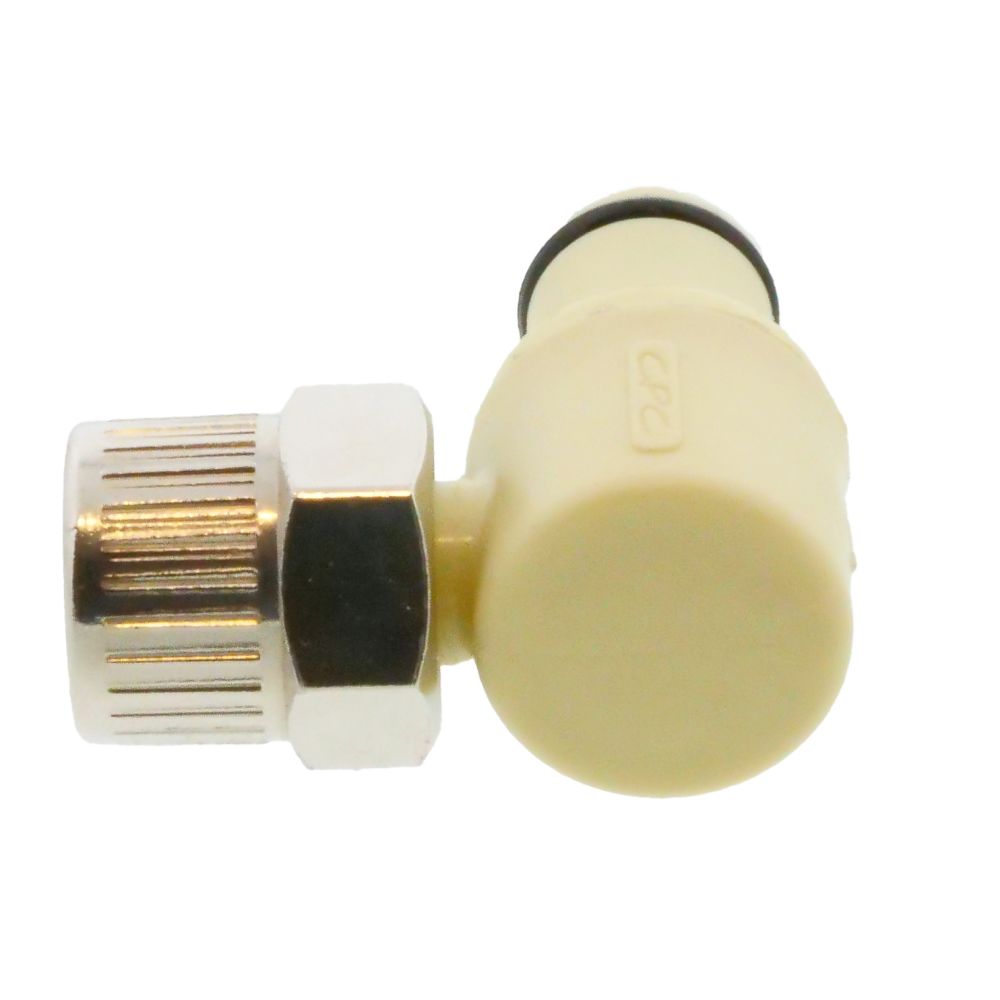

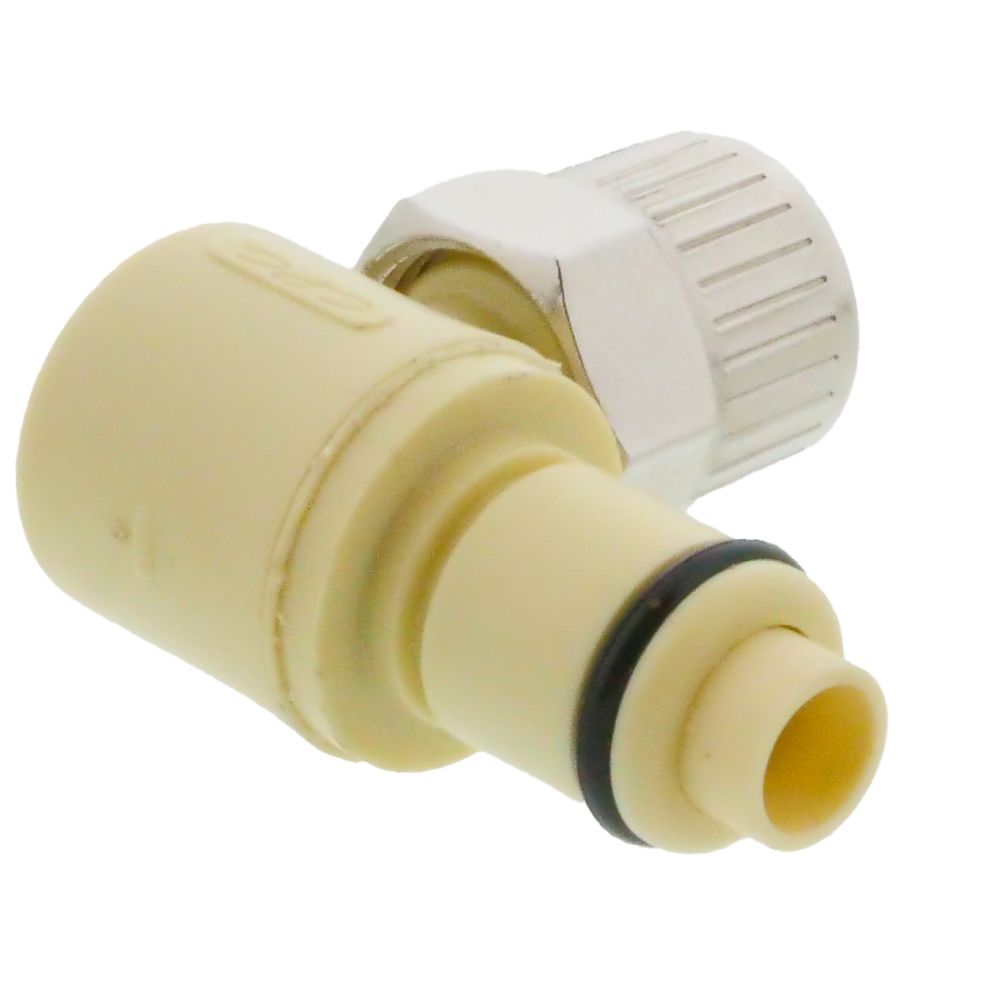

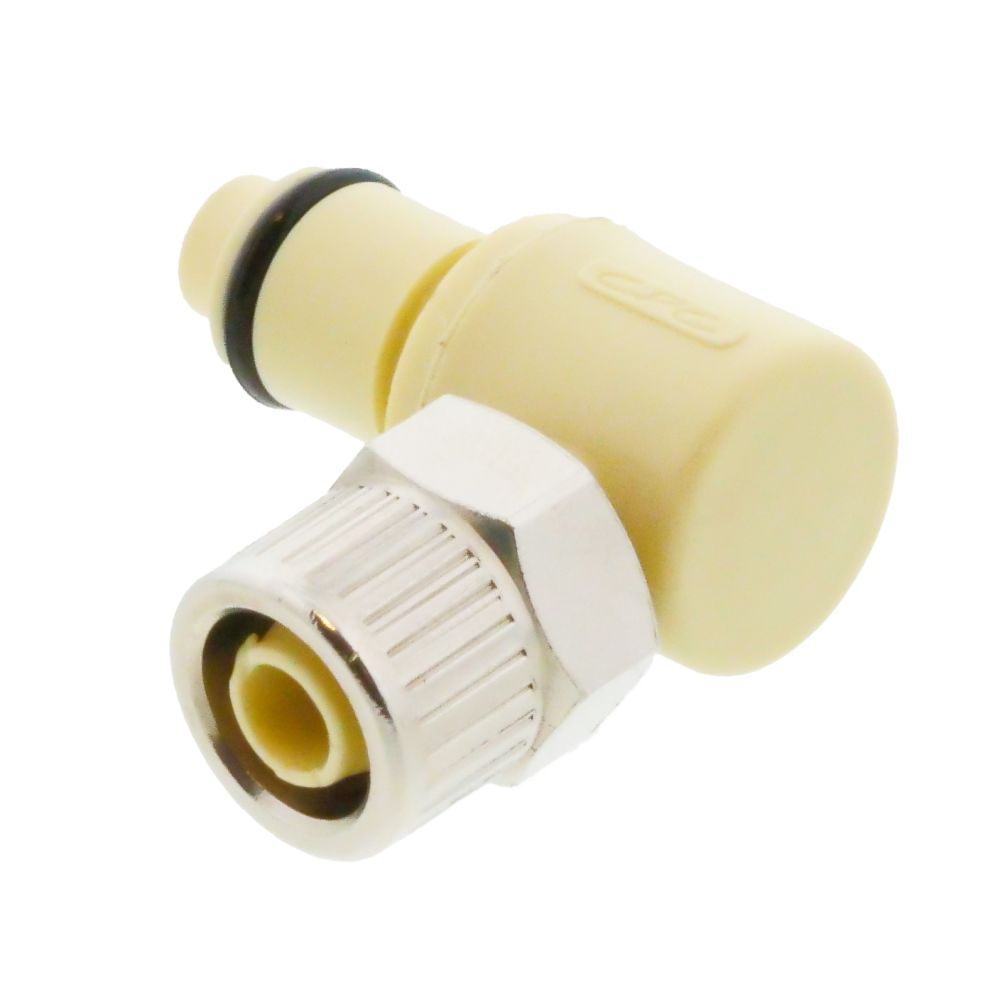

PLCD2100612 Valved Elbow Hose Barb Coupling Insert 3/8 ID Barb

Part Number: PLCD2100612 Alt. Part Number: 40PPV-PE10-06MALD

1 4

Colder Products

PLCD2100612 Valved Elbow Hose Barb Coupling Insert 3/8 ID Barb

Part Number: PLCD2100612 Alt. Part Number: 40PPV-PE10-06MALD

MSRP: $16.26

$16.26

Quantity

Unit Price

Price

Savings

$16.26

—

$15.85

$396.34

250

$15.44

$3,861.75

Product variants

Due to supply chain issues at the start , If the non-NSF version is not in stock, an identical Colder part with NSF testing (Auto-upgrade) will be sent to fulfill the order instead of the original part.

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The 3/8" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:

Material: Polypropylene
Color: Almond
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: Free Floating
Valve Option: Valved
Temperature Range: 32ºF to 160ºF
Valve Spring: 316 Stainless Steel
Seal Options: EPDM
Available in Bags of 25 units

Specifications

Product Details
Barb Size	3/8"
Max Pressure (Psi)	120
Max Temp (°F)	160°F
Min Temp (°F)	32°F
Nsf Version	No
Series	PLC12
Shape	Elbow
Valve Type	Valved
Color / Finish	Almond
Type	Coupling
Shipping Dimensions
Shipping Length	0.75 in.
Shipping Width	0.75 in.
Shipping Height	0.75 in.
Product Weight & Dimensions
Product Weight (lbs)	0.053

Product Details
Barb Size	3/8"
Max Pressure (Psi)	120
Max Temp (°F)	160°F
Min Temp (°F)	32°F
Nsf Version	No
Series	PLC12
Shape	Elbow
Valve Type	Valved
Color / Finish	Almond
Type	Coupling
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	0.05

Product Details
Barb Size	3/8"
Max Pressure (Psi)	120
Max Temp (°F)	160°F
Min Temp (°F)	32°F
Nsf Version	No
Series	PLC12
Shape	Elbow
Valve Type	Valved
Color / Finish	Almond
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	15

Downloads

PLCD2100612 Valved Elbow Hose Barb Coupling Insert 3/8 ID Barb Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

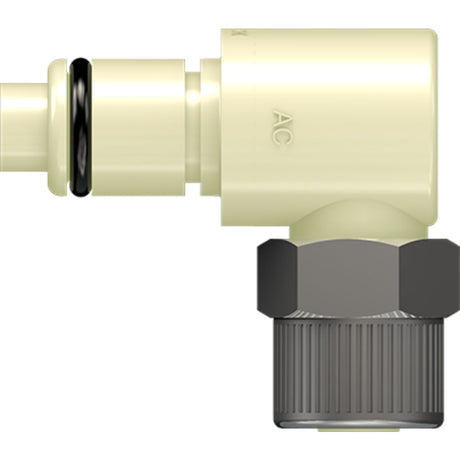

Facet	Colder Products PLCD2100612 Valved Elbow Hose Barb Coupling Insert 3/8 ID Barb Regular price From $16.26 Part #: PLCD2100612 Save up to 5% with bulk pricing Current Product	Sold Out Colder Products PLCD21006 Valved Elbow PTF Coupling Insert 3/8 PTF 5.0 Regular price From $10.90 Sold out Part #: PLCD21006 Save up to 5% with bulk pricing View details	Linktech LinkTech 40PP Series Elbow Male, Valved, 3/8" PTF, Molded Almond Color, Polypropylene Regular price From $13.77 Part #: 40PPV-PE10-06MALD Save up to 14% with bulk pricing View details
