Colder Products

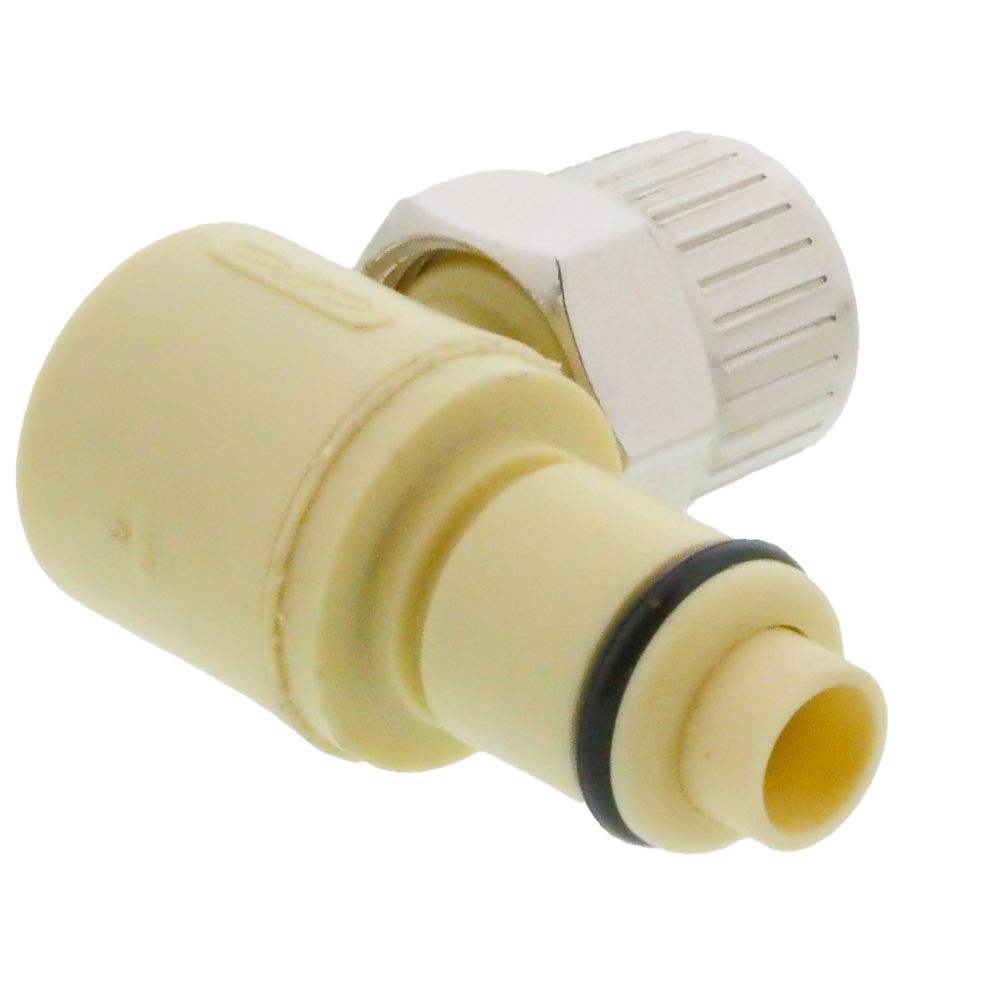

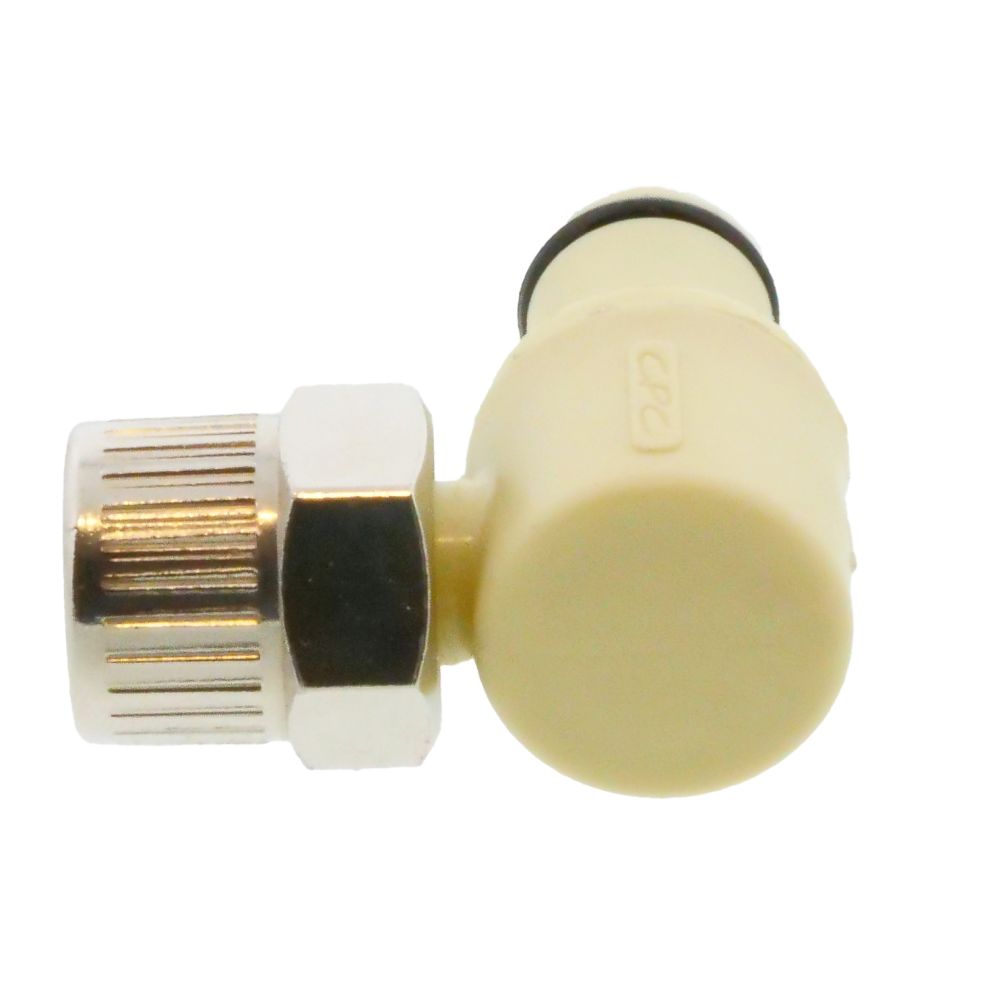

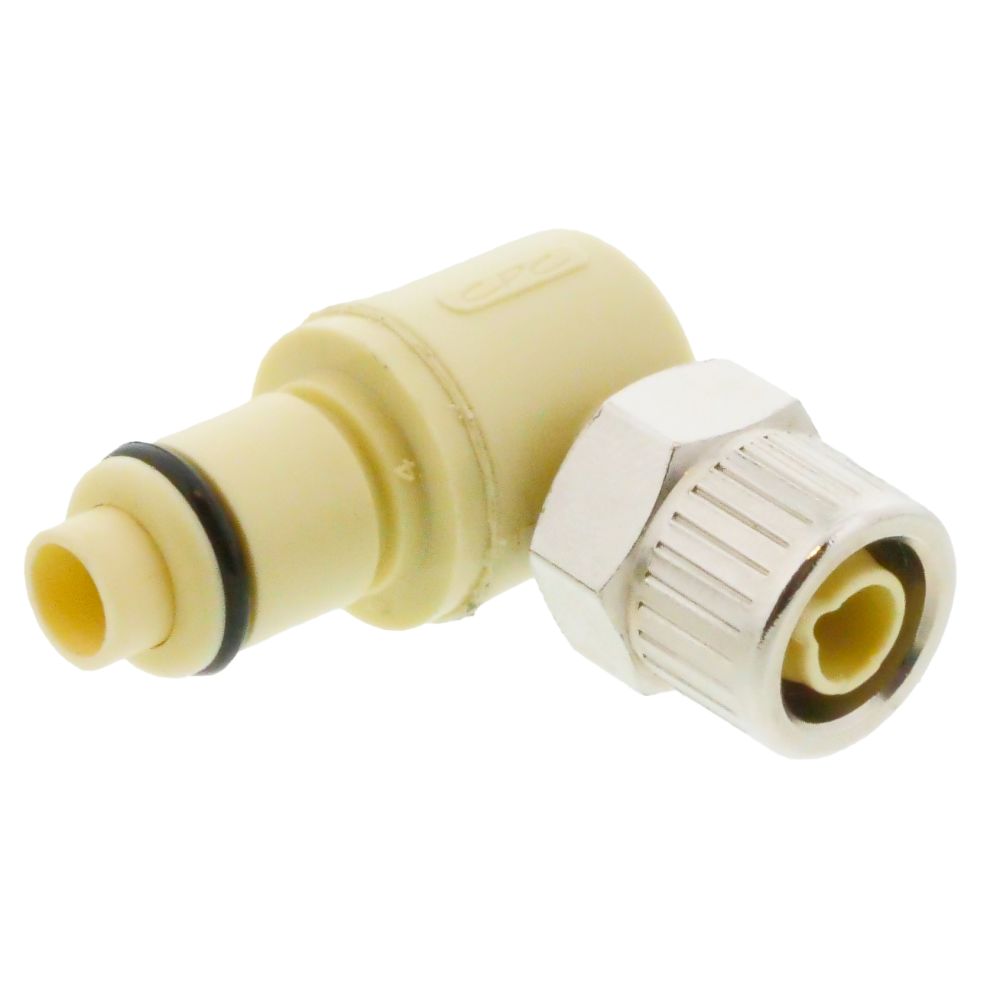

PLCD2100612 Valved Elbow Hose Barb Coupling Insert 3/8 ID Barb

Part Number: PLCD2100612

In Stock

out of stock

In Stock

$10.25


The 3/8" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.
Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Available in Bags of 25 units


Details

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Almond

Mounting Options

Free Floating

O Rings

EPDM

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

32 to 160 Degrees Fahrenheit

Outer Diameter

3/8 Inches

Seal Material

EPDM

Spring

316 Stainless Steel

Type

Coupler

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel


PLCD2100612





The 3/8" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.
Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Available in Bags of 25 units

Details

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Almond

Mounting Options

Free Floating

O Rings

EPDM

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

32 to 160 Degrees Fahrenheit

Outer Diameter

3/8 Inches

Seal Material

EPDM

Spring

316 Stainless Steel

Type

Coupler

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel

Documentation
PLCD2100612
