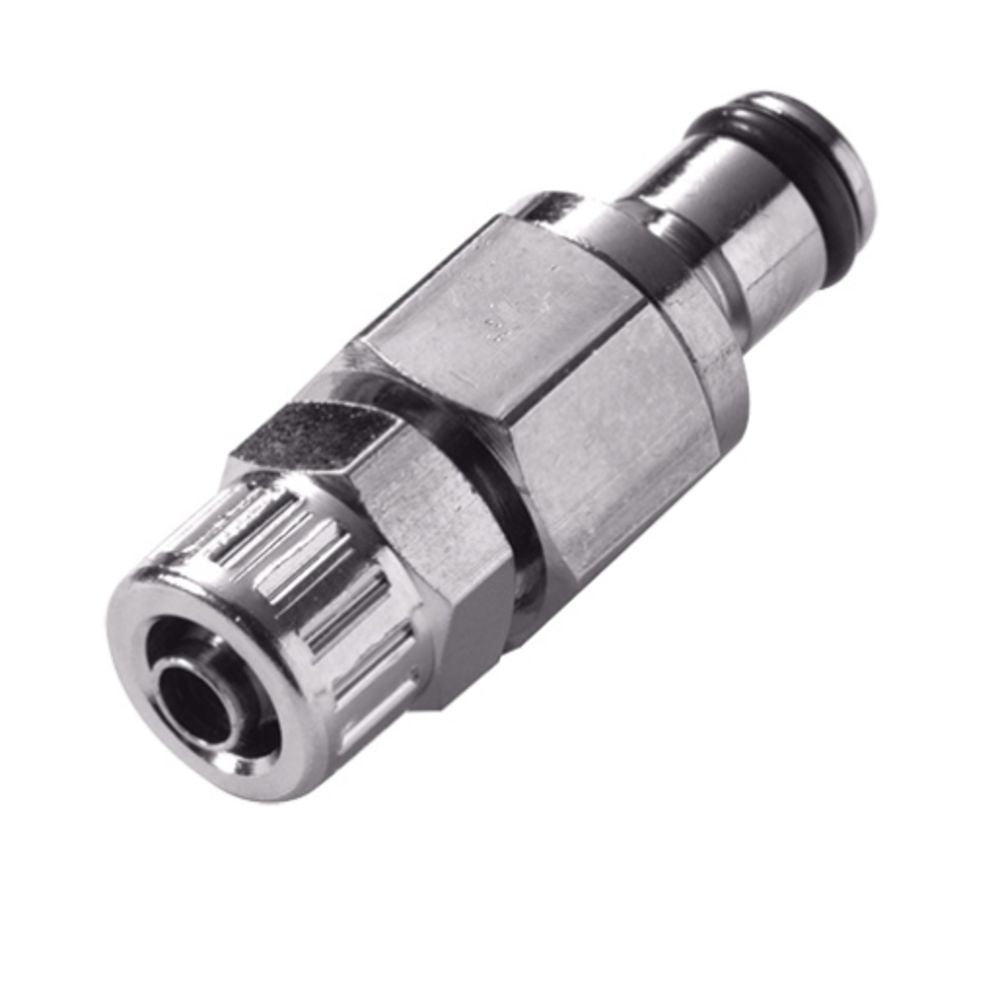

MC2004 In-Line PTF Coupling Insert 1/4 PTF

Part Number: MC2004 Alt. Part Number: 20CB-PB9-04

Colder Products

MC2004 In-Line PTF Coupling Insert 1/4 PTF

Part Number: MC2004 Alt. Part Number: 20CB-PB9-04

MSRP: $9.30

$9.30

Quantity

Unit Price

Price

Savings

$9.30

—

$9.06

$90.68

100

$8.83

$883.50

Product variants

Due to supply chain issues at the start , If the non-NSF version is not in stock, an identical Colder part with NSF testing (Auto-upgrade) will be sent to fulfill the order instead of the original part.

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Colder’s MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the MC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:

Material: Brass
Pressure Range: Vacuum to 250 psi, 17.3 bar
Mounting Option: Free Floating
Valve Option: Non-Valved
Finish: Chrome
Temperature Range: -40ºF to 180ºF
Seal Options: Buna-N
Tubing Size: .17" ID, 1/4" OD
Available in Bags of 10 Units
NSF Listed Version (part # 19100) Available Upon Request

Specifications

Product Details
Inlet Connection	1/4" FPT
Max Pressure (Psi)	180
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	No
Outlet Connection	1/4" FPT
Push-In Size	1/4" OD
Series	MC
Shape	Straight
Size	1/4"
Valve Type	Non-Valved
Color / Finish	Silver
Connection Type	Female (FPT)
Origin	U.S.A.
Type	Coupling
Shipping Dimensions
Shipping Length	1.5 in.
Shipping Width	0.25 in.
Shipping Height	0.25 in.
Product Weight & Dimensions
Product Height	0.25 in.
Product Length	1.5 in.
Product Width	0.25 in.
Product Weight (lbs)	0.000625

Product Details
Inlet Connection	1/4" FPT
Max Pressure (Psi)	180
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	No
Outlet Connection	1/4" FPT
Push-In Size	1/4" OD
Series	MC
Shape	Straight
Size	1/4"
Valve Type	Non-Valved
Color / Finish	Silver
Connection Type	Female (FPT)
Origin	U.S.A.
Type	Coupling
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	10 in.
Shipping Height	10 in.
Product Weight & Dimensions
Product Weight (lbs)	0.45

Product Details
Inlet Connection	1/4" FPT
Max Pressure (Psi)	180
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	No
Outlet Connection	1/4" FPT
Push-In Size	1/4" OD
Series	MC
Shape	Straight
Size	1/4"
Valve Type	Non-Valved
Color / Finish	Silver
Connection Type	Female (FPT)
Origin	U.S.A.
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	5

Downloads

MC2004 In-Line PTF Coupling Insert 1/4 PTF Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

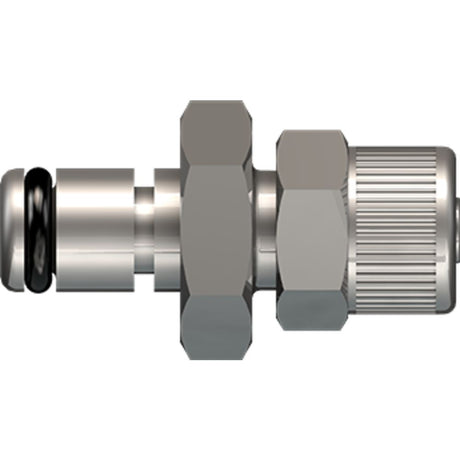

Facet	Colder Products MC2004 In-Line PTF Coupling Insert 1/4 PTF Regular price From $9.30 Part #: MC2004 Save up to 5% with bulk pricing Current Product	Linktech LinkTech 20CB Series Straight Male, Non-valved, 1/4" PTF, Chrome Brass, Buna N Regular price From $8.06 Part #: 20CB-PB9-04 Save up to 15% with bulk pricing View details
