Colder Products

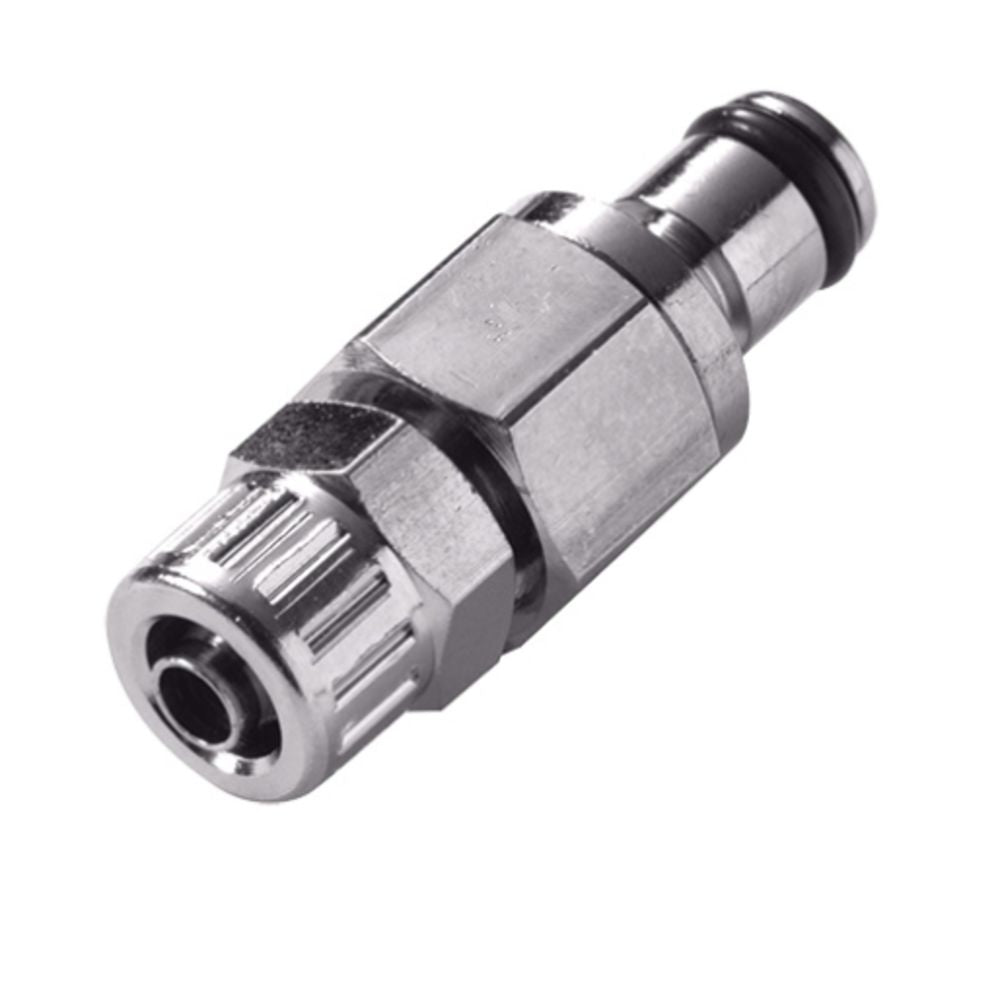

MC2004 In-Line PTF Coupling Insert 1/4 PTF

Part Number: MC2004

In Stock

out of stock

In Stock

$6.74

Colder’s MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the MC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Tubing Size: .17" ID, 1/4" OD
  • Available in Bags of 10 Units
  • NSF Listed Version (part # 19100) Available Upon Request




Weight & Dimensions

Length (inches)

1.5

Height (inches)

0.25

Width (inches)

0.25

Weight (lbs)

0.000625

Details

Series

MC

Max Temp (°F)

180

Max Pressure (Psi)

180

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Push-In Size

1/4" OD

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Free Floating

Origin

USA

Seal Material

Buna-N

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Non-Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel

Inlet/Outlet Connection

1/4" FPT


MC2004




Colder’s MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the MC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Tubing Size: .17" ID, 1/4" OD
  • Available in Bags of 10 Units
  • NSF Listed Version (part # 19100) Available Upon Request



Weight & Dimensions

Length (inches)

1.5

Height (inches)

0.25

Width (inches)

0.25

Weight (lbs)

0.000625

Details

Series

MC

Max Temp (°F)

180

Max Pressure (Psi)

180

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Push-In Size

1/4" OD

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Free Floating

Origin

USA

Seal Material

Buna-N

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Non-Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel

Inlet/Outlet Connection

1/4" FPT

Documentation
MC2004
Reviews
