Fresh Water Systems

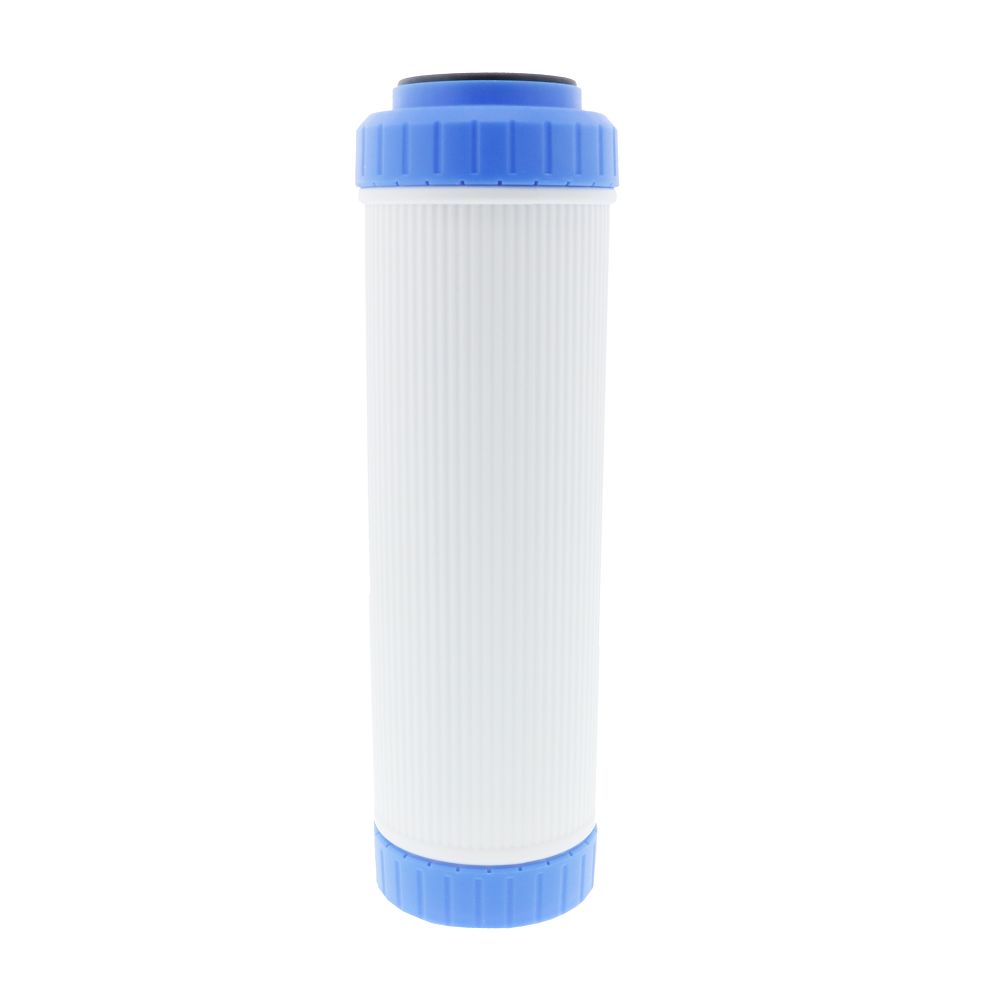

9-3/4" GAC-10 Coconut Shell GAC Filter

Part Number: GAC-10

Alt. Part Number: 155109-43, UDF-10, IF-UDF010/3, IR-10A

In Stock

out of stock

In Stock

$17.25

GAC-10 cartridges effectively reduce unwanted tastes and odor and also chlorine taste and odor from your drinking water. A common complaint of all types of Granular Activated Carbon (GAC) filters is pressure drop (typically 5-7 psid @1 gpm), reduced flow and water forming channels thru the GAC media which results in less contact time and absorption.

For superior performance we recommend carbon block filters vs Granular Activated Carbon (GAC) filters. For example, the MATRIKX + CTO®/2 filters flow in a radial (outside-to-inside) direction, providing increased dirt-holding capacity and lower pressure drop (2psid @ 1 GPM for a standard 9-3/4" x 2.5" OD filter). Unlike GAC filters, carbon block cartridges will not channel or bypass due to the extreme uniformity of their extruded activated carbon core. Service life of block carbon filters is greatly extended by a prefiltration medium.

Features:
  • Coconut shell granular activated carbon media
  • Effective bad taste and odor and also chlorine taste and odor reduction
  • Designed for maximum absorption
  • Post-filter to reduce carbon fines
  • Manufactured entirely from FDA-compliant materials making them an ideal choice for a wide range of residential, food service, commercial and industrial applications.
Note: CTO = Chlorine Taste and Odor


Compatible with:
American PlumberWCC, 155155-51
AXEON Membranes200668
Flexeon200668
Flow PurGAC10N, #8
Hague®200195
HydronixUDF-10
Instapure® / WaterPik®IR-10A, IR-10E, IR-10X, IF-10, IF-10A, IF-100, IF-100A, IF-200B, K-50
Kenmore155109-07, 34365
MarloS-7010P, A2112014
PurwaterGAC10, 55528-03
VertexCF-4008
WhirlpoolWHCF-GAC

Weight & Dimensions

Approx Length (Inches)

9-3/4" (24.8 cm)

Case Quantity

25

Length (inches)

9-3/4"

Weight (lbs)

1.5

Details

Capacity

2,500 Gallons, 6-12 Months

Gaskets

Buna-N

Initial Pressure Drop

7 PSI Differential

Max Pressure (Psi)

125

Max Temp (°F)

125 °F

Micron Rating (Nominal)

20 µm

Min Pressure (Psi)

20

Min Temp (°F)

40 °F

Cap Material

Polypropylene

Cartridge Style

Drop-in

Change Frequency

2,500 Gallons, 6-12 Months

Contaminants Reduced

Chlorine/Taste/Odor, Sediment/Dirt/Rust

Diameter

2-1/2"

End Cap Type

Double Open Ended (DOE)

Filter Type

Coconut Shell Granular Activated Carbon (GAC)

Flow Rate

1 GPM

Media Type

Coconut Shell Granular Activated Carbon (GAC)

Origin

China

Product Length

9-3/4"

Warranty & Certifications

Certifications

NSF/ANSI 42



GAC-10 cartridges effectively reduce unwanted tastes and odor and also chlorine taste and odor from your drinking water. A common complaint of all types of Granular Activated Carbon (GAC) filters is pressure drop (typically 5-7 psid @1 gpm), reduced flow and water forming channels thru the GAC media which results in less contact time and absorption.

For superior performance we recommend carbon block filters vs Granular Activated Carbon (GAC) filters. For example, the MATRIKX + CTO®/2 filters flow in a radial (outside-to-inside) direction, providing increased dirt-holding capacity and lower pressure drop (2psid @ 1 GPM for a standard 9-3/4" x 2.5" OD filter). Unlike GAC filters, carbon block cartridges will not channel or bypass due to the extreme uniformity of their extruded activated carbon core. Service life of block carbon filters is greatly extended by a prefiltration medium.

Features:
  • Coconut shell granular activated carbon media
  • Effective bad taste and odor and also chlorine taste and odor reduction
  • Designed for maximum absorption
  • Post-filter to reduce carbon fines
  • Manufactured entirely from FDA-compliant materials making them an ideal choice for a wide range of residential, food service, commercial and industrial applications.
Note: CTO = Chlorine Taste and Odor


Compatible with:
American PlumberWCC, 155155-51
AXEON Membranes200668
Flexeon200668
Flow PurGAC10N, #8
Hague®200195
HydronixUDF-10
Instapure® / WaterPik®IR-10A, IR-10E, IR-10X, IF-10, IF-10A, IF-100, IF-100A, IF-200B, K-50
Kenmore155109-07, 34365
MarloS-7010P, A2112014
PurwaterGAC10, 55528-03
VertexCF-4008
WhirlpoolWHCF-GAC

Weight & Dimensions

Approx Length (Inches)

9-3/4" (24.8 cm)

Case Quantity

25

Length (inches)

9-3/4"

Weight (lbs)

1.5

Details

Capacity

2,500 Gallons, 6-12 Months

Gaskets

Buna-N

Initial Pressure Drop

7 PSI Differential

Max Pressure (Psi)

125

Max Temp (°F)

125 °F

Micron Rating (Nominal)

20 µm

Min Pressure (Psi)

20

Min Temp (°F)

40 °F

Cap Material

Polypropylene

Cartridge Style

Drop-in

Change Frequency

2,500 Gallons, 6-12 Months

Contaminants Reduced

Chlorine/Taste/Odor, Sediment/Dirt/Rust

Diameter

2-1/2"

End Cap Type

Double Open Ended (DOE)

Filter Type

Coconut Shell Granular Activated Carbon (GAC)

Flow Rate

1 GPM

Media Type

Coconut Shell Granular Activated Carbon (GAC)

Origin

China

Product Length

9-3/4"

Warranty & Certifications

Certifications

NSF/ANSI 42
