Fresh Water Systems

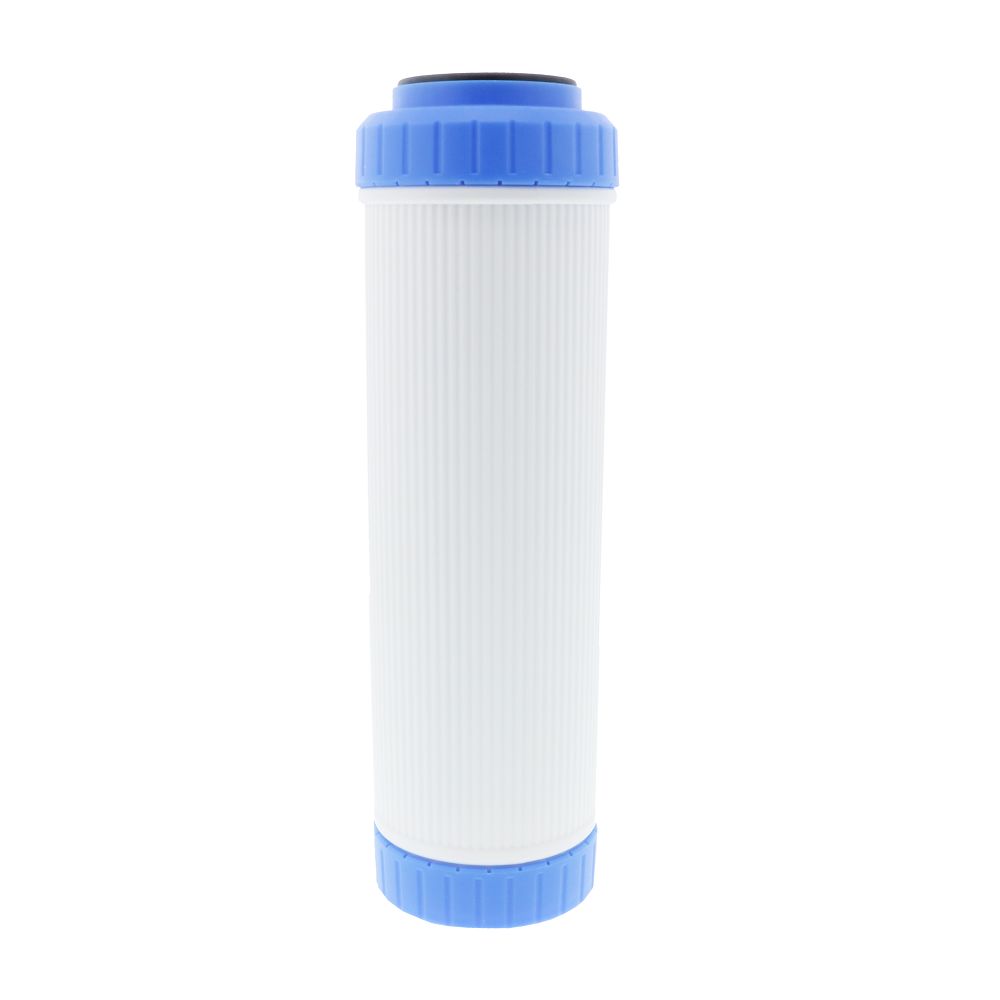

9-3/4" GAC-10 Coconut Shell GAC Filter

Part Number: GAC-10

Alt. Part Number: 155109-43, UDF-10, IF-UDF010/3, IR-10A

In Stock

out of stock

In Stock

$8.39 Regular price


GAC-10 cartridges effectively reduce unwanted tastes and odor and also chlorine taste and odor from your drinking water. A common complaint of all types of Granular Activated Carbon (GAC) filters is pressure drop (typically 5-7 psid @1 gpm), reduced flow and water forming channels thru the GAC media which results in less contact time and absorption.
For superior performance we recommend carbon block filters vs Granular Activated Carbon (GAC) filters. For example, the MATRIKX + CTO®/2 filters flow in a radial (outside-to-inside) direction, providing increased dirt-holding capacity and lower pressure drop (2psid @ 1 GPM for a standard 9-3/4" x 2.5" OD filter).  Unlike GAC filters, carbon block cartridges will not channel or bypass due to the extreme uniformity of their extruded activated carbon core. Service life of block carbon filters is greatly extended by a prefiltration medium.
Features:
  • Coconut shell granular activated carbon media
  • Effective bad taste and odor and also chlorine taste and odor reduction
  • Designed for maximum absorption
  • Post-filter to reduce carbon fines
  • Manufactured entirely from FDA-compliant materials making them an ideal choice for a wide range of residential, food service, commercial and industrial applications.
 Note: CTO = Chlorine Taste and Odor

Compatible with: American Plumber | WCC, 155155-51, AXEON Membranes | 200668, Flexeon | 200668, Flow Pur | GAC10N, #8, Hague® | 200195, Hydronix | UDF-10, Instapure® / WaterPik® | IR-10A, IR-10E, IR-10X, IF-10, IF-10A, IF-100, IF-100A, IF-200B, K-50, Kenmore | 155109-07, 34365, Marlo | S-7010P, A2112014, Purwater | GAC10, 55528-03, Vertex | CF-4008, Whirlpool | WHCF-GAC


Weight & Dimensions

Approx Length (Inches)

9-3/4" (24.8 cm)

Details

Cap Material

Polypropylene

Capacity

2500 Gallons; 6 to 12 Months

Cartridge Style

Drop-In

Case Quantity

25

End Cap Type

DOE

Filter Application

Chlorine/Taste/Odor

Flow Rate

1 Gallons Per Minute

Gaskets

Buna-N

Initial Pressure Drop

7 PSI Differential

Media Type

Coconut Shell GAC

Micron Rating (Nominal)

20 Micron

Operating Pressure Range

20 125 PSI

Operating Temperature Range

40-125 Degrees Fahrenheit

Origin

China

Outer Diameter

2.5"

Warranty & Certifications

Certifications

NSF 42




GAC-10 cartridges effectively reduce unwanted tastes and odor and also chlorine taste and odor from your drinking water. A common complaint of all types of Granular Activated Carbon (GAC) filters is pressure drop (typically 5-7 psid @1 gpm), reduced flow and water forming channels thru the GAC media which results in less contact time and absorption.
For superior performance we recommend carbon block filters vs Granular Activated Carbon (GAC) filters. For example, the MATRIKX + CTO®/2 filters flow in a radial (outside-to-inside) direction, providing increased dirt-holding capacity and lower pressure drop (2psid @ 1 GPM for a standard 9-3/4" x 2.5" OD filter).  Unlike GAC filters, carbon block cartridges will not channel or bypass due to the extreme uniformity of their extruded activated carbon core. Service life of block carbon filters is greatly extended by a prefiltration medium.
Features:
  • Coconut shell granular activated carbon media
  • Effective bad taste and odor and also chlorine taste and odor reduction
  • Designed for maximum absorption
  • Post-filter to reduce carbon fines
  • Manufactured entirely from FDA-compliant materials making them an ideal choice for a wide range of residential, food service, commercial and industrial applications.
 Note: CTO = Chlorine Taste and Odor

Compatible with: American Plumber | WCC, 155155-51, AXEON Membranes | 200668, Flexeon | 200668, Flow Pur | GAC10N, #8, Hague® | 200195, Hydronix | UDF-10, Instapure® / WaterPik® | IR-10A, IR-10E, IR-10X, IF-10, IF-10A, IF-100, IF-100A, IF-200B, K-50, Kenmore | 155109-07, 34365, Marlo | S-7010P, A2112014, Purwater | GAC10, 55528-03, Vertex | CF-4008, Whirlpool | WHCF-GAC

Weight & Dimensions

Approx Length (Inches)

9-3/4" (24.8 cm)

Details

Cap Material

Polypropylene

Capacity

2500 Gallons; 6 to 12 Months

Cartridge Style

Drop-In

Case Quantity

25

End Cap Type

DOE

Filter Application

Chlorine/Taste/Odor

Flow Rate

1 Gallons Per Minute

Gaskets

Buna-N

Initial Pressure Drop

7 PSI Differential

Media Type

Coconut Shell GAC

Micron Rating (Nominal)

20 Micron

Operating Pressure Range

20 125 PSI

Operating Temperature Range

40-125 Degrees Fahrenheit

Origin

China

Outer Diameter

2.5"

Warranty & Certifications

Certifications

NSF 42
