Parker LIQUIfit Bulkhead Union - 3/8 x 3/8

Part Number: 6316-60-00WP2

1 5

Parker

Parker LIQUIfit Bulkhead Union - 3/8 x 3/8

Part Number: 6316-60-00WP2

MSRP: $12.98

$4.18

Quantity

Unit Price

Price

Savings

$4.18

—

100

$3.96

$396.72

Product variants

You May Also Need

Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Parker's liquifit fittings ensure reliable and compact connections for liquid transfer applications. Liquifit offers an "eco-designed" innovative alternative for water applications; no fluid contamination occurs and environmental protection is guaranteed..

Specifications:

Engineered Hi-Performance Nylon
High chemical resistance
EPDM O-ring
FDA Approved material
NSF Standard 51 & 61 Certified
Temperature rated up to 200º F
Suitable for potable liquids and food applications
Both ends unscrew
Gaskets (to create seal): YES

3/8" x 3/8" Bulkhead Unions
John Guest	DM fit	Parker LIQUIfit
PI1212S	ABU0606	6316-60-00WP2

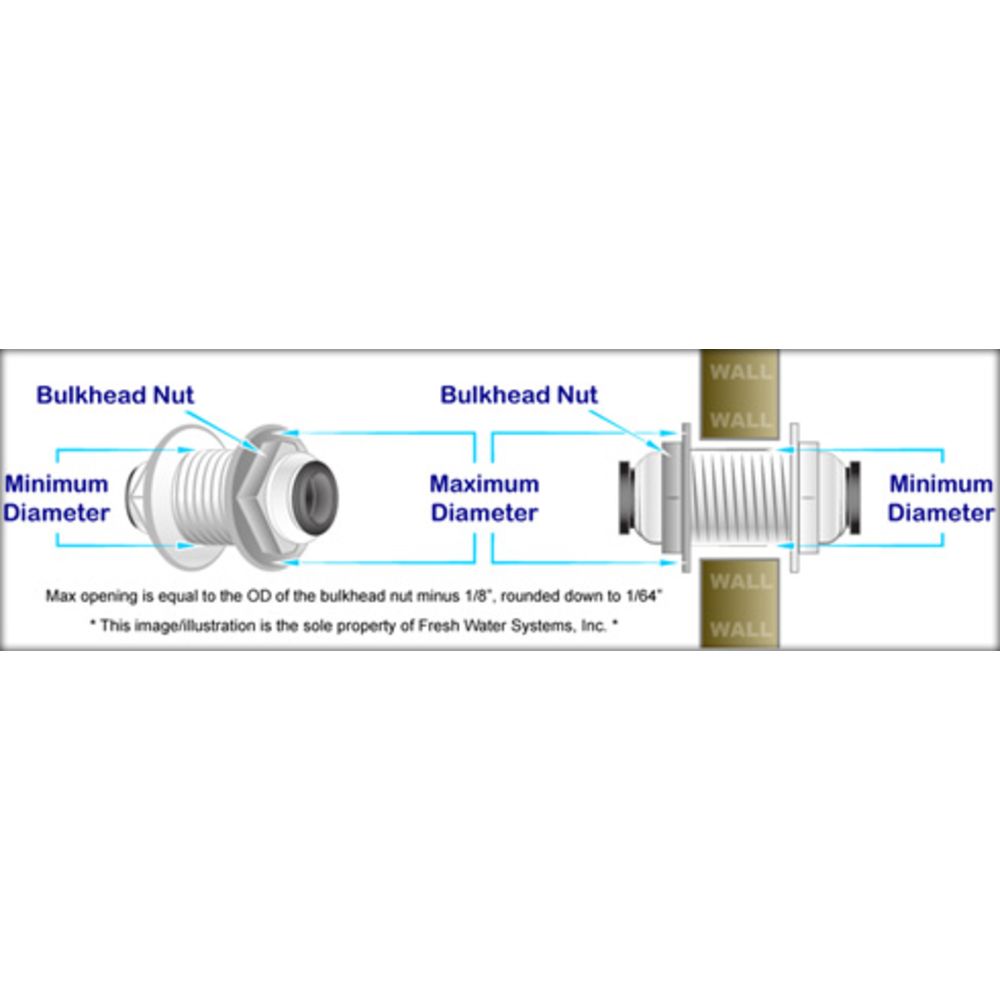

Min - Max Hole Size	Min - Max Hole Size	Min - Max Hole Size
13/16" to 61/64"	51/64" to 15/16"	45/64" to 53/64"

Specifications

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	200°F
Min Temp (°F)	35°F
Push-In Size	3/8" OD
Series	LIQUIFit
Shape	Straight
Color / Finish	White
Origin	Mexico
Sub-Type	Union Bulkhead
Type	Bulkhead
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	1.5 in.
Shipping Width	0.75 in.
Shipping Height	0.75 in.
Product Weight & Dimensions
Product Height	0.75 in.
Product Length	1.5 in.
Product Width	0.75 in.
Product Weight (lbs)	0.1

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	200°F
Min Temp (°F)	35°F
Push-In Size	3/8" OD
Series	LIQUIFit
Shape	Straight
Color / Finish	White
Origin	Mexico
Sub-Type	Union Bulkhead
Type	Bulkhead
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	2.15

Downloads

Parker LIQUIfit Bulkhead Union - 3/8 x 3/8 Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products
Facet	Parker Parker LIQUIfit Bulkhead Union - 3/8 x 3/8 Regular price From $4.18 Part #: 6316-60-00WP2 Save up to 5% with bulk pricing Current Product	NeoFit NeoFit - Acetal Natural White Bulkhead Connector 3/8" tube Regular price From $3.54 Part #: ABU66-W Save up to 14% with bulk pricing View details	John Guest John Guest Bulkhead Union - 3/8 x 3/8 4.8 Regular price From $4.43 Part #: PI1212S Save up to 12% with bulk pricing View details
Price
Price	Regular price From $4.18	Regular price From $3.54	Regular price From $4.43
Part #
Part #	6316-60-00WP2	ABU66-W	PI1212S
Description
Description	Parker's liquifit fittings ensure reliable and compact connections for liquid transfer applications. Liquifit offers an "eco-designed" innovative alternative for water applications; no fluid contamination occurs...	The bulkhead union is used to connect OD tubing through a cabinet wall or bulkhead. Manufactured in acetal, these plugs are suitable for food, beverage,...	The John Guest Group of Companies is a manufacturer of push-in fittings, pipe and plastic plumbing systems to a wide variety of industries and applications...
