Parker LIQUIfit Bulkhead Union - 1/2 x 1/2

Part Number: 6316-62-00WP2

1 4

Parker

Parker LIQUIfit Bulkhead Union - 1/2 x 1/2

Part Number: 6316-62-00WP2

MSRP: $16.92

$5.23

Quantity

Unit Price

Price

Savings

$5.23

—

$4.96

$248.38

Product variants

You May Also Need

Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Features:

Engineered Hi-Performance Nylon
High chemical resistance
EPDM O-ring
FDA Approved material
NSF Standard 51 & 61 Certified
Temperature rated up to 200º F
Suitable for potable liquids and food applications
Both ends unscrew
Gaskets (to create seal): YES

1/2" x1/2" Bulkhead Unions
John Guest	DM fit	Parker LIQUIfit
PI1216S	ABU0707	6316-62-00WP2

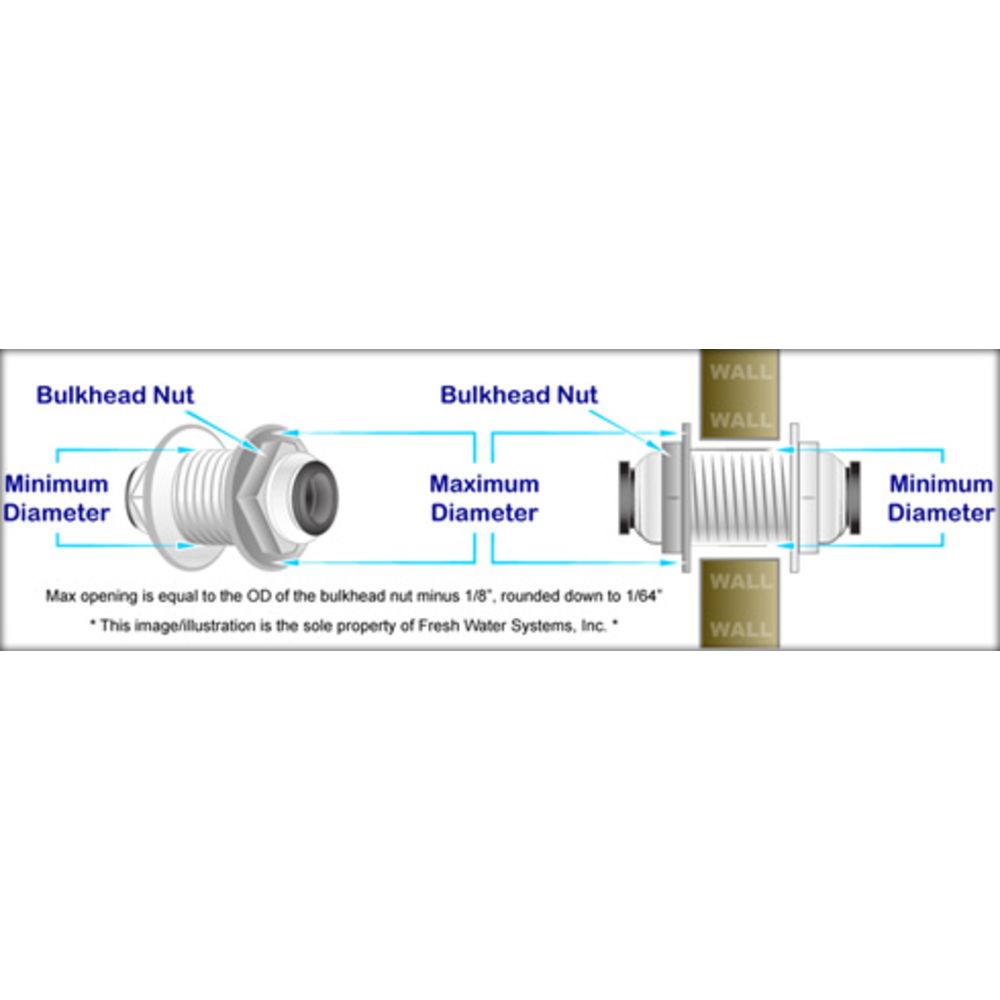

Min - Max Hole Size	Min - Max Hole Size	Min - Max Hole Size
1-1/64" to 1-13/64"	1-3/64" to 1-23/64"	1" to 1-7/32"

Specifications

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	200°F
Min Temp (°F)	35°F
Push-In Size	1/2" OD
Series	LIQUIFit
Shape	Straight
Color / Finish	White
Origin	Mexico
Sub-Type	Union Bulkhead
Type	Bulkhead
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	2.25 in.
Shipping Width	1.5 in.
Shipping Height	1.5 in.
Product Weight & Dimensions
Product Height	1.5 in.
Product Length	2.25 in.
Product Width	1.5 in.
Product Weight (lbs)	0.1

Product Details
Max Pressure (Psi)	230
Max Temp (°F)	200°F
Min Temp (°F)	35°F
Push-In Size	1/2" OD
Series	LIQUIFit
Shape	Straight
Color / Finish	White
Origin	Mexico
Sub-Type	Union Bulkhead
Type	Bulkhead
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	1.5

Downloads

Parker LIQUIfit Bulkhead Union - 1/2 x 1/2 Manual
