AXEON Water

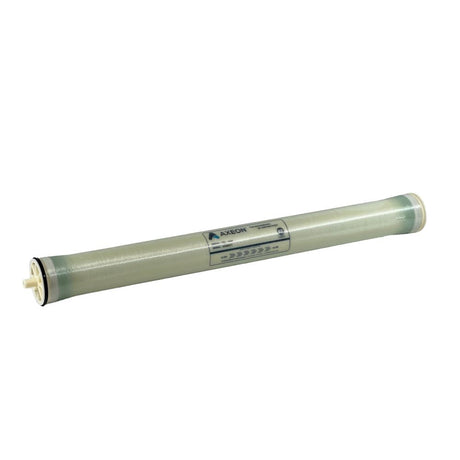

AXEON HR3-4040 2200 GPD RO Membrane Element

Part Number: 200373

In Stock

out of stock

In Stock

$234.50

The AXEON HR3-4040 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The HR3-4040 RO membrane elements are available in all standard commercial sizes, feature a protective ABS shell, and are 100% vacuum integrity tested. The polyamide thin-film used in the AXEON HR3 Series membranes is manufactured by a major US membrane film manufacturer.

Specifications:
  • Permeate Flow Rate: 2200 gallons per day
  • Membrane Type: Polyamide Thin-Film
  • Applied Pressure: 225 psi
  • Dimensions: 4" x 40"
  • Minimum Concentrate Flow Rate: 5:1
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Tap Water, Brackish Water
  • Formerly known as RO UltraTec HR3-4040



Compatible with:
3M Water Filtration66-18424
Coster Engineering625-001-634
Desal MembranesAG4040TF, 1206774, AG4040FF, 1206761
Filmtec MembranesTW30-4040, BW30-4040
WattsW-4040-TW, W-4040-BW

Weight & Dimensions

Length (inches)

41.5

Height (inches)

4.5

Width (inches)

4.5

Weight (lbs)

7.2

Details

Max Temp (°F)

113

Max Pressure (Psi)

600

Diameter

3.95"

Flow Rate

2200 GPD

Inner/Outer Wraps

ABS

Material Of Construction

Polyamide Thin-Film

Average Nacl Rejection

0.99

Chlorine Tolerance

0 ppm

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

225 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

30 PSI Differential

Permeate Tube Diameter

3/4"

Ph Range

2-11

Max Feed Water Turbidity

1 Nephelometric Turbidity Units


AXEON




The AXEON HR3-4040 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The HR3-4040 RO membrane elements are available in all standard commercial sizes, feature a protective ABS shell, and are 100% vacuum integrity tested. The polyamide thin-film used in the AXEON HR3 Series membranes is manufactured by a major US membrane film manufacturer.

Specifications:
  • Permeate Flow Rate: 2200 gallons per day
  • Membrane Type: Polyamide Thin-Film
  • Applied Pressure: 225 psi
  • Dimensions: 4" x 40"
  • Minimum Concentrate Flow Rate: 5:1
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Tap Water, Brackish Water
  • Formerly known as RO UltraTec HR3-4040



Compatible with:
3M Water Filtration66-18424
Coster Engineering625-001-634
Desal MembranesAG4040TF, 1206774, AG4040FF, 1206761
Filmtec MembranesTW30-4040, BW30-4040
WattsW-4040-TW, W-4040-BW

Weight & Dimensions

Length (inches)

41.5

Height (inches)

4.5

Width (inches)

4.5

Weight (lbs)

7.2

Details

Max Temp (°F)

113

Max Pressure (Psi)

600

Diameter

3.95"

Flow Rate

2200 GPD

Inner/Outer Wraps

ABS

Material Of Construction

Polyamide Thin-Film

Average Nacl Rejection

0.99

Chlorine Tolerance

0 ppm

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

225 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

30 PSI Differential

Permeate Tube Diameter

3/4"

Ph Range

2-11

Max Feed Water Turbidity

1 Nephelometric Turbidity Units
