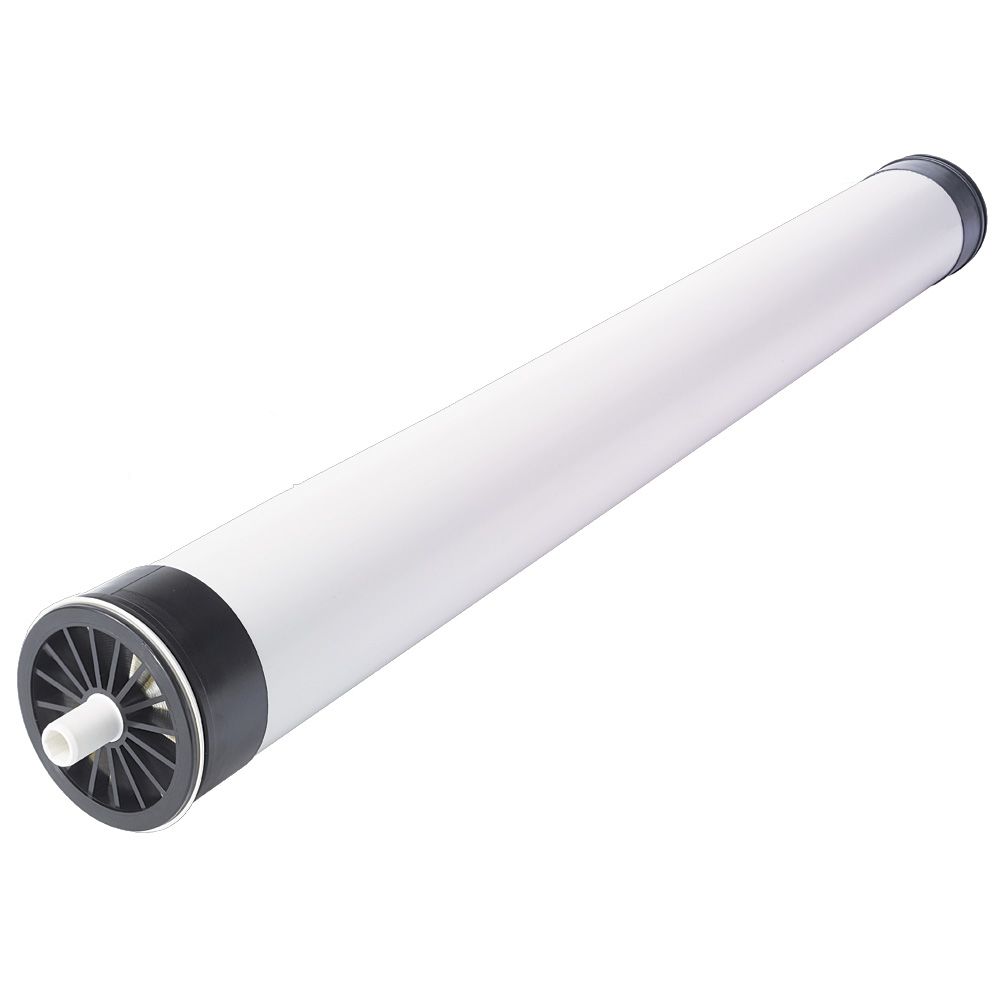

AXEON HR3-4040 2200 GPD RO Membrane Element

Part Number: 200373

In Stock

out of stock

In Stock

$234.50


AXEON HR3-4040 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements.  The HR3-4040 RO membrane elements are available in all standard commercial sizes, feature a protective ABS shell, and are 100% vacuum integrity tested.  The polyamide thin-film used in the AXEON HR3 Series membranes is manufactured by a major US membrane film manufacturer.

Specifications:
  • Permeate Flow Rate: 2200 gallons per day
  • Membrane Type: Polyamide Thin-Film
  • Applied Pressure: 225 psi
  • Dimensions: 4" x 40"
  • Minimum Concentrate Flow Rate: 5:1
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Tap Water, Brackish Water
  • Formerly known as RO UltraTec HR3-4040

Compatible with: 3M Water Filtration | 66-18424, Coster Engineering | 625-001-634, Desal Membranes | AG4040TF, 1206774, AG4040FF, 1206761, Filmtec Membranes | TW30-4040, BW30-4040, Watts | W-4040-TW, W-4040-BW


Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Diameter

3.95 Inches

Flow Rate

2200 Gallons per day

Inner/Outer Wraps

ABS

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Average Nacl Rejection

99 Percent

Chlorine Tolerance

0 Parts per Million

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

225 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

30 PSI Differential

Permeate Tube Diameter

0.75 Inches

Ph Range

2-11

Min Flow Rate

5:1

Max Feed Water Turbidity

1 Nephelometric Turbidity Units


AXEON





AXEON HR3-4040 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements.  The HR3-4040 RO membrane elements are available in all standard commercial sizes, feature a protective ABS shell, and are 100% vacuum integrity tested.  The polyamide thin-film used in the AXEON HR3 Series membranes is manufactured by a major US membrane film manufacturer.

Specifications:
  • Permeate Flow Rate: 2200 gallons per day
  • Membrane Type: Polyamide Thin-Film
  • Applied Pressure: 225 psi
  • Dimensions: 4" x 40"
  • Minimum Concentrate Flow Rate: 5:1
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Tap Water, Brackish Water
  • Formerly known as RO UltraTec HR3-4040

Compatible with: 3M Water Filtration | 66-18424, Coster Engineering | 625-001-634, Desal Membranes | AG4040TF, 1206774, AG4040FF, 1206761, Filmtec Membranes | TW30-4040, BW30-4040, Watts | W-4040-TW, W-4040-BW

Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Diameter

3.95 Inches

Flow Rate

2200 Gallons per day

Inner/Outer Wraps

ABS

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Average Nacl Rejection

99 Percent

Chlorine Tolerance

0 Parts per Million

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

225 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

30 PSI Differential

Permeate Tube Diameter

0.75 Inches

Ph Range

2-11

Min Flow Rate

5:1

Max Feed Water Turbidity

1 Nephelometric Turbidity Units
