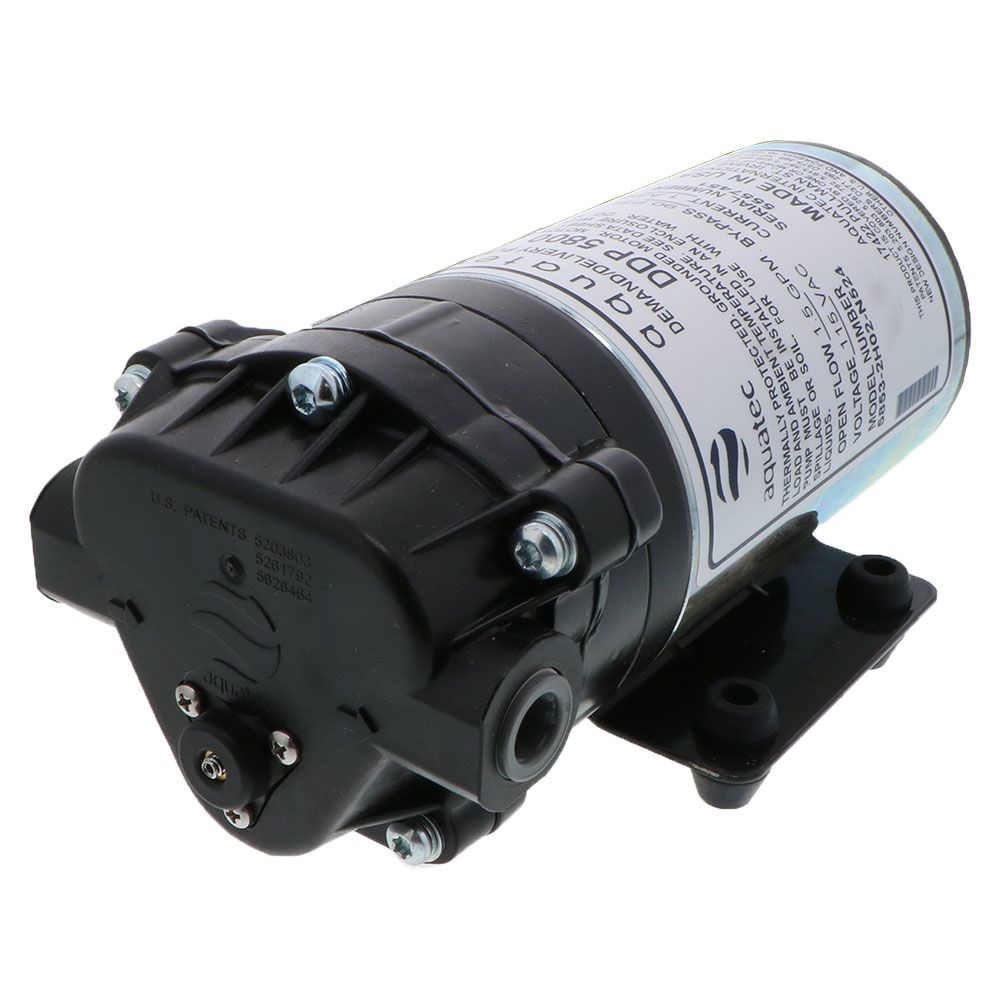

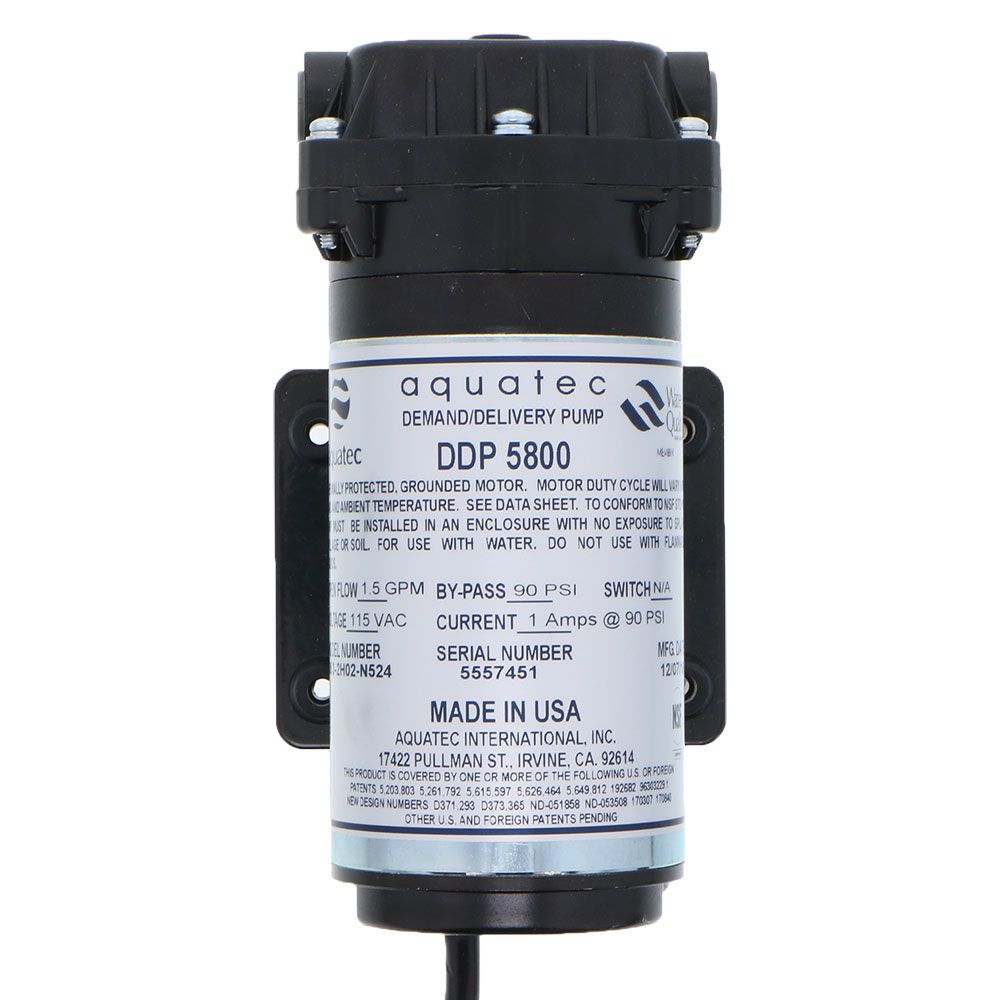

Aquatec 5853-2H02-N524 Pump 1.5 GPM, 3/8"JG, 115V

5.0

(1 reviews)

Part Number: 5853-2H02-N524

1 3

Aquatec

Aquatec 5853-2H02-N524 Pump 1.5 GPM, 3/8"JG, 115V

5.0

(1 reviews)

Part Number: 5853-2H02-N524

MSRP: $144.05

$125.47

Quantity

Unit Price

Price

Savings

$125.47

—

$119.19

$1,430.36

$123.38

$246.76

$121.28

$727.73

Product variants

You May Also Need

Optional Accessory
Inline T-Strainer 1/2" HB x 1/2" HB with 50 Mesh SS Filter Screen

Regular price From $19.99
Optional Accessory
50 Mesh Stainless Steel High Flow In-Line Strainer, Clear Twist-Off Bowl, w/ 1/2" FNPT Ports

Regular price From $19.64

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurizing it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

Features:

3-chamber construction
Closed impervious diaphragm
Asymmetrical manifold
Integral switch or bypass
Highest structural integrity
Seven point clamping
Engineered composite plastics
Corrosion resistant metal
Multiple porting options

Benefits:

Adjustable switch and bypass settings
Self-priming, auto-purging
Near silent operation at lower flows
Highly efficient
Minimal pulsations
7 year design life
Runs dry without damage

Specifications

Product Details
Amps	0.87 Amps
Diaphragm Materials	Santoprene
Housing Material	Nylon
Liquid Temperature	170 °F
Power Source	6' three-prong plug
Pump Max Flow Rate (Gpm)	1.5
Pump Max Pressure (Psi)	90
Push-In Size	3/8" OD
Series	5800
Voltage Type	AC
Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	115VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4
Product Length	8.75
Product Width	4
Product Weight (lbs)	6.1

Product Details
Amps	0.87 Amps
Diaphragm Materials	Santoprene
Housing Material	Nylon
Liquid Temperature	170 °F
Power Source	6' three-prong plug
Pump Max Flow Rate (Gpm)	1.5
Pump Max Pressure (Psi)	90
Push-In Size	3/8" OD
Series	5800
Voltage Type	AC
Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	115VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	24.5 in.
Shipping Width	17.5 in.
Shipping Height	9.25 in.
Product Weight & Dimensions
Product Height	8.75
Product Length	24.5
Product Width	8.75
Product Weight (lbs)	6.1

Product Details
Amps	0.87 Amps
Diaphragm Materials	Santoprene
Housing Material	Nylon
Liquid Temperature	170 °F
Power Source	6' three-prong plug
Pump Max Flow Rate (Gpm)	1.5
Pump Max Pressure (Psi)	90
Push-In Size	3/8" OD
Series	5800
Voltage Type	AC
Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	115VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	8 in.
Product Weight & Dimensions
Product Weight (lbs)	12.35

Product Details
Amps	0.87 Amps
Diaphragm Materials	Santoprene
Housing Material	Nylon
Liquid Temperature	170 °F
Power Source	6' three-prong plug
Pump Max Flow Rate (Gpm)	1.5
Pump Max Pressure (Psi)	90
Push-In Size	3/8" OD
Series	5800
Voltage Type	AC
Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	115VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Product Weight & Dimensions
Product Weight (lbs)	36
