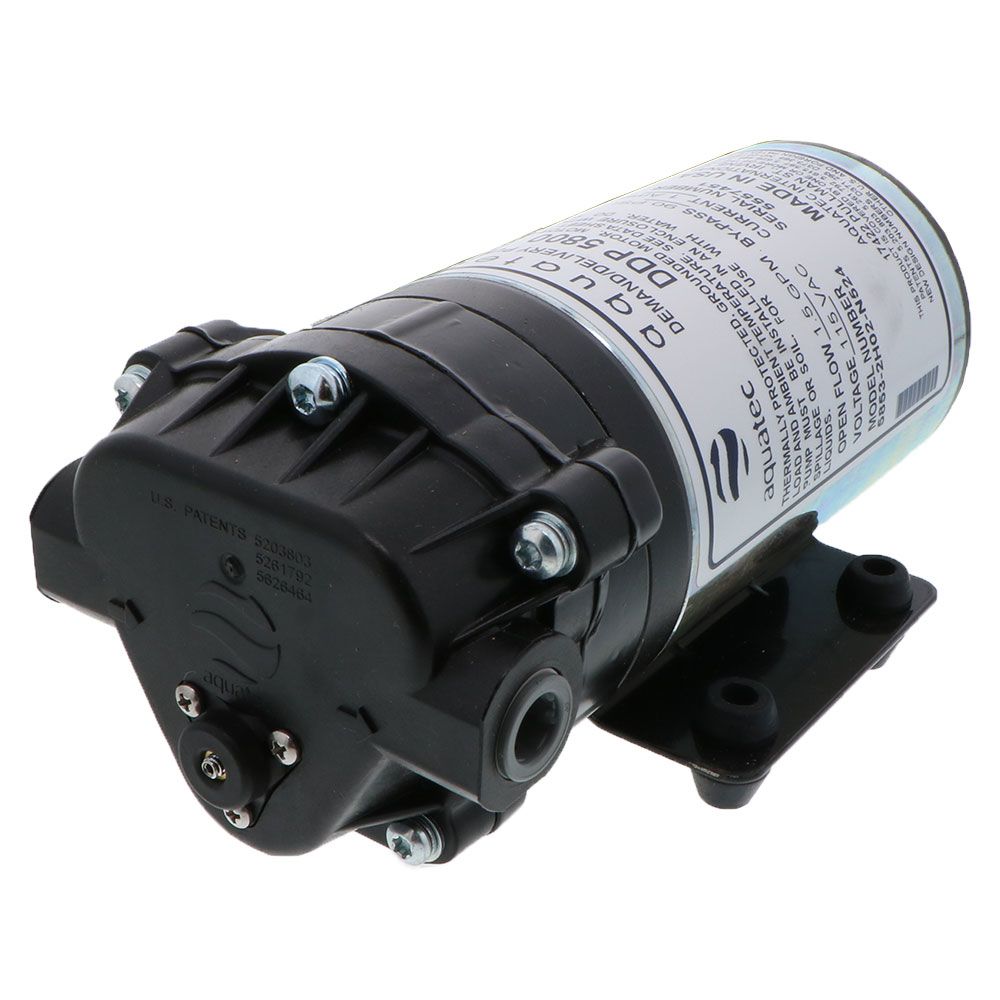

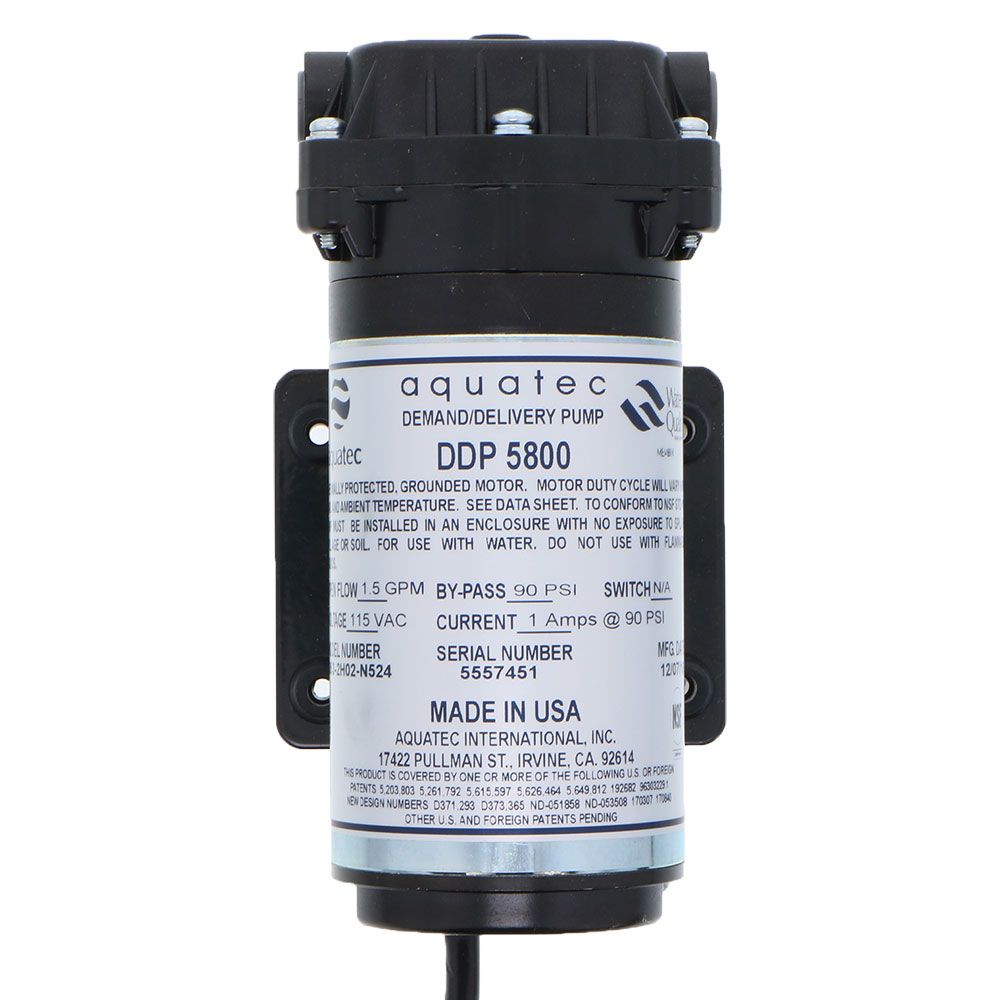

The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurizing it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.
Features:
Features:
- 3-chamber construction
- Closed impervious diaphragm
- Asymmetrical manifold
- Integral switch or bypass
- Highest structural integrity
- Seven point clamping
- Engineered composite plastics
- Corrosion resistant metal
- Multiple porting options
- Adjustable switch and bypass settings
- Self-priming, auto-purging
- Near silent operation at lower flows
- Highly efficient
- Minimal pulsations
- 7 year design life
- Runs dry without damage
Weight & Dimensions
Length (inches) | 9 |
Height (inches) | 5 |
Width (inches) | 6 |
Weight (lbs) | 5.6875 |
Details
Series | 5800 |
Max Pressure (Psi) | 90 |
Push-In Size | 3/8" OD |
Bypass Valve Material | EDPM |
Amps | 0.87 Amps |
Diaphragm Materials | Santoprene |
Flow Rate | 1.5 GPM |
Frequency | 60 Hz |
Housing Material | Nylon |
Liquid Temperature | 170 °F |
Voltage | 115VAC |
Power Source | 6' three-prong plug |
Self-Priming (Water) | 9.3' |
Wire Option | Bare Wire |
Warranty & Certifications
Certifications | NSF 58 |
