OASIS® PROSELECT INSTALLATION DIAGRAM
























































1. Filter or RO System (sold separately

7. “ T ” Fitting

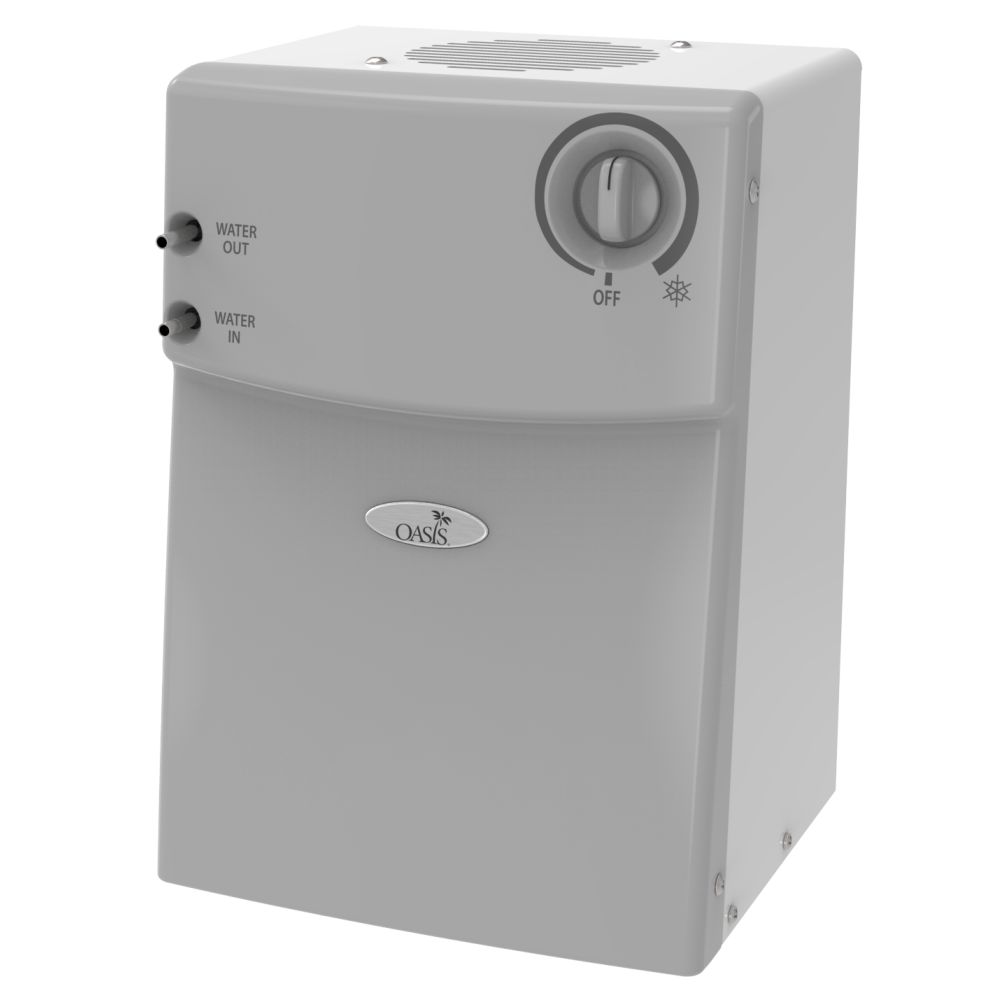

2. ProSelect Chiller

8. Pressure Regulator – FMP60psi (sold separately)

3. Faucet (sold separately)

9. Inlet Tube to Chiller

4. Cold Water Supply Line

10. Outlet Tube from Chiller

5. Feed Supply Adapter (sold separately)

11. Check Valve Located 6” from Chiller Outlet “ T “ Fitting (functions as expansion chamber)

6. Feed Supply Tube

12. ¼” Tube Connecting Check Valve Outlet to Feed Supply Tube “ T “ Fitting
