Flexcon Industries

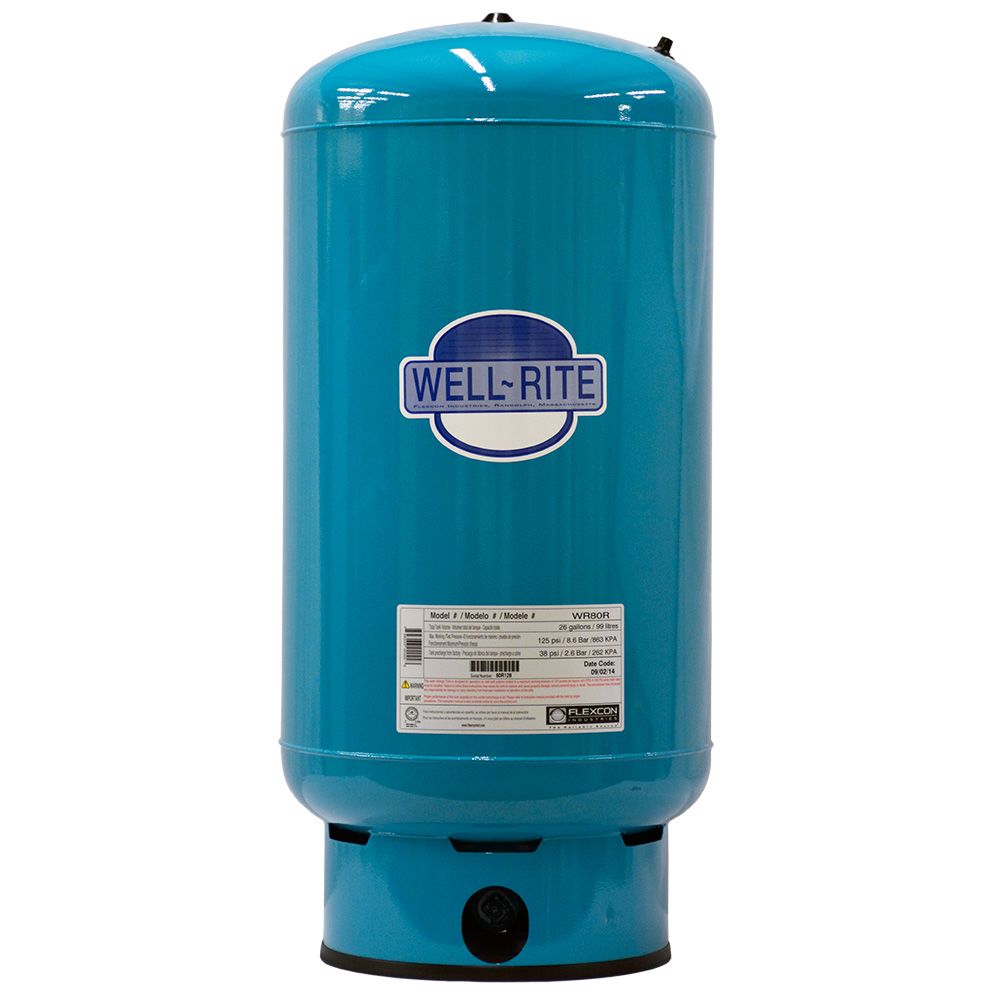

Well-Rite WR-80 Well Pressure Tank 26 gallon Steel

Part Number: WR-80

Alt. Part Number: WR-80R

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Amtrol Well-X-Trol WX-202 Well Pressure Tank 20 gal as a substitute.


The Well-Rite WR-80 Well Pressure Tank is a diaphragm type pre-charged hydro-pneumatic tank designed for residential and commercial water well, pressure booster, irrigation and reverse osmosis systems. The unique design of the WR-60 well water storage tank prevents tank corrosion and reduces wear and tear on your well pump.

Features:
  • Stainless steel system connection
  • Brass Air Valve with o-ring seal
  • Controlled Action Diaphragm maximizes drawdown
  • Heavy duty butyl diaphragm
  • Appliance quality urethane paint for indoor or outdoor installation
  • Drawdown at 30/50 Setting: 8.9 gallons
  • 5 year warranty
  • NSF Standard 61 listed
Well-Rite WR-80 is compatible with the following tanks:
  • Well-X-Trol WX-202XL
  • Goulds V80
  • Flex2Pro WWT-25
  • Champion CH6000
  • A.O. Smith PM-26
  • Flex2Pro H2P-25




Weight & Dimensions

Approx Weight

41 Lbs

Height W/ Stand

34-1/2"

Details

Drawdown Volume

10.5 Gallons @ 20/40 Setting, 8.9 Gallons @ 30/50 Setting, 7.7 Gallons @ 40/60 Setting

Application

RO Water Storage, Pressure Pump Tank

Diameter

16"

Diaphragm Materials

Butyl Rubber

Material Of Construction

Drawn Steel w/ Epoxy Finish

Max Operating Pressure

125 PSI

Max Operating Temperature

140 °F

Origin

USA

Size

1"

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre Charge

38 PSI

Volume

26 Gallons

Inlet/Outlet Connection

1" FPT

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

5 years




The Well-Rite WR-80 Well Pressure Tank is a diaphragm type pre-charged hydro-pneumatic tank designed for residential and commercial water well, pressure booster, irrigation and reverse osmosis systems. The unique design of the WR-60 well water storage tank prevents tank corrosion and reduces wear and tear on your well pump.

Features:
  • Stainless steel system connection
  • Brass Air Valve with o-ring seal
  • Controlled Action Diaphragm maximizes drawdown
  • Heavy duty butyl diaphragm
  • Appliance quality urethane paint for indoor or outdoor installation
  • Drawdown at 30/50 Setting: 8.9 gallons
  • 5 year warranty
  • NSF Standard 61 listed
Well-Rite WR-80 is compatible with the following tanks:
  • Well-X-Trol WX-202XL
  • Goulds V80
  • Flex2Pro WWT-25
  • Champion CH6000
  • A.O. Smith PM-26
  • Flex2Pro H2P-25



NOTE: This item is discontinued. We recommend the Amtrol Well-X-Trol WX-202 Well Pressure Tank 20 gal as a substitute.

Weight & Dimensions

Approx Weight

41 Lbs

Height W/ Stand

34-1/2"

Details

Drawdown Volume

10.5 Gallons @ 20/40 Setting, 8.9 Gallons @ 30/50 Setting, 7.7 Gallons @ 40/60 Setting

Application

RO Water Storage, Pressure Pump Tank

Diameter

16"

Diaphragm Materials

Butyl Rubber

Material Of Construction

Drawn Steel w/ Epoxy Finish

Max Operating Pressure

125 PSI

Max Operating Temperature

140 °F

Origin

USA

Size

1"

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre Charge

38 PSI

Volume

26 Gallons

Inlet/Outlet Connection

1" FPT

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

5 years
