Flexcon Industries

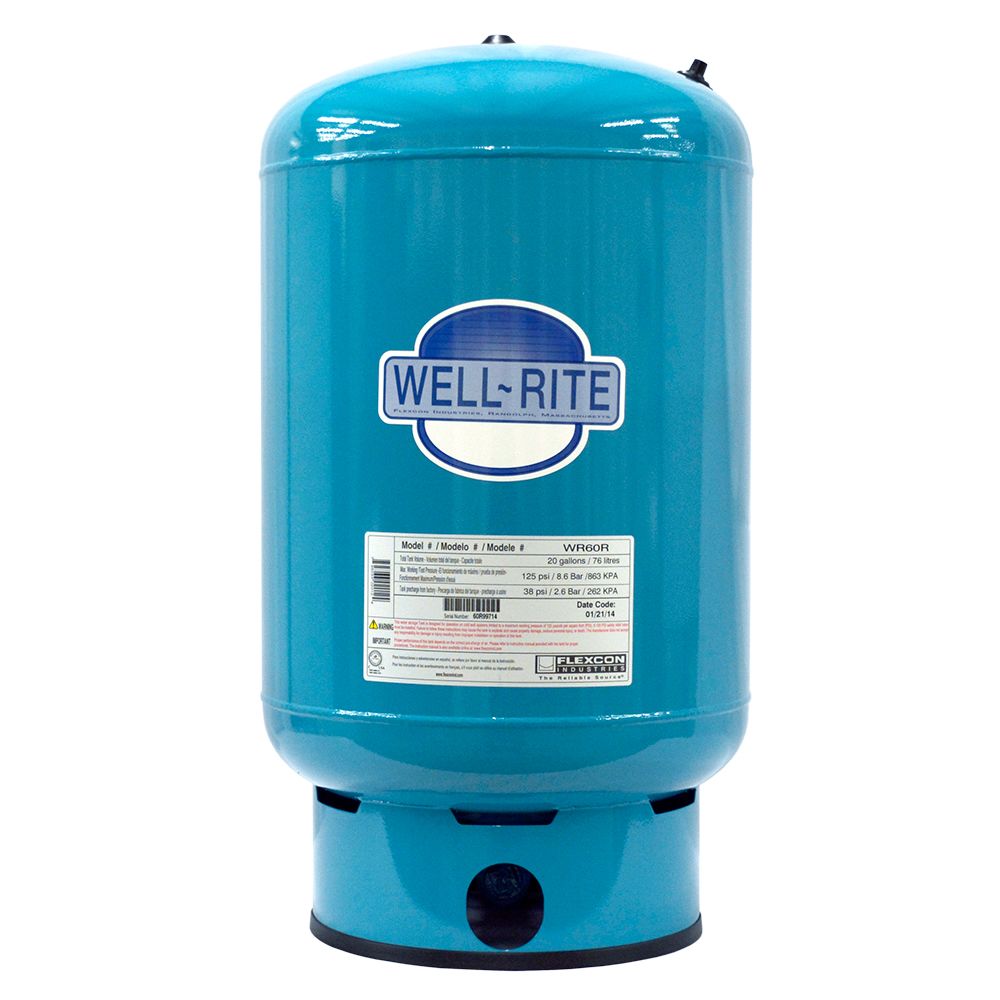

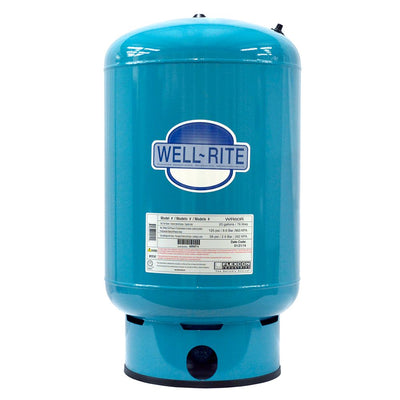

Well-Rite WR-60 Well Pressure Tank 20 gallon Steel

Part Number: WR-60

Alt. Part Number: WR-60R, FWR-60

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Amtrol Well-X-Trol WX-202 Well Pressure Tank 20 gal as a substitute.


The Well-Rite WR-60 Well Pressure Tank is a diaphragm type pre-charged hydro-pneumatic tank designed for residential and commercial water well, pressure booster, irrigation and reverse osmosis systems. The unique design of the WR-60 well water storage tank prevents tank corrosion and reduces wear and tear on your well pump.

Features:
  • Stainless steel system connection
  • Brass Air Valve with o-ring seal
  • Controlled Action Diaphragm maximizes drawdown
  • Heavy duty butyl diaphragm
  • Appliance quality urethane paint for indoor or outdoor installation
  • Drawdown at 30/50 Setting: 6.8 gallons
  • 5 year warranty
  • NSF Standard 61 listed
Well-Rite WR-60 is compatible with the following tanks:
  • Well-X-Trol WX-202
  • Wel-Flo WF60
  • Goulds V60
  • Flex2Pro H2P-20
  • Flex2Pro WWT-20
  • Champion CH4202
  • How 2 Tank V60
  • Pentair PSP42T
  • A.O. Smith SSB-20, PM-20






Weight & Dimensions

Height W/ Stand

29"

Weight (lbs)

45

Details

Air Valve Stem Location

Top

Application

Pressure Pump Tank

Diameter

16"

Diaphragm Materials

Butyl Rubber

Drawdown Volume

8.1 Gallons @ 20/40 Setting; 6.8 Gallons @ 30/50 Setting; 5.9 Gallons @ 40/60 Setting

Inlet/Outlet Connection

1" FPT

Inlet/Outlet Location

Bottom

Material Of Construction

Drawn Steel w/ Epoxy Finish

Max Pressure (Psi)

125

Max Temp (°F)

140

Origin

USA

Size

1"

Tank Pre-Charge

38 PSI

Volume

20 Gallons

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

5 years

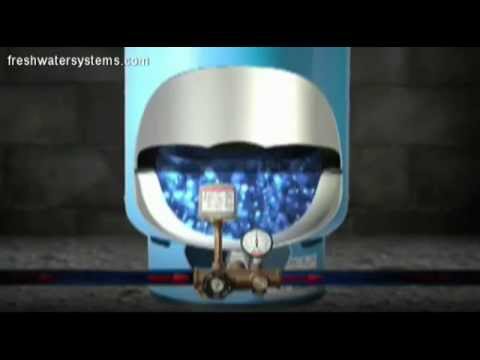

Product Videos



The Well-Rite WR-60 Well Pressure Tank is a diaphragm type pre-charged hydro-pneumatic tank designed for residential and commercial water well, pressure booster, irrigation and reverse osmosis systems. The unique design of the WR-60 well water storage tank prevents tank corrosion and reduces wear and tear on your well pump.

Features:
  • Stainless steel system connection
  • Brass Air Valve with o-ring seal
  • Controlled Action Diaphragm maximizes drawdown
  • Heavy duty butyl diaphragm
  • Appliance quality urethane paint for indoor or outdoor installation
  • Drawdown at 30/50 Setting: 6.8 gallons
  • 5 year warranty
  • NSF Standard 61 listed
Well-Rite WR-60 is compatible with the following tanks:
  • Well-X-Trol WX-202
  • Wel-Flo WF60
  • Goulds V60
  • Flex2Pro H2P-20
  • Flex2Pro WWT-20
  • Champion CH4202
  • How 2 Tank V60
  • Pentair PSP42T
  • A.O. Smith SSB-20, PM-20





NOTE: This item is discontinued. We recommend the Amtrol Well-X-Trol WX-202 Well Pressure Tank 20 gal as a substitute.

Weight & Dimensions

Height W/ Stand

29"

Weight (lbs)

45

Details

Air Valve Stem Location

Top

Application

Pressure Pump Tank

Diameter

16"

Diaphragm Materials

Butyl Rubber

Drawdown Volume

8.1 Gallons @ 20/40 Setting; 6.8 Gallons @ 30/50 Setting; 5.9 Gallons @ 40/60 Setting

Inlet/Outlet Connection

1" FPT

Inlet/Outlet Location

Bottom

Material Of Construction

Drawn Steel w/ Epoxy Finish

Max Pressure (Psi)

125

Max Temp (°F)

140

Origin

USA

Size

1"

Tank Pre-Charge

38 PSI

Volume

20 Gallons

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

5 years
