Flexcon Industries

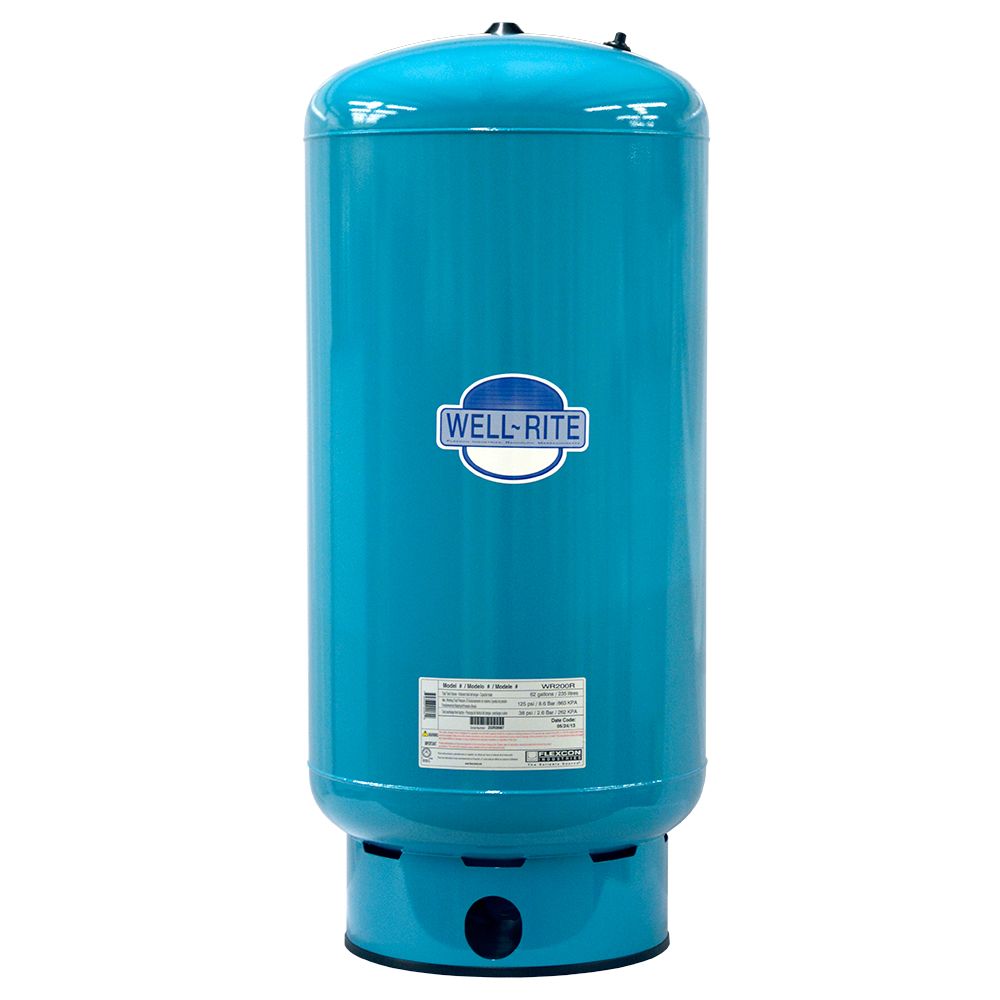

Well-Rite WR-240 Well Pressure Storage Tank Steel 81 Gal

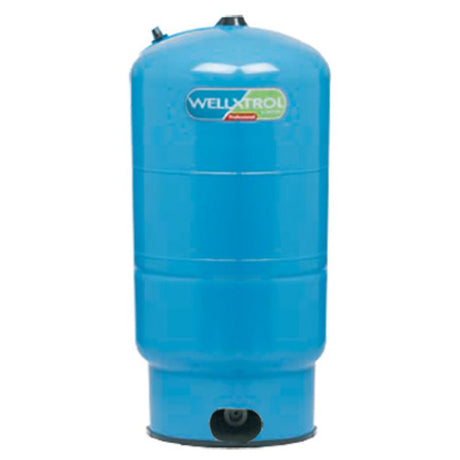

This item is discontinued. We recommend the Amtrol Well-X-Trol WX-255 Well Pressure Tank 81 gal as a substitute.
Features:
- 5 year warranty
- NSF Standard 61 listed
- Heavy duty butyl diaphragm
- Brass Air Valve with o-ring seal
- Stainless steel system connection
- Drawdown 30/50 Setting: 27.6 gallons
- Controlled Action Diaphragm maximizes drawdown
- Appliance quality urethane paint for indoor or outdoor installation
Application:
The Well-Rite WR-240 81 gallon storage tank can be used for reverse osmosis or well pressure tank applications. The stainless steel connection and fully enclosed polypropylene & butyl water reservoir avoids leaching issues. The air pre-charge is factory set at 38 psi for well tank applications and should be reduced to 7 PSI for RO applications.
Reverse Osmosis Tank Maintenance and Accessories:
For optimal performance, it is necessary to keep a pre-charge of approximately 7 psi in your tank. Most automotive tire pressure gauges either do not read below 10 psi, or are not very accurate at pressures this low. 54846 Tank Pressure Gauge reads pressures between 0 and 20 psi, making it perfect for RO tank maintenance.
The RO tank should be sanitized before initial use and during every filter change. The Reverse Osmosis Sanitizing Maintenance Kit features Sani-System, an EPA & NSF certified sanitizer, making it a great alternative to using chlorine bleach. The kit also includes a syringe for application of the sanitizer.
Weight & Dimensions
Height W/ Stand | 62" |
Weight (lbs) | 158 |
Details
Air Valve Stem Location | Top |
Application | RO Water Storage, Pressure Pump Tank |
Diaphragm Materials | Butyl Rubber |
Drawdown Volume | 32.6 Gallons @ 20/40 Setting, 27.6 Gallons @ 30/50 Setting, 23.9 Gallons @ 40/60 Setting |
Inlet/Outlet Connection | 1-1/4" FPT |
Inlet/Outlet Location | Bottom |
Material Of Construction | Drawn Steel w/ Epoxy Finish |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 140 |
Size | 1-1/4" |
Tank Pre-Charge | 38 PSI |
Volume | 81 Gallons |
Connection Type | Female (FPT) |
Diameter | 21" |
Origin | USA |
Warranty & Certifications
Certifications | NSF Certified to Standard 61 |
Warranty | 5 years |
Product Videos

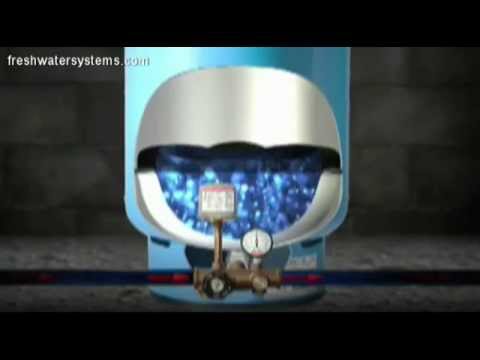

The Well-Rite WR-240 Well Pressure Tank is a diaphragm type pre-charged hydro-pneumatic tank designed for residential and commercial water well, pressure booster, irrigation and reverse osmosis systems. The unique design of the WR-140 well water storage tank prevents tank corrosion and reduces wear and tear on your well pump.
Features:
- 5 year warranty
- NSF Standard 61 listed
- Heavy duty butyl diaphragm
- Brass Air Valve with o-ring seal
- Stainless steel system connection
- Drawdown 30/50 Setting: 27.6 gallons
- Controlled Action Diaphragm maximizes drawdown
- Appliance quality urethane paint for indoor or outdoor installation
Application:
The Well-Rite WR-240 81 gallon storage tank can be used for reverse osmosis or well pressure tank applications. The stainless steel connection and fully enclosed polypropylene & butyl water reservoir avoids leaching issues. The air pre-charge is factory set at 38 psi for well tank applications and should be reduced to 7 PSI for RO applications.
Reverse Osmosis Tank Maintenance and Accessories:
For optimal performance, it is necessary to keep a pre-charge of approximately 7 psi in your tank. Most automotive tire pressure gauges either do not read below 10 psi, or are not very accurate at pressures this low. 54846 Tank Pressure Gauge reads pressures between 0 and 20 psi, making it perfect for RO tank maintenance.
The RO tank should be sanitized before initial use and during every filter change. The Reverse Osmosis Sanitizing Maintenance Kit features Sani-System, an EPA & NSF certified sanitizer, making it a great alternative to using chlorine bleach. The kit also includes a syringe for application of the sanitizer.
NOTE: This item is discontinued. We recommend the Amtrol Well-X-Trol WX-255 Well Pressure Tank 81 gal as a substitute.
Weight & Dimensions
Height W/ Stand | 62" |
Weight (lbs) | 158 |
Details
Air Valve Stem Location | Top |
Application | RO Water Storage, Pressure Pump Tank |
Diaphragm Materials | Butyl Rubber |
Drawdown Volume | 32.6 Gallons @ 20/40 Setting, 27.6 Gallons @ 30/50 Setting, 23.9 Gallons @ 40/60 Setting |
Inlet/Outlet Connection | 1-1/4" FPT |
Inlet/Outlet Location | Bottom |
Material Of Construction | Drawn Steel w/ Epoxy Finish |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 140 |
Size | 1-1/4" |
Tank Pre-Charge | 38 PSI |
Volume | 81 Gallons |
Connection Type | Female (FPT) |
Diameter | 21" |
Origin | USA |
Warranty & Certifications
Certifications | NSF Certified to Standard 61 |
Warranty | 5 years |
Documentation
