Amtrol

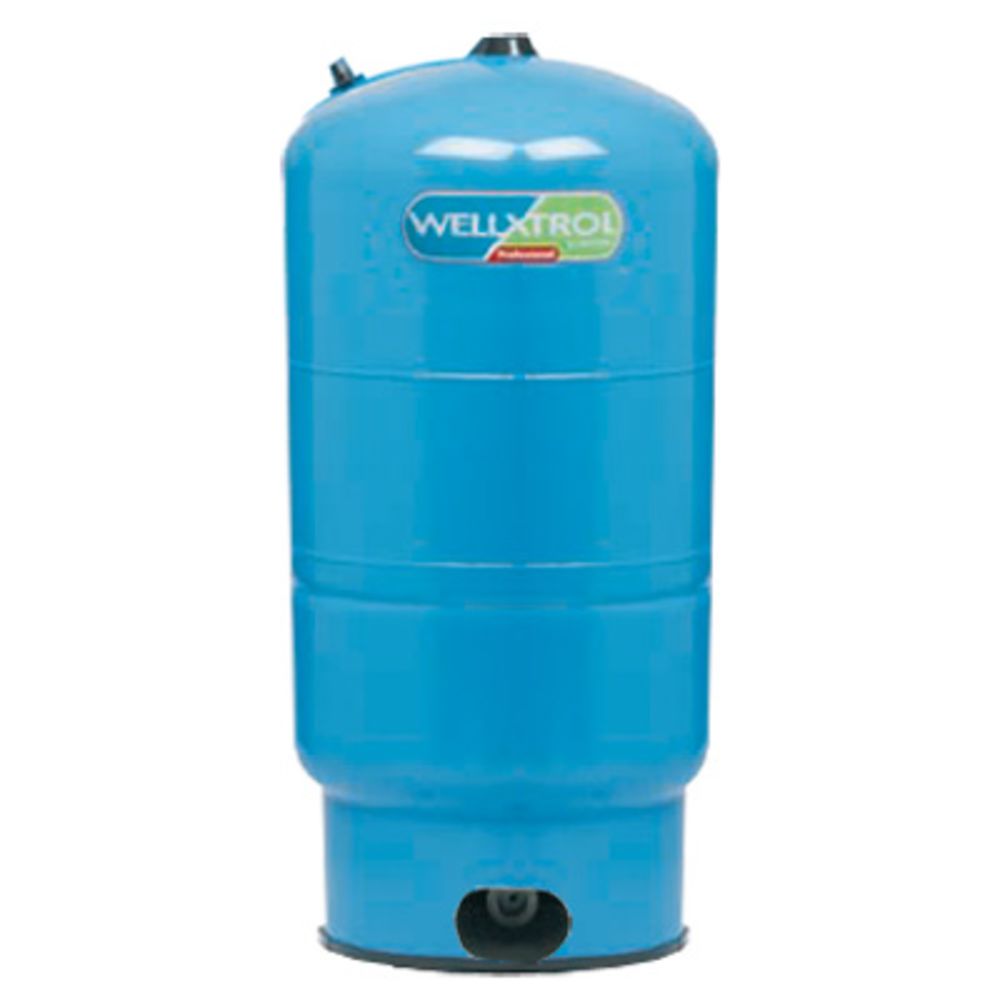

Amtrol Well-X-Trol WX-255 Well Pressure Tank 81 gal

Part Number: WX-255

Alt. Part Number: 149S147, WR-240

In Stock

out of stock

In Stock

$746.21


The Well-X-Trol WX-255 well tank delivers unparalleled performance and longevity, making them the most recognized brand on the market. With its sealed air charge and unique water chamber design, Well-X-Trol is the choice of professionals. WX-255 now comes standard with Tuf-Kote indoor/outdoor coating technology. This coating allows the well water storage tank to withstand the harshest environments, giving you years of worry-free service.

NSF Standard 61 Listed. The Well-X-Trol WX-255 well tank features a heavy duty butyl diaphragm and a virgin polypropylene liner which ensure the potable water never makes contact with metal objects.
Stainless Steel Connections. The Well-X-Trol WX-255 well tank uses stainless steel at the air stem, and inlet/outlet connection points.
7 Year Manufacturer Warranty. The Well-X-Trol WX-255 well tank has one of the best warranties in the industry. Amtrol well tanks are expected to work in the harshest environments and their warranty is there to back up their claim.
Well-X-Trol WX-255 Well Pressure Tank Drawdown Settings
  • Drawdown 20/40 Setting: 32.6 gallons
  • Drawdown 30/50 Setting: 27.5 gallons
  • Drawdown 40/60 Setting: 23.8 gallons

Compatible with: Metal Well Tanks | Well-Rite WR-240


Weight & Dimensions

Approx Weight

103 Lbs

Height W/ Stand

56-3/8 Inches

Details

Drawdown Volume

32.6 Gallons @ 20/40 Setting, 27.5 Gallons @ 30/50 Setting, 23.8 Gallons @ 40/60 Setting

Application

Pressure Pump Tank

Diameter

22 Inches

Diaphragm Materials

Butyl Rubber

Inlet/Outlet Size

1 1/4" NPTF Stainless Steel

Material Of Construction

Steel

Max Operating Pressure

150 PSI

Max Operating Temperature

200 Degrees Fahrenheit

Origin

USA

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre Charge

38 PSI

Volume

81 Gallons

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

7 year


Amtrol

Amtrol
