Flexcon Industries

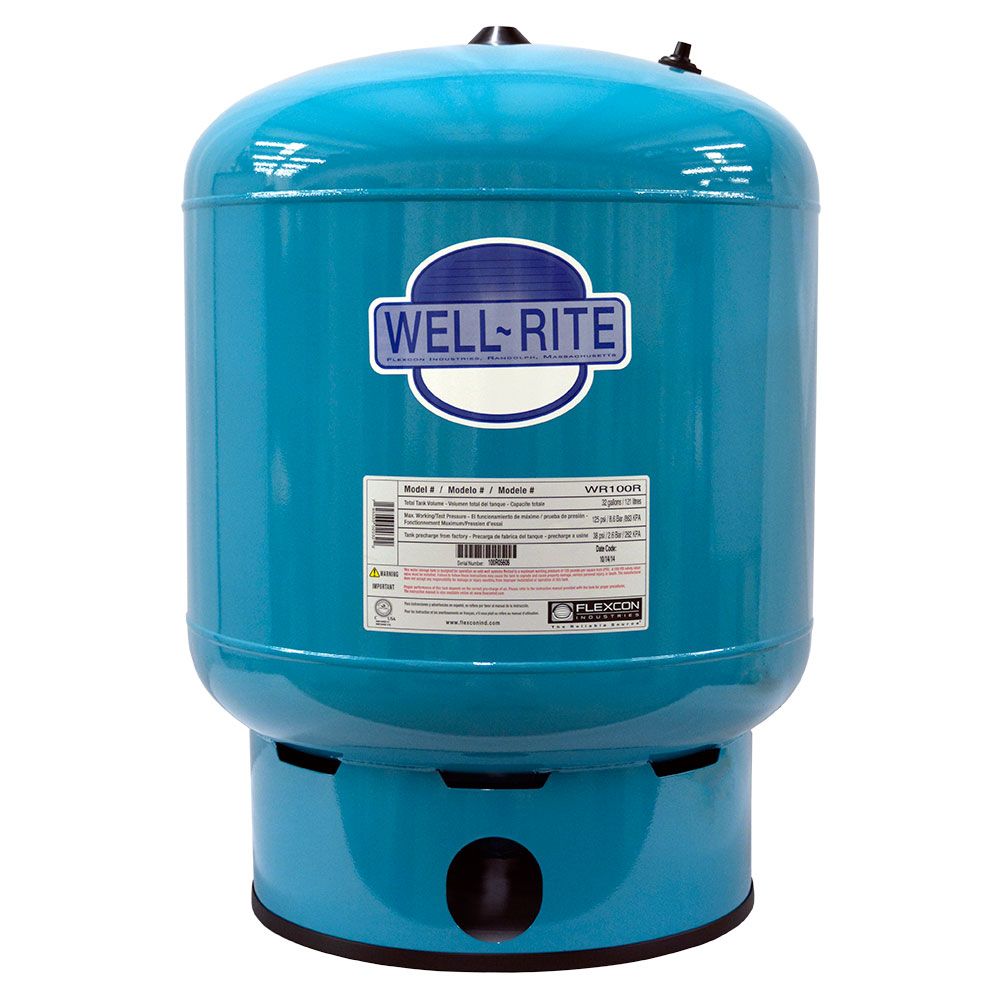

Well-Rite WR-140 Well Pressure Tank 44 Gallon Steel

Part Number: WR-140

Alt. Part Number: WR-140R, FWR-140

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Amtrol Well-X-Trol WX-250 Well Pressure Tank 44 gal as a substitute.


The Well-Rite WR-140 Well Pressure Tank is a diaphragm type pre-charged hydro-pneumatic tank designed for residential and commercial water well, pressure booster, irrigation and reverse osmosis systems. The unique design of the WR-140 well water storage tank prevents tank corrosion and reduces wear and tear on your well pump.

Features:
  • Stainless steel system connection
  • Brass Air Valve with o-ring seal
  • Controlled Action Diaphragm maximizes drawdown
  • Heavy duty butyl diaphragm
  • Appliance quality urethane paint for indoor or outdoor installation
  • Drawdown 30/50 Setting: 15 gallons
  • 5 year warranty
  • NSF Standard 61 listed

Well-Rite WR-140 is compatible with the following tanks:
  • Well-X-Trol WX-250
  • Wel-Flo WF140
  • Goulds V140
  • Sta-Rite PSP120-T5O
  • Sta-Rite PSP50-T50
  • Sta-Rite PS50-T50
  • Champion CH10050
  • How 2 Tank HT44
  • A.O. Smith SSB-52, PM45
  • Flex2Pro H2P-45
  • Flex2Pro WWT-45
The Well-Rite WR-140 44 gallon storage tank can be used for reverse osmosis or well pressure tank applications. The stainless steel connection and fully enclosed polypropylene & butyl water reservoir avoids leaching issues. The air pre-charge is factory set at 38 psi for well tank applications and should be reduced to 7 PSI for RO applications.






Weight & Dimensions

Weight (lbs)

98

Height W/ Stand

36-1/4"

Details

Max Temp (°F)

140

Max Pressure (Psi)

125

Drawdown Volume

17.7 Gallons @ 20/40 Setting, 15 Gallons @ 30/50 Setting, 13 Gallons @ 40/60 Setting

Application

RO Water Storage, Pressure Pump Tank

Diameter

21"

Diaphragm Materials

Butyl Rubber

Material Of Construction

Drawn Steel w/ Epoxy Finish

Origin

USA

Size

1-1/4"

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre-Charge

38 PSI

Volume

44 Gallons

Inlet/Outlet Connection

1-1/4" FPT

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

5 years




The Well-Rite WR-140 Well Pressure Tank is a diaphragm type pre-charged hydro-pneumatic tank designed for residential and commercial water well, pressure booster, irrigation and reverse osmosis systems. The unique design of the WR-140 well water storage tank prevents tank corrosion and reduces wear and tear on your well pump.

Features:
  • Stainless steel system connection
  • Brass Air Valve with o-ring seal
  • Controlled Action Diaphragm maximizes drawdown
  • Heavy duty butyl diaphragm
  • Appliance quality urethane paint for indoor or outdoor installation
  • Drawdown 30/50 Setting: 15 gallons
  • 5 year warranty
  • NSF Standard 61 listed

Well-Rite WR-140 is compatible with the following tanks:
  • Well-X-Trol WX-250
  • Wel-Flo WF140
  • Goulds V140
  • Sta-Rite PSP120-T5O
  • Sta-Rite PSP50-T50
  • Sta-Rite PS50-T50
  • Champion CH10050
  • How 2 Tank HT44
  • A.O. Smith SSB-52, PM45
  • Flex2Pro H2P-45
  • Flex2Pro WWT-45
The Well-Rite WR-140 44 gallon storage tank can be used for reverse osmosis or well pressure tank applications. The stainless steel connection and fully enclosed polypropylene & butyl water reservoir avoids leaching issues. The air pre-charge is factory set at 38 psi for well tank applications and should be reduced to 7 PSI for RO applications.





NOTE: This item is discontinued. We recommend the Amtrol Well-X-Trol WX-250 Well Pressure Tank 44 gal as a substitute.

Weight & Dimensions

Weight (lbs)

98

Height W/ Stand

36-1/4"

Details

Max Temp (°F)

140

Max Pressure (Psi)

125

Drawdown Volume

17.7 Gallons @ 20/40 Setting, 15 Gallons @ 30/50 Setting, 13 Gallons @ 40/60 Setting

Application

RO Water Storage, Pressure Pump Tank

Diameter

21"

Diaphragm Materials

Butyl Rubber

Material Of Construction

Drawn Steel w/ Epoxy Finish

Origin

USA

Size

1-1/4"

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre-Charge

38 PSI

Volume

44 Gallons

Inlet/Outlet Connection

1-1/4" FPT

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

5 years
