Amtrol

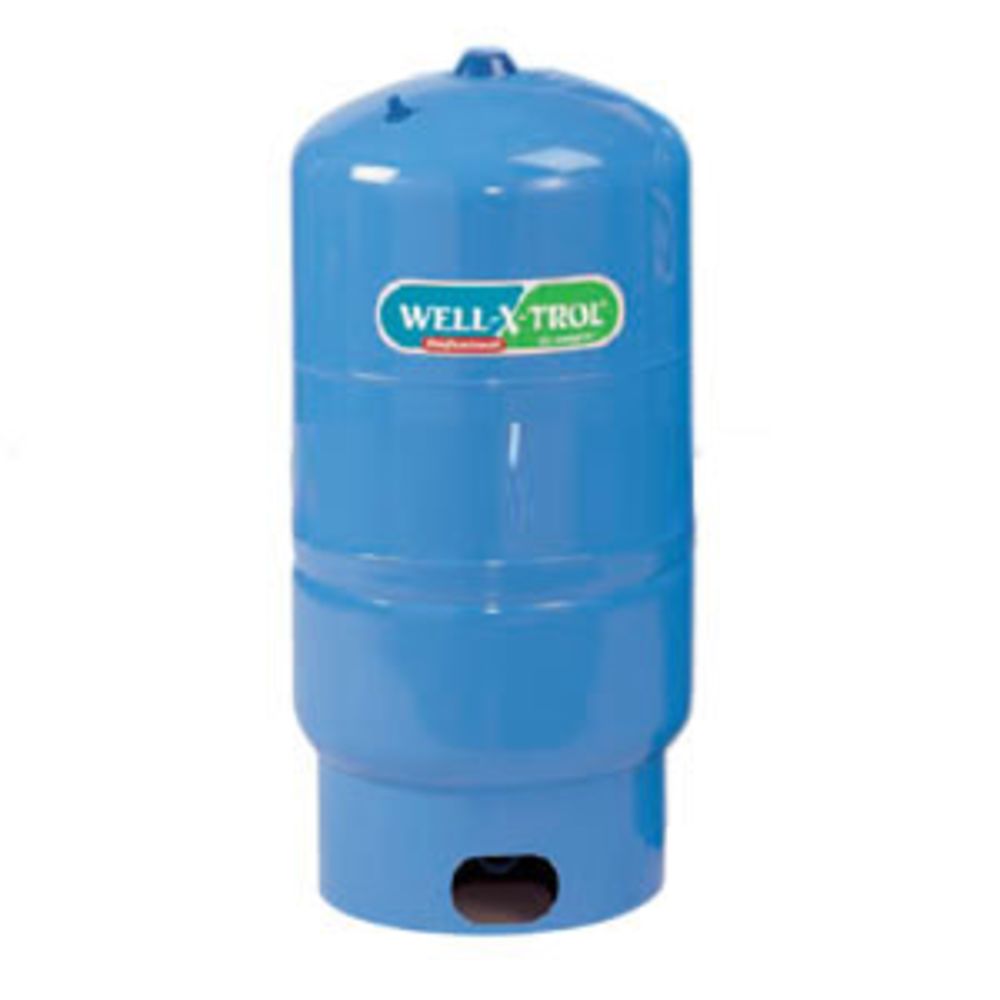

Amtrol Well-X-Trol WX-250 Well Pressure Tank 44 gal

Part Number: WX-250

Alt. Part Number: 145S1, WR-140

In Stock

out of stock

In Stock

$583.43


The Well-X-Trol WX-250 well tank delivers unparalleled performance and longevity, making them the most recognized brand on the market. With its sealed air charge and unique water chamber design, Well-X-Trol is the choice of professionals. WX-250 now comes standard with Tuf-Kote indoor/outdoor coating technology. This coating allows the well water storage tank to withstand the harshest environments, giving you years of worry-free service.

Specifications:
  • Heavy duty butyl diaphragm
  • Stainless steel system connection
  • Stainless steel air stem
  • Virgin polypropylene liner
  • 100% Helium tested
  • Drawdown 20/40 Setting: 17.7 gallons
  • Drawdown 30/50 Setting: 15 gallons
  • Drawdown 40/60 Setting: 12.9 gallons
  • 7 year warranty
  • NSF Standard 61 listed


Weight & Dimensions

Approx Weight

69 Lbs

Height W/ Stand

36 Inches

Details

Drawdown Volume

17.7 Gallons @ 20/40 Setting; 15 Gallons @ 30/50 Setting; 12.9 Gallons @ 40/60 Setting

Application

Pressure Pump Tank

Diameter

22 Inches

Diaphragm Materials

Butyl Rubber

Inlet/Outlet Size

1 1/4" NPTF Stainless Steel

Material Of Construction

Steel

Max Operating Pressure

150 PSI

Max Operating Temperature

200 Degrees Fahrenheit

Origin

USA

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre Charge

38 PSI

Volume

44 Gallons

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

7 years


Amtrol

Amtrol


Product Videos



The Well-X-Trol WX-250 well tank delivers unparalleled performance and longevity, making them the most recognized brand on the market. With its sealed air charge and unique water chamber design, Well-X-Trol is the choice of professionals. WX-250 now comes standard with Tuf-Kote indoor/outdoor coating technology. This coating allows the well water storage tank to withstand the harshest environments, giving you years of worry-free service.

Specifications:
  • Heavy duty butyl diaphragm
  • Stainless steel system connection
  • Stainless steel air stem
  • Virgin polypropylene liner
  • 100% Helium tested
  • Drawdown 20/40 Setting: 17.7 gallons
  • Drawdown 30/50 Setting: 15 gallons
  • Drawdown 40/60 Setting: 12.9 gallons
  • 7 year warranty
  • NSF Standard 61 listed

Weight & Dimensions

Approx Weight

69 Lbs

Height W/ Stand

36 Inches

Details

Drawdown Volume

17.7 Gallons @ 20/40 Setting; 15 Gallons @ 30/50 Setting; 12.9 Gallons @ 40/60 Setting

Application

Pressure Pump Tank

Diameter

22 Inches

Diaphragm Materials

Butyl Rubber

Inlet/Outlet Size

1 1/4" NPTF Stainless Steel

Material Of Construction

Steel

Max Operating Pressure

150 PSI

Max Operating Temperature

200 Degrees Fahrenheit

Origin

USA

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre Charge

38 PSI

Volume

44 Gallons

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

7 years
