Flexcon Industries

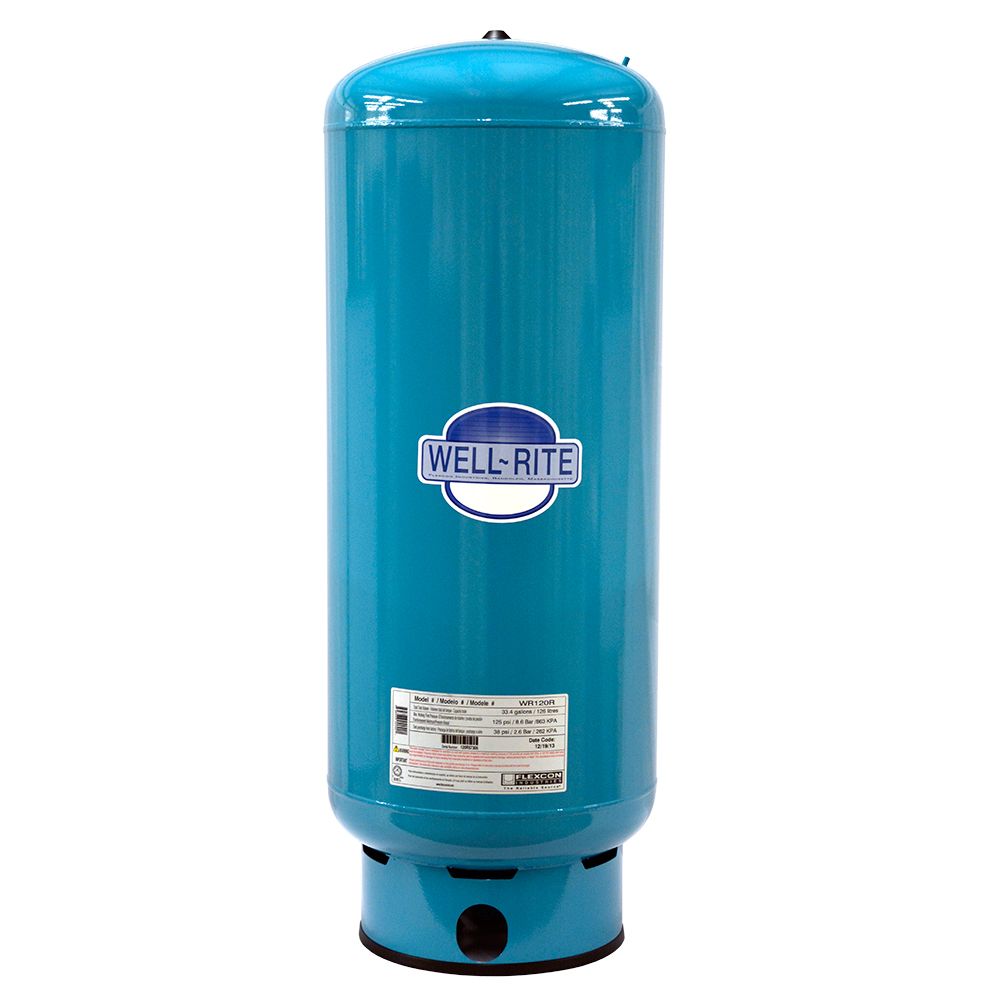

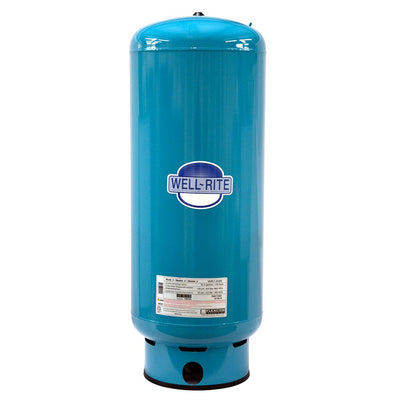

Well-Rite WR-120 Well Pressure Storage Tank Steel 33.4 Gal

Part Number: WR-120

Alt. Part Number: FWR-120, WR-120R

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Amtrol Well-X-Trol WX-203 Well Pressure Tank 32 gal as a substitute.


The Well-Rite WR-120 Well Pressure Tank is a diaphragm type pre-charged hydro-pneumatic tank designed for residential and commercial water well, pressure booster, irrigation and reverse osmosis systems. The unique design of the WR-120 well water storage tank prevents tank corrosion and reduces wear and tear on your well pump.

Features:
  • Stainless steel system connection
  • Brass Air Valve with o-ring seal
  • Controlled Action Diaphragm maximizes drawdown
  • Heavy duty butyl diaphragm
  • Appliance quality urethane paint for indoor or outdoor installation
  • Drawdown 30/50 Setting: 11.3 gallons
  • 5 year warranty
  • NSF Standard 61 listed

Compatible with the following tanks:
  • Well-X-Trol WX-203
  • Wel-Flo WF100
  • Goulds V100
  • Sta-Rite PSP75T-T03
  • Sta-Rite PS32-T05
  • Flex2Pro WWT-35
  • Champion CH800
  • How 2 Tank HT32
  • Sta-Rite PSP32-T05
  • A.O. Smith SSB-32, PM-32
  • Flex2Pro H2P-35


Reverse Osmosis Tank Maintenance and Accessories:

A tank shut-off valve is necessary to connect the tank to your reverse osmosis system and control the flow of water into and out of the tank. The valve is also essential for performing system service or maintenance. If your RO system uses 1/4" OD tubing to connect to the tank, select the LFPP4VFE4 valve. If your system uses 3/8" OD tubing select the PP6VFE4-MG valve.

For optimal performance, it is necessary to keep a pre-charge of approximately 7 psi in your tank. Most automotive tire pressure gauges either do not read below 10 psi, or are not very accurate at pressures this low. 54846 Tank Pressure Gauge reads pressures between 0 and 20 psi, making it perfect for RO tank maintenance.

The RO tank should be sanitized before initial use and during every filter change. The Reverse Osmosis Sanitizing Maintenance Kit features Sani-System, an EPA & NSF certified sanitizer, making it a great alternative to using chlorine bleach. The kit also includes a syringe for application of the sanitizer.


NOTE: The Well-Rite WR-120 33.4 gallon storage tank can be used for reverse osmosis or well pressure tank applications. The stainless steel connection and fully enclosed polypropylene & butyl water reservoir avoids leaching issues. The air pre-charge is factory set at 38 psi for well tank applications and should be reduced to 7 PSI for RO applications.



Weight & Dimensions

Weight (lbs)

65

Height W/ Stand

42-3/4"

Details

Max Temp (°F)

140

Max Pressure (Psi)

125

Drawdown Volume

13.3 Gallons @ 20/40 Setting, 11.3 Gallons @ 30/50 Setting, 9.7 Gallons @ 40/60 Setting

Application

RO Water Storage, Pressure Pump Tank

Diameter

16"

Diaphragm Materials

Butyl Rubber

Material Of Construction

Drawn Steel w/ Epoxy Finish

Origin

USA

Size

1"

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre-Charge

38 PSI

Volume

33.4 Gallons

Inlet/Outlet Connection

1" FPT

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

5 years


Well-Rite

Well-Rite


Product Videos



The Well-Rite WR-120 Well Pressure Tank is a diaphragm type pre-charged hydro-pneumatic tank designed for residential and commercial water well, pressure booster, irrigation and reverse osmosis systems. The unique design of the WR-120 well water storage tank prevents tank corrosion and reduces wear and tear on your well pump.

Features:
  • Stainless steel system connection
  • Brass Air Valve with o-ring seal
  • Controlled Action Diaphragm maximizes drawdown
  • Heavy duty butyl diaphragm
  • Appliance quality urethane paint for indoor or outdoor installation
  • Drawdown 30/50 Setting: 11.3 gallons
  • 5 year warranty
  • NSF Standard 61 listed

Compatible with the following tanks:
  • Well-X-Trol WX-203
  • Wel-Flo WF100
  • Goulds V100
  • Sta-Rite PSP75T-T03
  • Sta-Rite PS32-T05
  • Flex2Pro WWT-35
  • Champion CH800
  • How 2 Tank HT32
  • Sta-Rite PSP32-T05
  • A.O. Smith SSB-32, PM-32
  • Flex2Pro H2P-35


Reverse Osmosis Tank Maintenance and Accessories:

A tank shut-off valve is necessary to connect the tank to your reverse osmosis system and control the flow of water into and out of the tank. The valve is also essential for performing system service or maintenance. If your RO system uses 1/4" OD tubing to connect to the tank, select the LFPP4VFE4 valve. If your system uses 3/8" OD tubing select the PP6VFE4-MG valve.

For optimal performance, it is necessary to keep a pre-charge of approximately 7 psi in your tank. Most automotive tire pressure gauges either do not read below 10 psi, or are not very accurate at pressures this low. 54846 Tank Pressure Gauge reads pressures between 0 and 20 psi, making it perfect for RO tank maintenance.

The RO tank should be sanitized before initial use and during every filter change. The Reverse Osmosis Sanitizing Maintenance Kit features Sani-System, an EPA & NSF certified sanitizer, making it a great alternative to using chlorine bleach. The kit also includes a syringe for application of the sanitizer.


NOTE: The Well-Rite WR-120 33.4 gallon storage tank can be used for reverse osmosis or well pressure tank applications. The stainless steel connection and fully enclosed polypropylene & butyl water reservoir avoids leaching issues. The air pre-charge is factory set at 38 psi for well tank applications and should be reduced to 7 PSI for RO applications.


NOTE: This item is discontinued. We recommend the Amtrol Well-X-Trol WX-203 Well Pressure Tank 32 gal as a substitute.
